Product no. M-2286

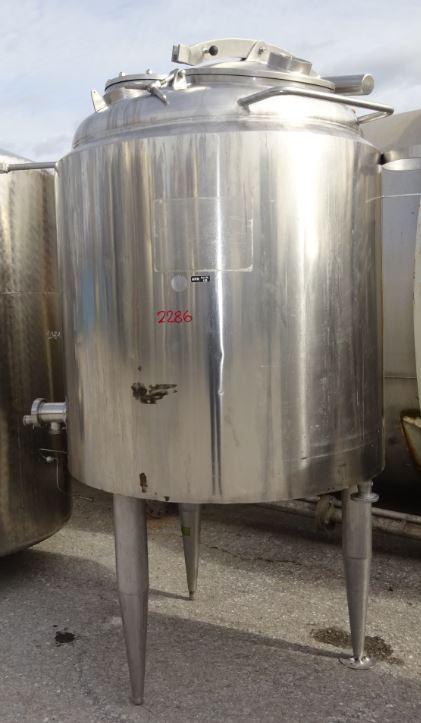

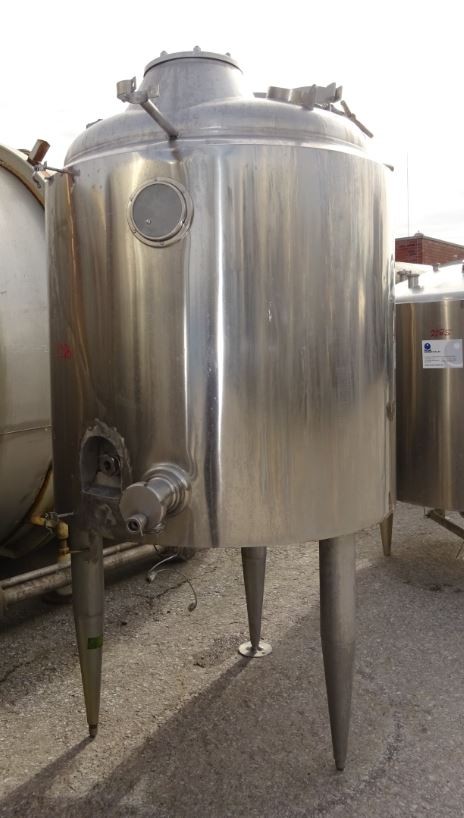

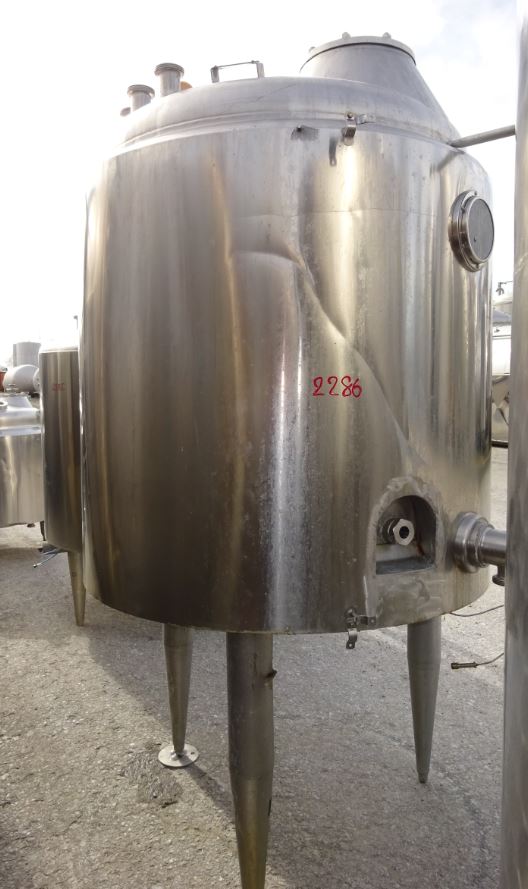

Container 993 liters aus V4a isolated, temperature-controllable, standing
EUR 4.100,00
add. 19 % VAT excl. shipping costs
Volume approx. 993.00 litres
Product description
Container 993 liters aus V4a isolated, temperature-controllable consists of the material 1.4429(AISI316). The volume is approx. 993.00 litres. The diameter inside includes 1,150 mm. Container 993 liters aus V4a isolated, temperature-controllable was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Boiling, Cooling, Tempering, Processes,General
Volume approx.
993,00 litres
Structure
Standing
Year of manufacture
1975
Manufacturer
Diessel
Condition
Used
Dimensions approx.
Internal diameter
1.150 mm
External diameter
1.300 mm
Cyl. height
1.150 mm
Foot height
820 mm
Total height
2.600 mm
Design
Weight approx.
600,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed

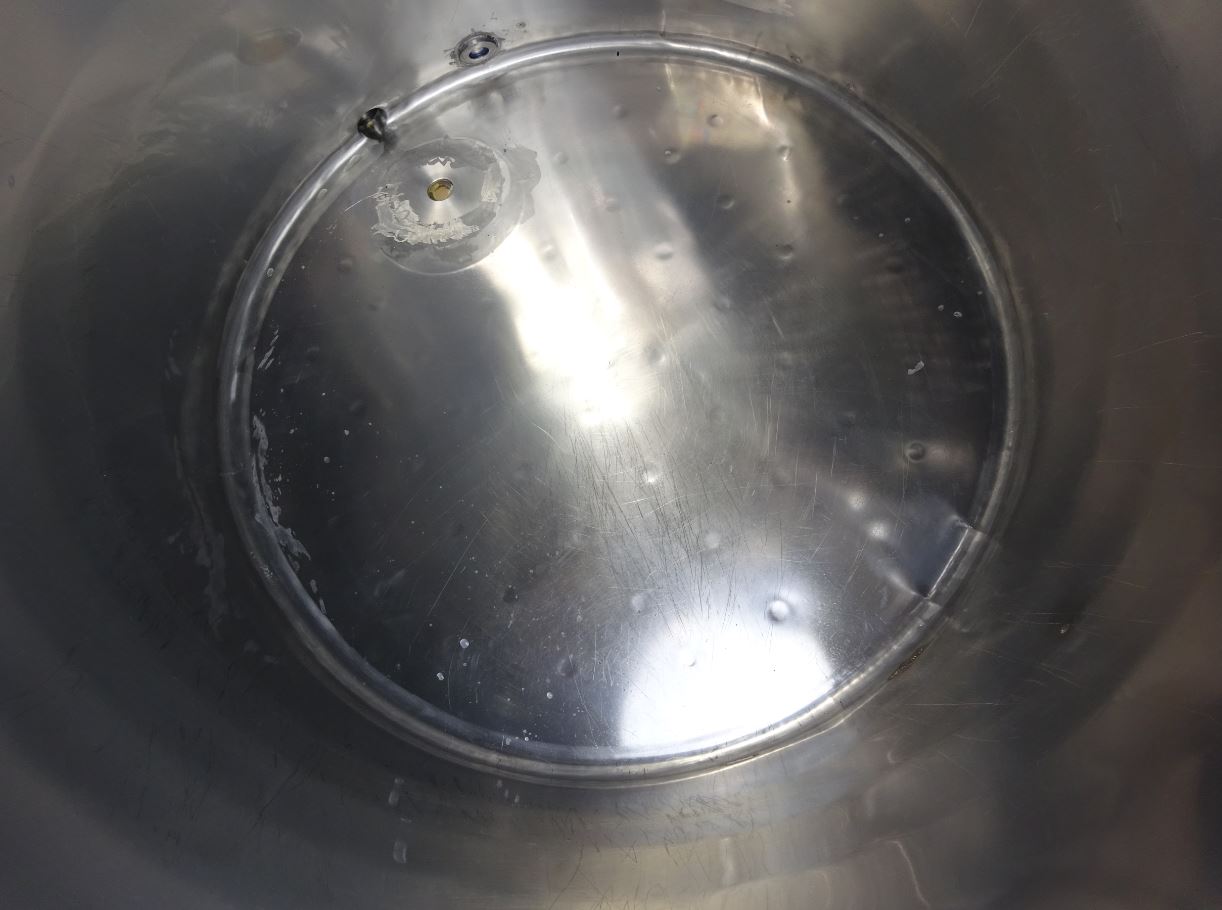

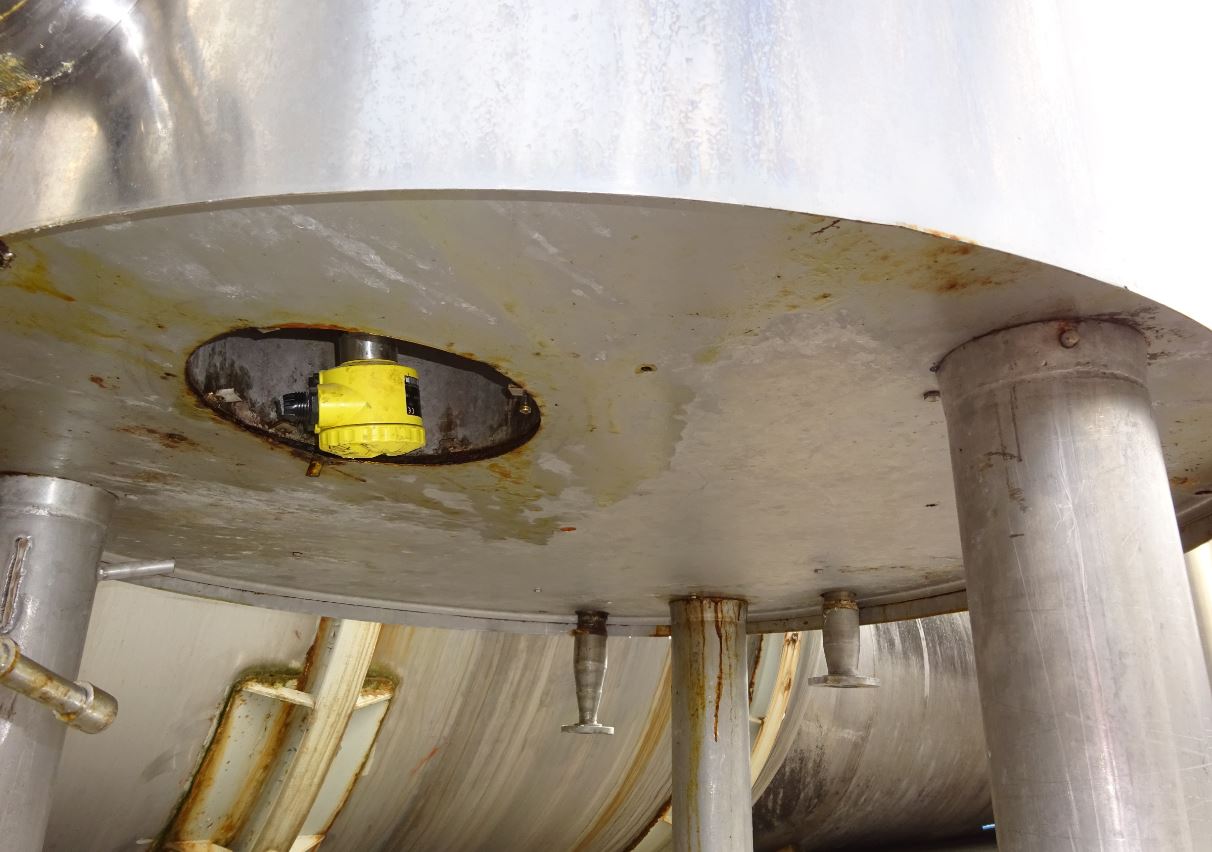

Floor type
Flat bottom with slope towards outlet
Head design
Torispherical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area
Temperature control system/pipe chamber capacity
18 litres
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Fixtures and fittings

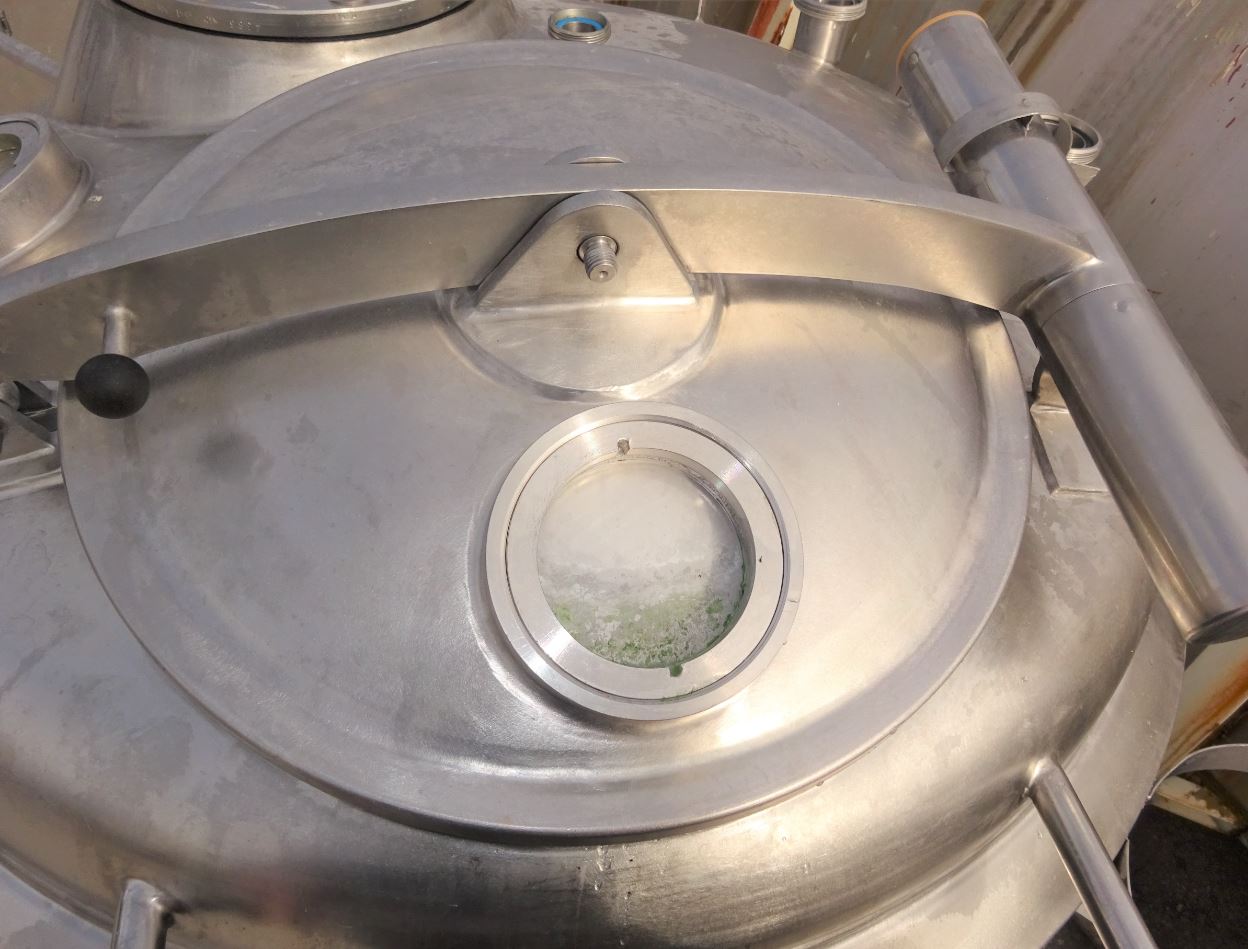

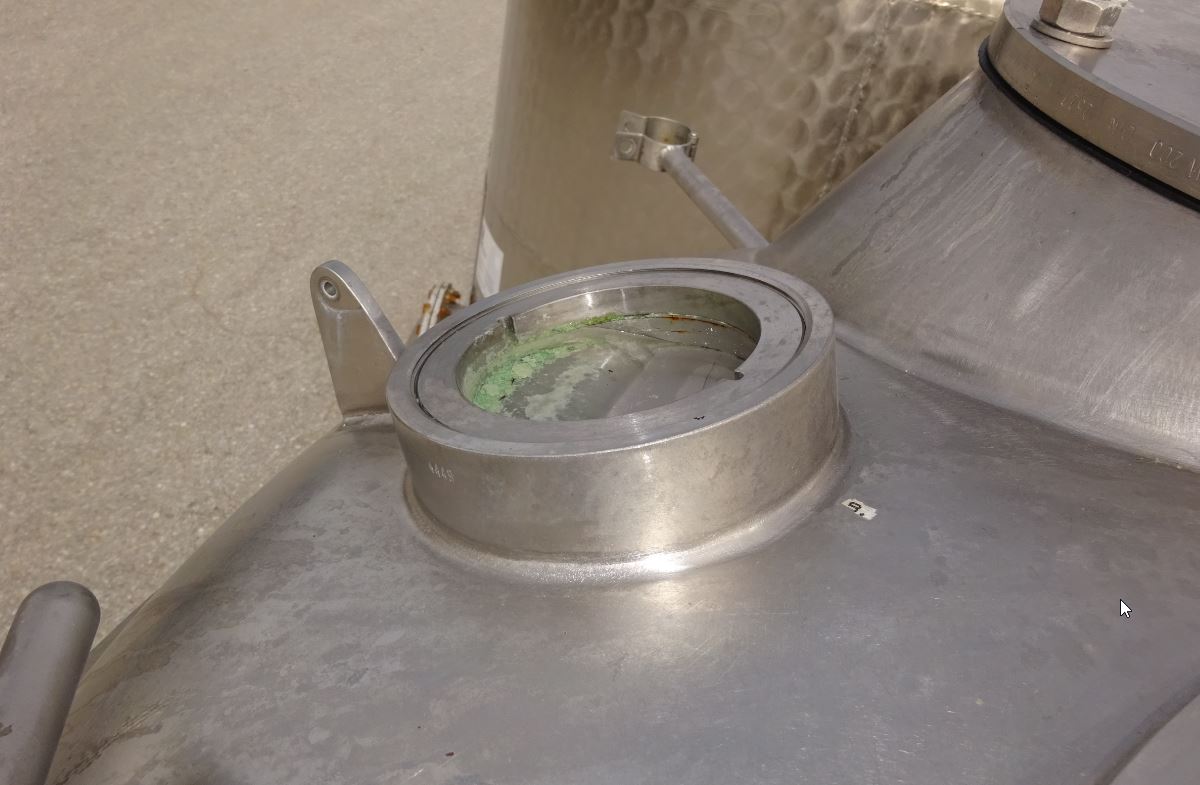

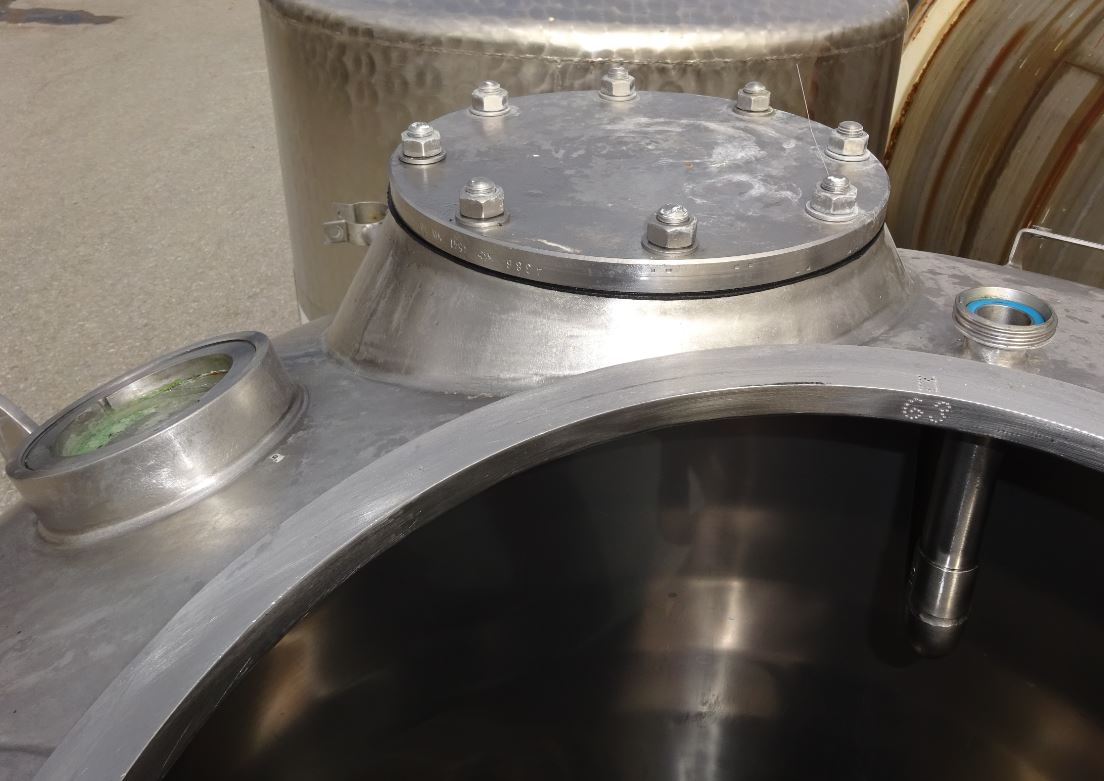

Manway 1 size
500 DN mm
Manway position
In head

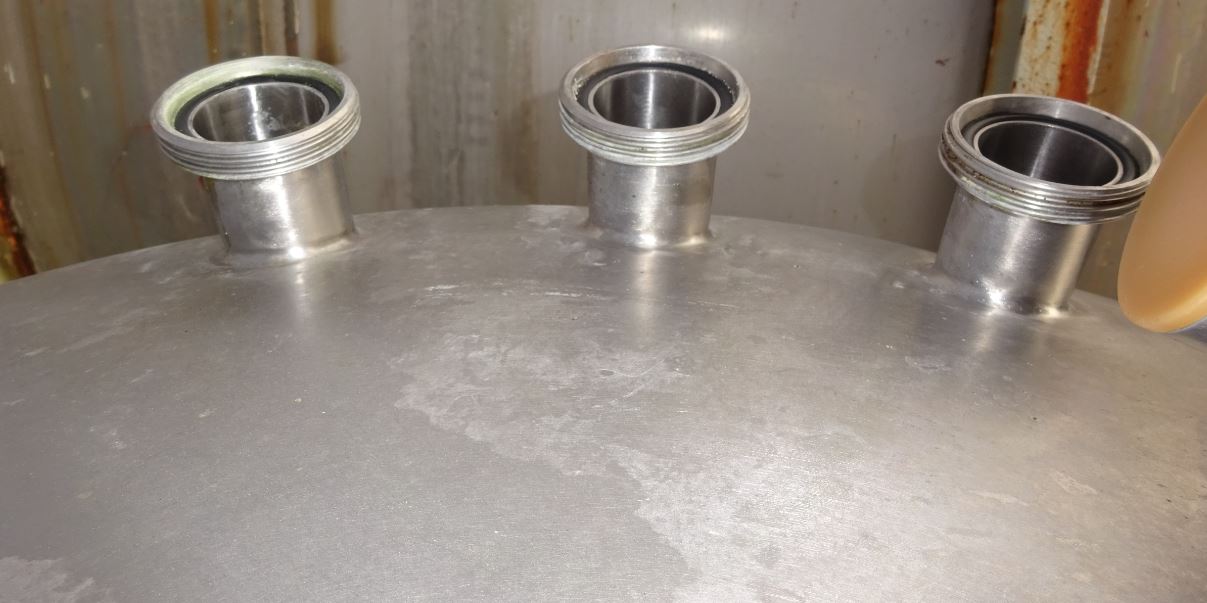

Nozzles/connectors in head
3xDN50 1xDN32 (piece)
Outlet nozzle
50
Additional fixtures and fittings
Ladder stay

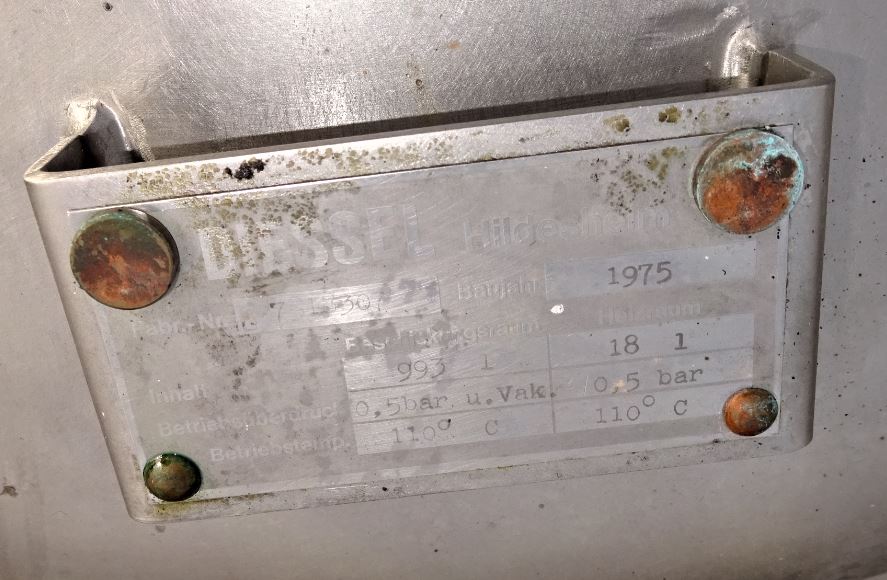

Nameplate
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Process tank, Boiling tank,
Agriculture: Storage tank, Process tank, Cooling tank, Boiling tank,
Chemistry and pharmaceuticals : Storage tank, Process tank, Cooling tank,
