Product no. M-2547

Container 900 liters made of V2A single-walled, used, standing

EUR 1.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 900.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

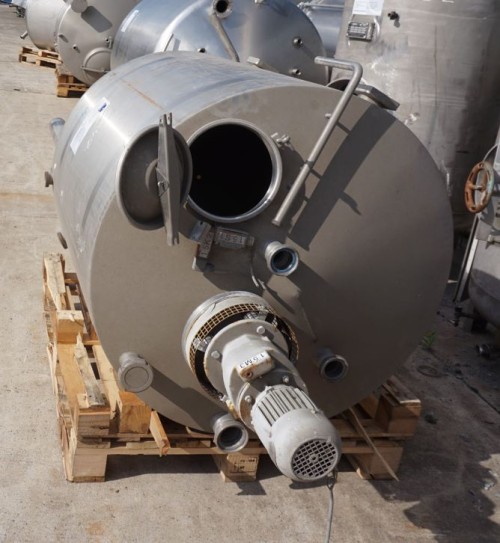

Container 900 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 900.00 litres.  Container 900 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 900,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.000 mm

  • Cyl. height

  • 1.100 mm

  • Foot height

  • 650 mm

  • Total height

  • 2.320 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

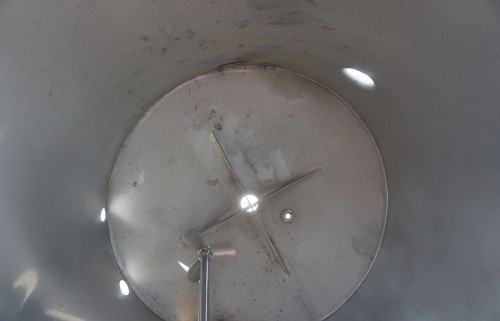

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • Flender Himmer

  • Agitator 1 - Output

  • 0,37 kW

  • Agitator 1 - RPM

  • 307 UpM

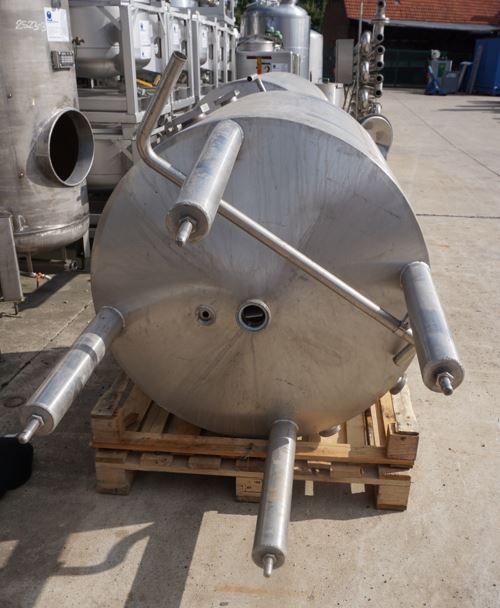

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Handhole 1 size

  • 220 DN mm

  • Handlochposition Handhole position

  • In head

  • Nozzles/connectors in floor

  • 3xDN501xDN65 (piece)

  • Outlet nozzle

  • 65

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank,
