Product no. M-2433

Container 9.000 liters made of V2A single-walled, standing

EUR 6.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 9,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

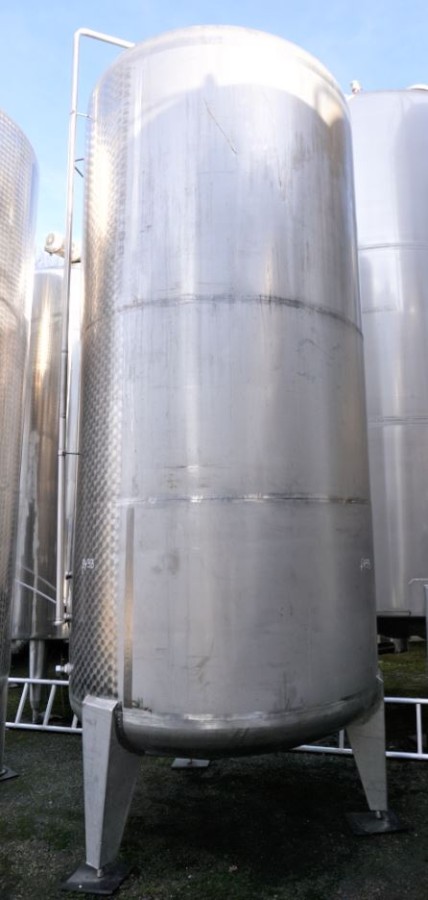

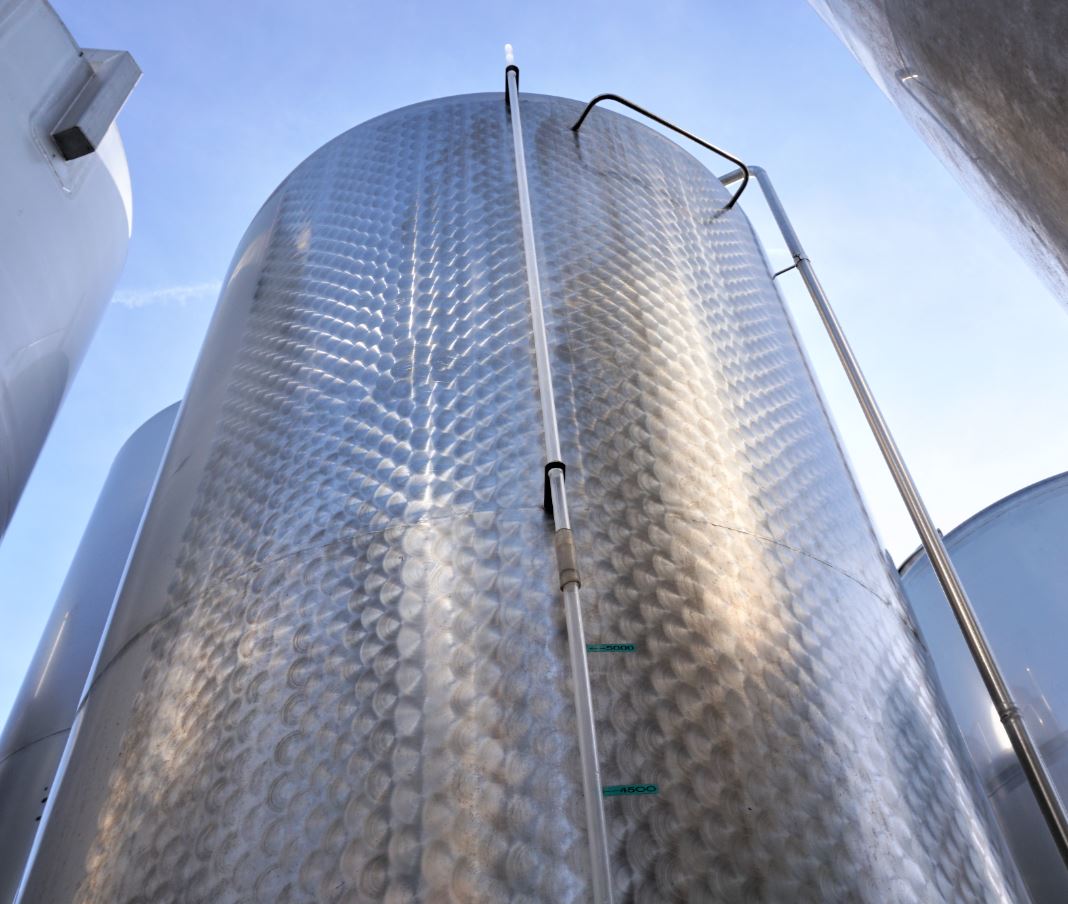

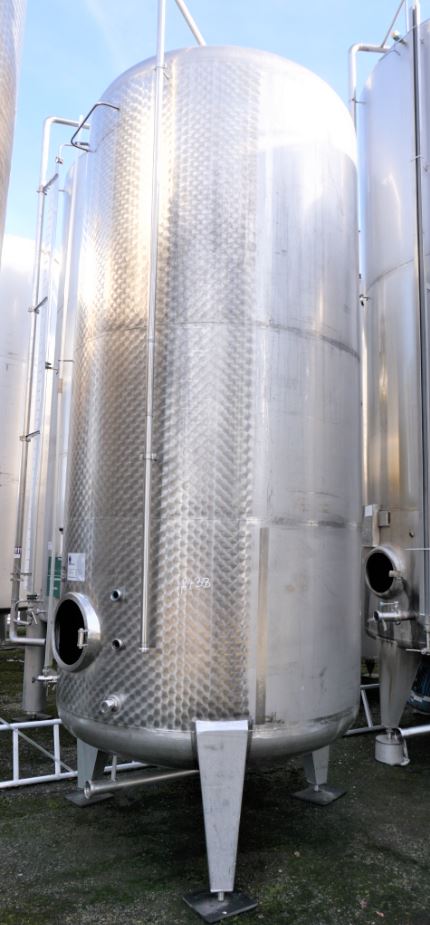

Container 9.000 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 9,000.00 litres.  Container 9.000 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 9.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 3.500 mm

  • Foot height

  • 740 mm

  • Total height

  • 4.740 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

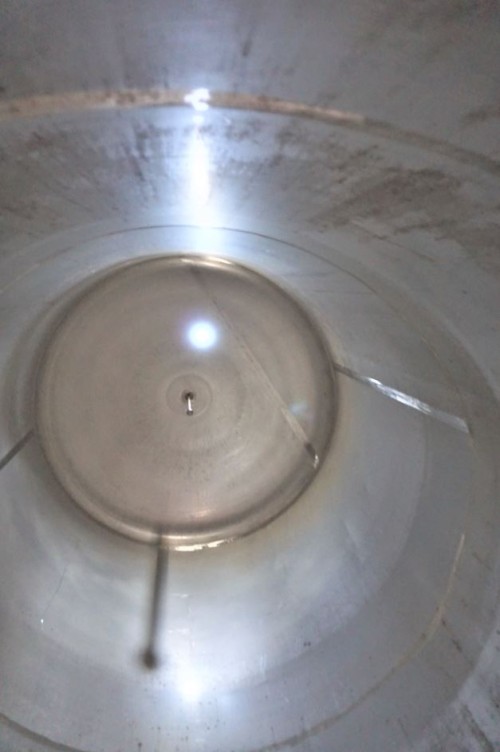

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

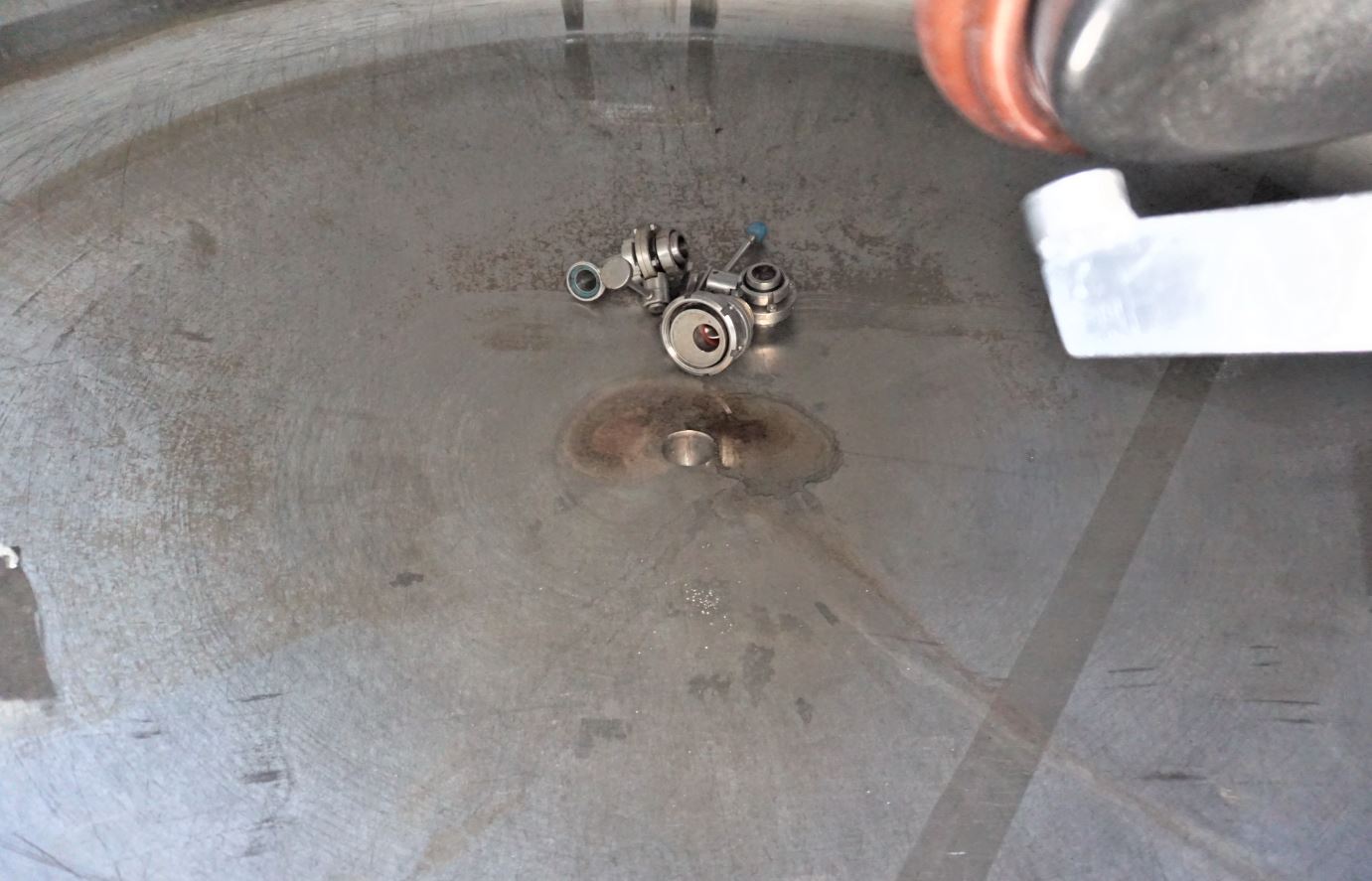

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

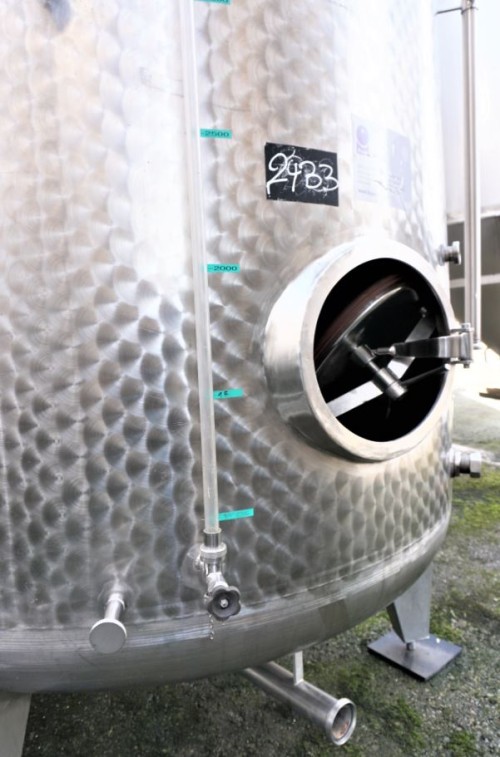

  • Manway position

  • In shell

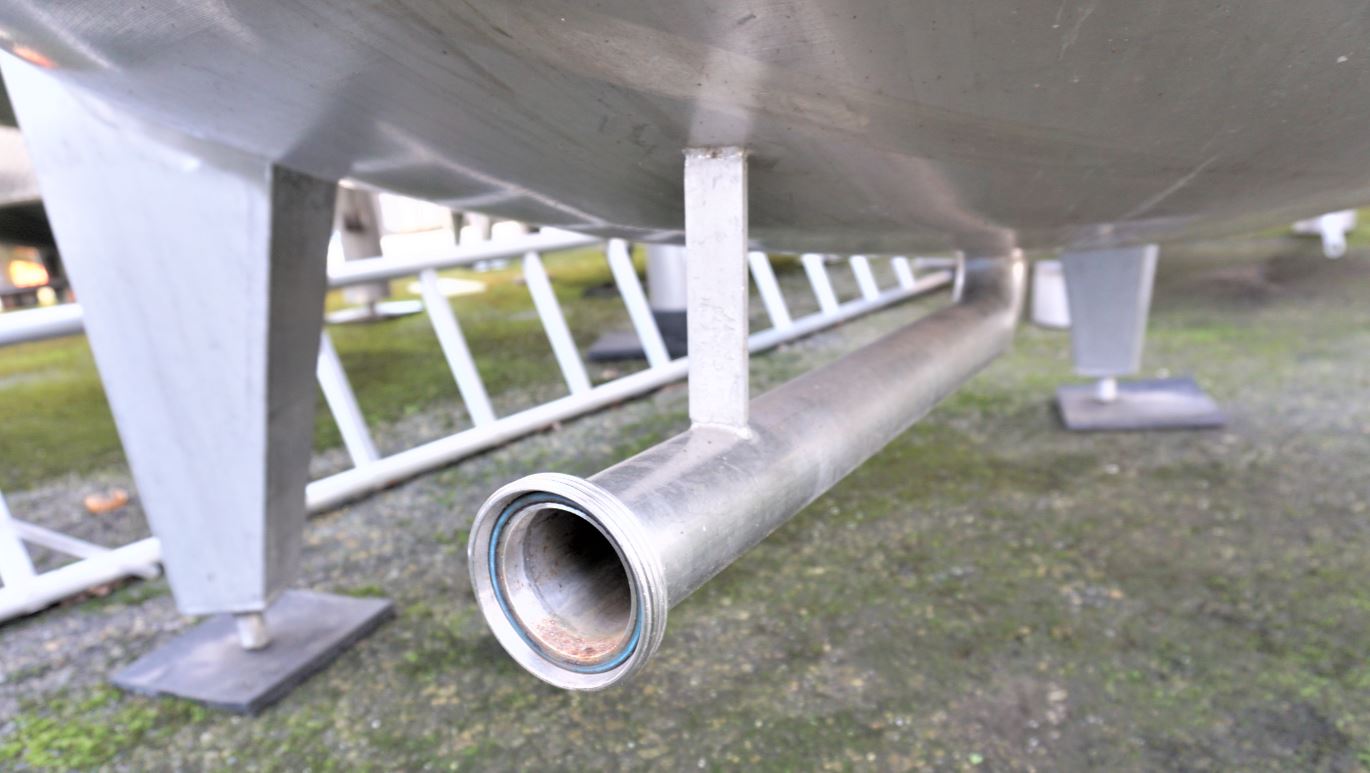

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Sample taking

  • Additional fixtures and fittings

  • Ladder stay

  • Drain port

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Whey tank, Buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
