Product no. M-2538

Container 800 liters made of V2A temperature-controllable, isolated, standing

EUR 2.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 800.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

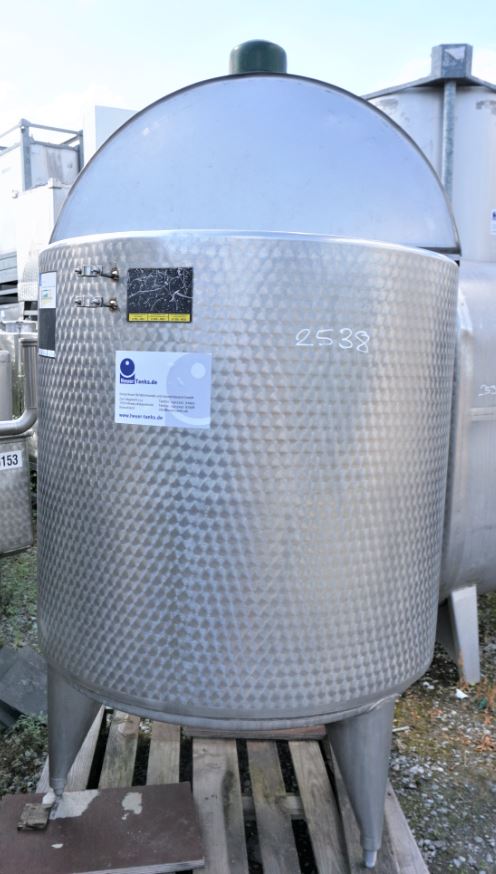

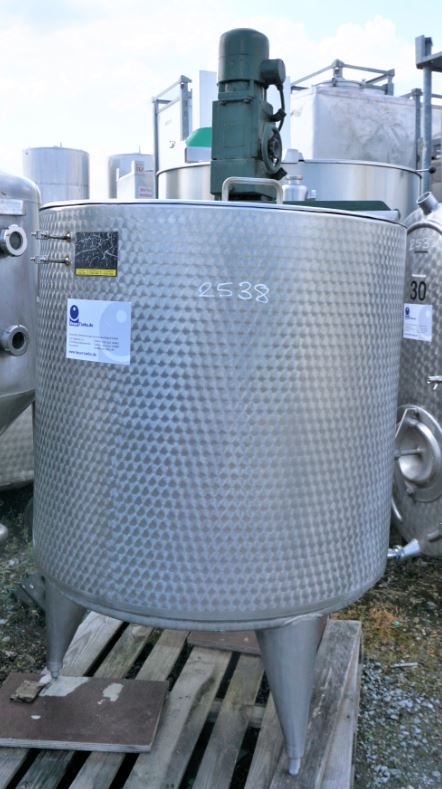

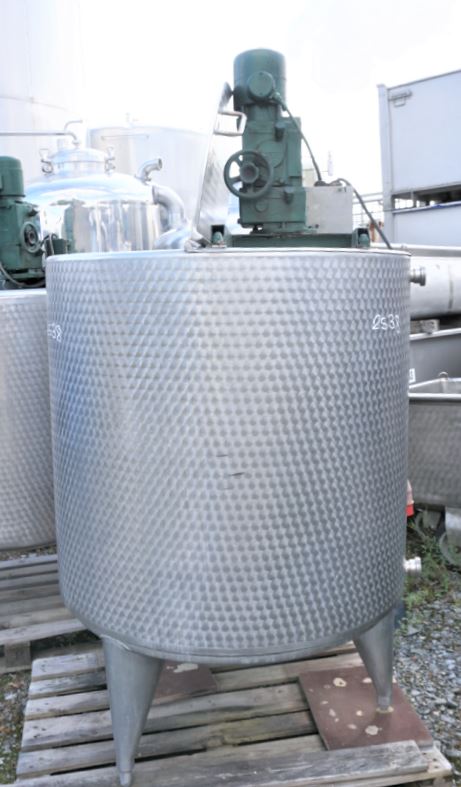

Container 800 liters made of V2A temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 800.00 litres. The diameter inside includes 1,000 mm.  Container 800 liters made of V2A temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing,

General

  • Volume approx.

  • 800,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.000 mm

  • External diameter

  • 1.070 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 420 mm

  • Total height

  • 2.000 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Dished with slope towards outlet

  • Head design

  • Split hinged lid

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Double shell

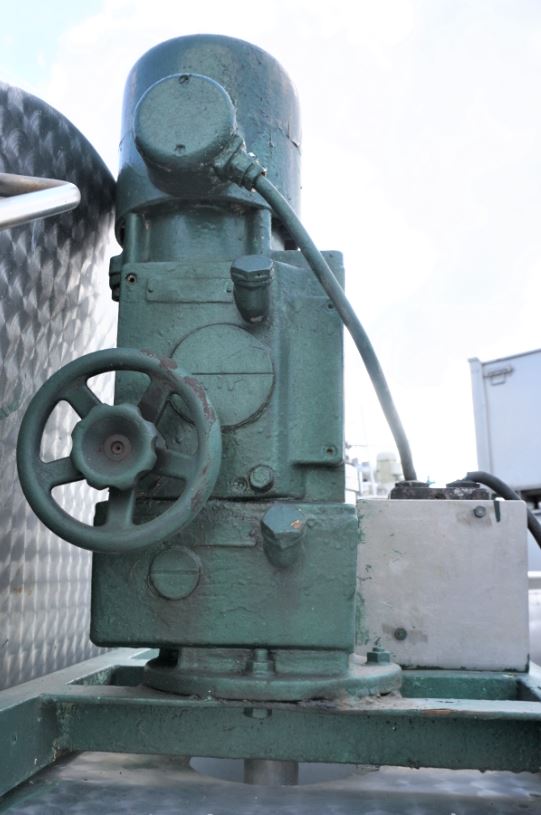

Agitator

  • Agitator quantity

  • 1 (piece)

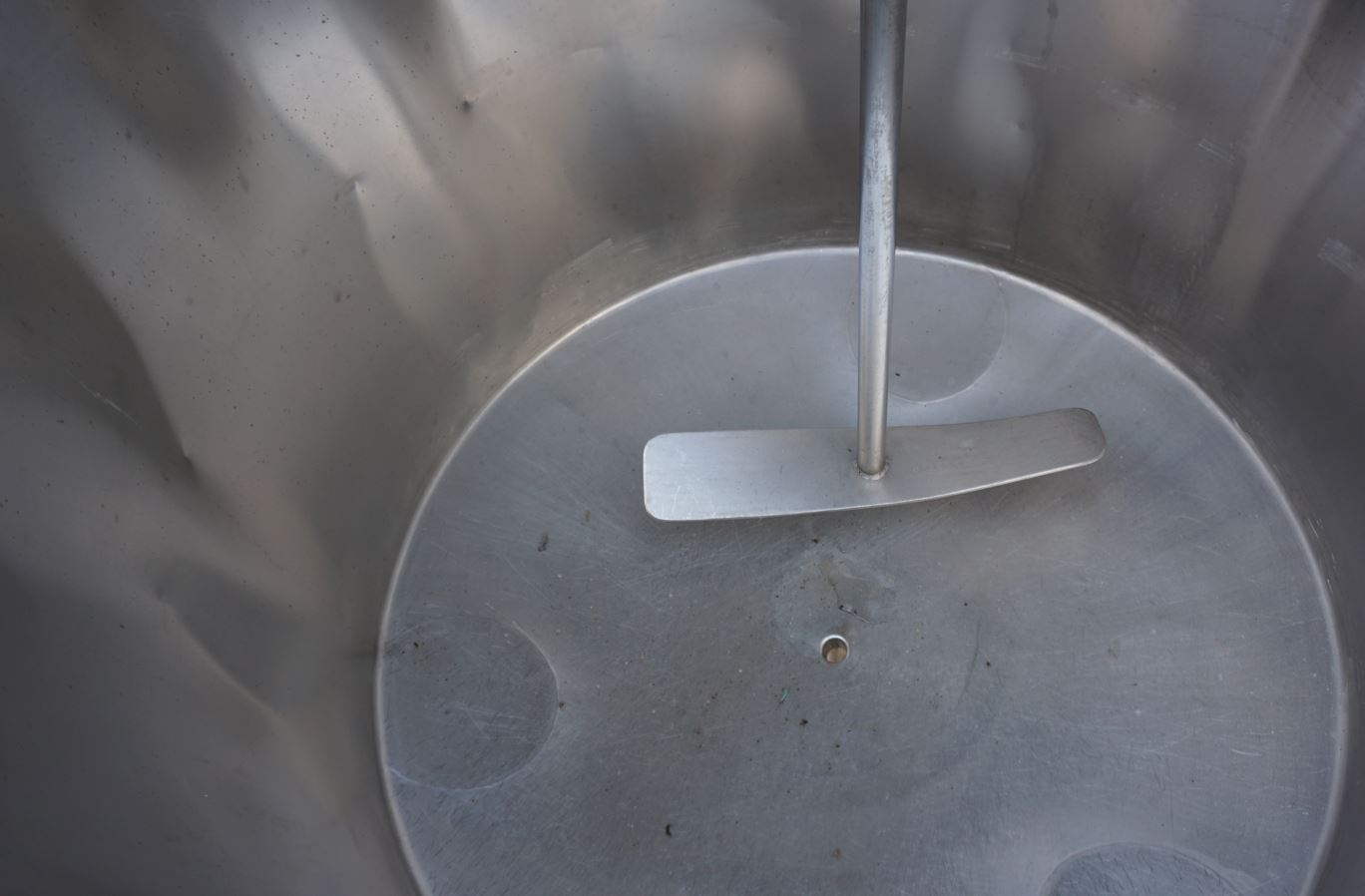

  • Agitator type

  • Propeller

  • Note on agitator

  • Rührwerksantrieb älteres Modell

  • Agitator position

  • Head off-centre

Supports

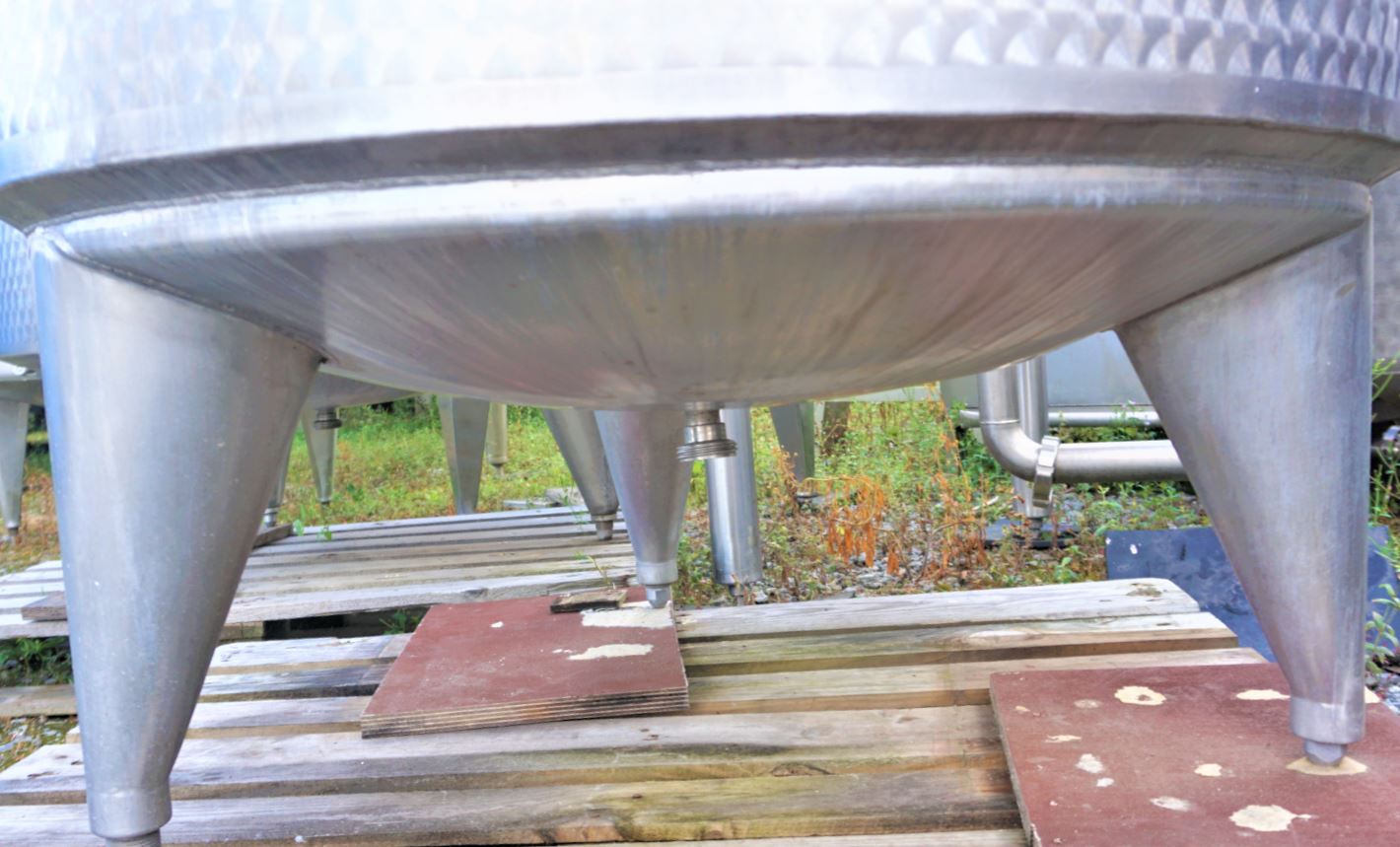

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

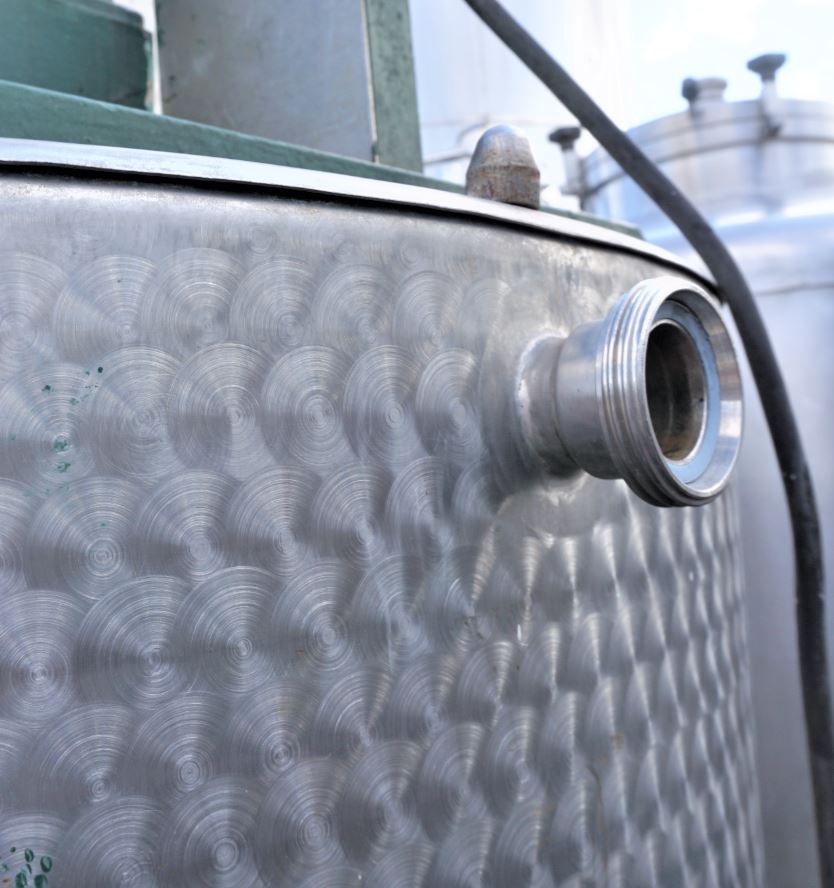

  • Outlet nozzle

  • 27

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Rührwerkswelle verzogen, leichter Vakuumschaden im Prod.raum

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Mixing tank, Process tank, Boiling tank,

Agriculture: Storage tank, Mixing tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Mixing tank, Process tank, Cooling tank,
