Product no. M-1866

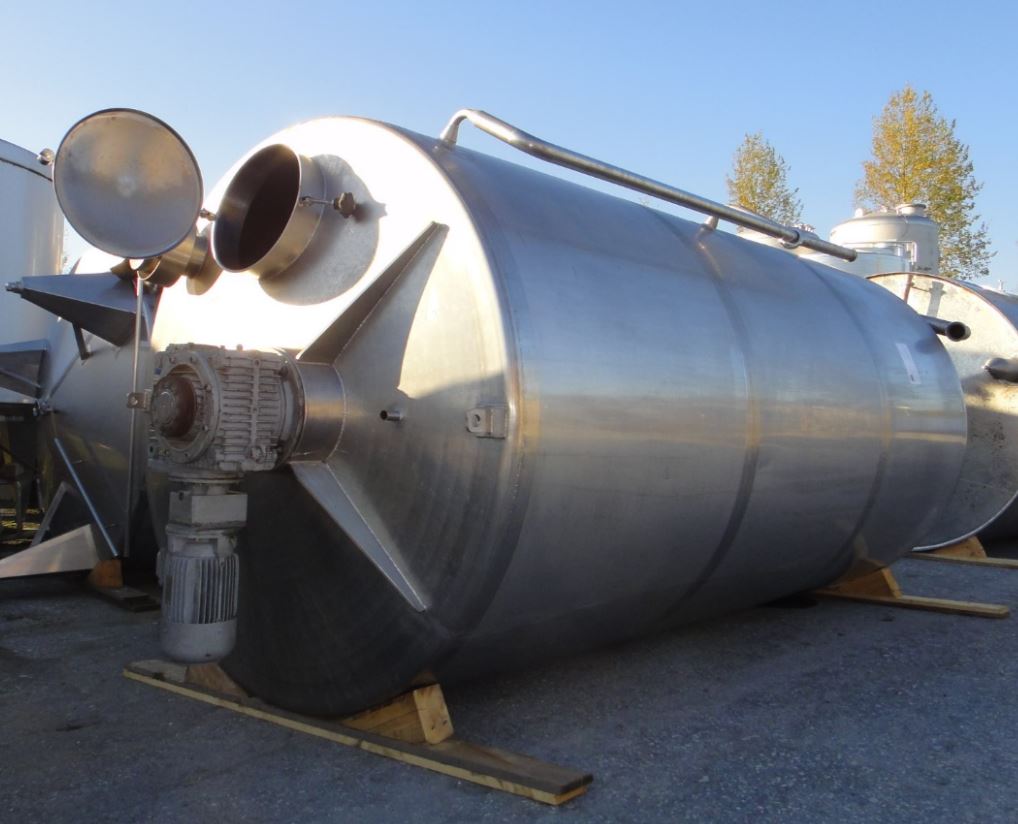

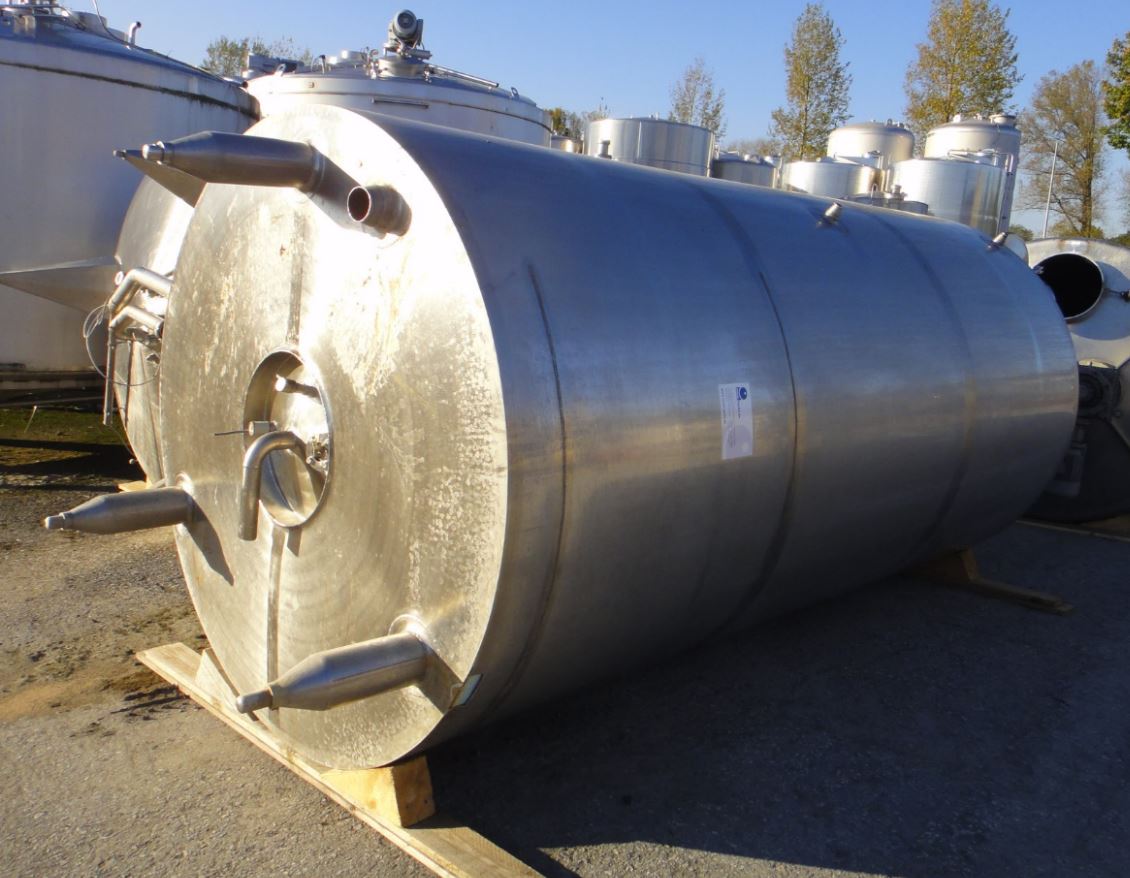

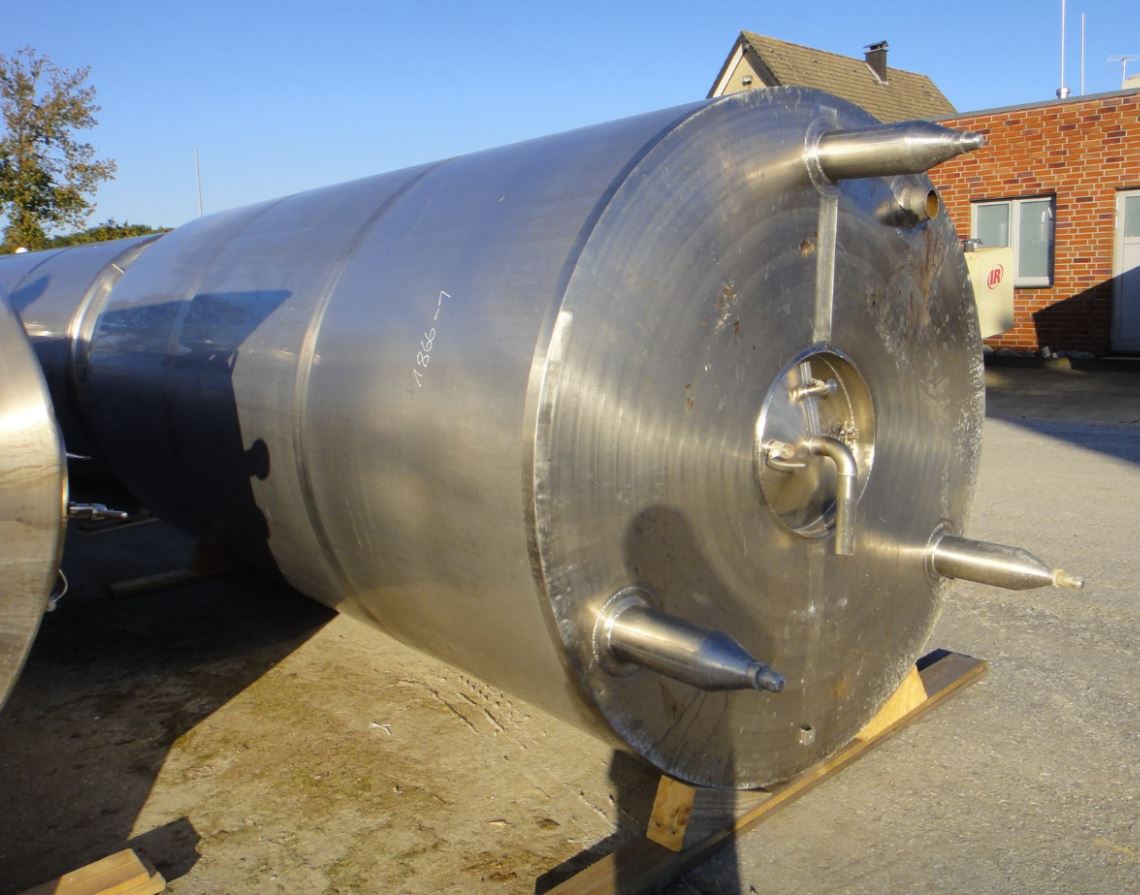

Container 8.000 liters made of V2A isolated, standing

EUR 8.400,00

add. 19 % VAT excl. shipping costs


Volume approx. 8,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 8.000 liters made of V2A isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 8,000.00 litres. The diameter inside includes 1,900 mm.  Container 8.000 liters made of V2A isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 8.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.900 mm

  • External diameter

  • 2.000 mm

  • Cyl. height

  • 3.700 mm

  • Foot height

  • 500 mm

  • Total height

  • 4.800 mm

Design

  • Weight approx.

  • 1.800,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

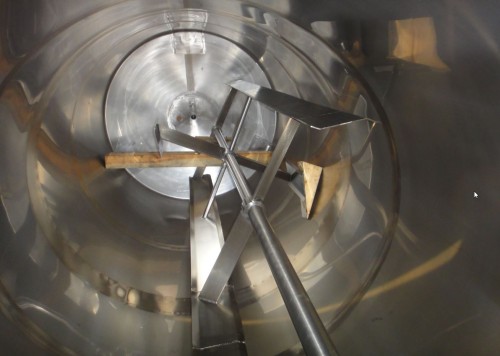

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

  • Agitator manufacturer

  • Stelzer

  • Agitator 1 - Output

  • 2,6 / 3,2 kW

  • Agitator 1 - RPM

  • 8,2 / 6,5 UpM

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Other

  • Note

  • Kühl-/Heizmantel vorhanden, jedoch defekt

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
