Product no. M-2529

Container 675 liters made of V2A, used, single-walled, standing

EUR 1.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 675.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

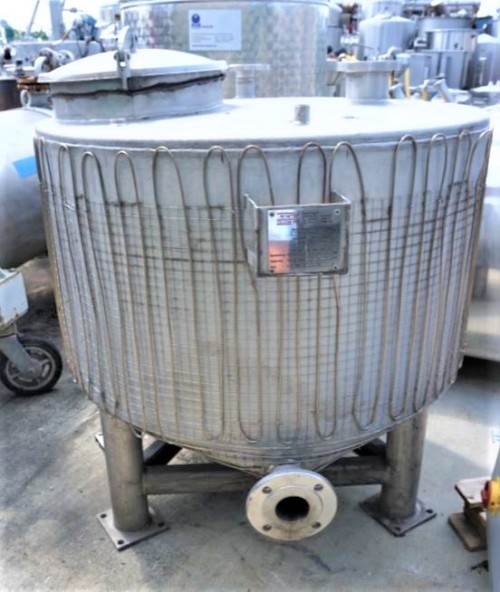

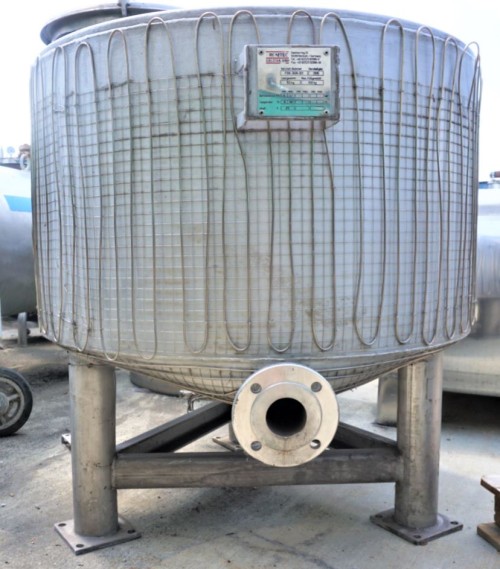

Container 675 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 675.00 litres.  Container 675 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 675,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2006

  • Manufacturer

  • Cronitec

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.100 mm

  • Cyl. height

  • 600 mm

  • Foot height

  • 500 mm

  • Total height

  • 1.400 mm

Design

  • Weight approx.

  • 155,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

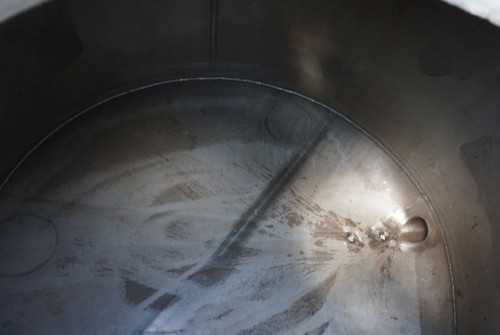

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Flat bottom

  • Product chamber operating over-pressure

  • 0,10 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Heating wires

  • Operating temperature

  • -10 - 100 °C

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

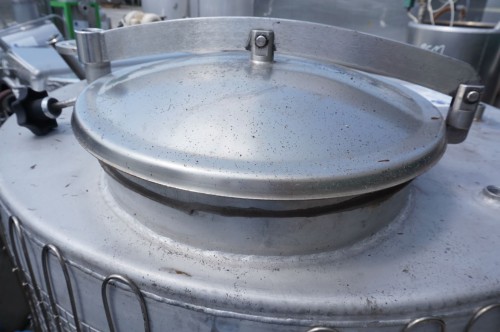

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN50 1xDN100 (piece)

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Cold water tank,
