Product no. M-1827

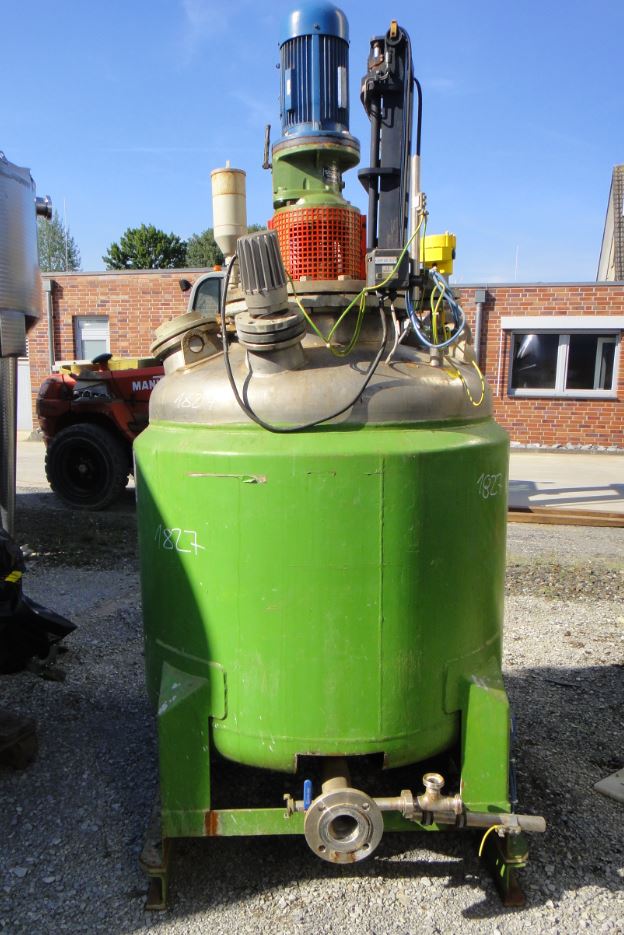

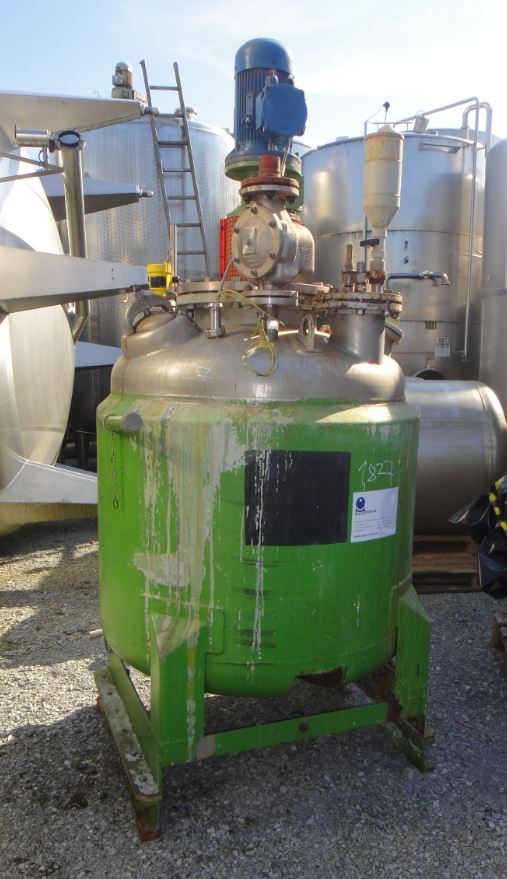

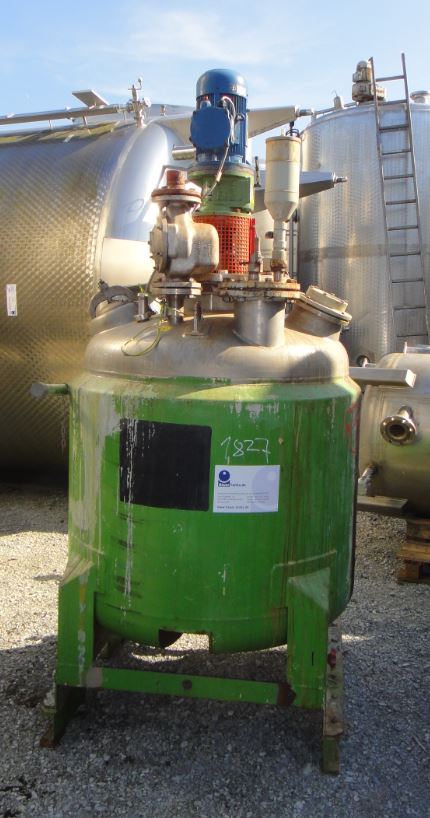

Container 600 liters made of V4A, used, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 600.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 600 liters made of V4A, used consists of the material 1.4429(AISI316). The volume is approx. 600.00 litres. The diameter inside includes 1,000 mm.  Container 600 liters made of V4A, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 600,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.000 mm

  • External diameter

  • 1.100 mm

  • Cyl. height

  • 760 mm

  • Foot height

  • 520 mm

  • Total height

  • 2.430 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Lacquered

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head central

  • Agitator manufacturer

  • Felten + Guilleaume

  • Agitator 1 - Output

  • 2,2 kW

  • Agitator 1 - RPM

  • 1420 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Steel frame

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Handlochposition Handhole position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 1xDN120 1xDN50 1xDN25 (piece)

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
