Product no. M-2406

Container 600 made of V4A, temperature-controllable, standing

EUR 2.400,00

add. 19 % VAT excl. shipping costs


Volume approx. 600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 600 made of V4A, temperature-controllable consists of the material 1.4571(AISI316) V4A. The volume is approx. 600.00 litres.  Container 600 made of V4A, temperature-controllable was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering,

General

  • Volume approx.

  • 600,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1990

  • Manufacturer

  • Hinkel Siegen

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 800 mm

  • Cyl. height

  • 1.009 mm

  • Foot height

  • 300 mm

  • Total height

  • 1.852 mm

  • Wall thickness of product chamber head

  • 5,00 mm

  • Wall thickness of product chamber shell

  • 5,00 mm

  • Wall thickness of product chamber floor

  • 5,00 mm

Design

  • Weight approx.

  • 380,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

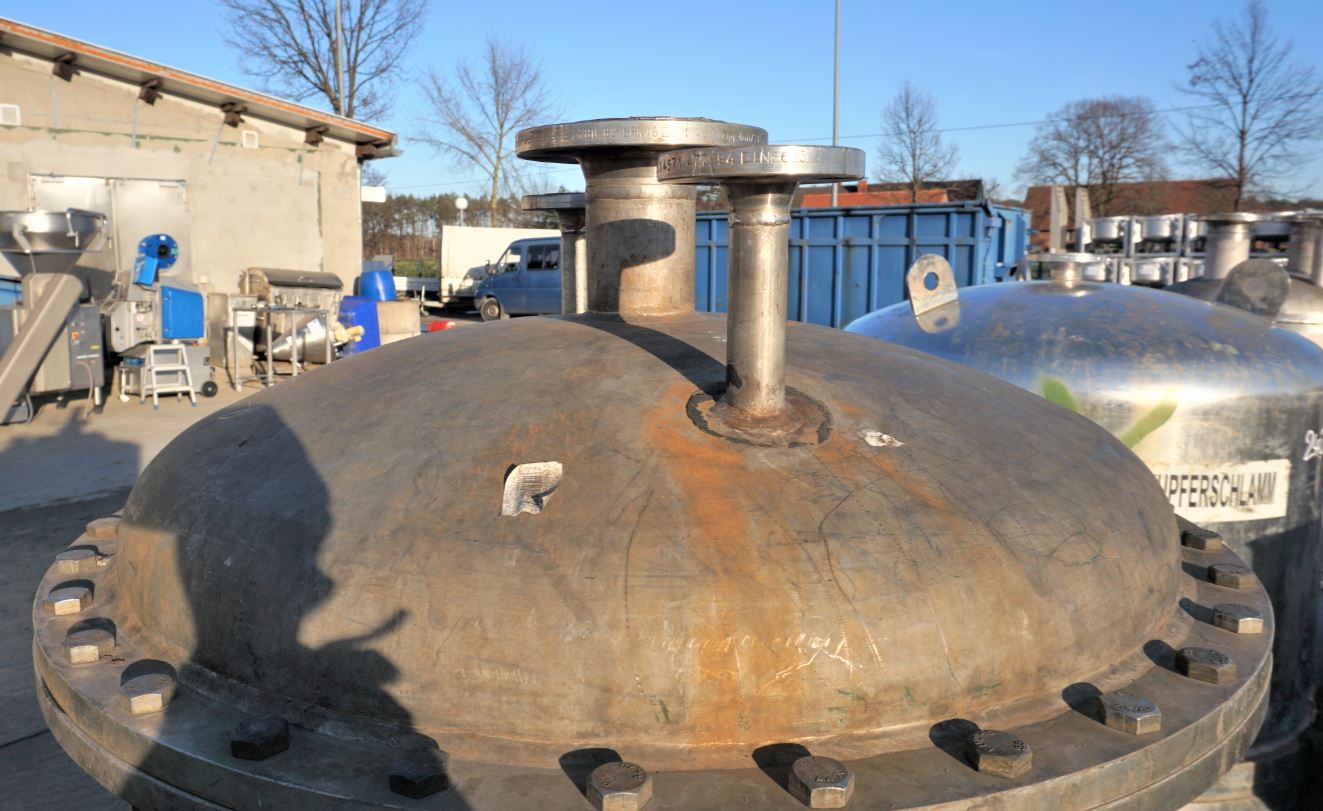

  • Head design

  • Removable

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

  • Temperature control system

  • Interior pipe coils

  • Heat exchanger surface

  • 4 m²

Supports

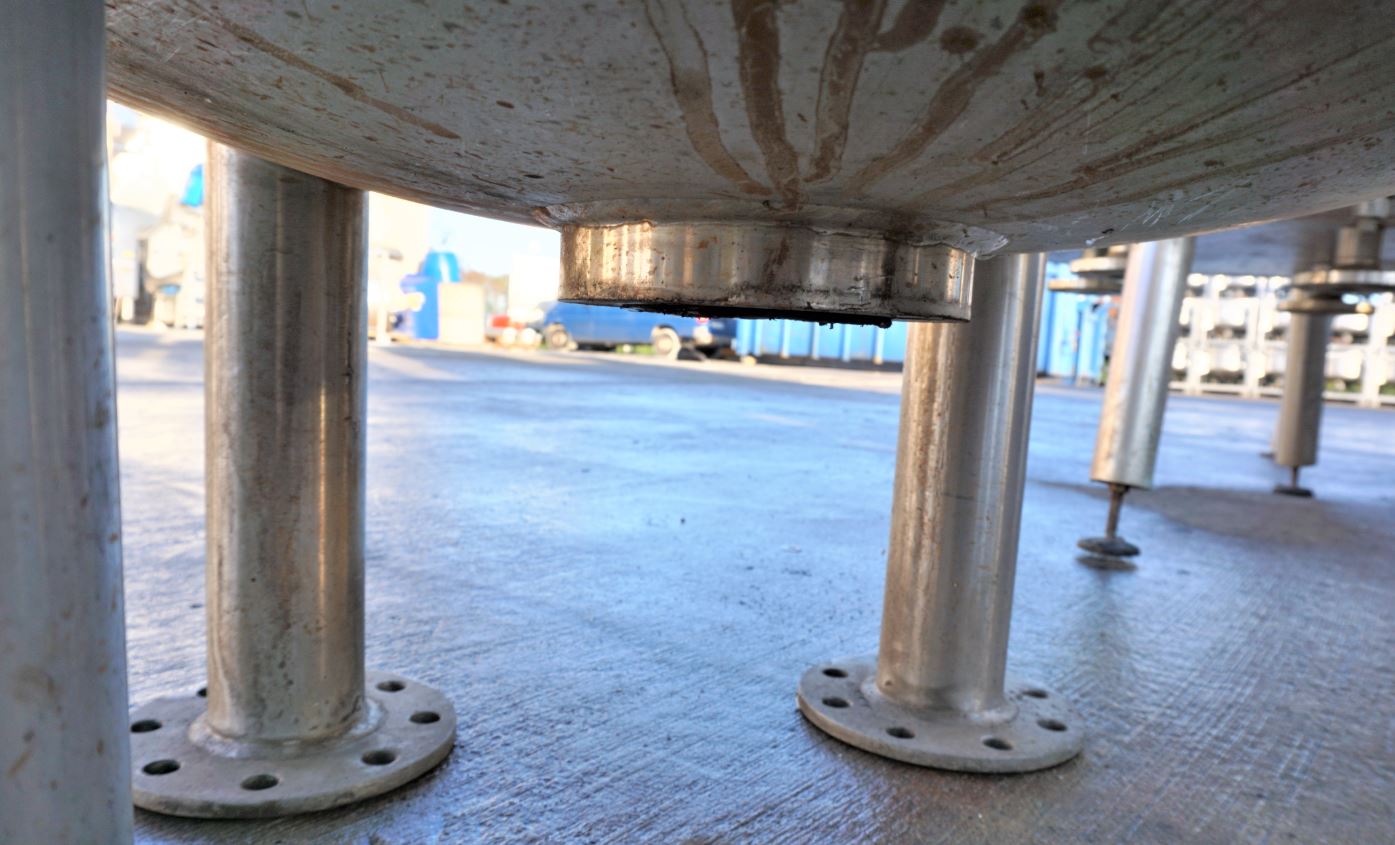

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Nozzles/connectors in shell

  • 1xDN80 (piece)

  • Nozzles/connectors in head

  • 1xDN80 2xDN25 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

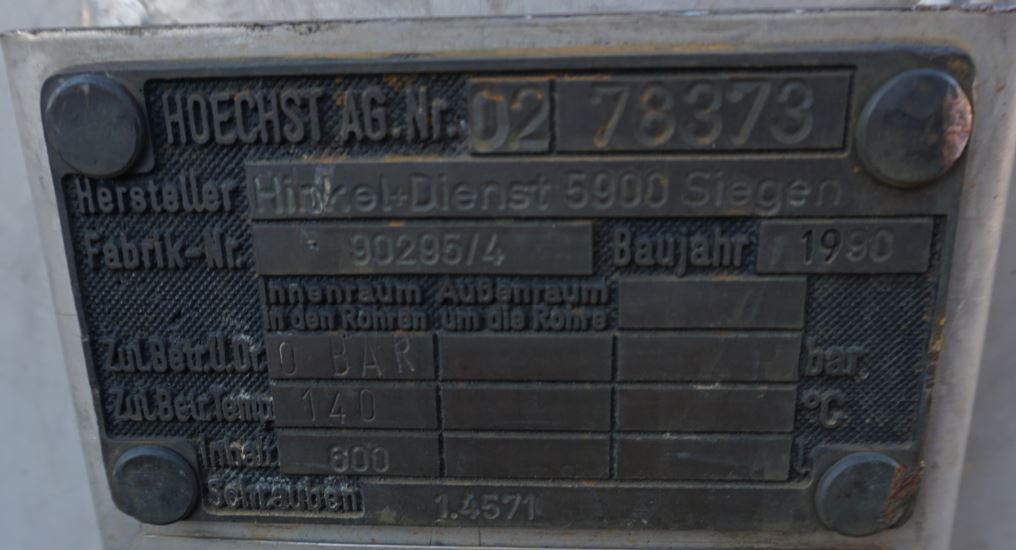

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Process tank,
