Product no. M-1901

Container 6.200 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

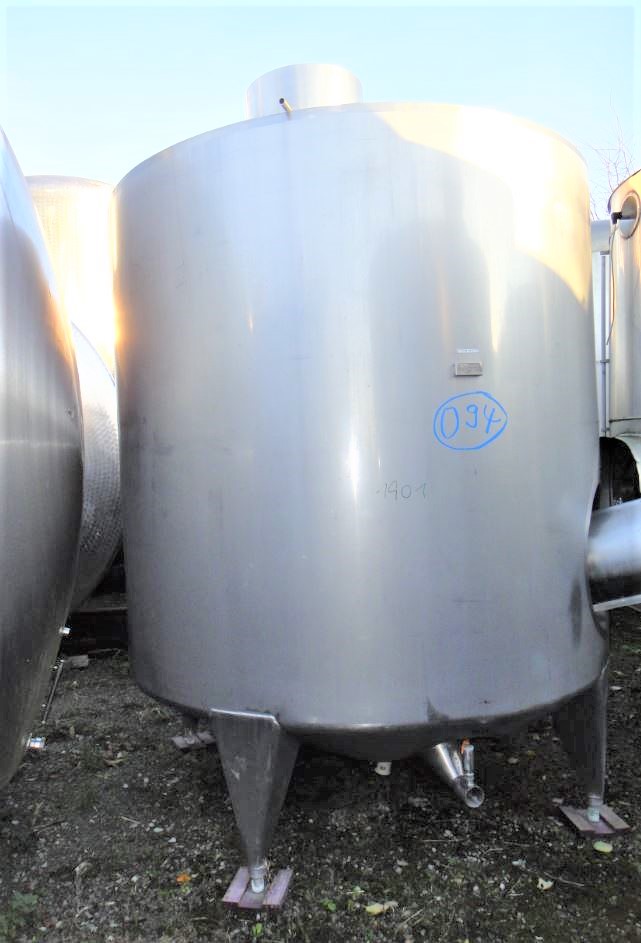

Container 6.200 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,200.00 litres. The diameter inside includes 2,000 mm.  Container 6.200 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Mixing, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 6.200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.100 mm

  • Cyl. height

  • 1.980 mm

  • Foot height

  • 600 mm

  • Outlet height

  • 300 mm

  • Total height

  • 2.850 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Spray cooling

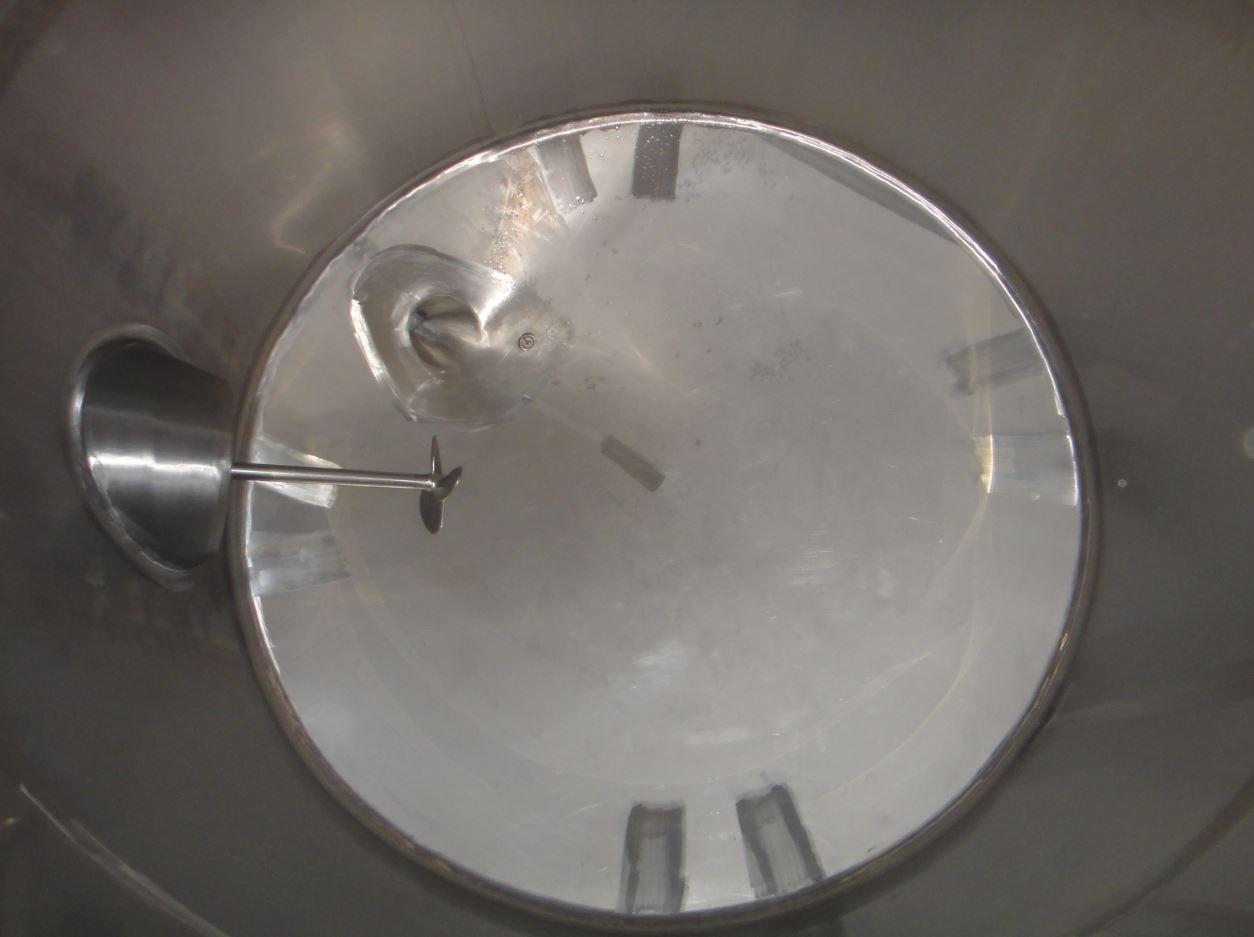

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

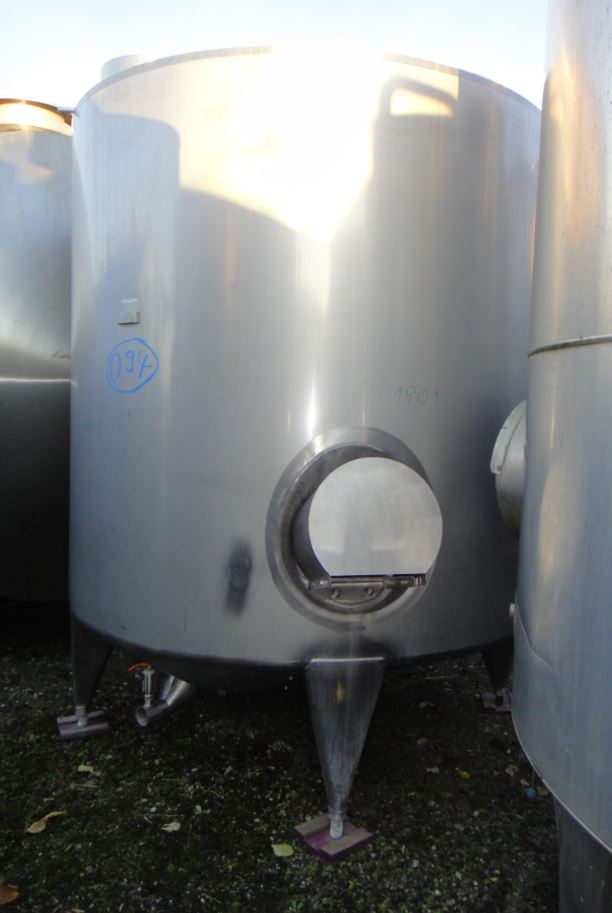

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In shell

  • Nozzle connector

  • Betonstandzarge

  • Nozzles/connectors in shell

  • 1xDN70 (piece)

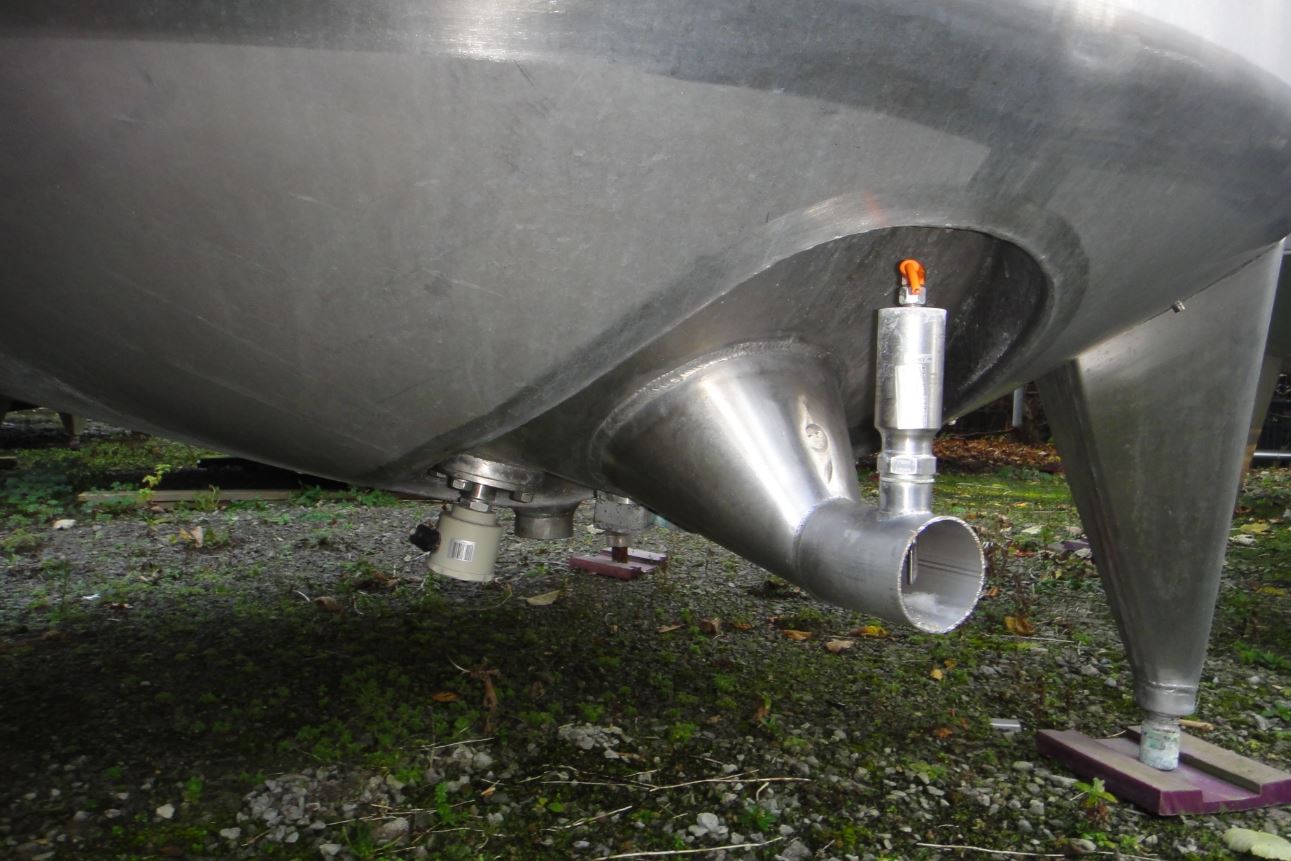

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

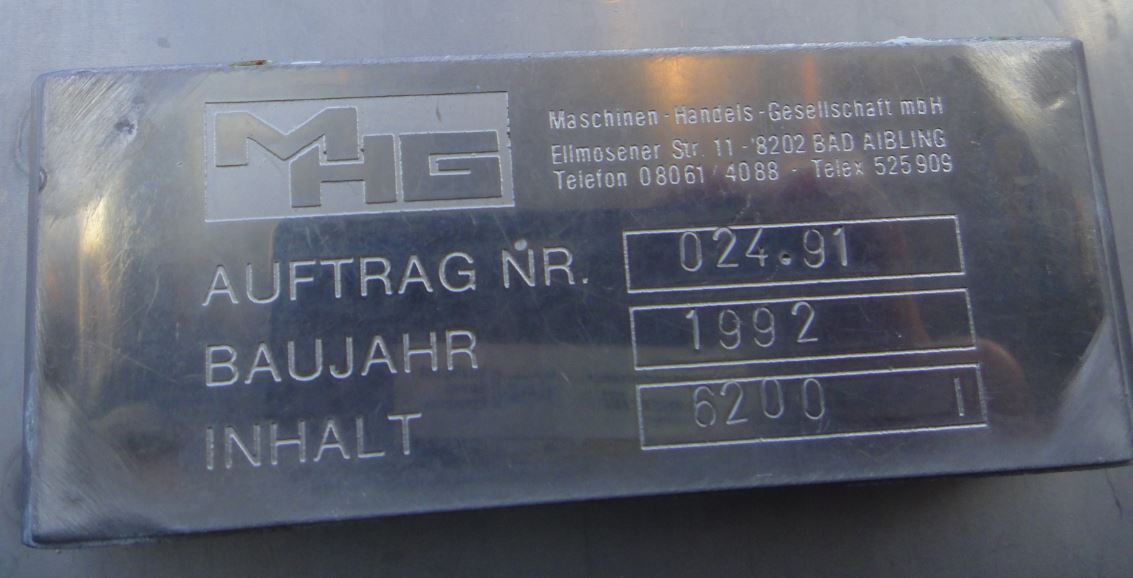

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Thermal buffer,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Thermal buffer,
