Product no. M-1300

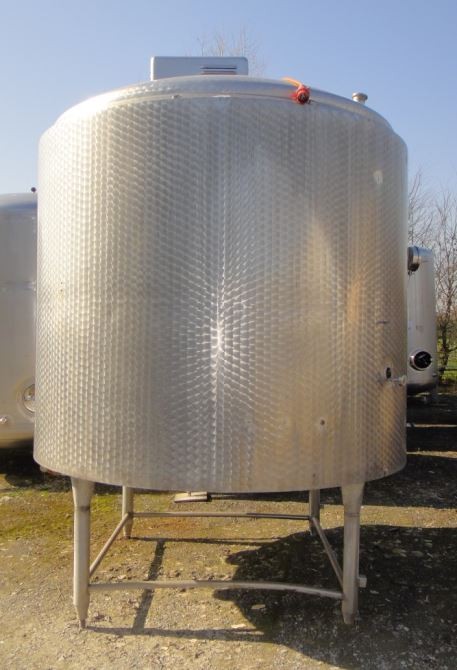

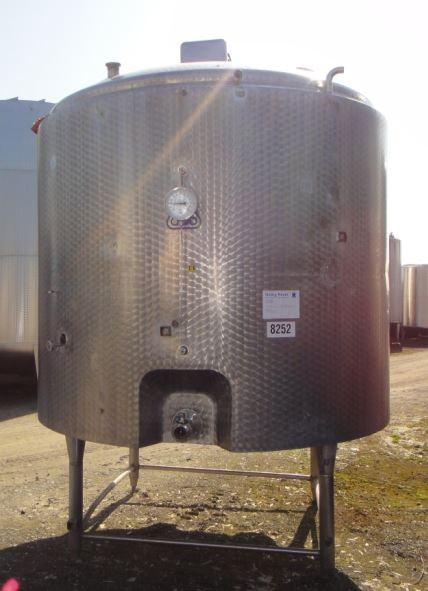

Container 6.000 liters made of V2A, used, isolated, standing

EUR 5.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 6,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 6.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,000.00 litres. The diameter inside includes 2,250 mm.  Container 6.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 6.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.250 mm

  • External diameter

  • 2.410 mm

  • Cyl. height

  • 1.900 mm

  • Foot height

  • 900 mm

  • Total height

  • 3.600 mm

Design

  • Weight approx.

  • 1.200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Planetary agitator

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 2xDN 70 (piece)

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Kühl-/Heizmantel vorhanden, jedoch defekt

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Mash tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
