Product no. M-2506

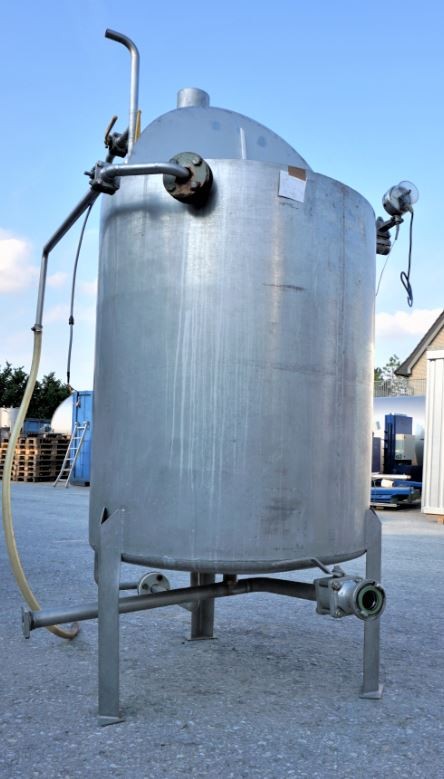

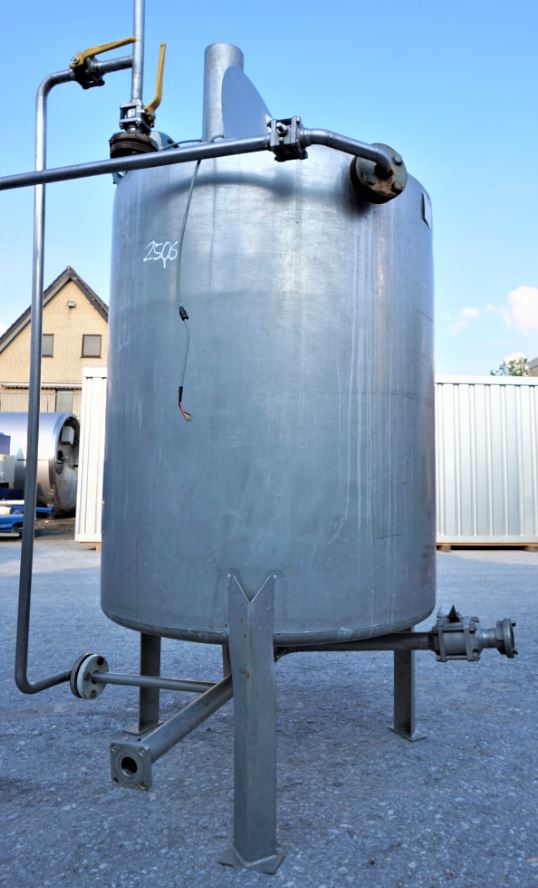

Container 500 liters made of V4A, temperature-controllable, used, standing

EUR 1.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 500 liters made of V4A, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 500.00 litres. The diameter inside includes 800 mm.  Container 500 liters made of V4A, temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing,

General

  • Volume approx.

  • 500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 800 mm

  • External diameter

  • 860 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 430 mm

  • Total height

  • 1.900 mm

Design

  • Weight approx.

  • 200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

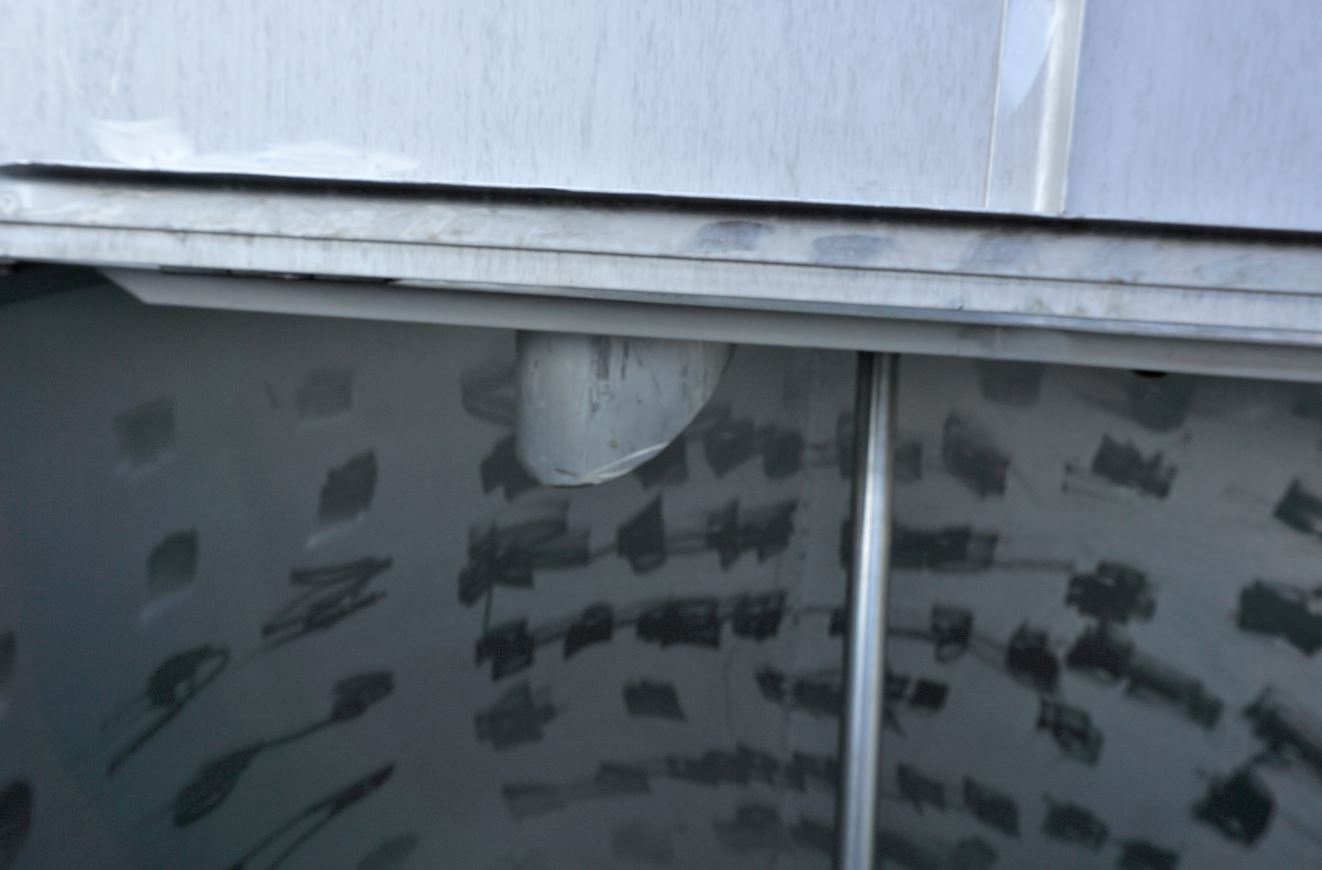

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Dished with slope towards outlet

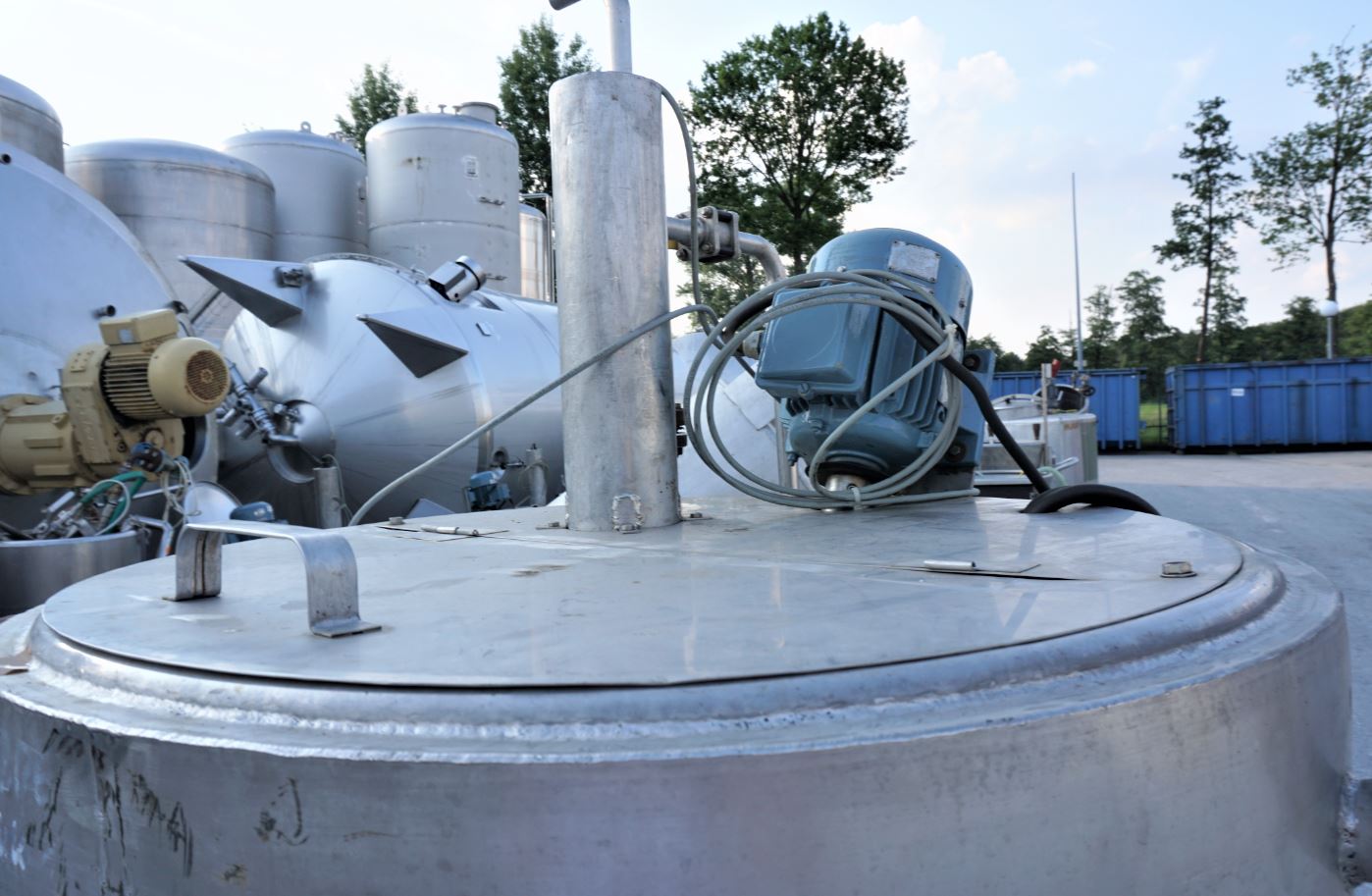

  • Head design

  • Split hinged lid

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

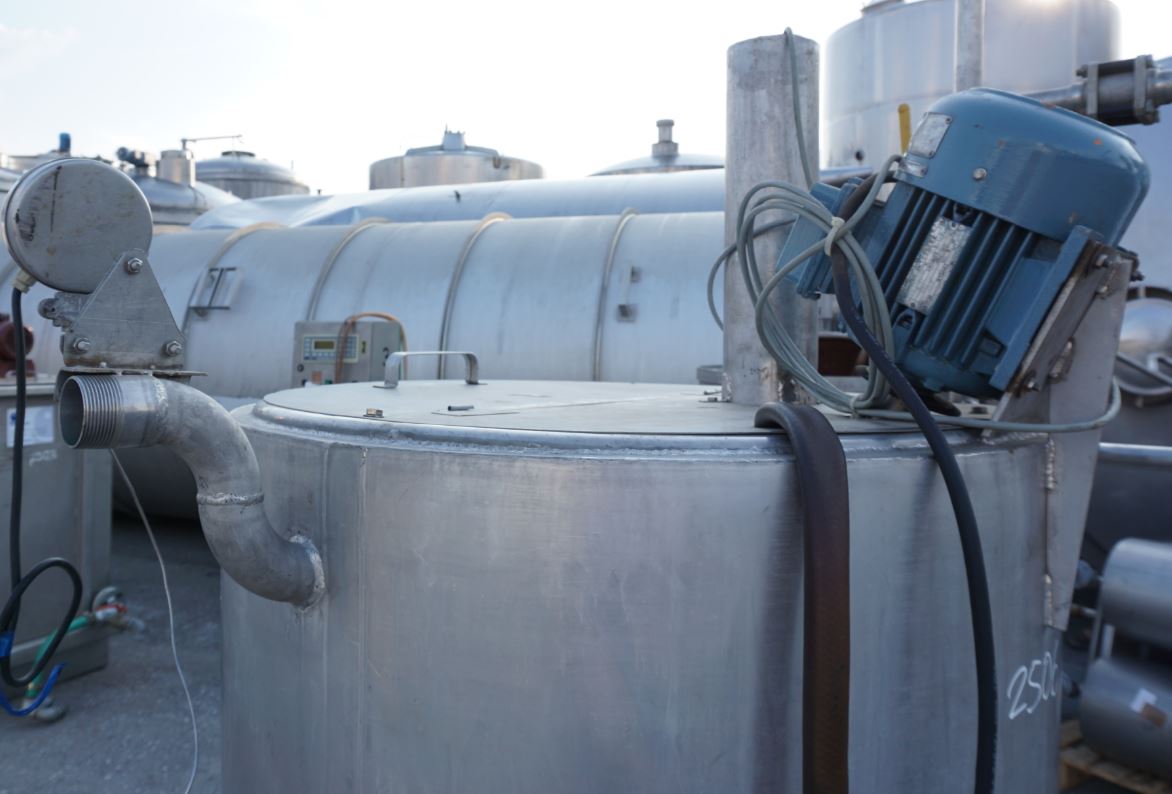

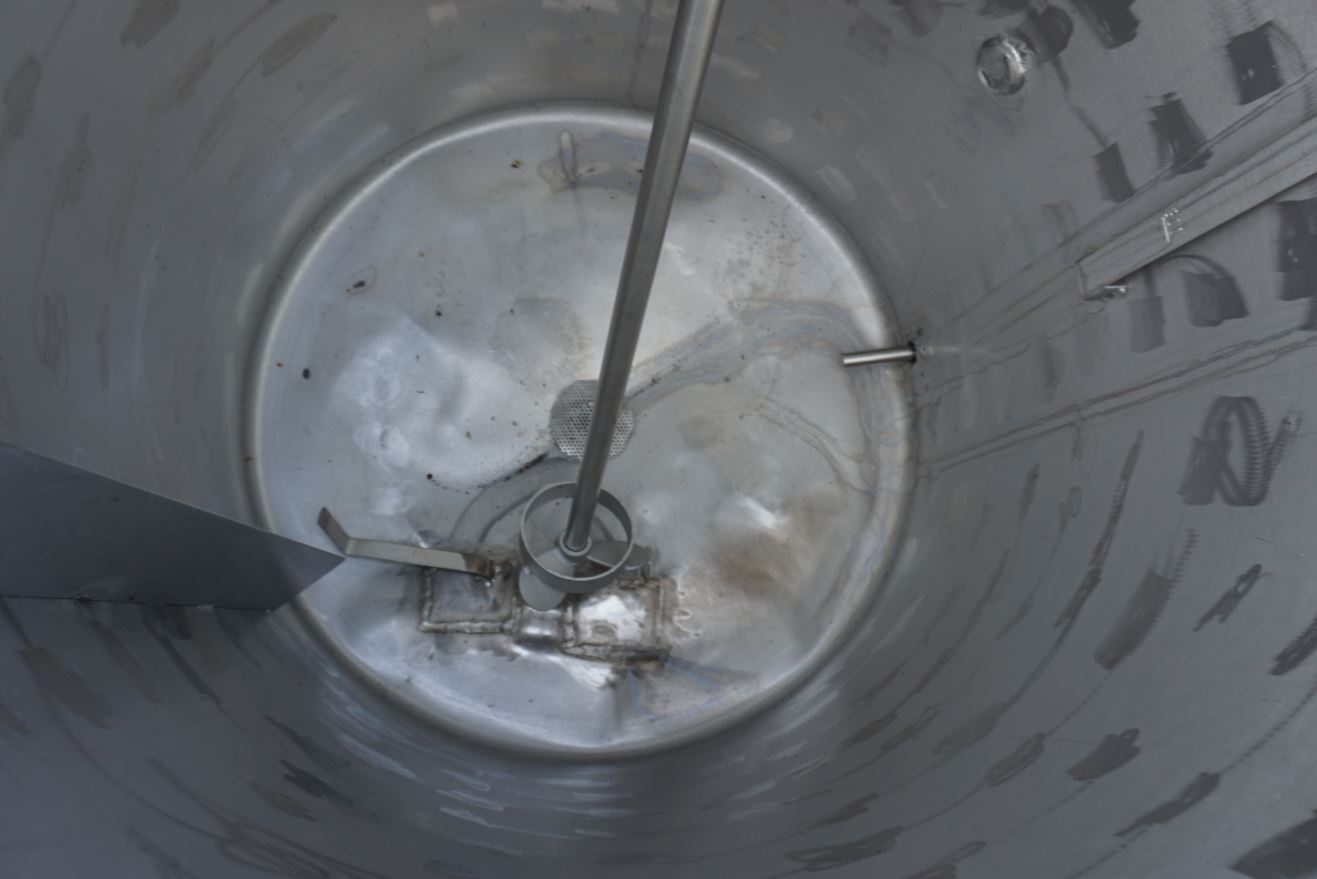

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

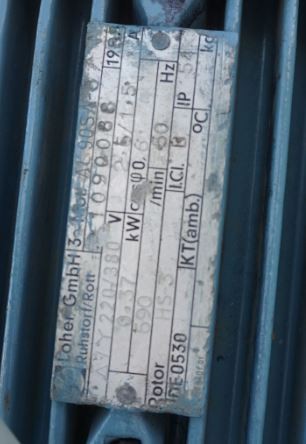

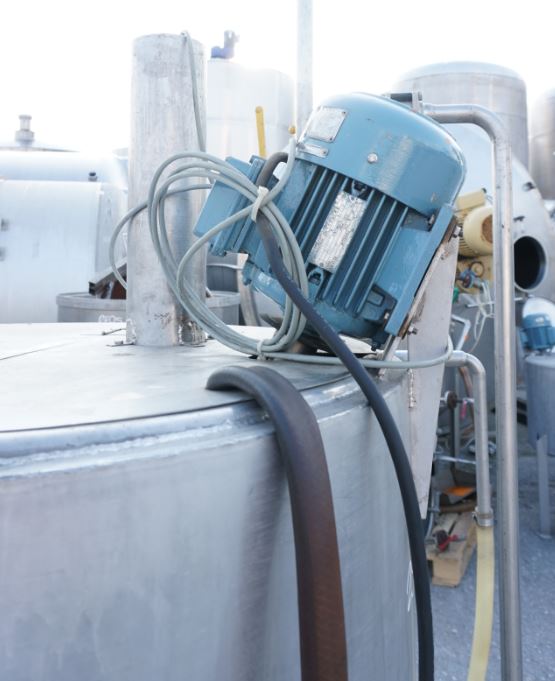

  • Agitator 1 - Output

  • 0,37 kW

  • Agitator 1 - RPM

  • 590 UpM

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Nozzles/connectors in head

  • 1xDN 100 (piece)

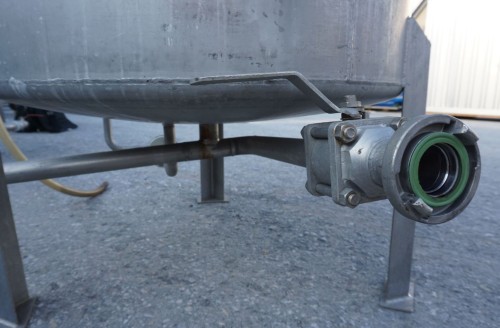

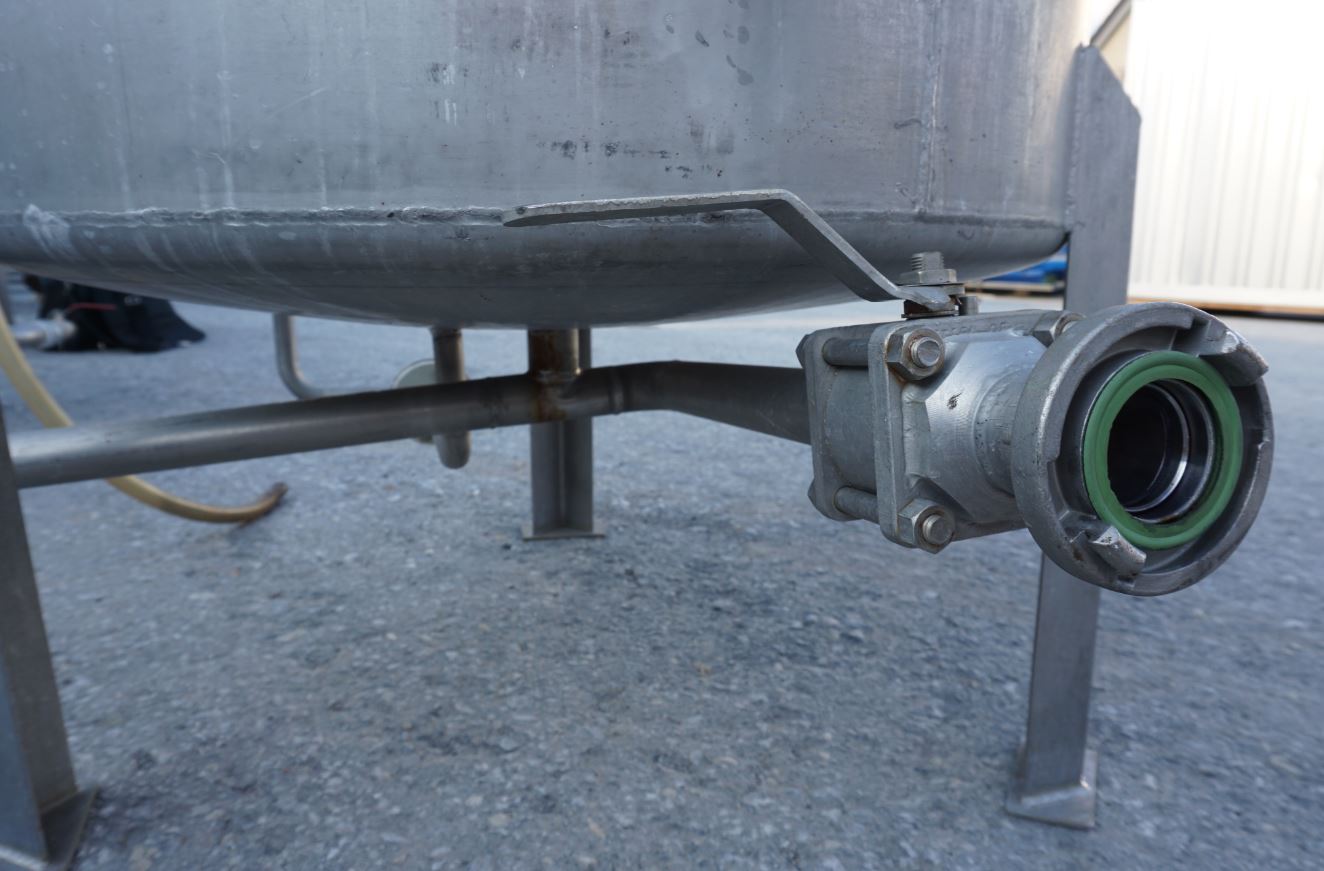

  • Outlet nozzle

  • 40

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Reparaturstellen im Bodenbereich

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Mixing tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Mixing tank, Process tank,
