Product no. M-1668

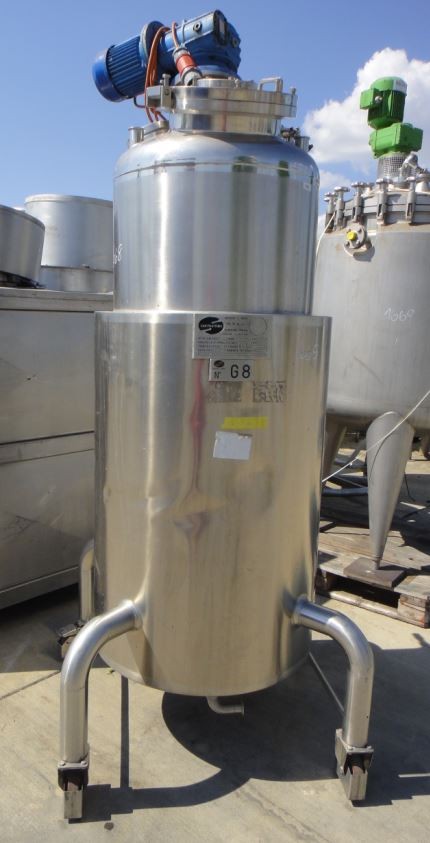

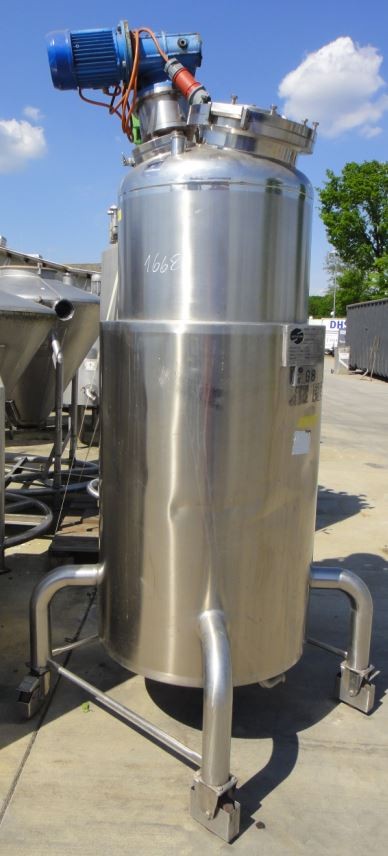

Container 500 liters made of V4A, used, temperature-controllable, isolated, standing

EUR 3.900,00

add. 19 % VAT excl. shipping costs

Volume approx. 500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 500 liters made of V4A, used, temperature-controllable, isolated consists of the material 1.4404(AISI316) V4A. The volume is approx. 500.00 litres. The diameter inside includes 630 mm.  Container 500 liters made of V4A, used, temperature-controllable, isolated was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes, Reactor,

General

  • Volume approx.

  • 500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 630 mm

  • External diameter

  • 750 mm

  • Cyl. length

  • 1.300 mm

  • Total height

  • 2.450 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Polished

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3 bar

  • Product chamber operating temperature

  • 143 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating temperature

  • 75 °C

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator 1 - Output

  • 1,5 kW

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Feet with castors (mobile)

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Handlochposition Handhole position

  • In head

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Nameplate

Other

  • Note

  • Reparaturstellen im Produktraum

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs:

Agriculture: Substrate tank, Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, CIP tank, Hot water tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Pharmaceuticals tank, Storage tank, Septic tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Mixing tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Cooling tank,
