Product no. M-2062

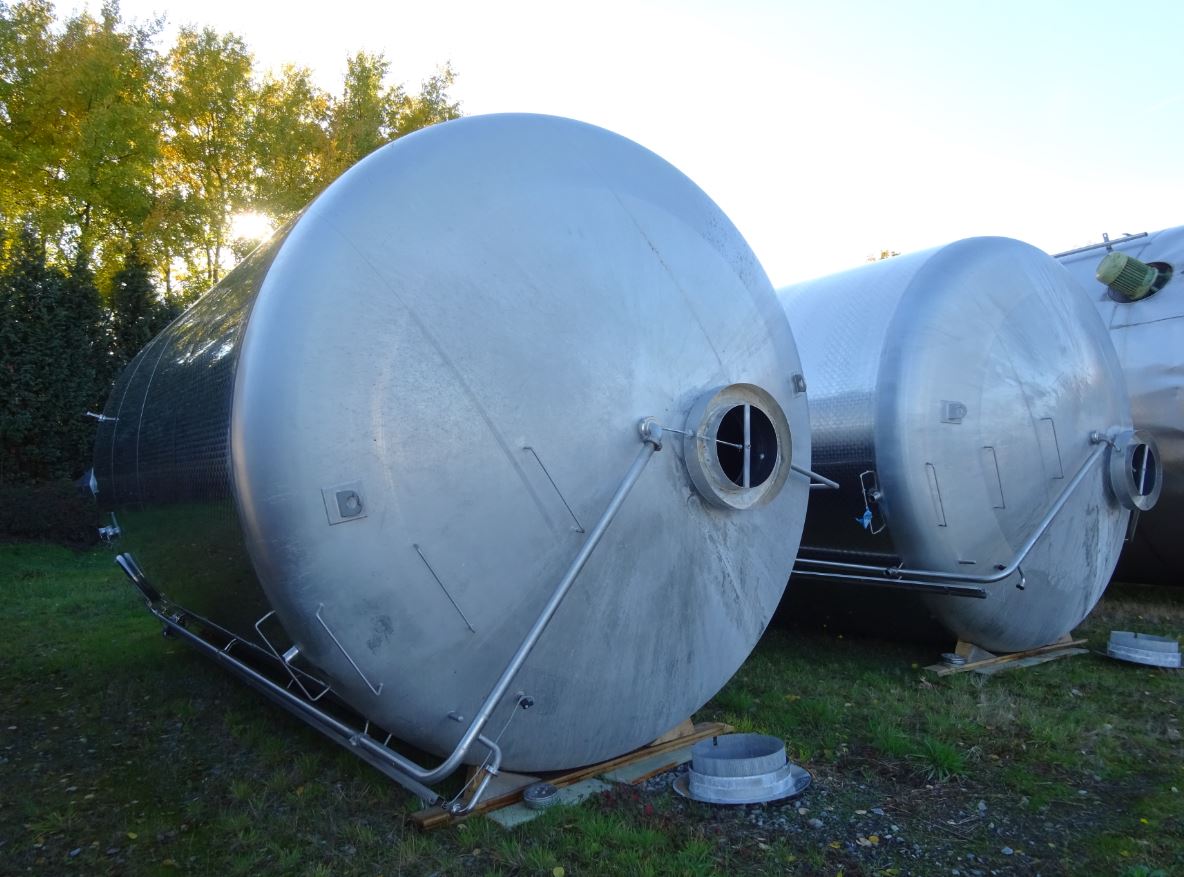

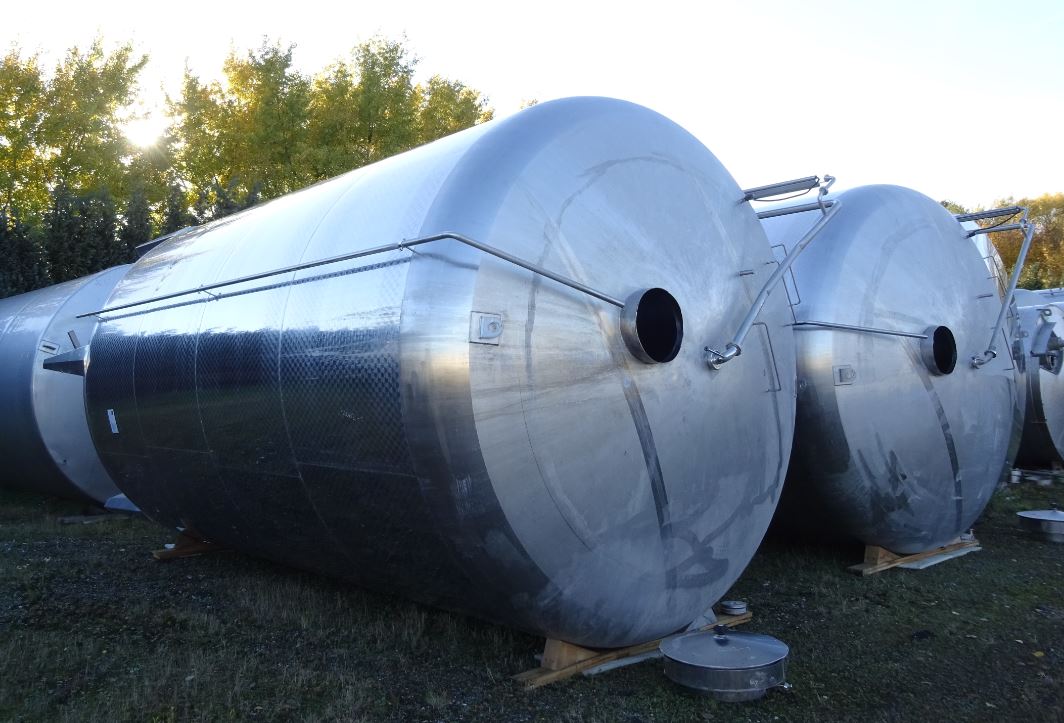

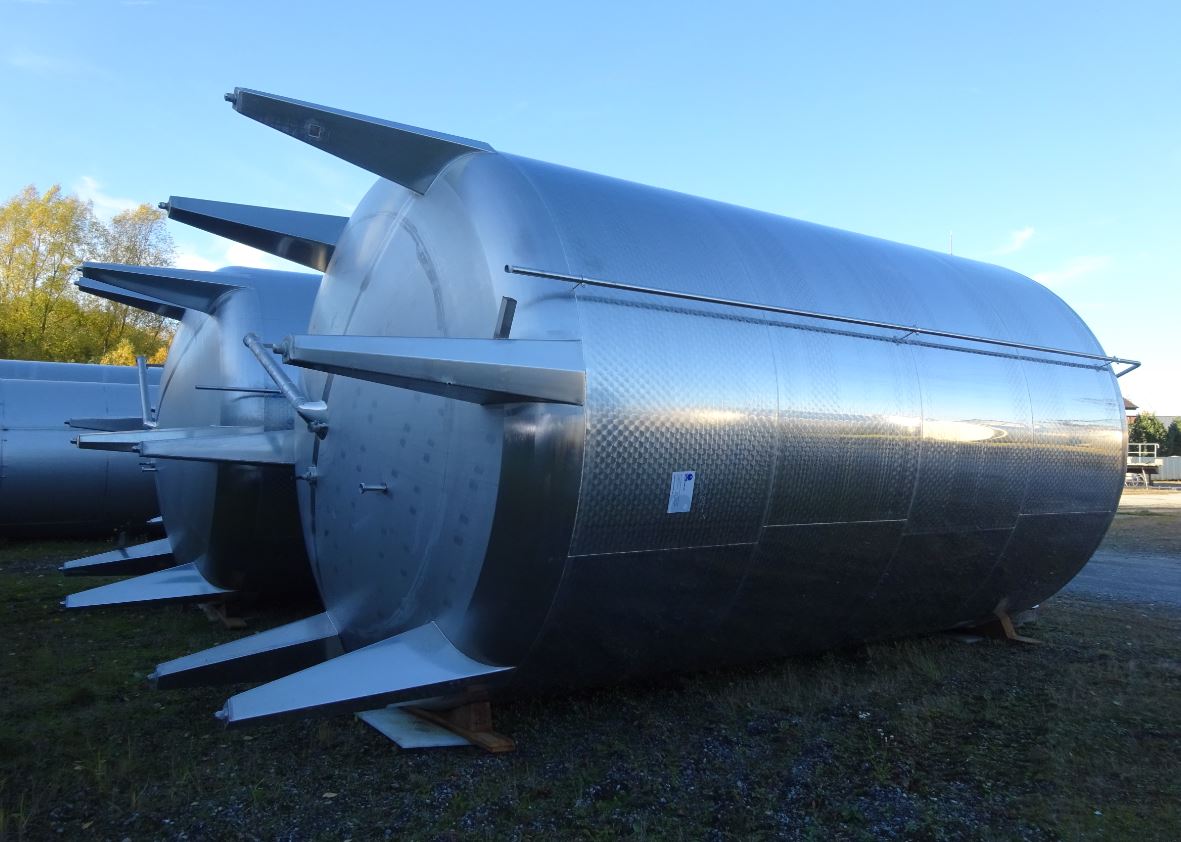

Container 50.000 liters made of V2A, used, single-walled, standing
EUR 21.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 50,000.00 litres
Product description
Container 50.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 50,000.00 litres. Container 50.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing, Cleaning/CIP,General
Volume approx.
50.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
3.400 mm
Cyl. height
5.000 mm
Foot height
1.350 mm
Total height
7.100 mm
Design
Weight approx.
2.800,00 kg
Weight per unit volume approx.
1.000,00 kg/m³

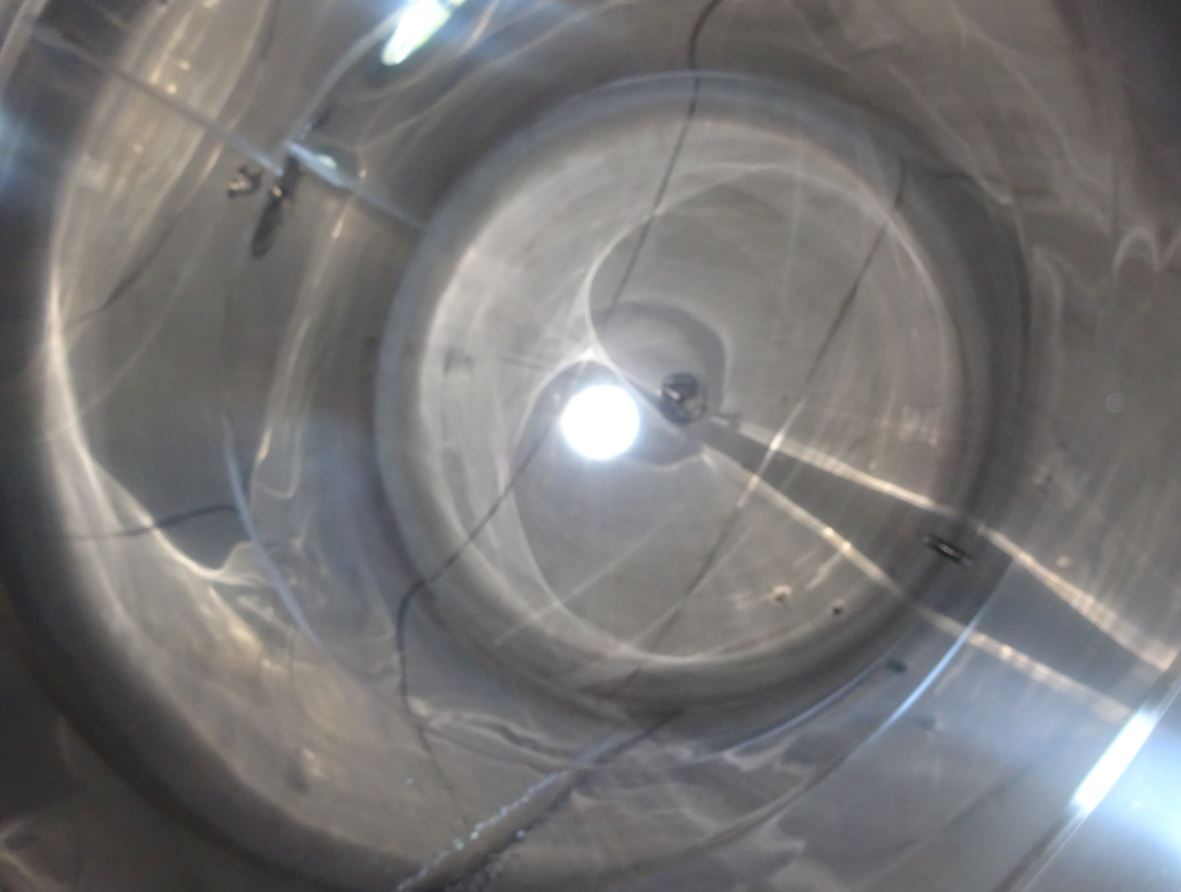

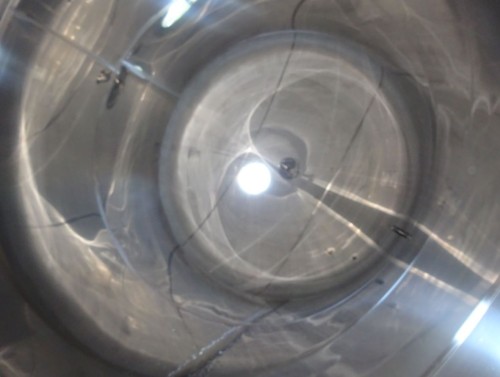

Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Torispherical bottom
Head design
Torispherical bottom

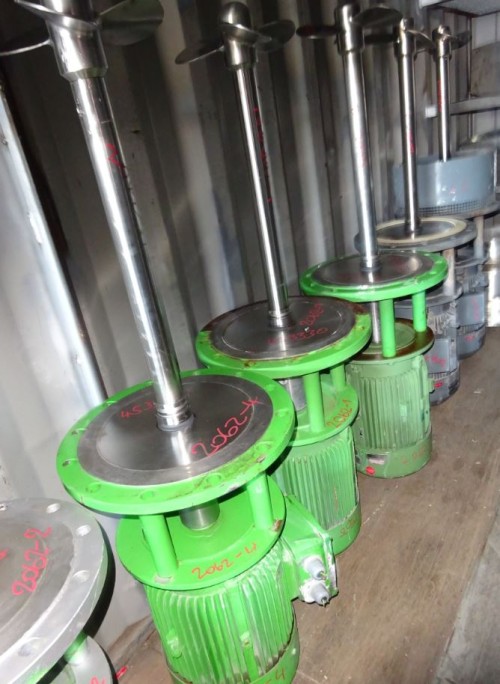

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
Central at the side in shell
Agitator 1 - Output
1,3 / 6,2 kW
Agitator 1 - RPM
465 / 965 UpM
Agitator 1 - Voltage
380 V

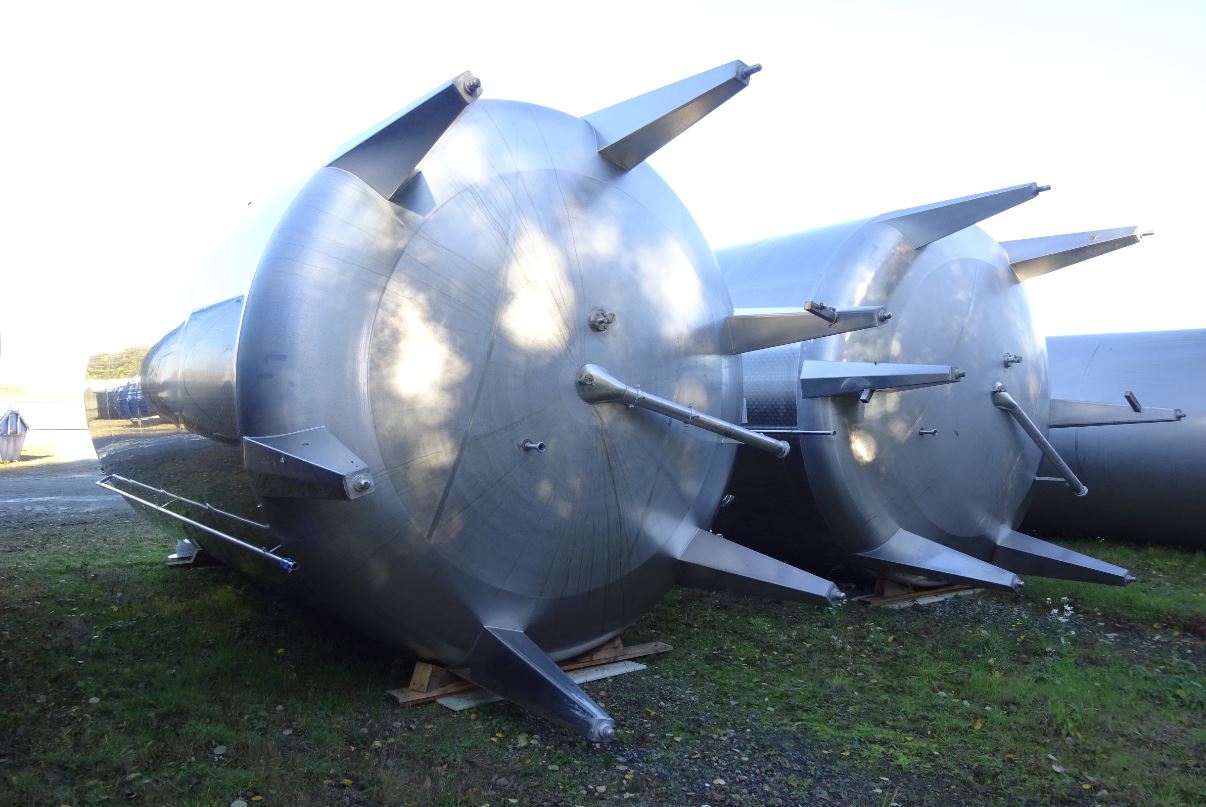

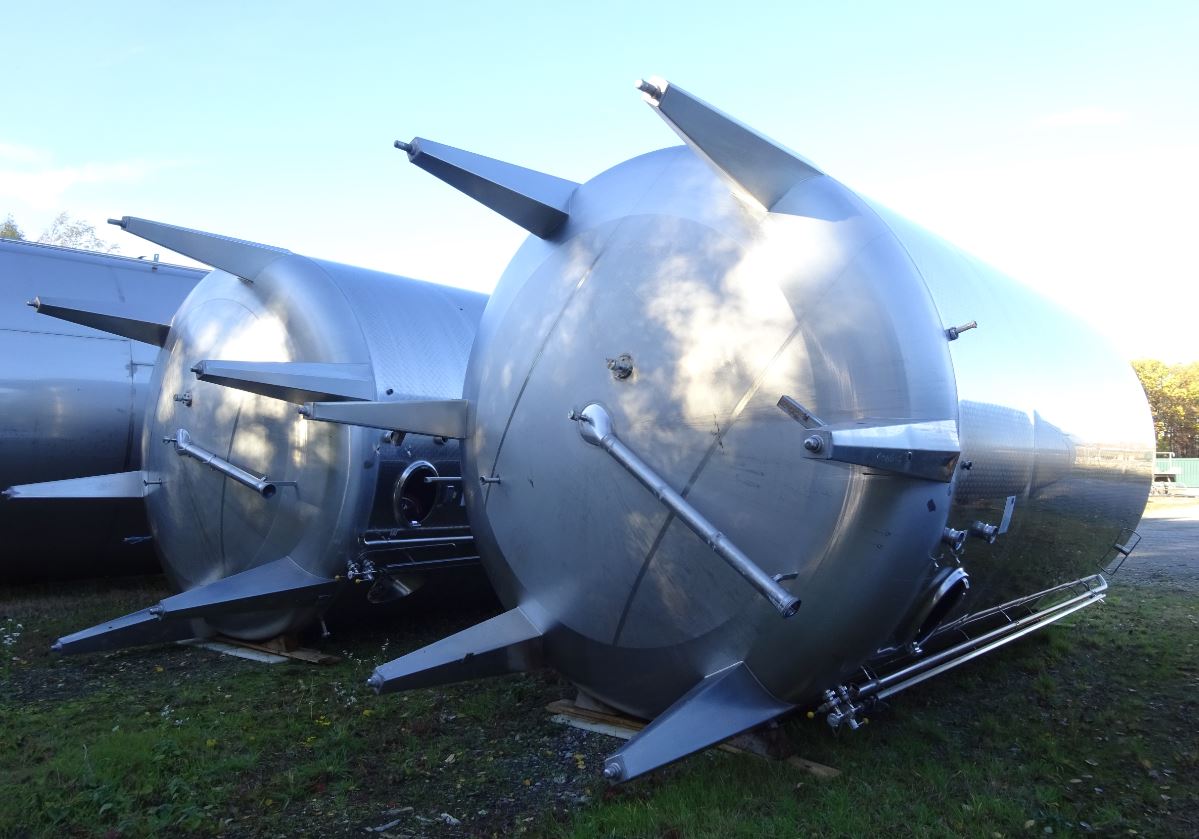

Supports
Supports
Stainless steel feet
Number of feet
6 (piece)
Fixtures and fittings

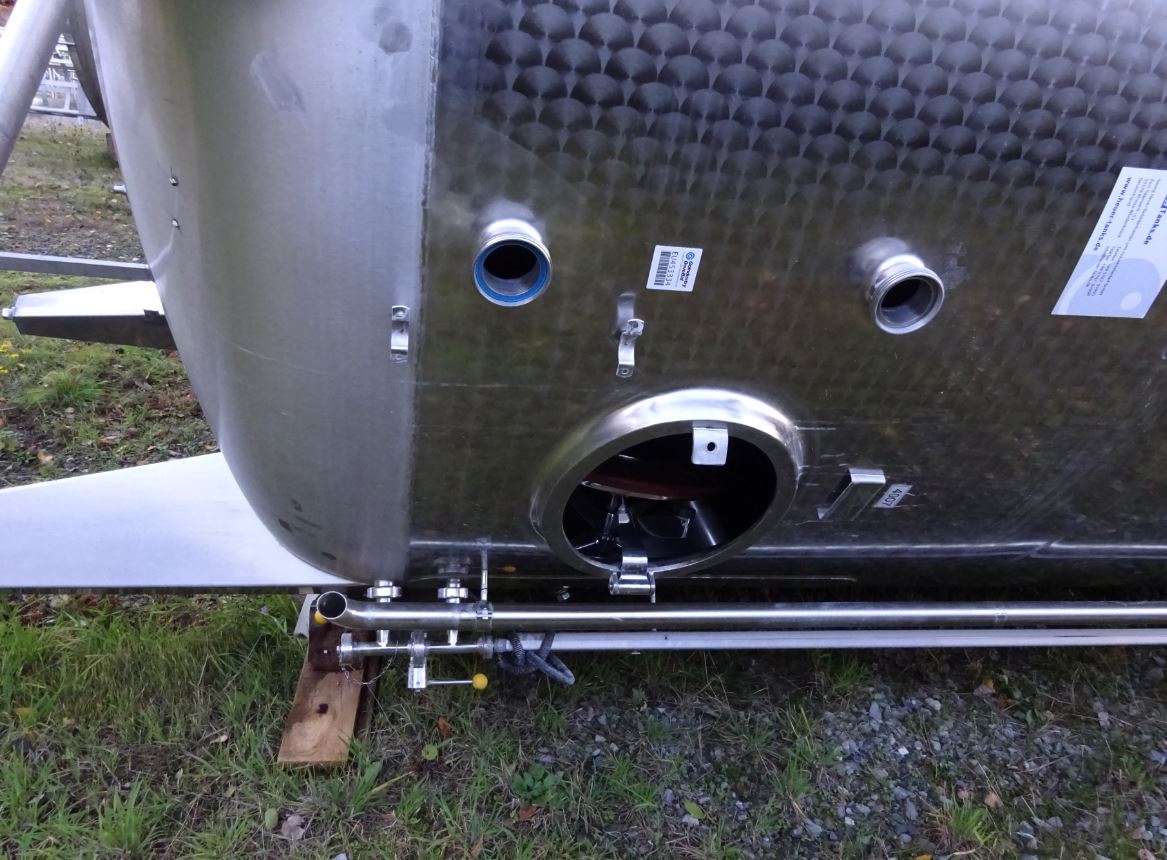

Manway position
In shell
Nozzle connector
Screw thread
Nozzles/connectors in shell
2xDN27 2xDN65 (piece)
Outlet nozzle
80
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Fill level pipes
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
