Product no. M-1840

Container 5.000 liters made of V4A, used, isolated, temperature-controllable, horizontal

EUR 12.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

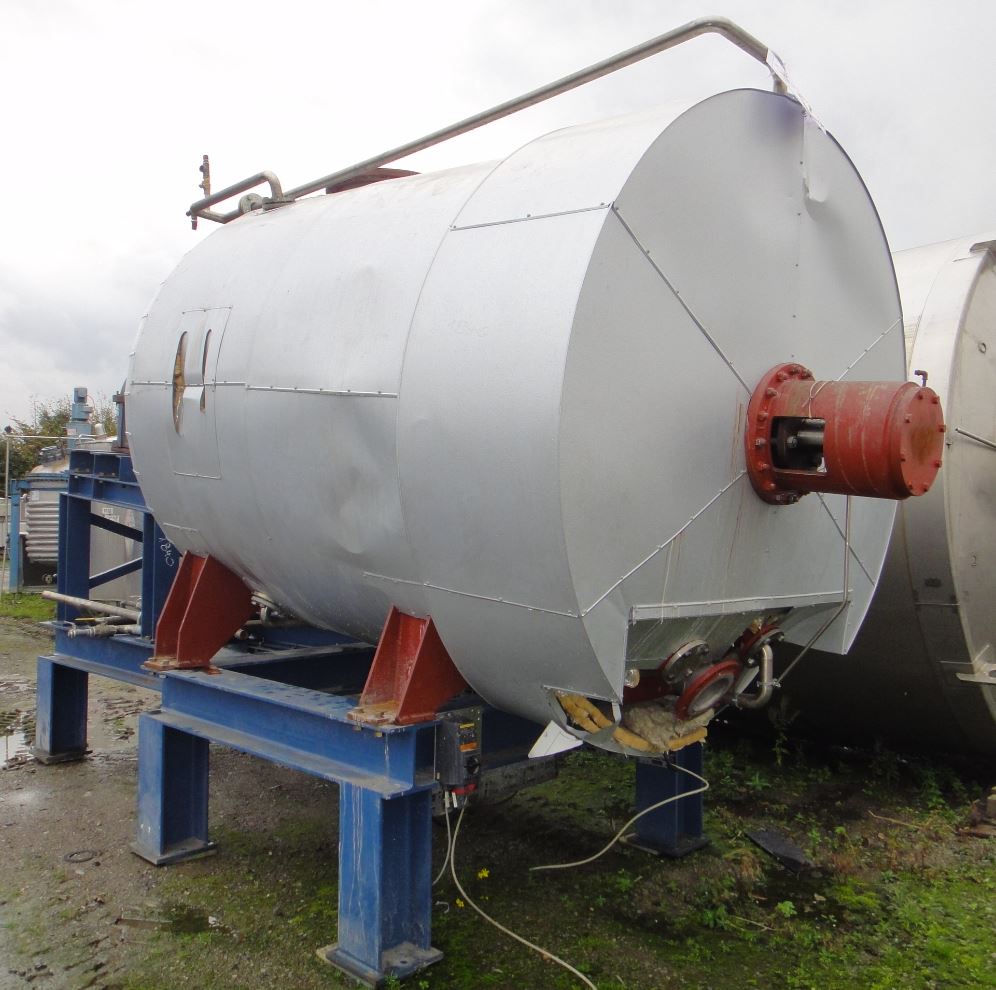

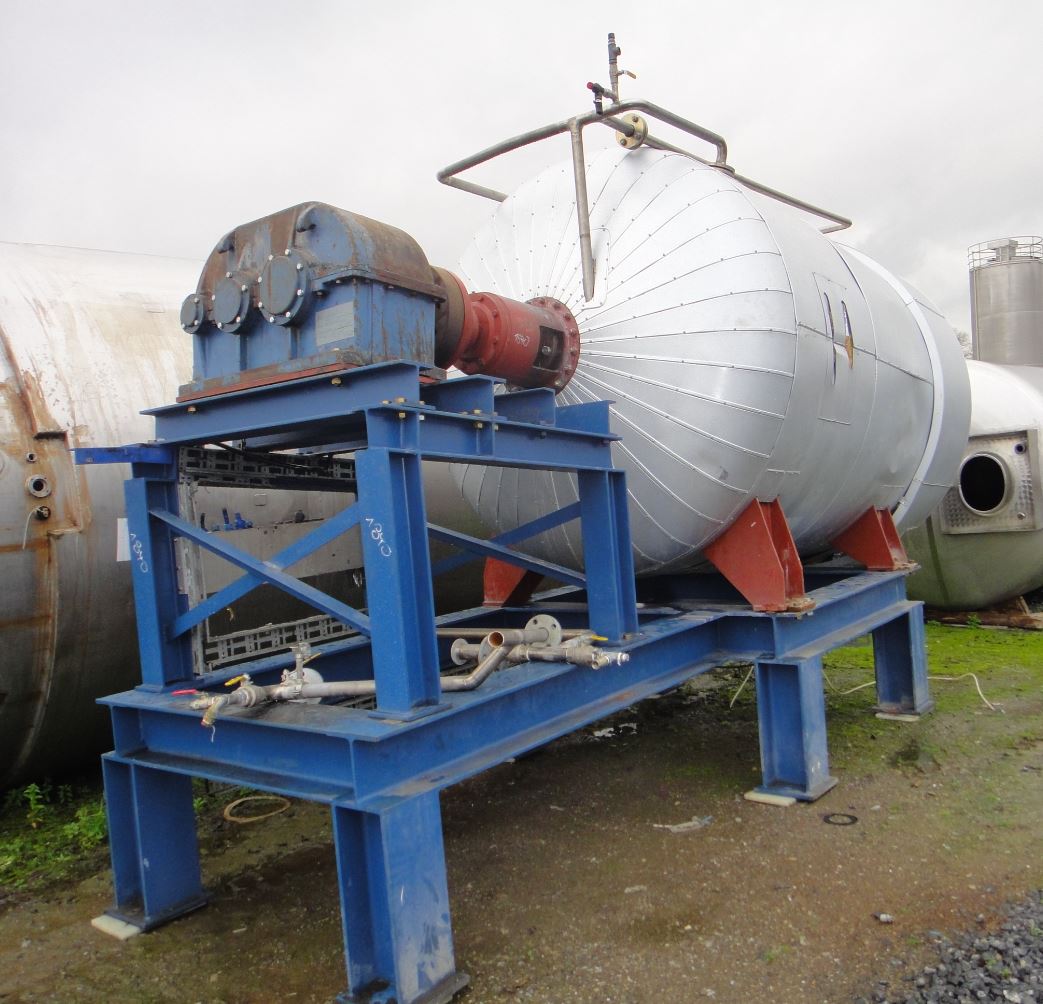

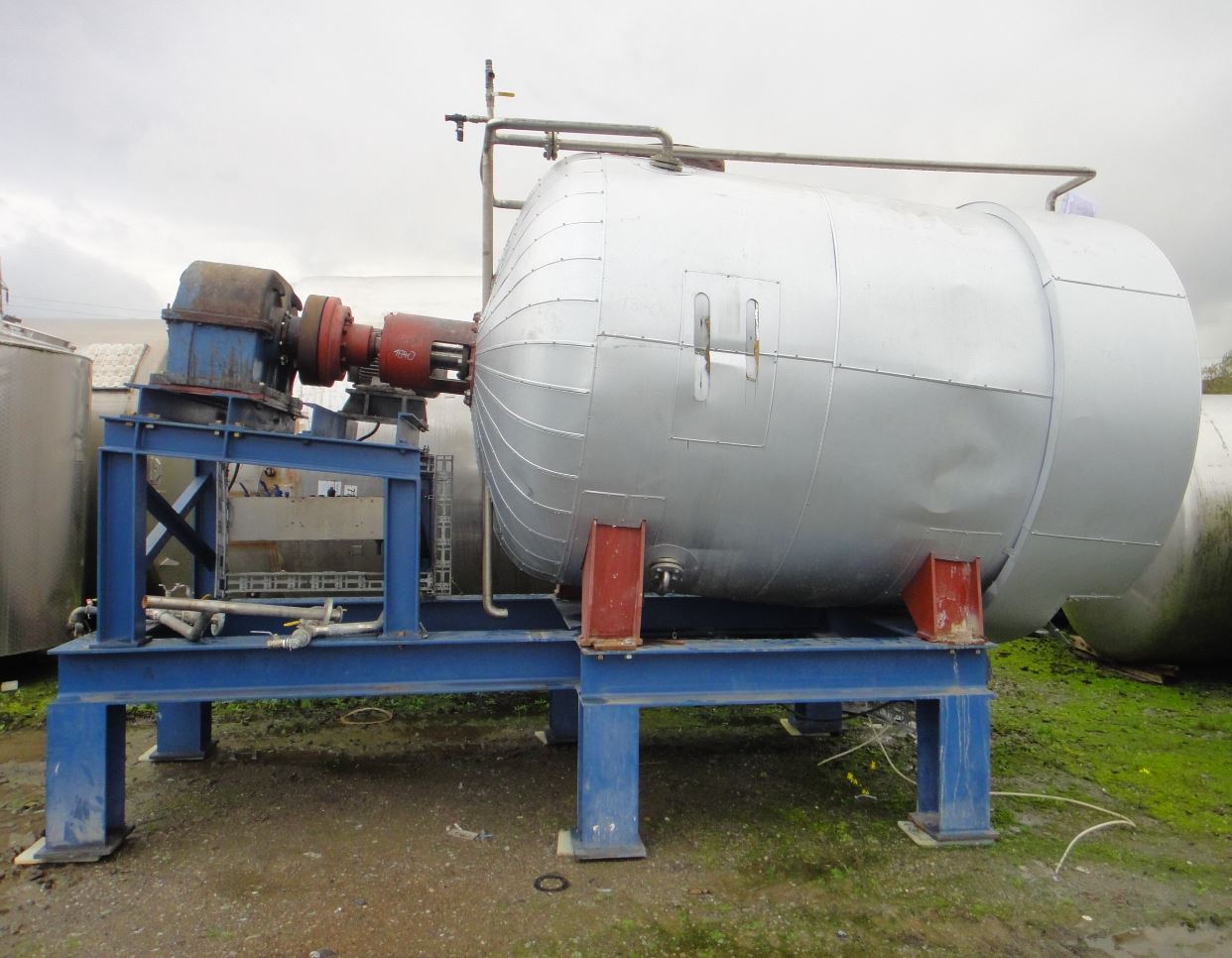

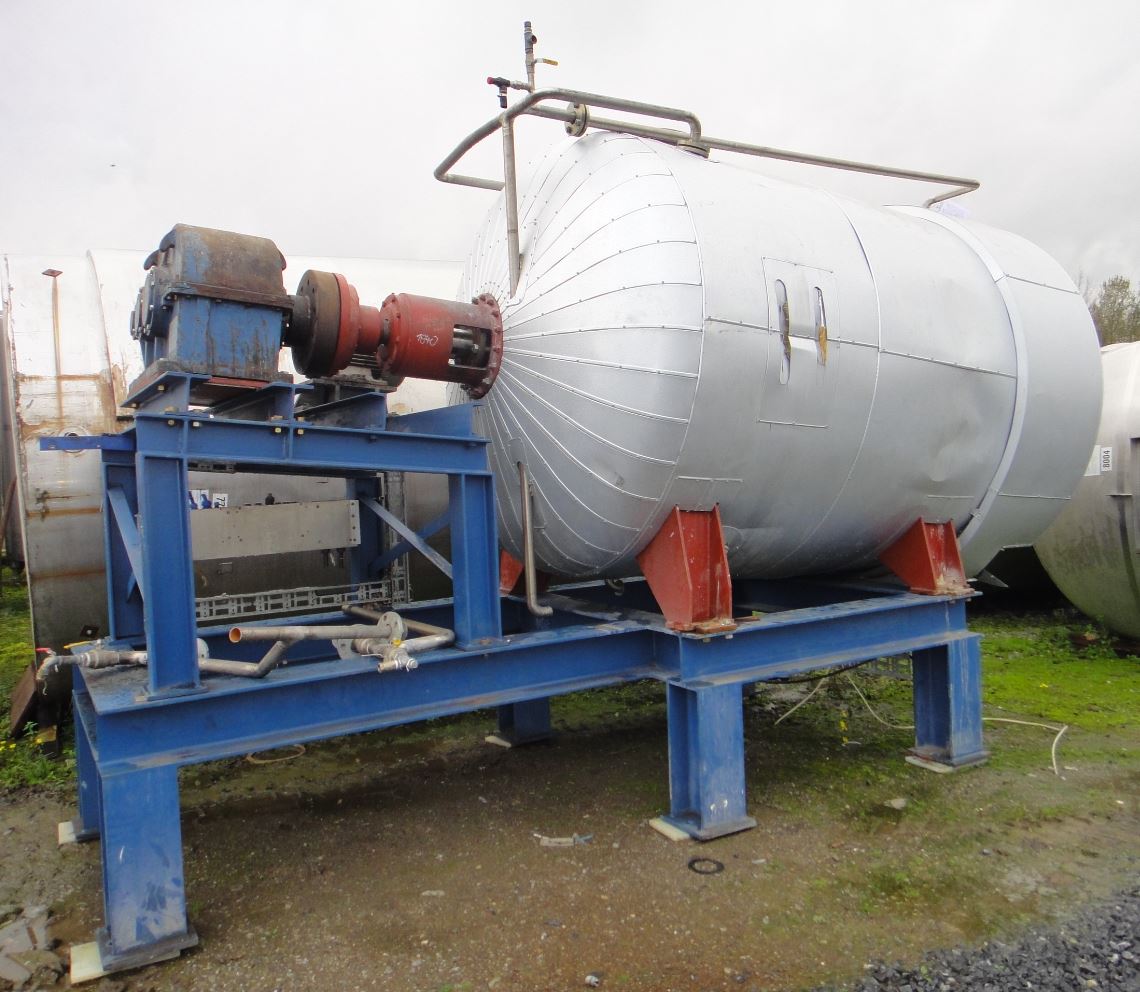

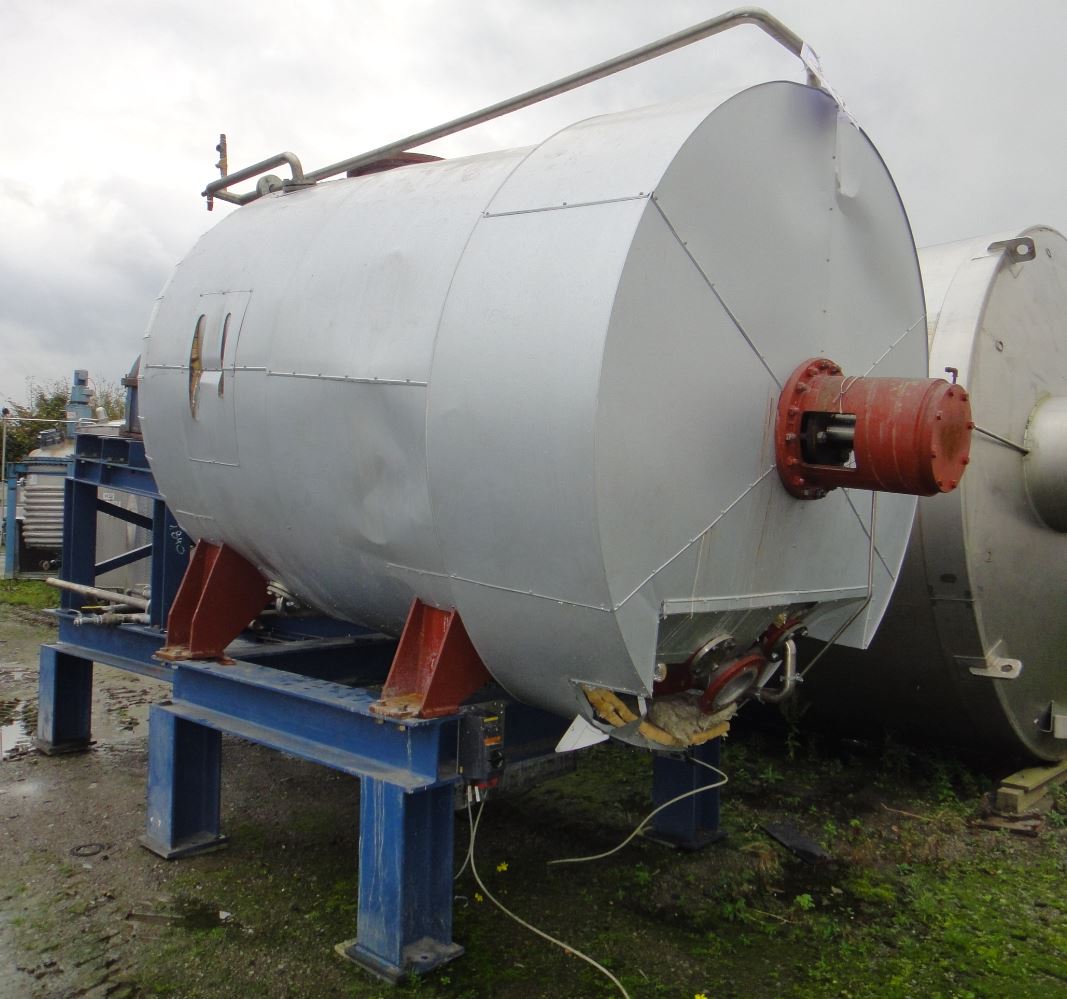

Container 5.000 liters made of V4A, used, isolated, temperature-controllable consists of the material Stainless steel. The volume is approx. 5,000.00 litres. The diameter inside includes 1,900 mm.  Container 5.000 liters made of V4A, used, isolated, temperature-controllable was last used in the following area: Fine chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing,

General

  • Volume approx.

  • 5.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.900 mm

  • External diameter

  • 2.100 mm

  • Cyl. length

  • 1.900 mm

  • Outlet height

  • 1.100 mm

  • Total height

  • 3.500 mm

  • Total length

  • 4.600 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Bolted steel

  • Interior surface

  • Brushed

  • Floor type

  • Torispherical bottom

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

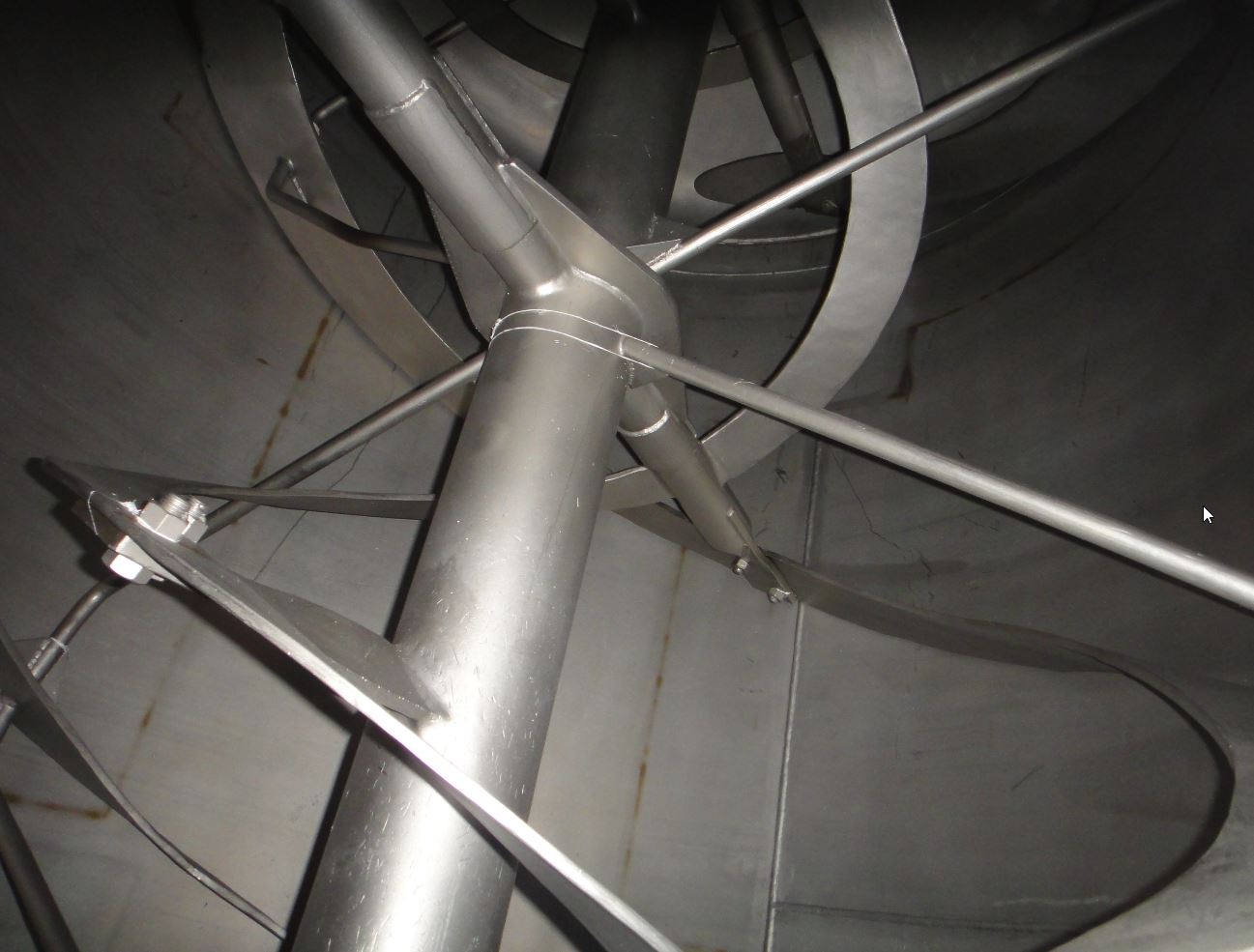

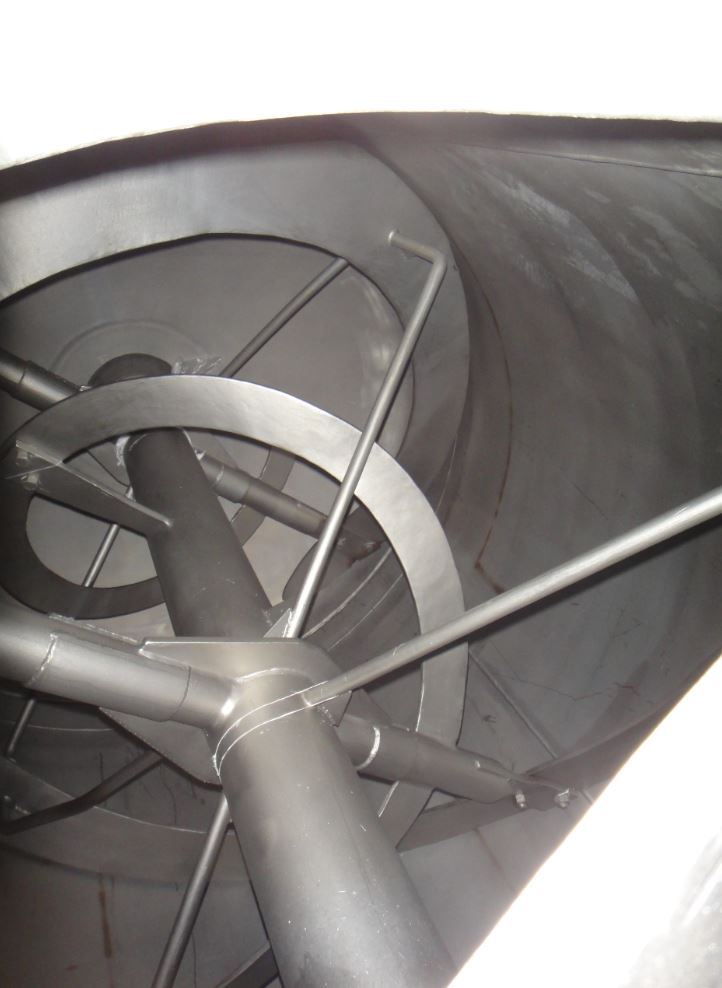

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Transverse mixer

  • Agitator position

  • Front face

  • Agitator manufacturer

  • Pekron EEX

  • Agitator 1 - Output

  • 15 kW

  • Agitator 1 - RPM

  • 62 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Steel frame

Fixtures and fittings

  • Manway 1 size

  • 460 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 2xDN65 (piece)

  • Outlet nozzle

  • 150

Other

  • Last usage

  • Fine chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Rainwater tank, Storage tank, Buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Reactor tank, Mixing tank, Process tank, Cooling tank,
