Product no. M-2441

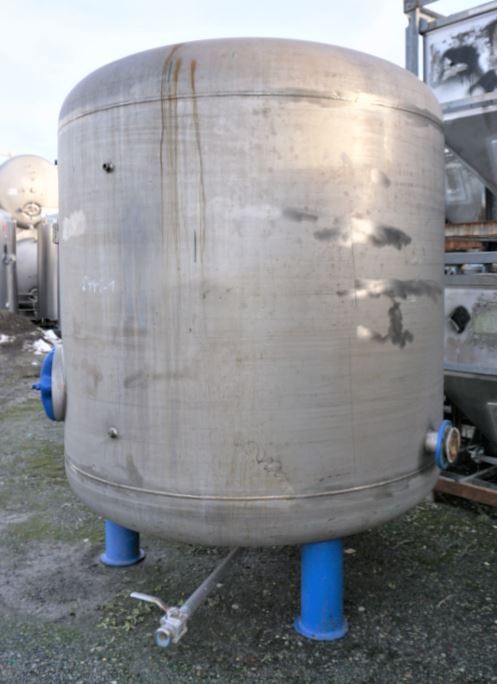

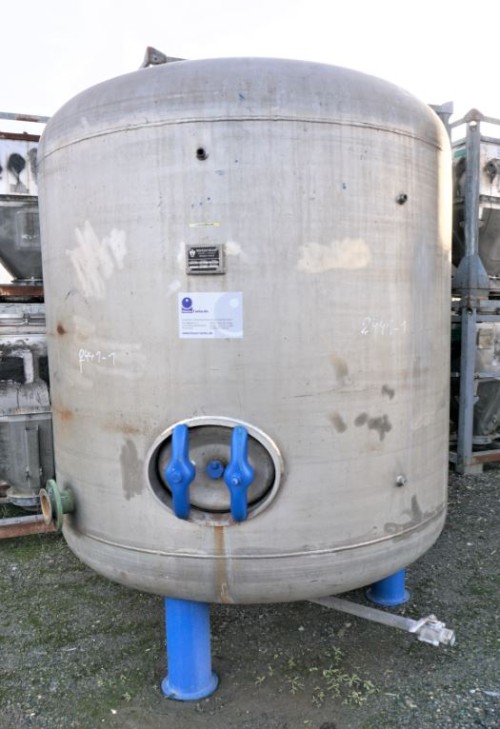

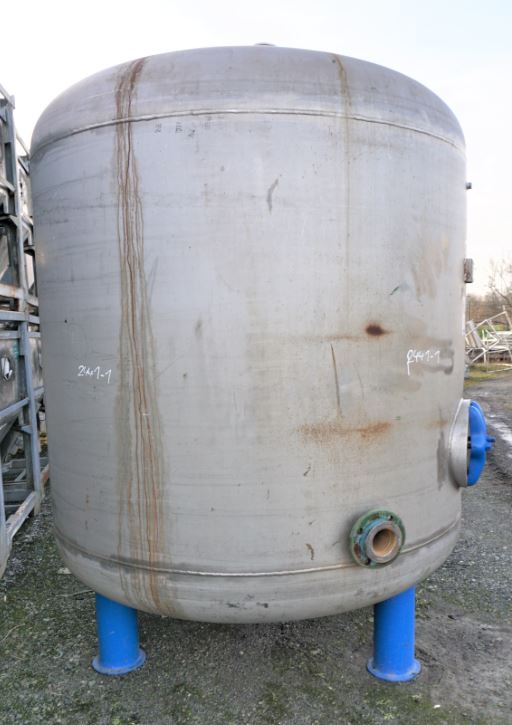

Container 5.000 liters made of V4A single-walled, standing

EUR 5.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 5.000 liters made of V4A single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 5,000.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 5.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1978

  • Manufacturer

  • Deller

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.400 mm

  • Foot height

  • 650 mm

  • Total height

  • 2.600 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

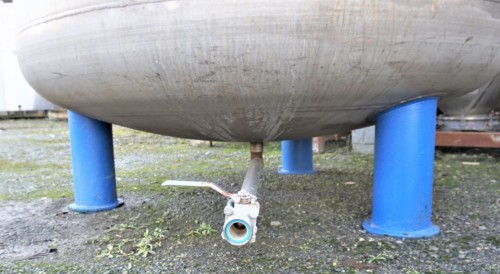

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 2xDN80 (piece)

  • Additional fixtures and fittings

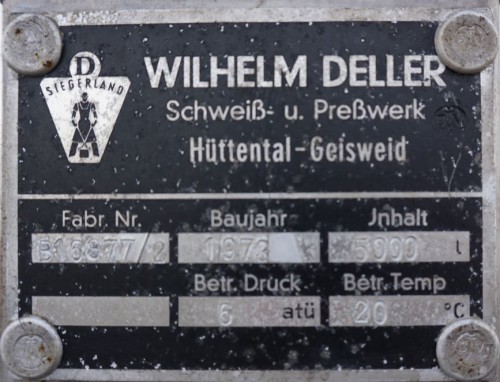

  • Nameplate

Technical documentation

  • Technical documentation

  • None

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
