Product no. M-2521

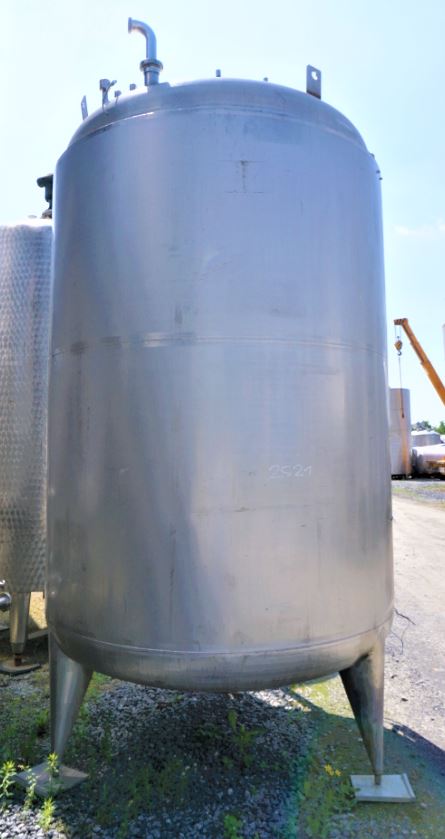

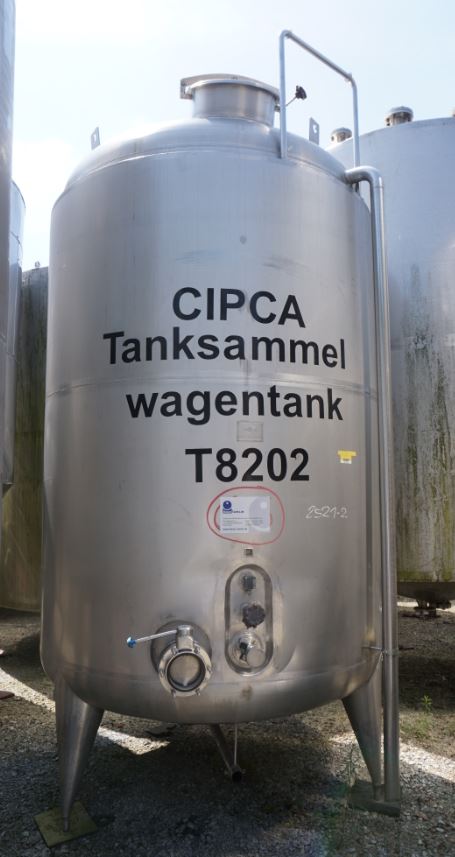

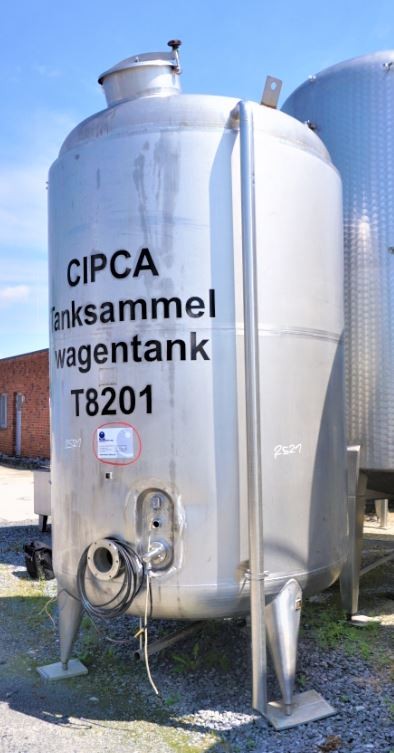

Container 5.000 liters made of V2A isolated, used, standing

EUR 3.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

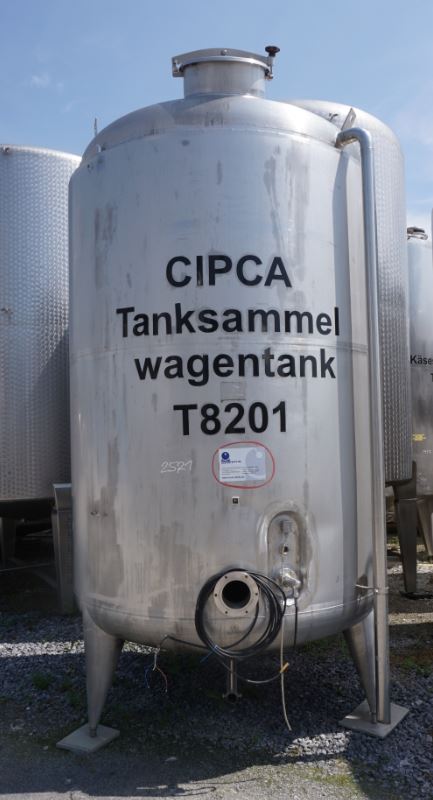

Container 5.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. The diameter inside includes 1,700 mm.  Container 5.000 liters made of V2A isolated, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 5.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.700 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 2.250 mm

  • Foot height

  • 720 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • Füße höhenverstellbar

Fixtures and fittings

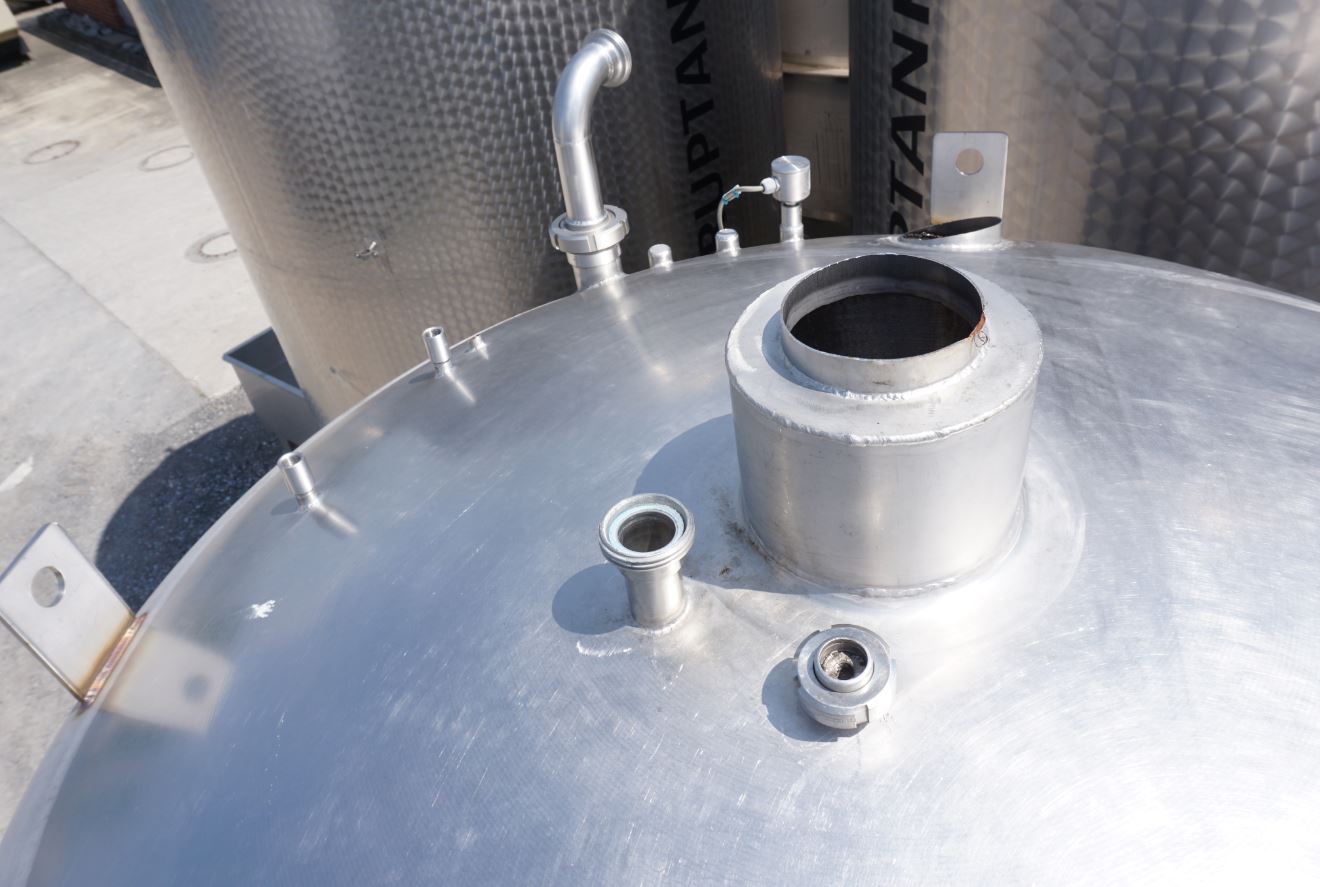

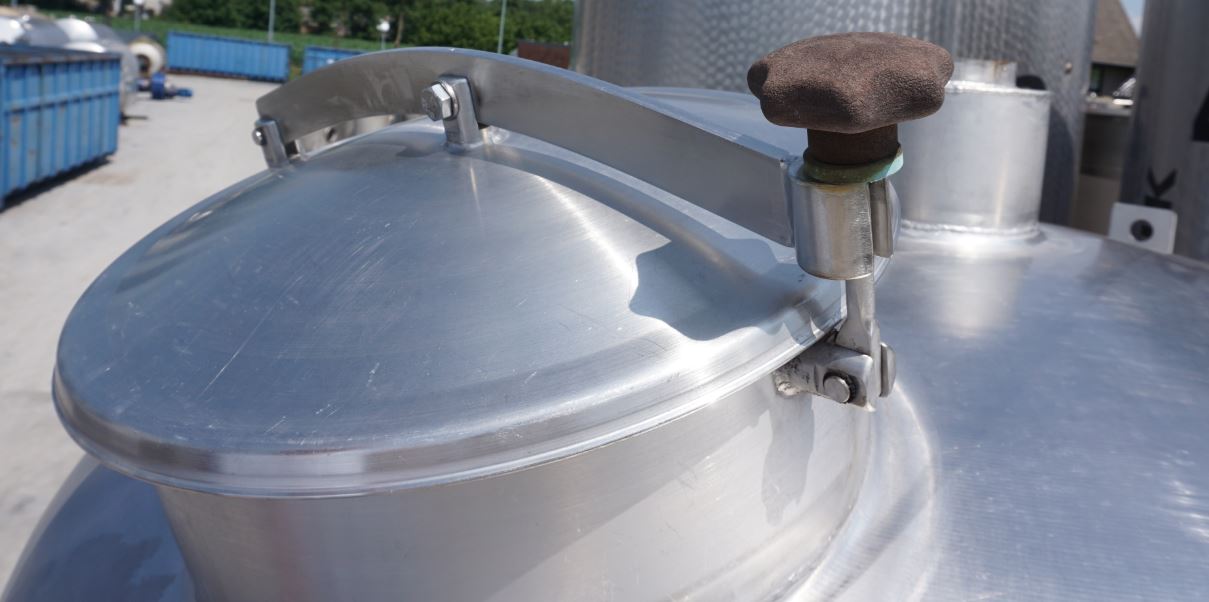

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

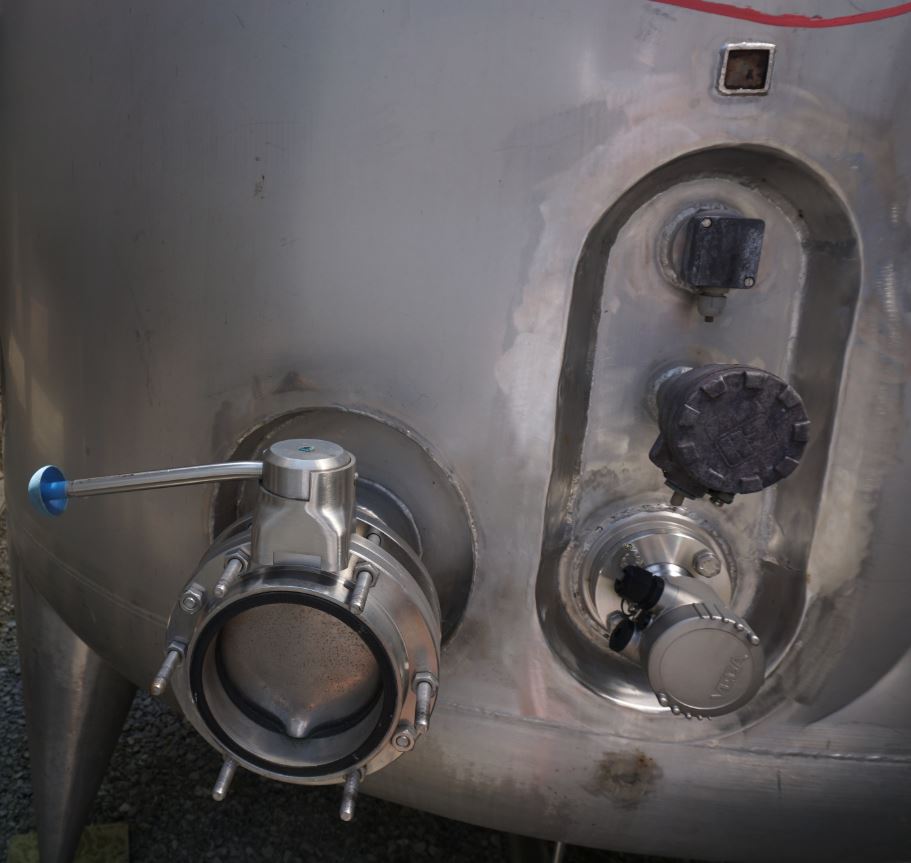

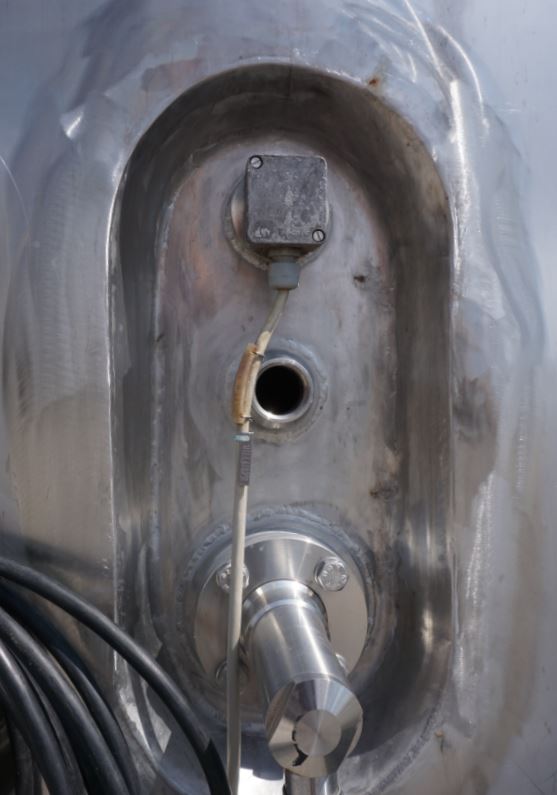

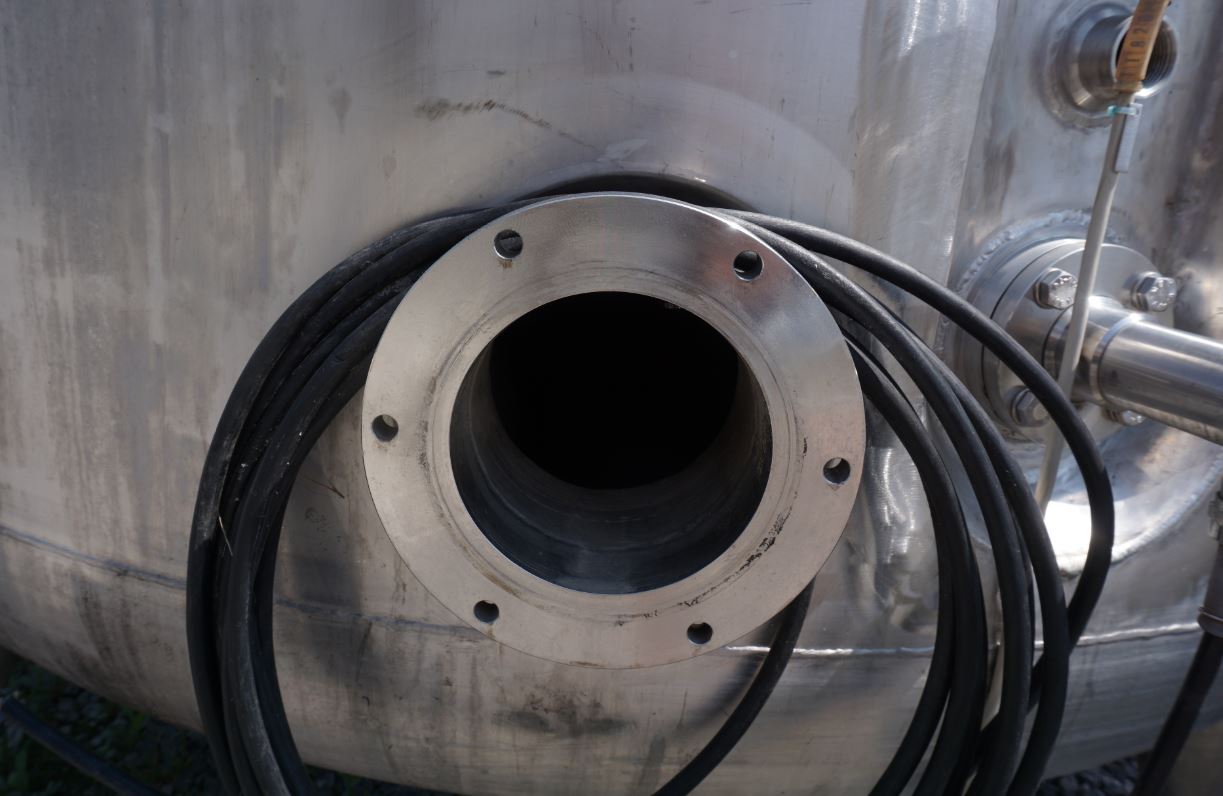

  • Nozzles/connectors in shell

  • 1xDN80 1xDN125 (piece)

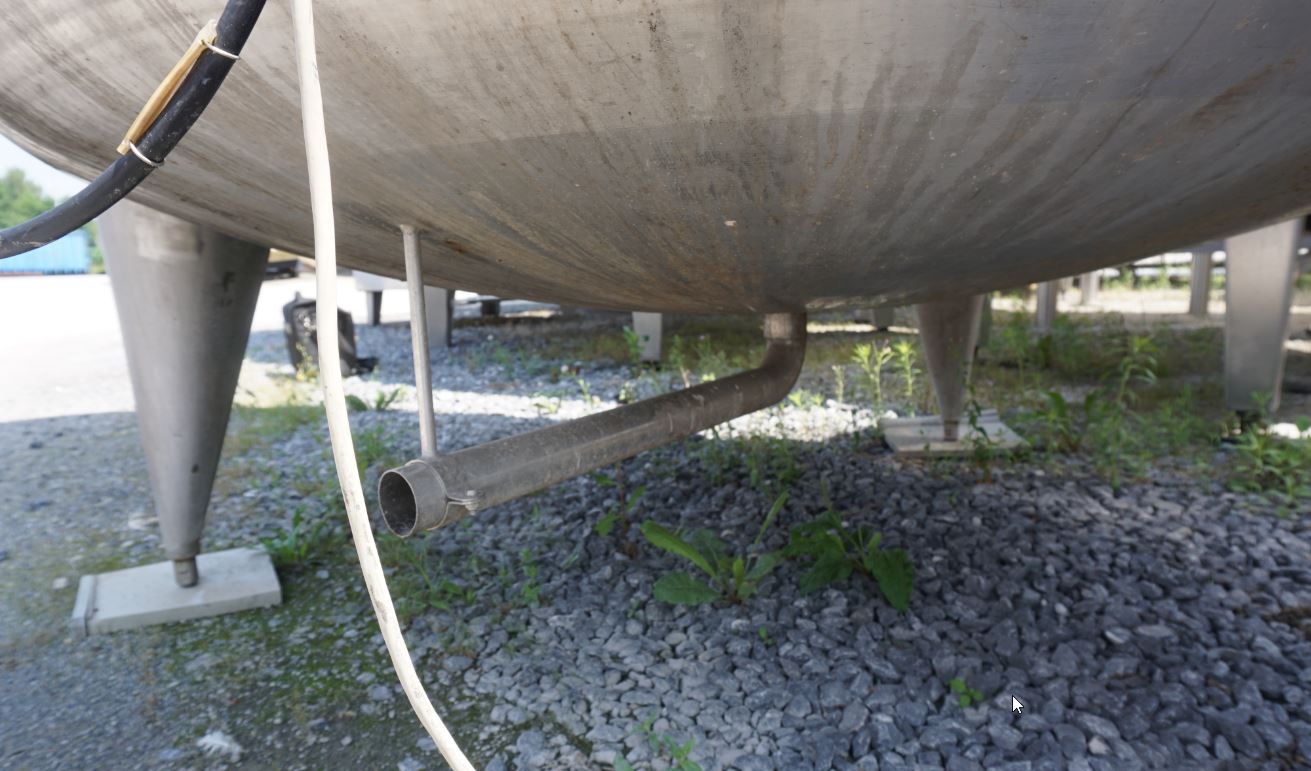

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

Other

  • Note

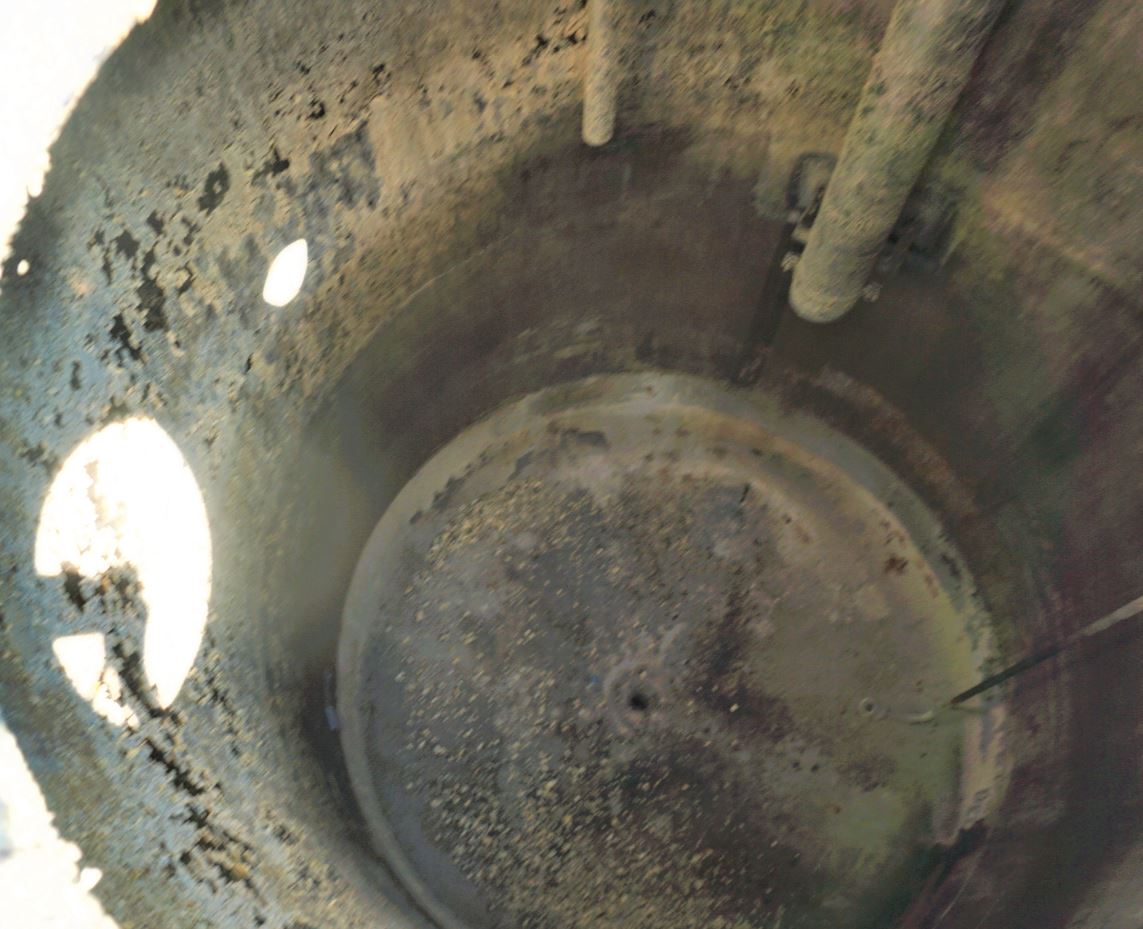

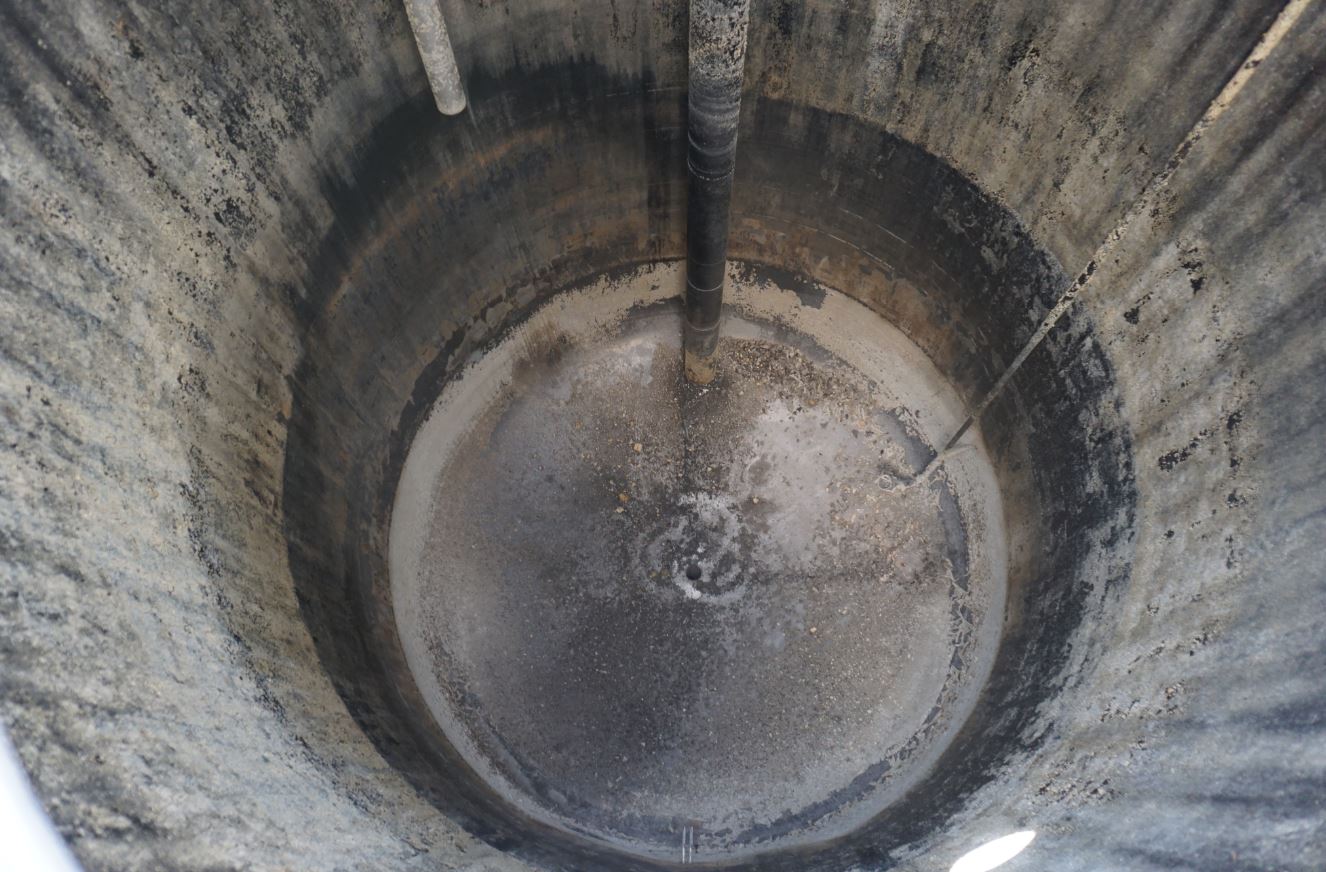

  • Anhaftungen im Produktraum

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
