Product no. M-1981

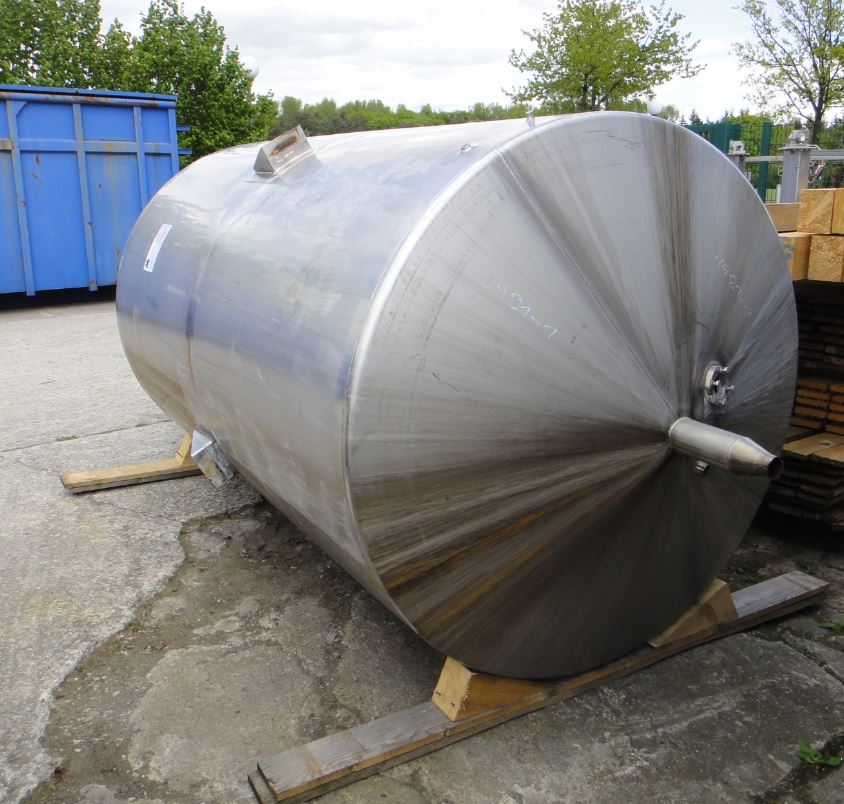

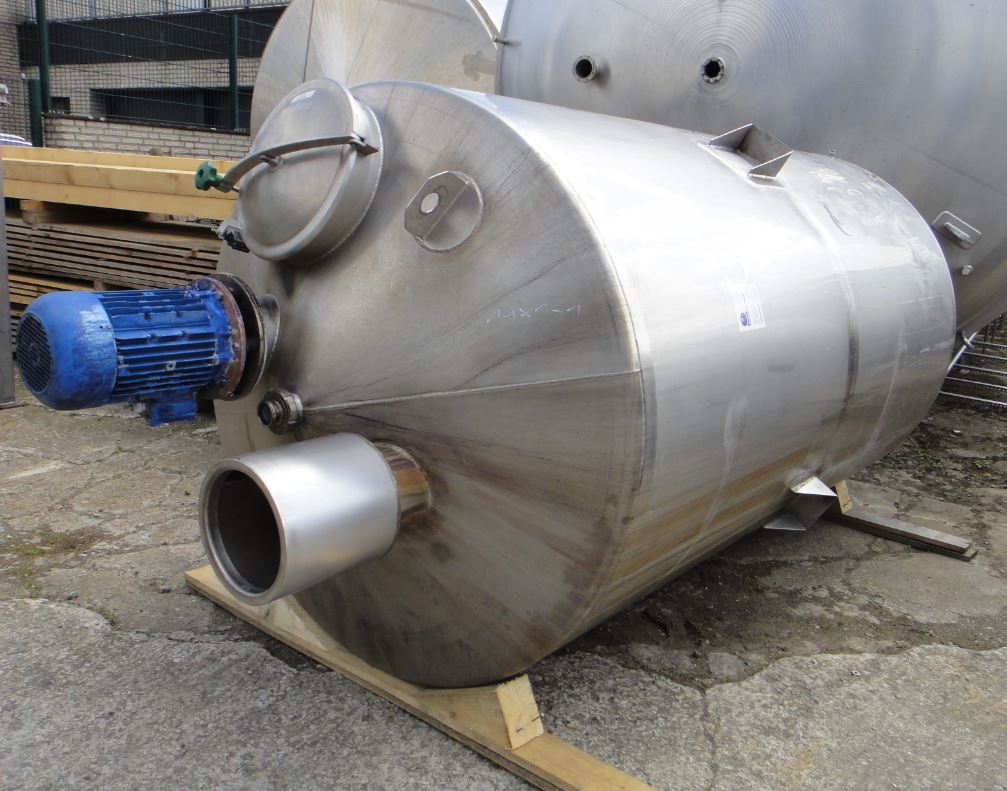

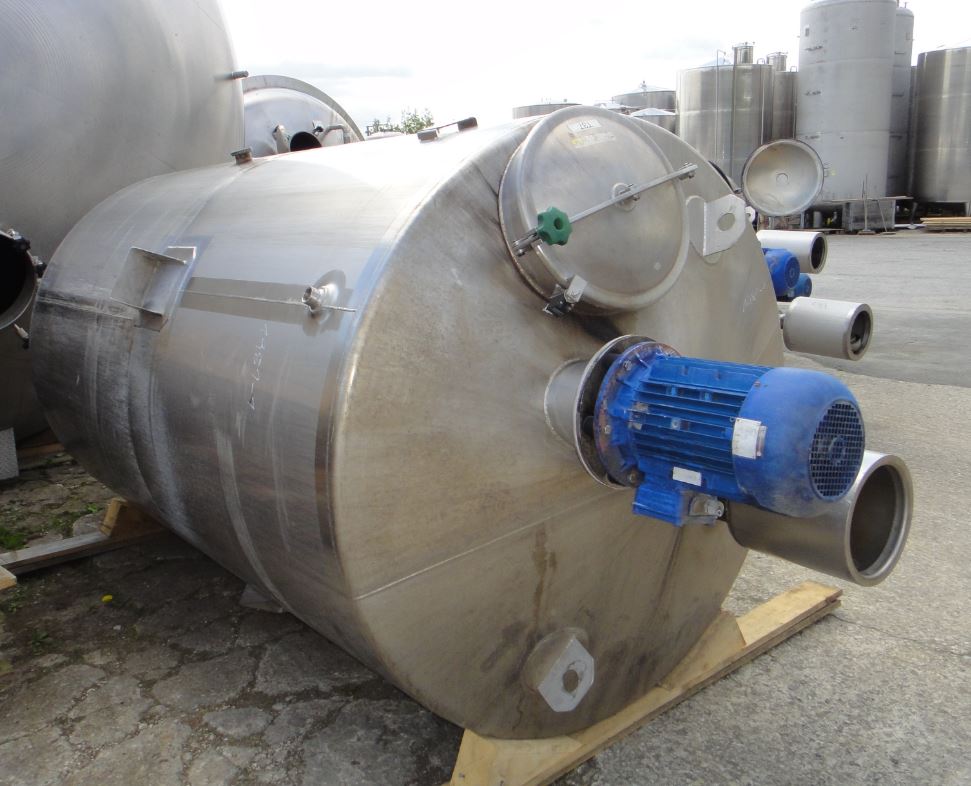

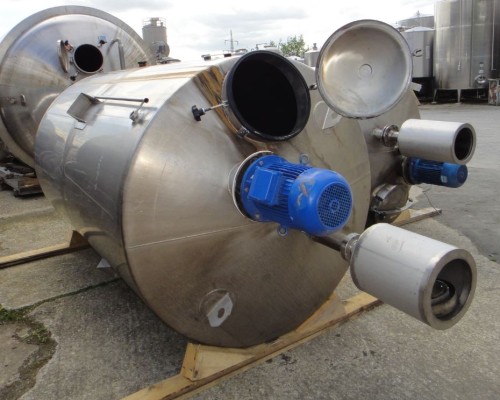

Container 5.000 liters made of V2A, used, single-walled, hanging
EUR 3.900,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. Container 5.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing, Cleaning/CIP,General
Volume approx.
5.000,00 litres
Structure
Hanging
Condition
Used
Dimensions approx.
External diameter
1.600 mm
Cyl. height
2.500 mm
Total height
3.600 mm
Design
Weight approx.
500,00 kg
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom

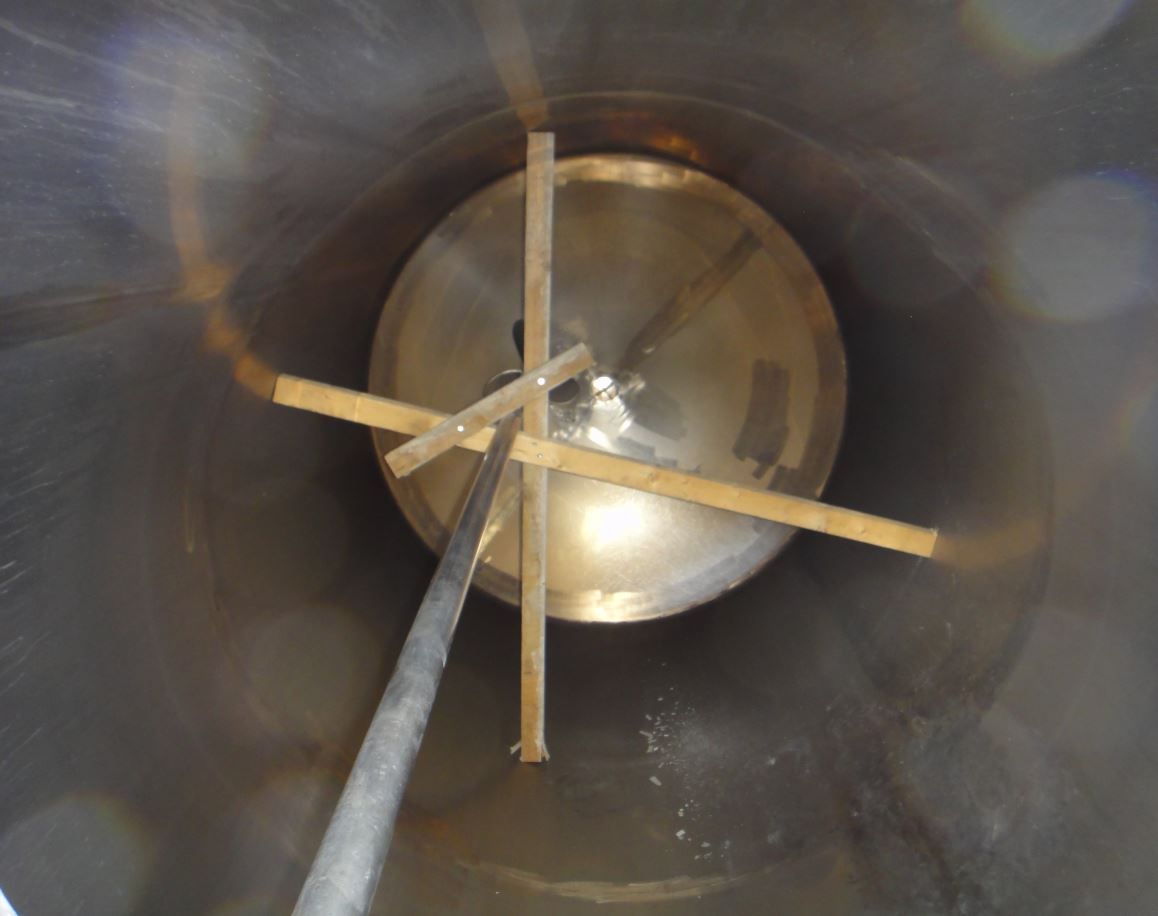

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
Head off-centre
Supports
Supports
Bracket supports
Number of feet
4 (piece)
Fixtures and fittings
Manway 1 size
430 DN mm
Manway position
In head
Nozzles/connectors in shell
1xDN50 (piece)
Outlet nozzle
65/50
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Air vent
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
Agriculture: Substrate tank, Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
