Product no. M-1728

Container 5.000 / 5.000 liters made of V2A, used, isolated, standing

EUR 9.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

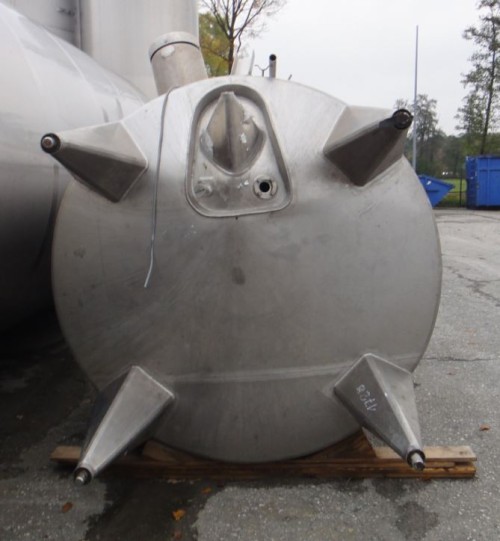

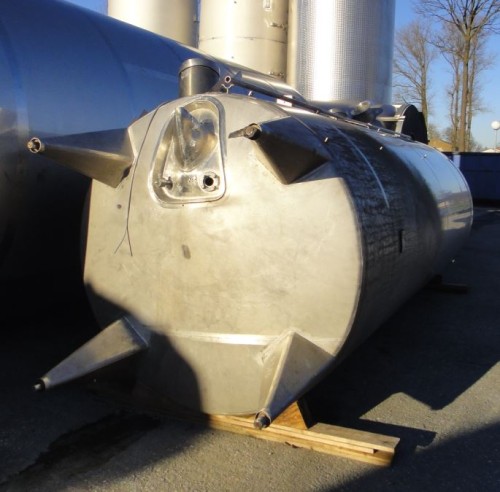

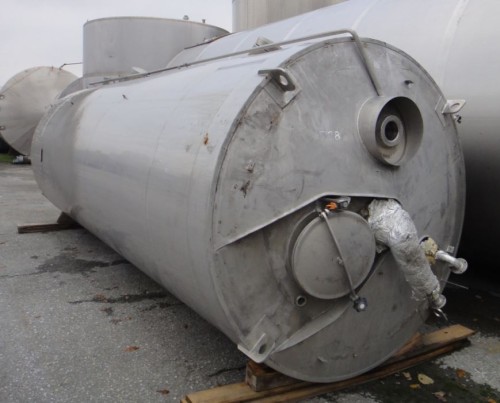

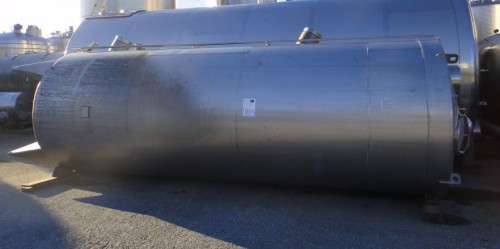

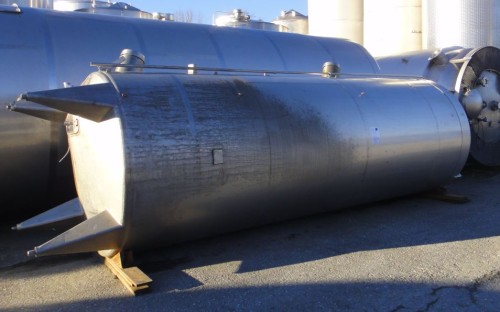

Container 5.000 / 5.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 1,800 mm.  Container 5.000 / 5.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Chamber volume 1

  • 5000 litres

  • Chamber volume 2

  • 5000 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2002

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.800 mm

  • External diameter

  • 1.900 mm

  • Cyl. height

  • 5.310 mm

  • Foot height

  • 739 mm

  • Outlet height

  • 500 mm

  • Total height

  • 6.816 mm

  • Wall thickness of product chamber head

  • 4 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 4 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 2 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

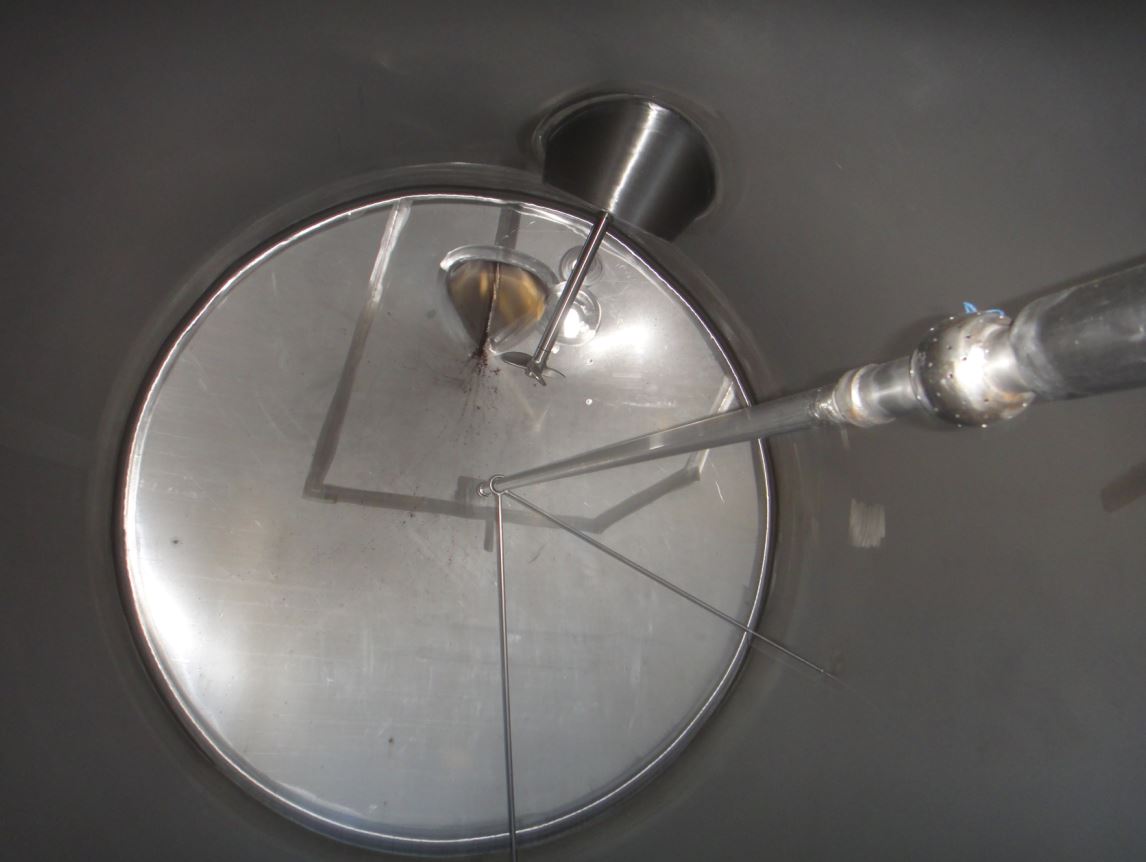

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Screw thread

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Cold water tank,
