Product no. M-2240

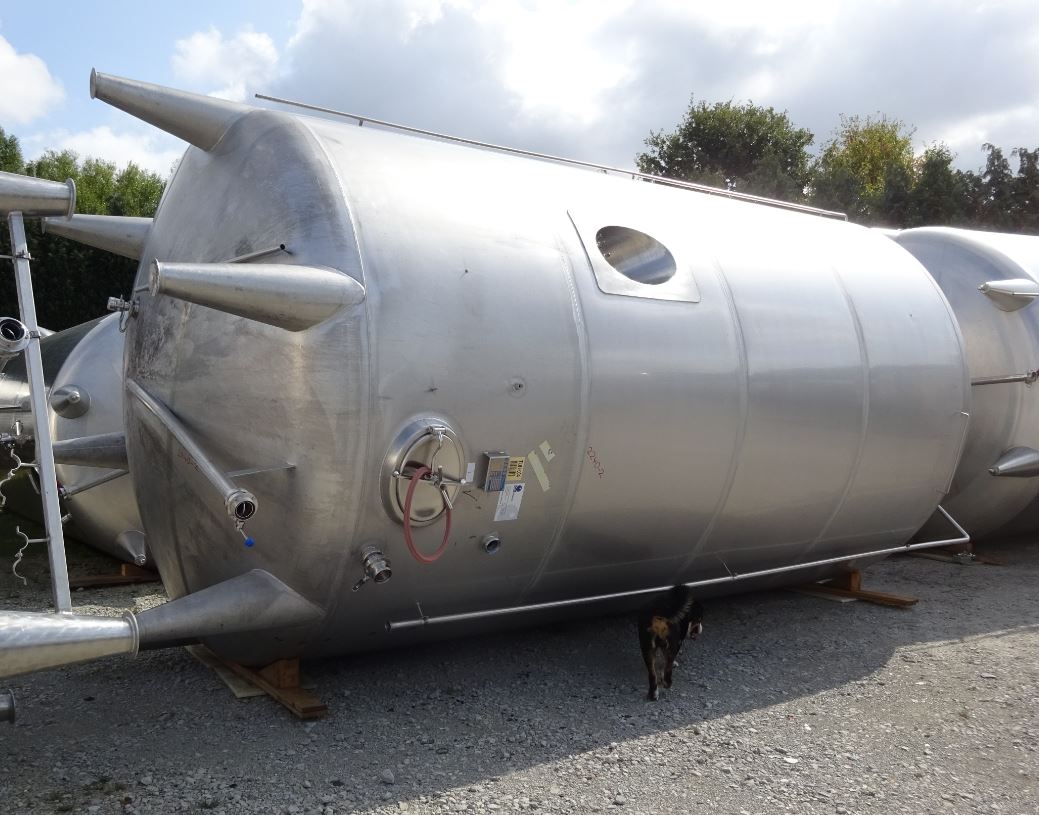

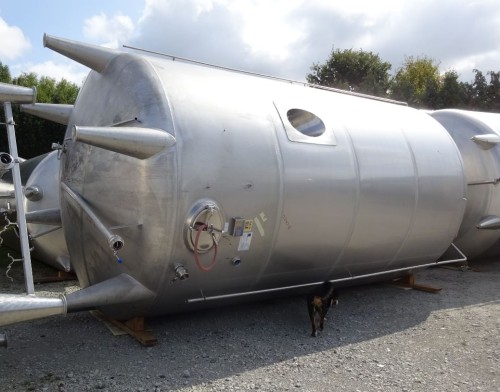

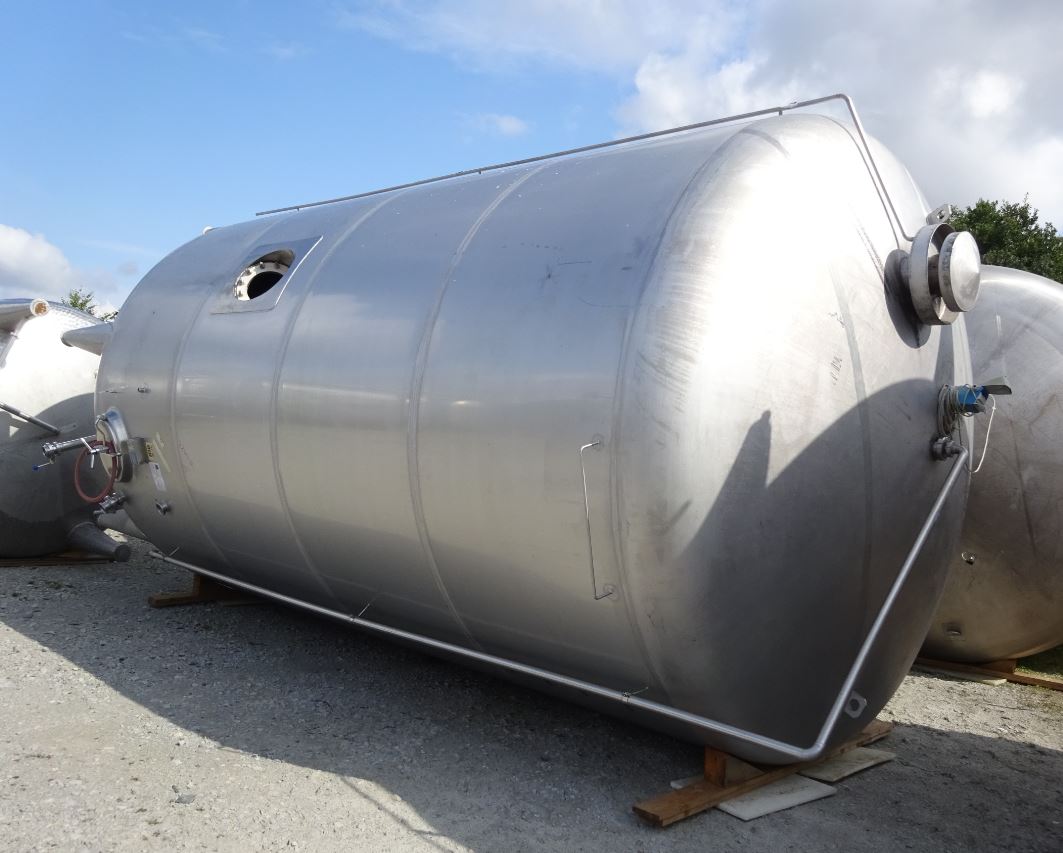

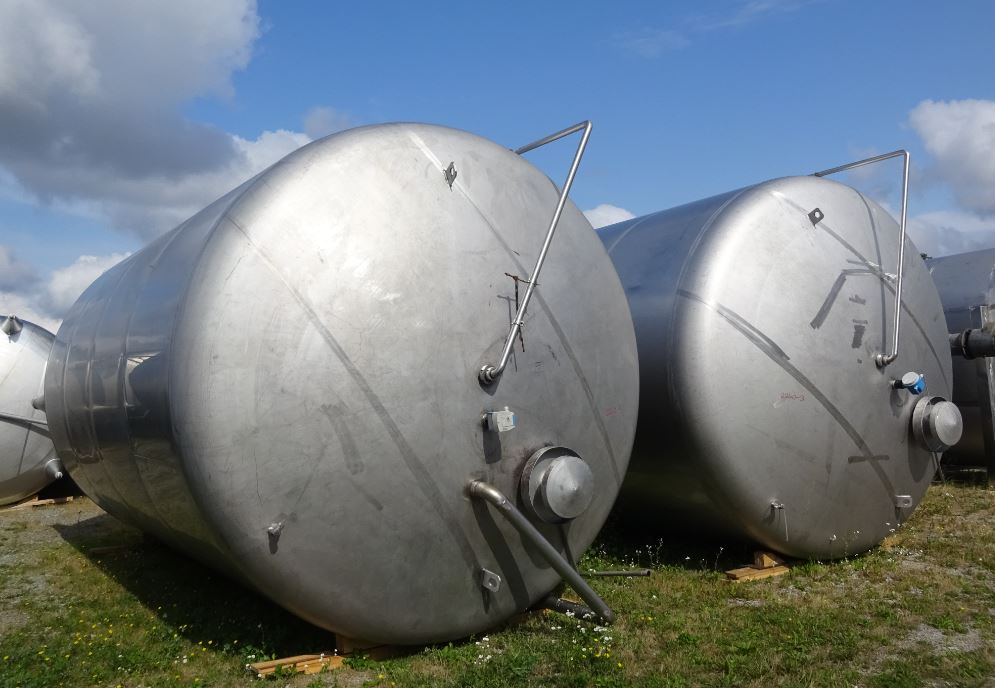

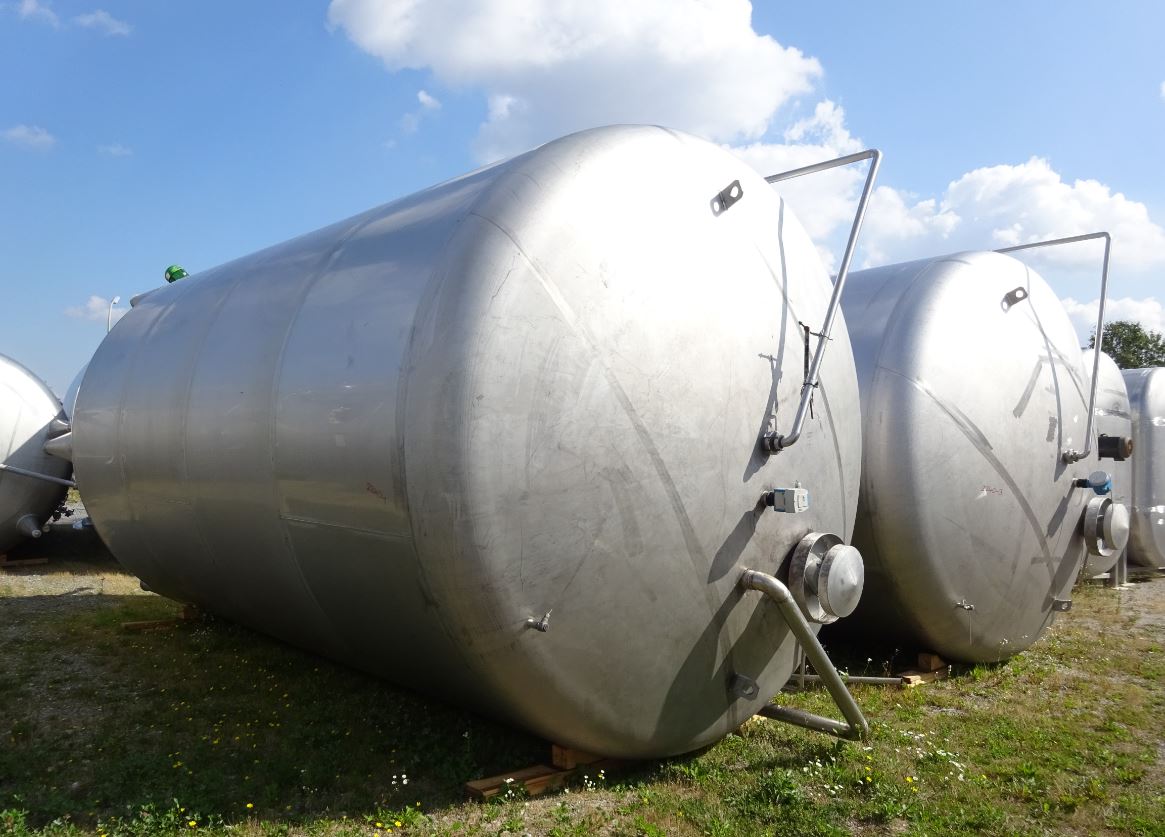

Container 47.200 liters made of V2A single-walled, standing

EUR 21.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 47,200.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 47.200 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 47,200.00 litres.  Container 47.200 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 47.200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1996

  • Manufacturer

  • Tankbau Raum

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.200 mm

  • Cyl. height

  • 5.000 mm

  • Total height

  • 6.620 mm

  • Wall thickness of product chamber head

  • 4 mm

  • Wall thickness of product chamber shell

  • 3; 2 mm

  • Wall thickness of product chamber floor

  • 4 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.350,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

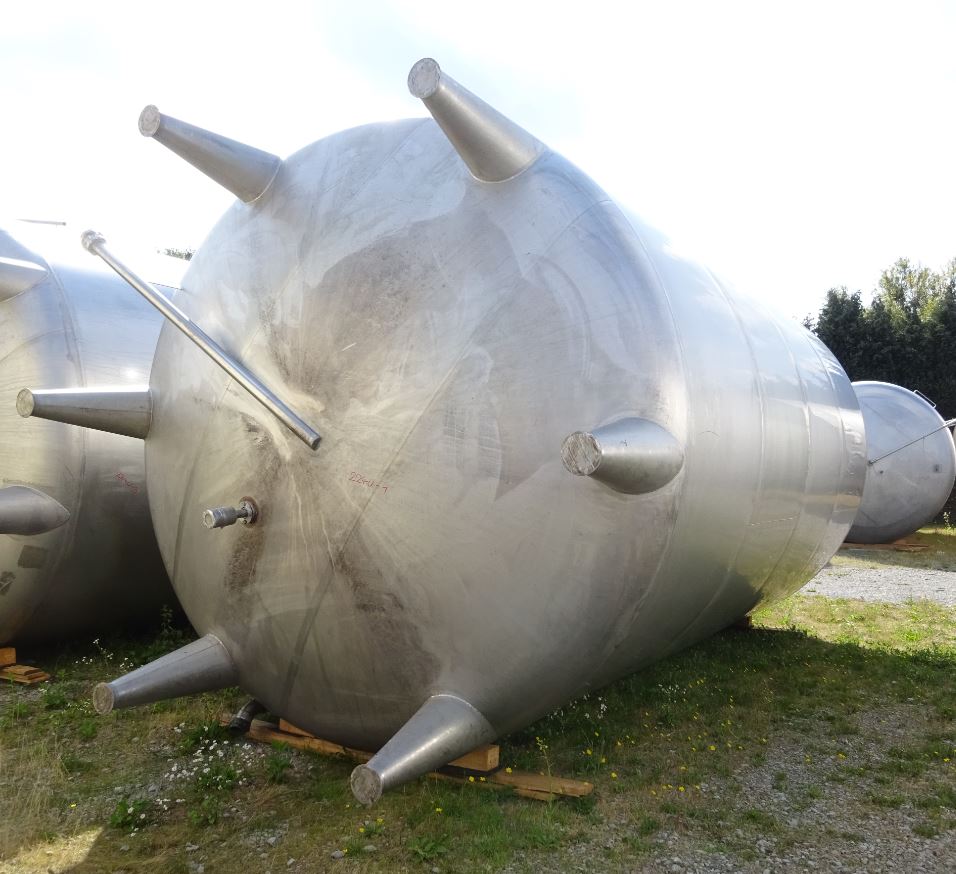

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

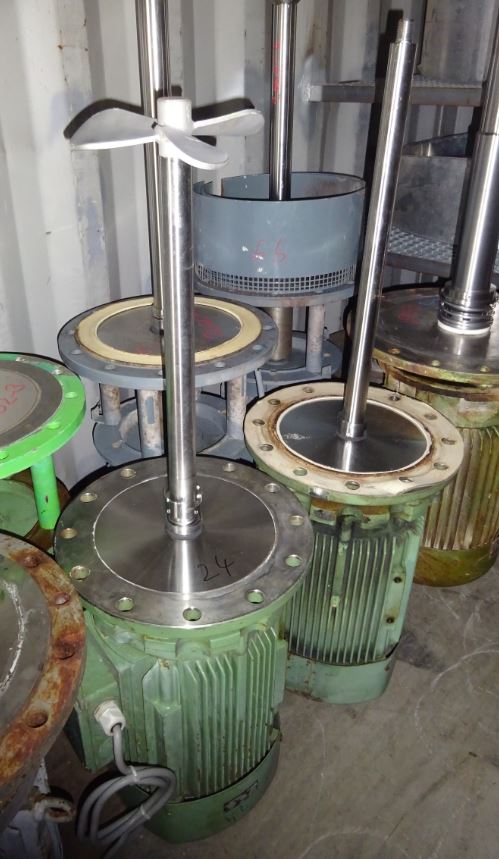

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Central at the side in shell

  • Agitator manufacturer

  • Denk

  • Agitator 1 - Output

  • 3,5 kW

  • Agitator 1 - RPM

  • 725 UpM

  • Agitator 1 - Voltage

  • 400 V

  • Agitator 2 - Output

  • 12,5 kW

  • Agitator 2 - RPM

  • 1465 UpM

Fixtures and fittings

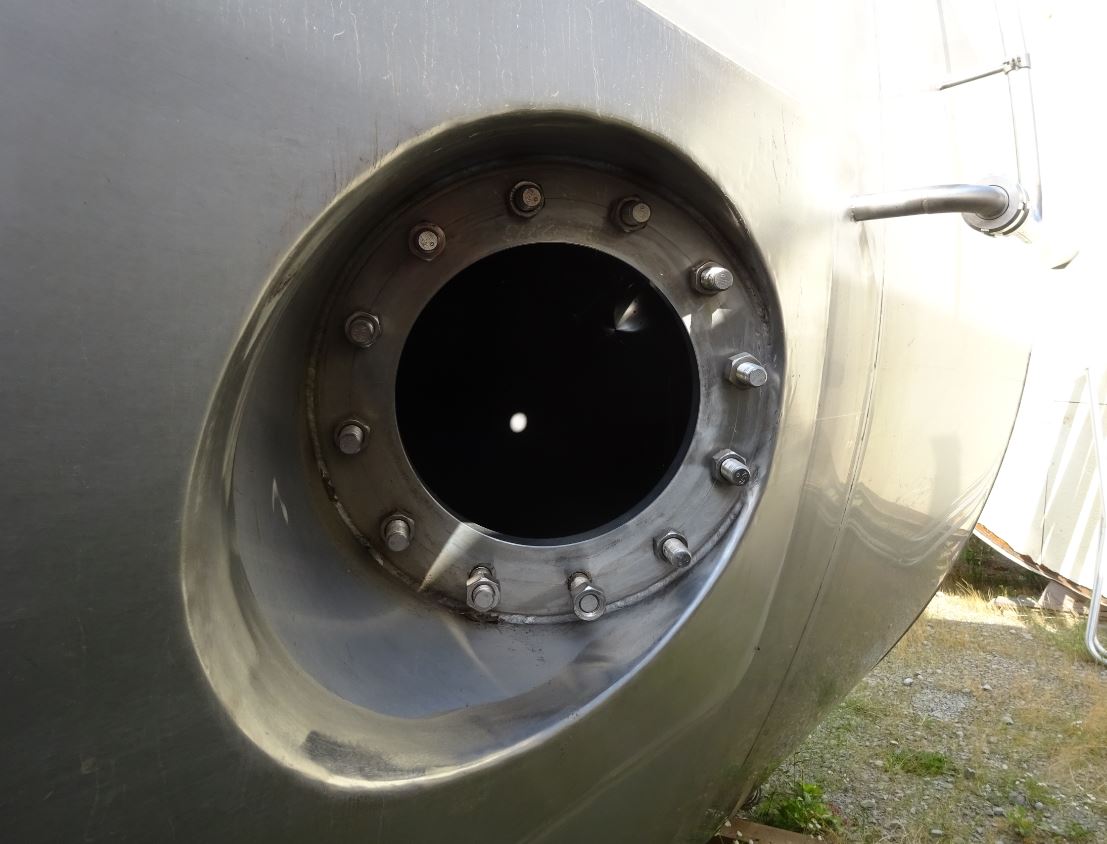

  • Manway 1 size

  • 340x440 DN mm

  • Manway position

  • In shell

  • Nozzle connector

  • Screw thread

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

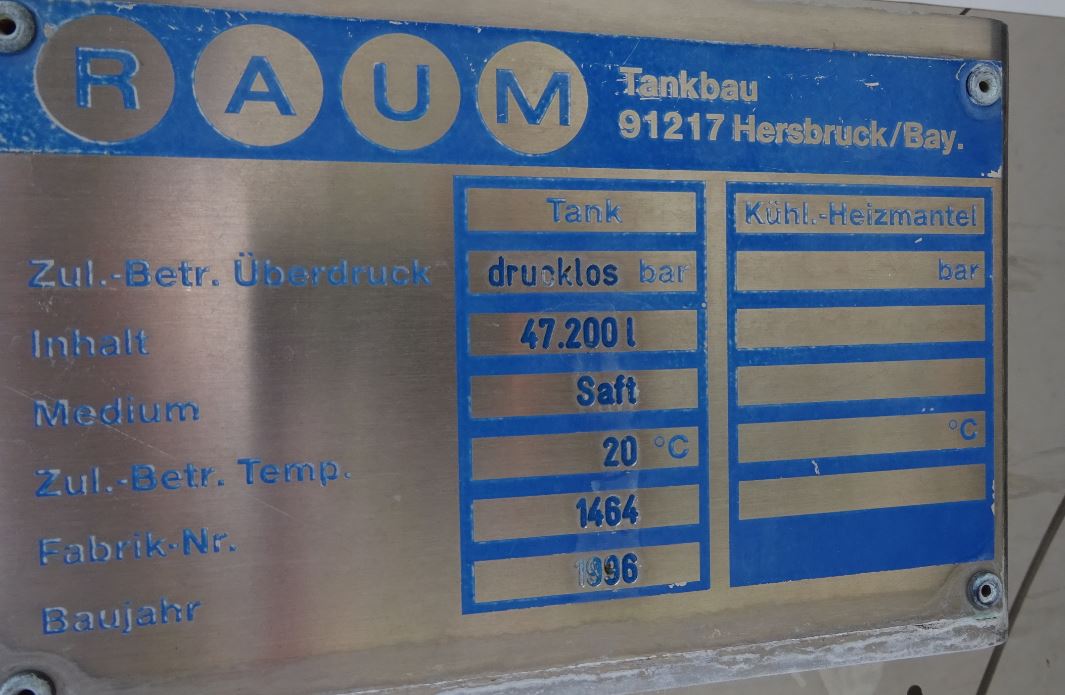

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Grain tank, Oil tank, Syrup tank, Molasses tank/liquid sugar tank, Sugar silo, Grain silo, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Boiling tank, Cooling tank, Cold water tank, Filter tank, Nutsche filter, Filtrate tank, Concentrate tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, CIP tank, Hot water tank, Cooling tank, Filter tank, Filtrate tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Hot water tank, Thermal buffer, Cooling tank, Tempering tank, Cold water tank, Filter tank, Filtrate tank, Concentrate tank,
