Product no. M-2393

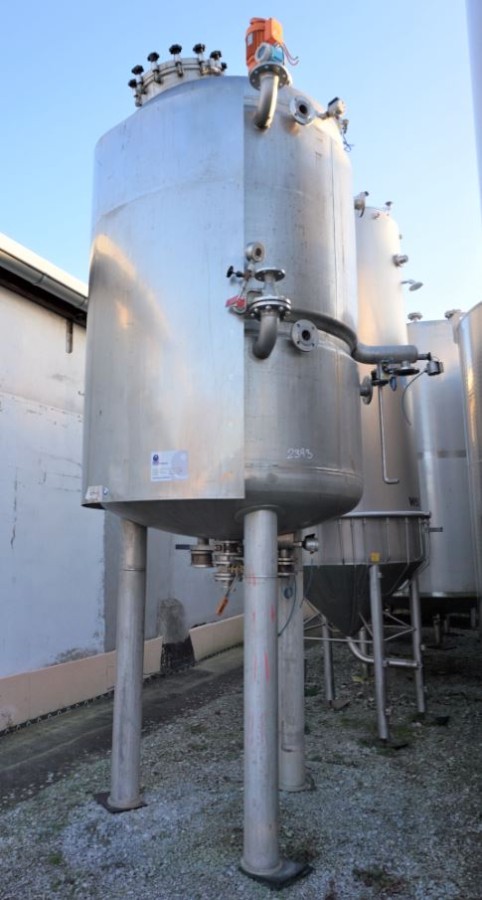

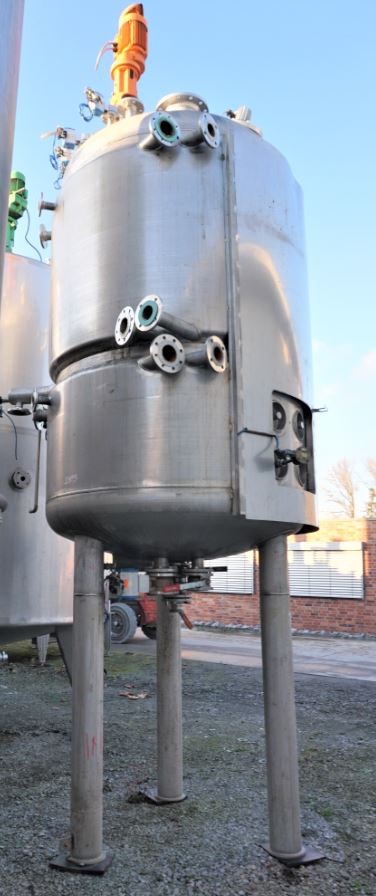

Container 4.280 liters made of V4A temperature-controllable, isolated, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 4,280.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 4.280 liters made of V4A temperature-controllable, isolated consists of the material 1.4571(AISI316) V4A. The volume is approx. 4,280.00 litres. The diameter inside includes 1,500 mm.  Container 4.280 liters made of V4A temperature-controllable, isolated was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing, Processes,

General

  • Volume approx.

  • 4.280,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1993

  • Manufacturer

  • Rudolf Rahau

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.500 mm

  • External diameter

  • 1.600 mm

  • Cyl. height

  • 2.200 mm

  • Foot height

  • 1.550 mm

  • Total height

  • 5.200 mm

  • Wall thickness of product chamber head

  • 11,50 mm

  • Wall thickness of product chamber shell

  • 12,00 mm

  • Wall thickness of product chamber floor

  • 11,50 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

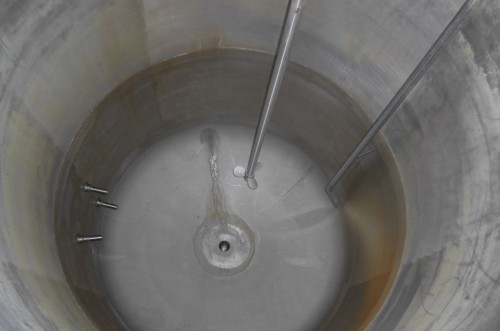

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating temperature

  • 165 °C

  • Temperature control system operating pressure/pipe chamber

  • 6 bar

  • Temperature control system operating temperature/pipe chamber

  • 165 °C

  • Temperature control system/pipe chamber capacity

  • 240 litres

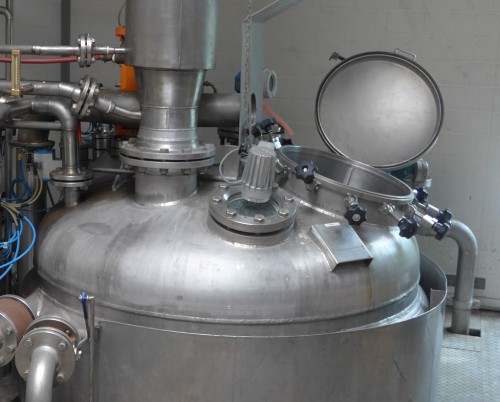

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • Ekato Eex-Ausführung

  • Agitator 1 - Output

  • 0,66 / 1,3 kW

  • Agitator 1 - RPM

  • 447 / 921 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

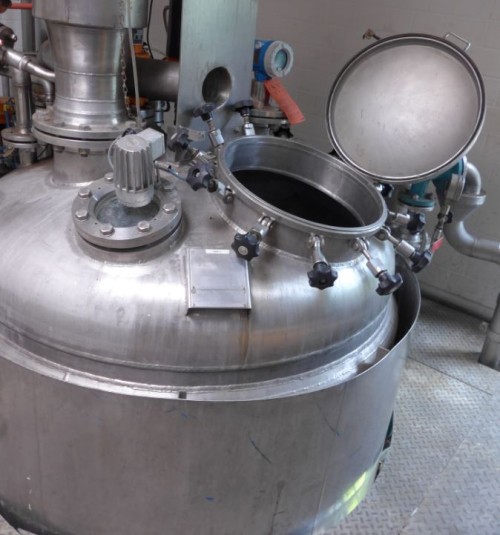

  • Manway position

  • In head

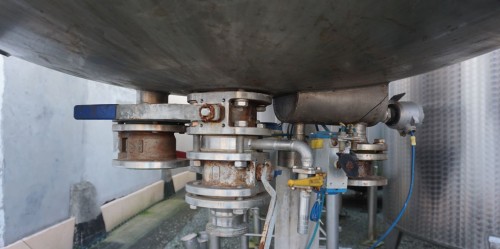

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

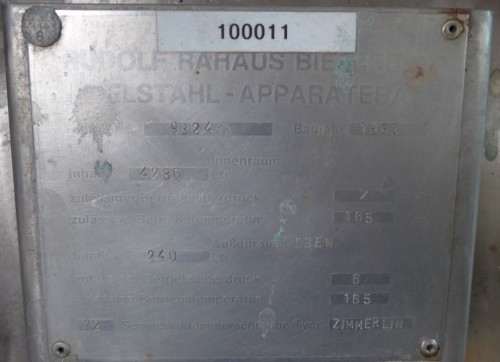

  • Additional fixtures and fittings

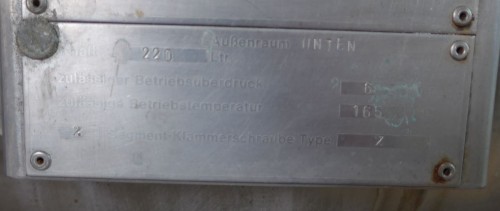

  • Nameplate

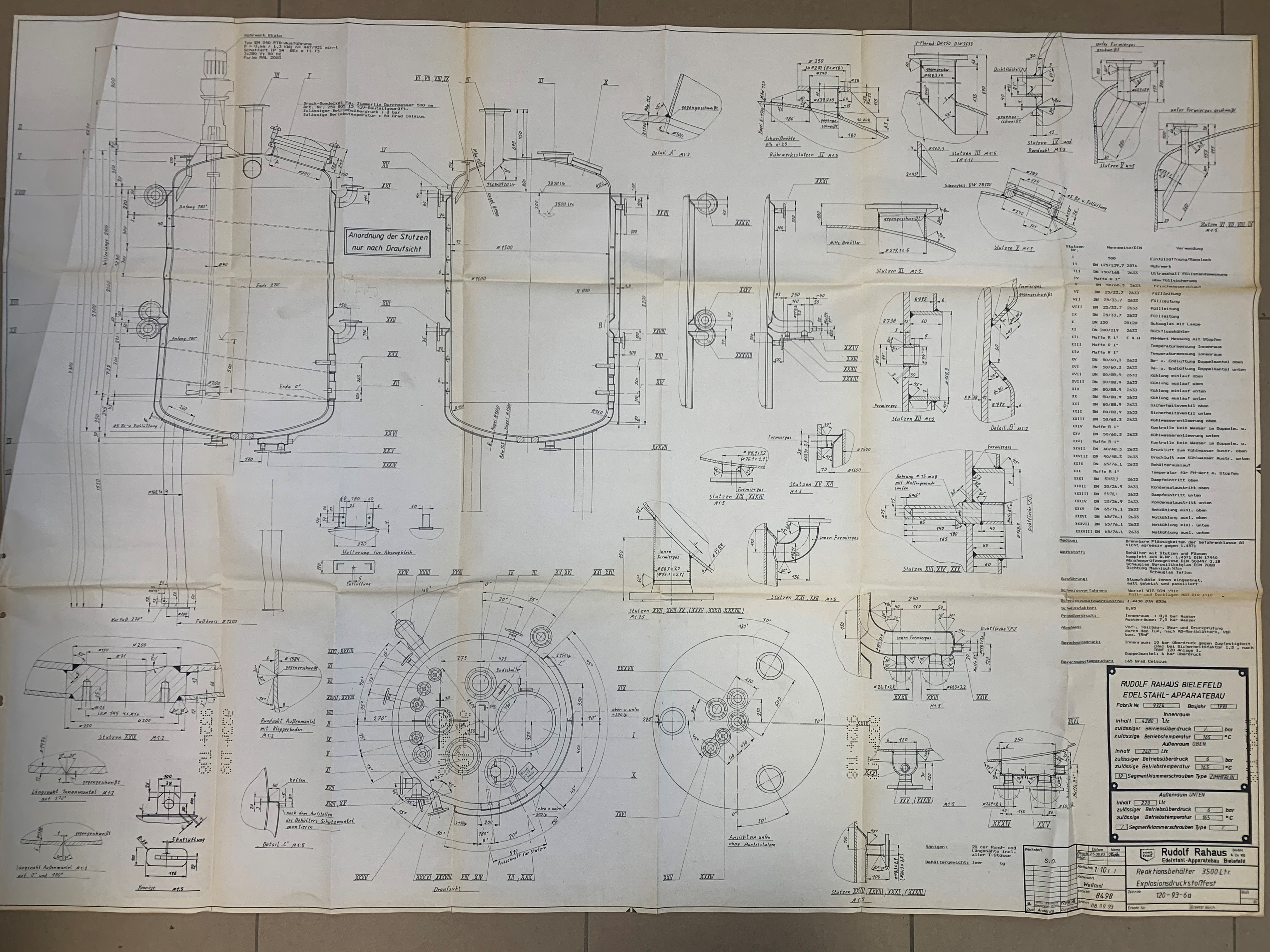

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank,
