Product no. M-2536

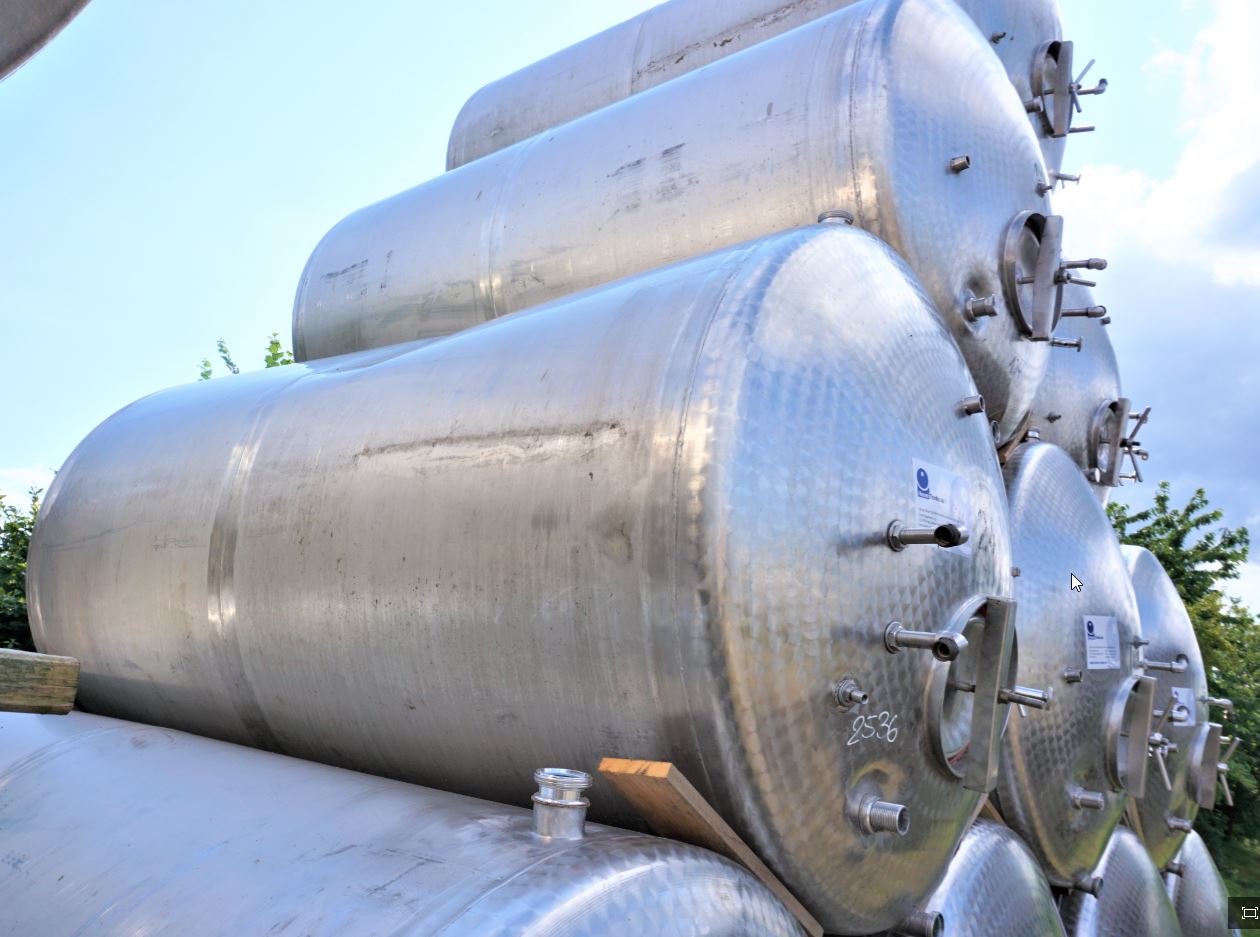

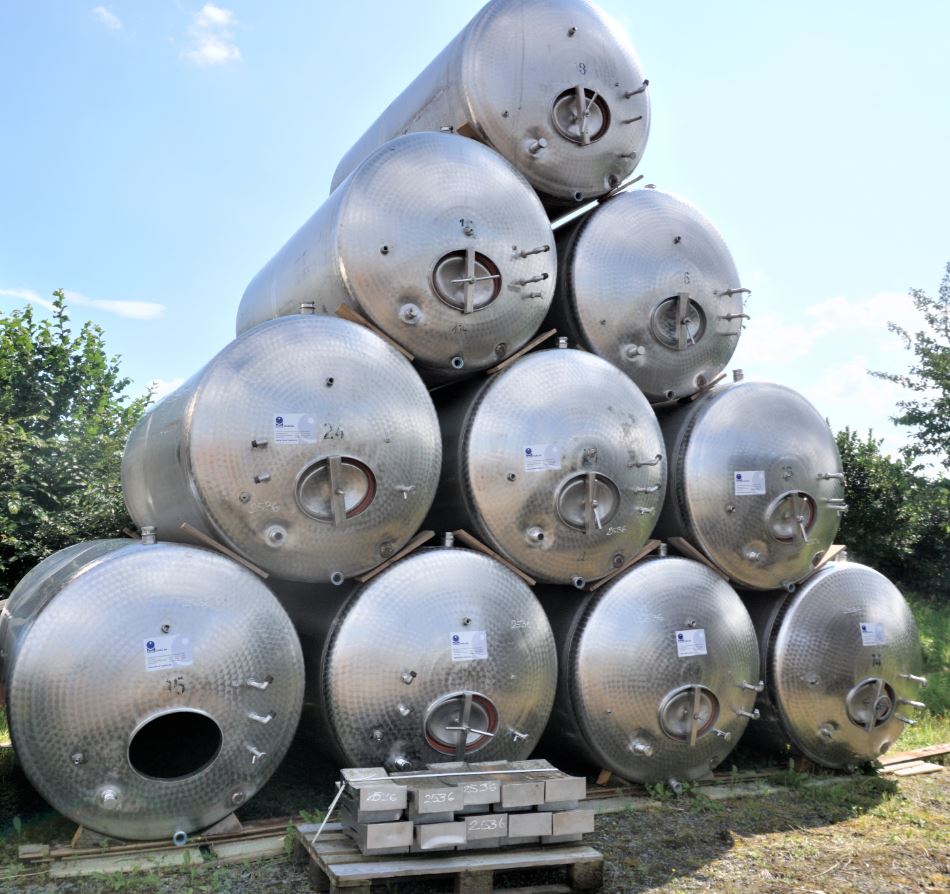

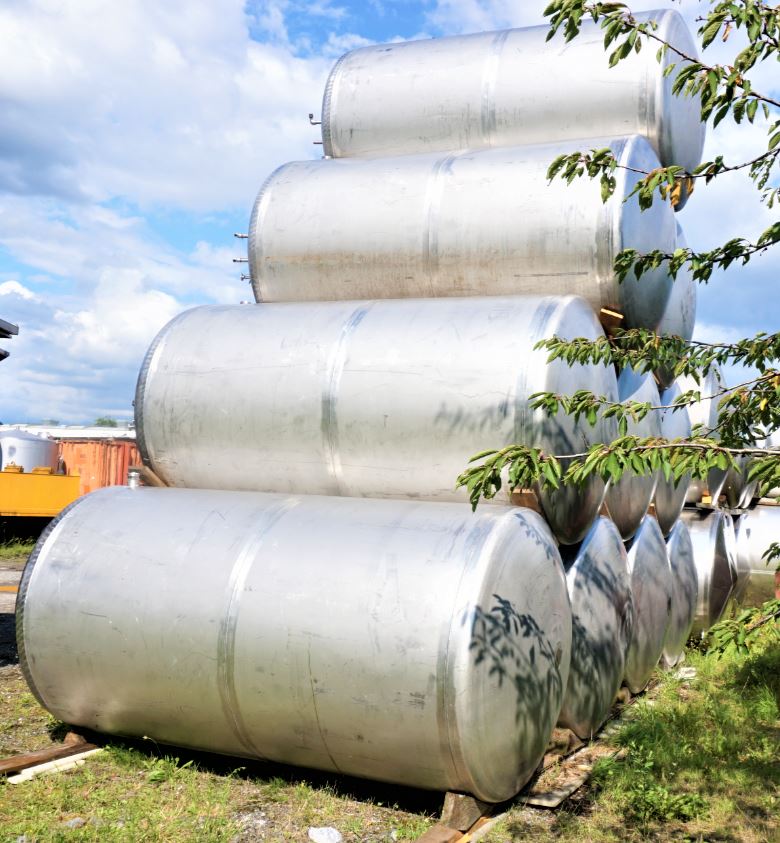

Container 4.000 liters made of V2A single-walled, temperature-controllable, used, horizontal

EUR 3.980,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 4.000 liters made of V2A single-walled, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 4,000.00 litres.  Container 4.000 liters made of V2A single-walled, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 4.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.400 mm

  • Cyl. length

  • 2.360 mm

  • Total length

  • 3.000 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

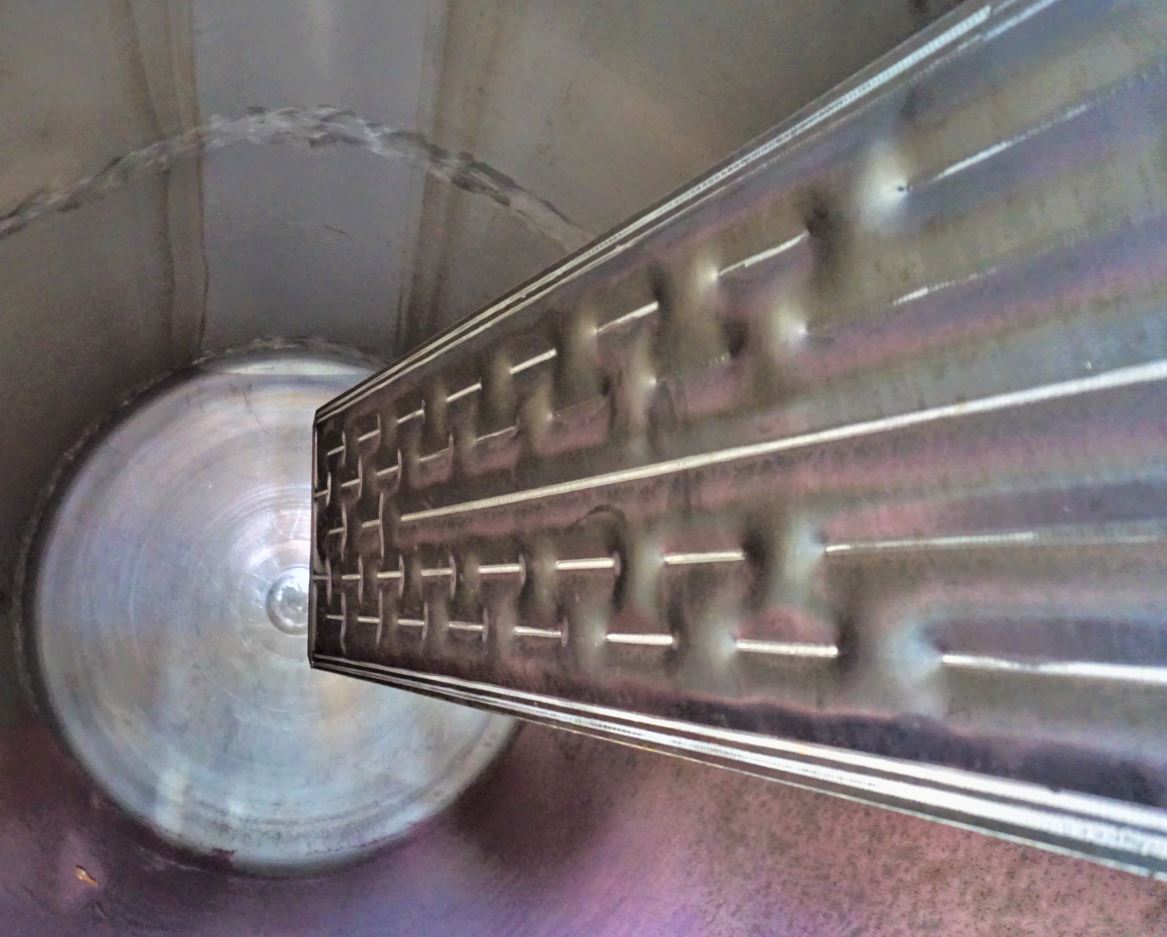

  • Temperature control system

  • Cooling plates

Supports

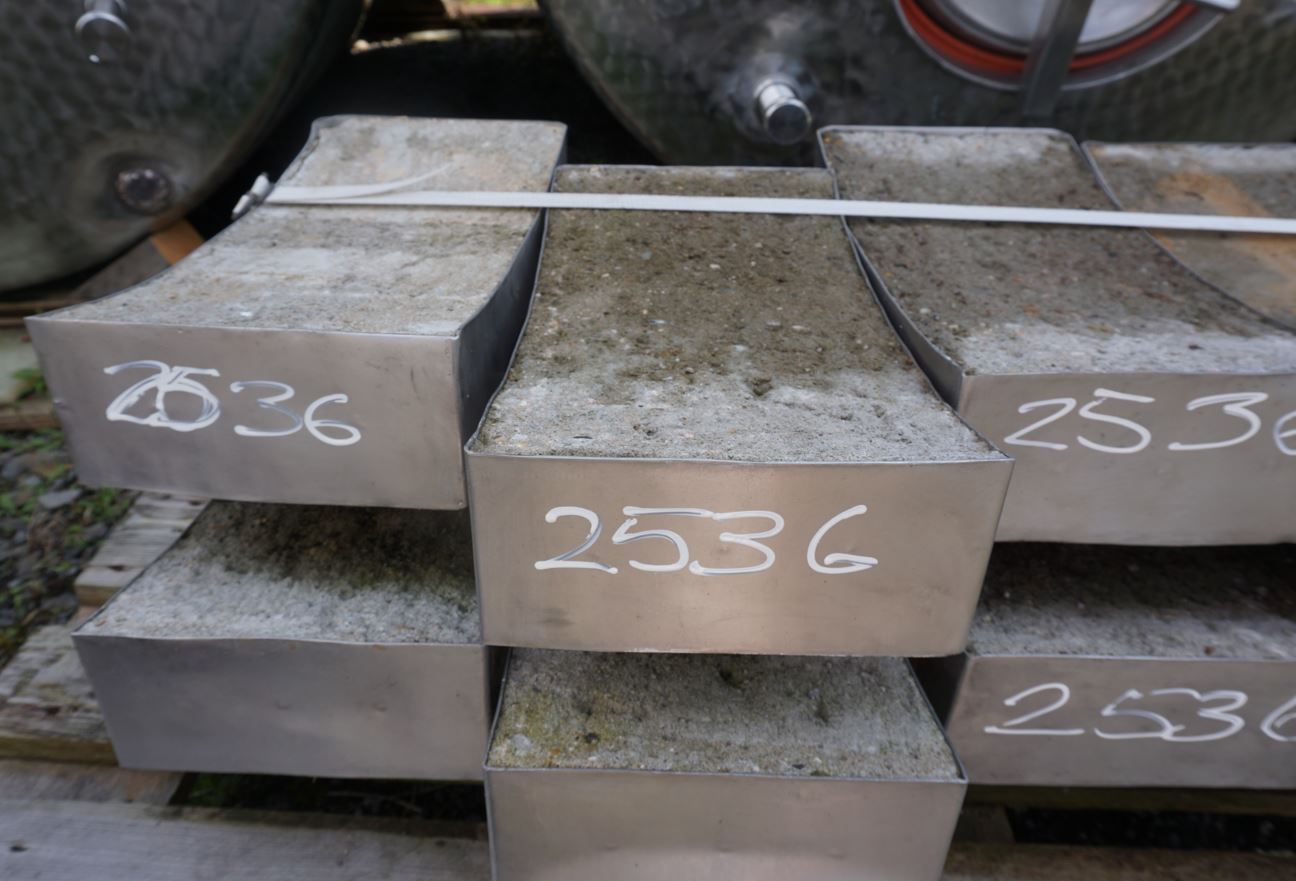

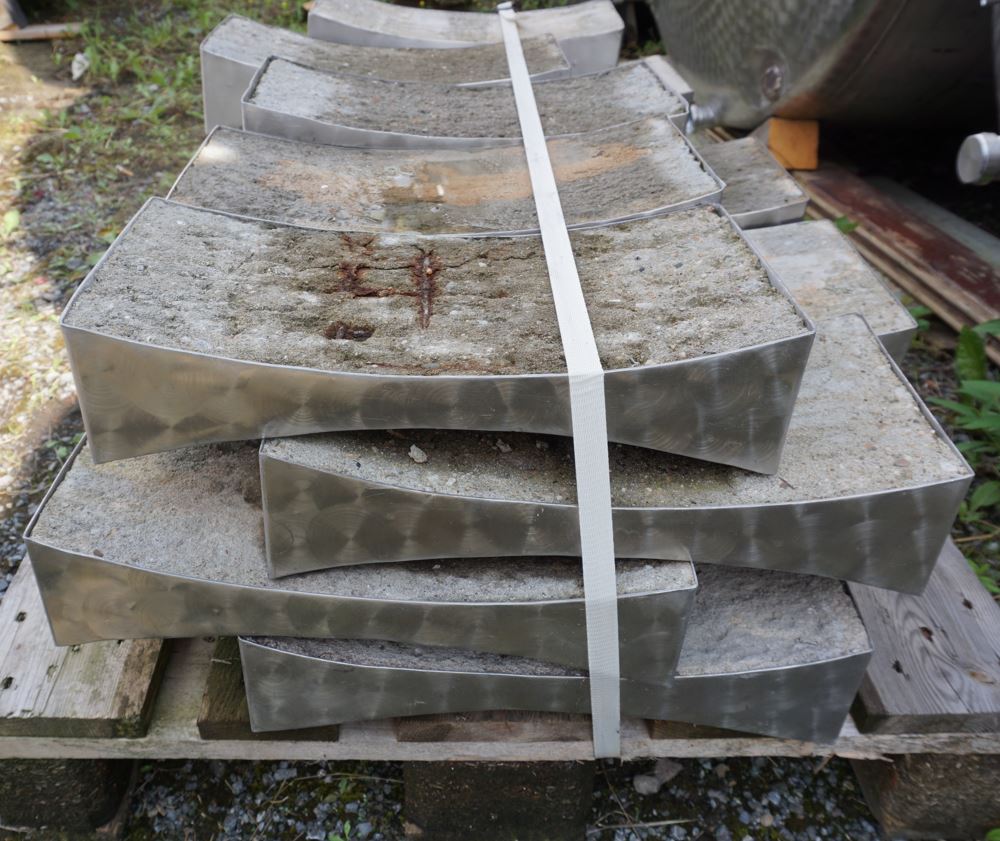

  • Supports

  • Concrete saddle supports

  • Number of feet

  • 2 (piece)

  • Note on supports

  • Lagerschalen für gesattelte Lagerung

Fixtures and fittings

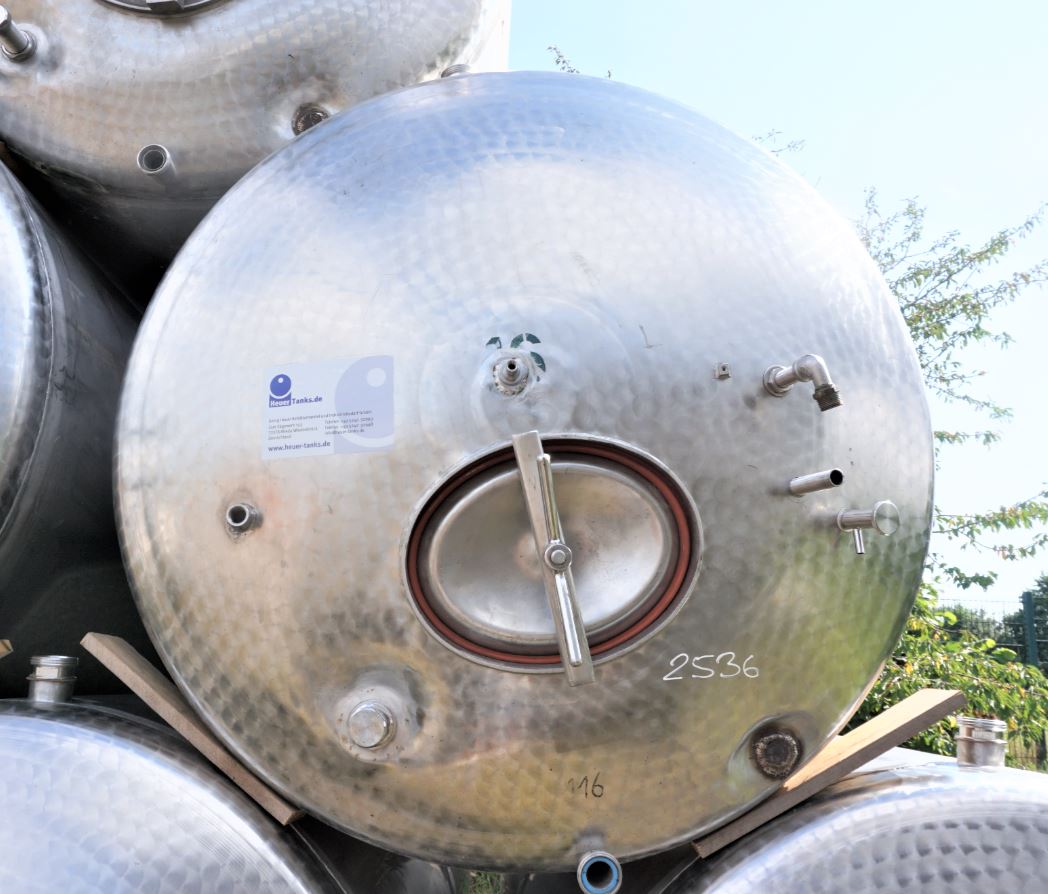

  • Manway position

  • Front face

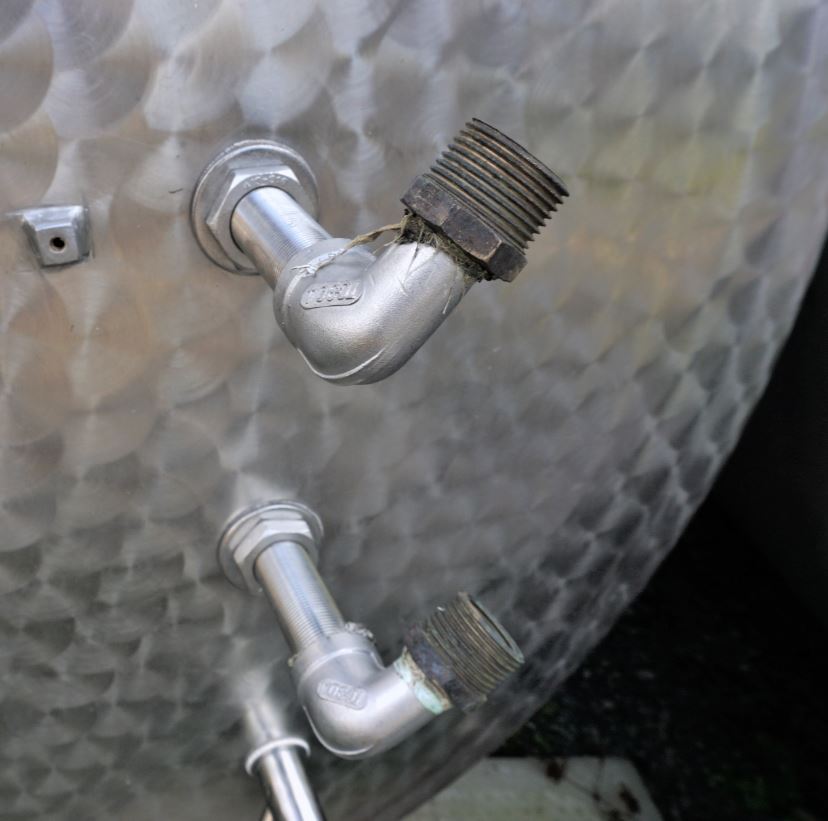

  • Nozzles/connectors in head

  • 1xDN50 (piece)

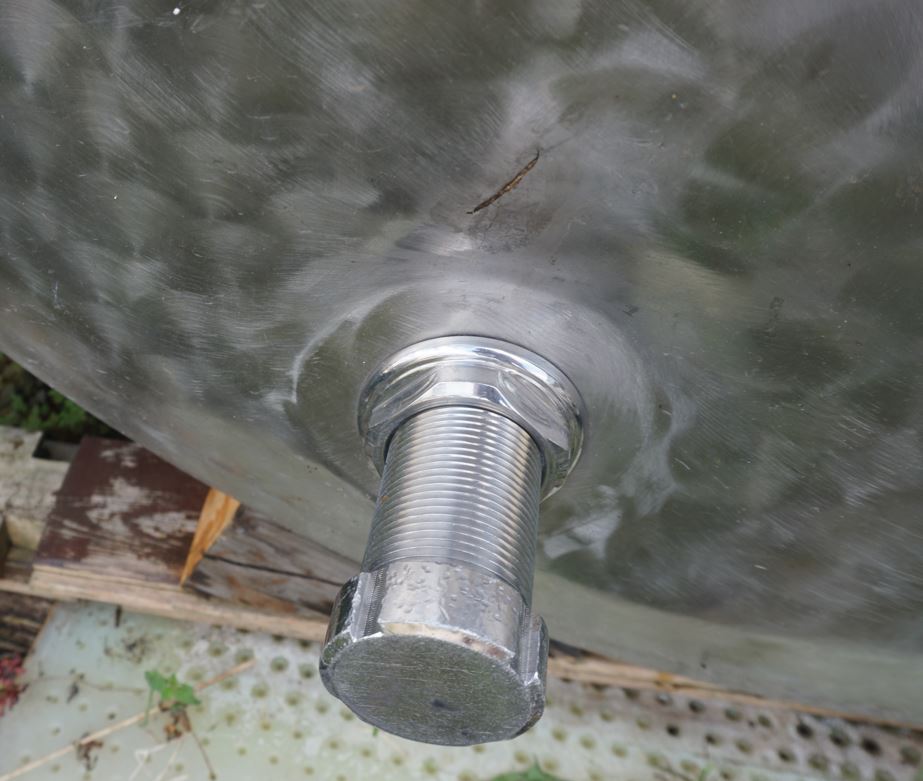

  • Outlet nozzle

  • 40

  • Fixtures and fittings

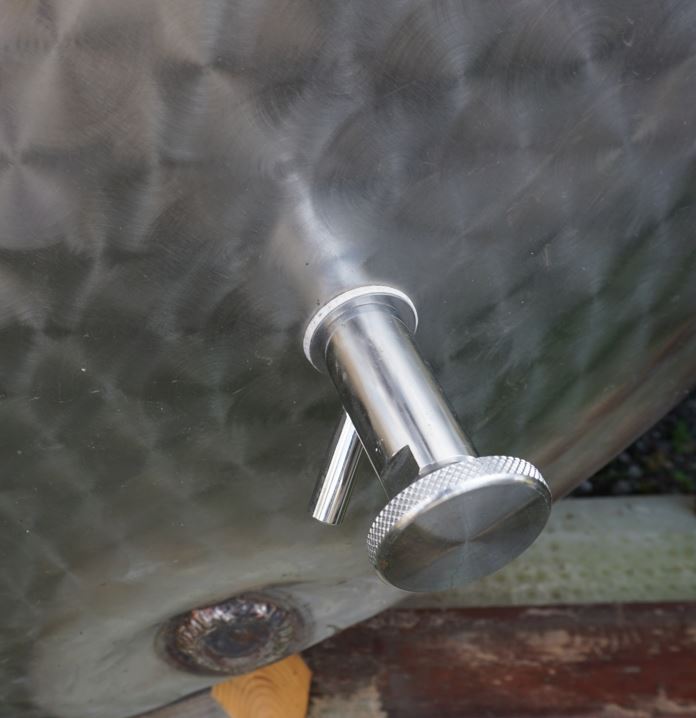

  • Sample taking

  • Additional fixtures and fittings

  • Ladder

Other

  • Note

  • Unteren Lagerschalen sind nicht vorhanden

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Mash tank, Fruit juice tank, Milk tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank,
