Product no. M-1693

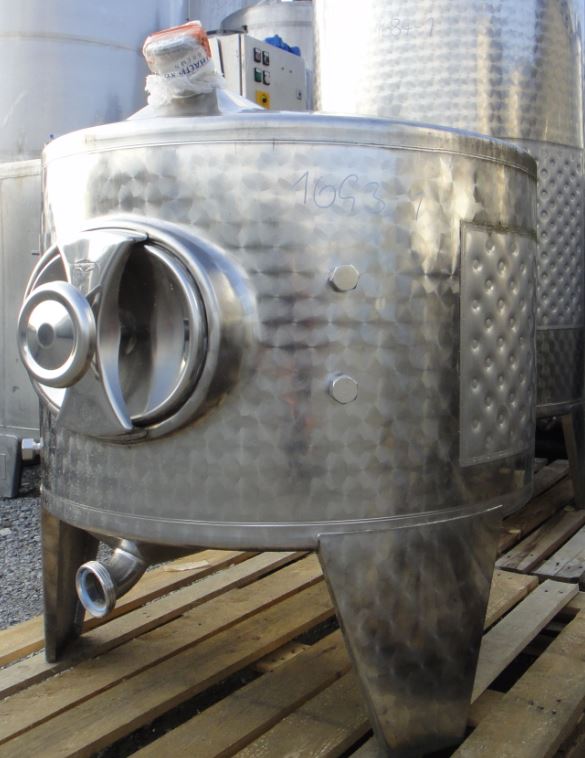

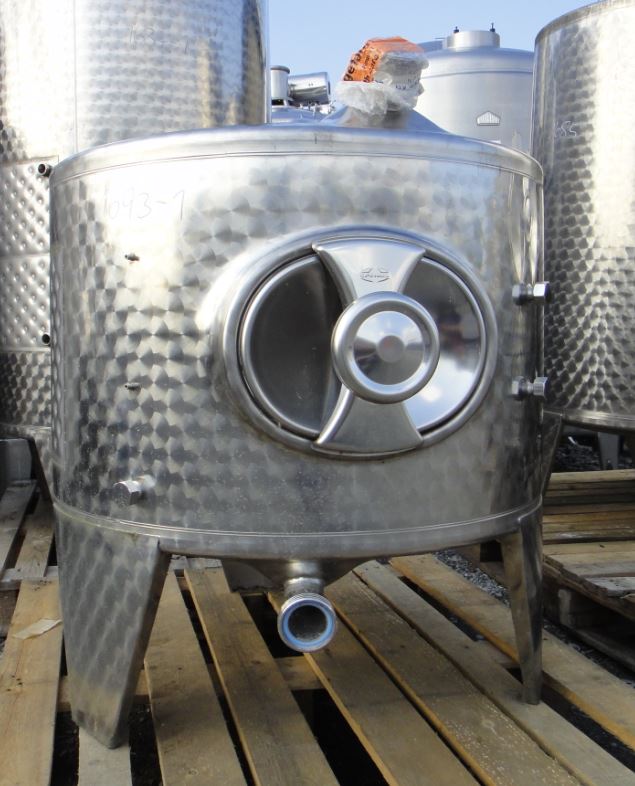

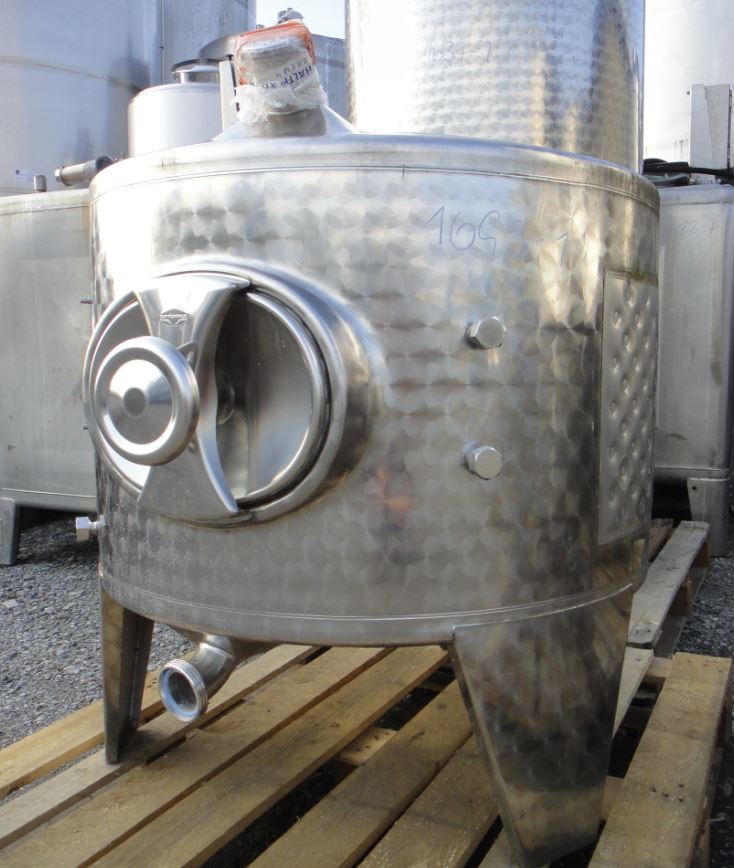

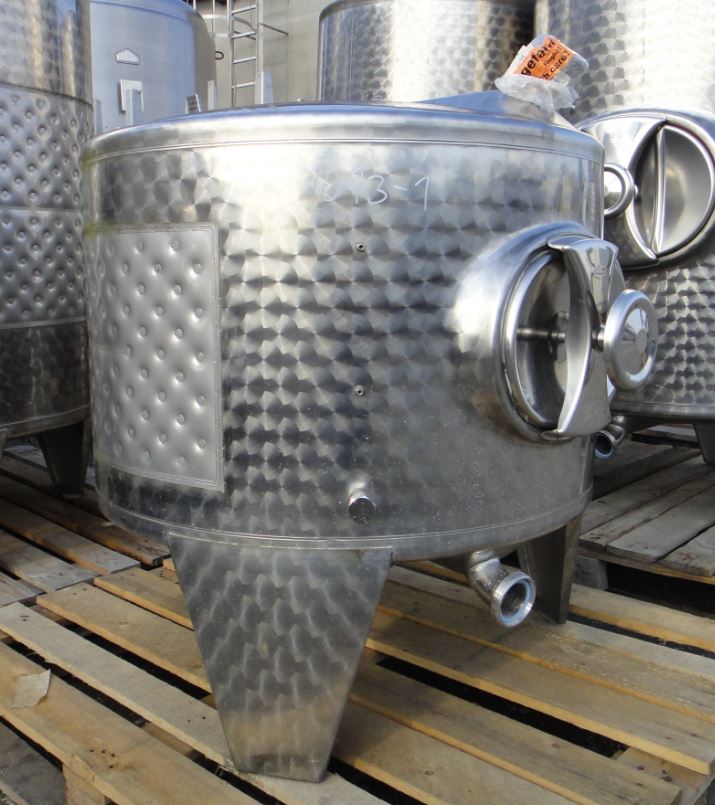

Container 320 liters made of V2A, unused, temperature-controllable, single-walled, standing

EUR 1.335,00

add. 19 % VAT excl. shipping costs


Volume approx. 320.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 320 liters made of V2A, unused, temperature-controllable, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 320.00 litres. The diameter inside includes 820 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Cleaning/CIP,

General

  • Volume approx.

  • 320,00 litres

  • Structure

  • Standing

  • Condition

  • New

Dimensions approx.

  • Internal diameter

  • 820 mm

  • Cyl. height

  • 488 mm

  • Total height

  • 1.000 mm

Design

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Double shell

  • Operating pressure

  • 5 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN50 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Drain port

Technical documentation

  • Technical documentation

  • Designation

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Anaerobic digestion tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank, Cooling tank, Filter tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank, Cold water tank,
