Product no. M-1617

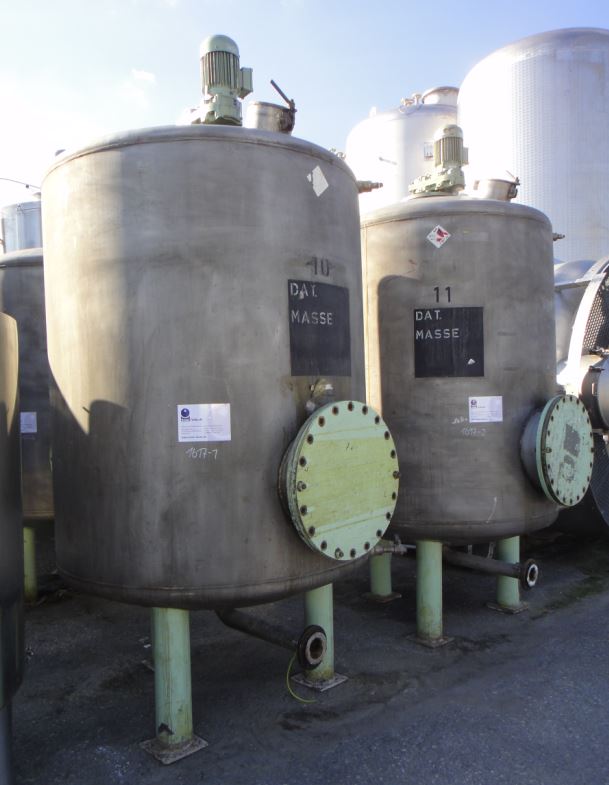

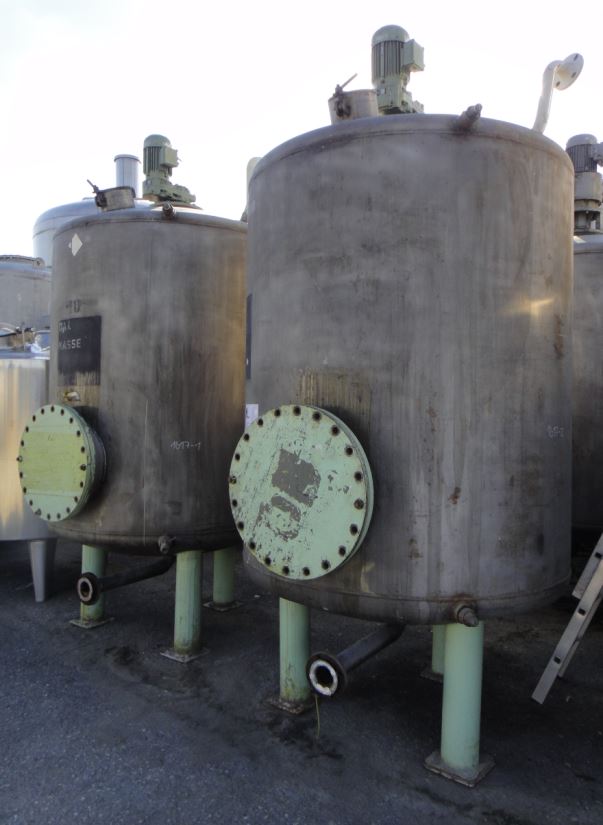

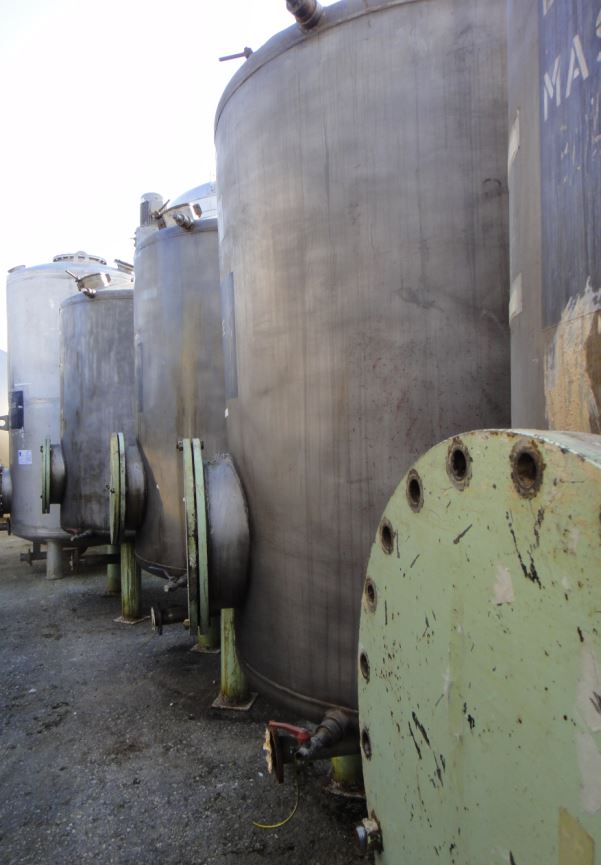

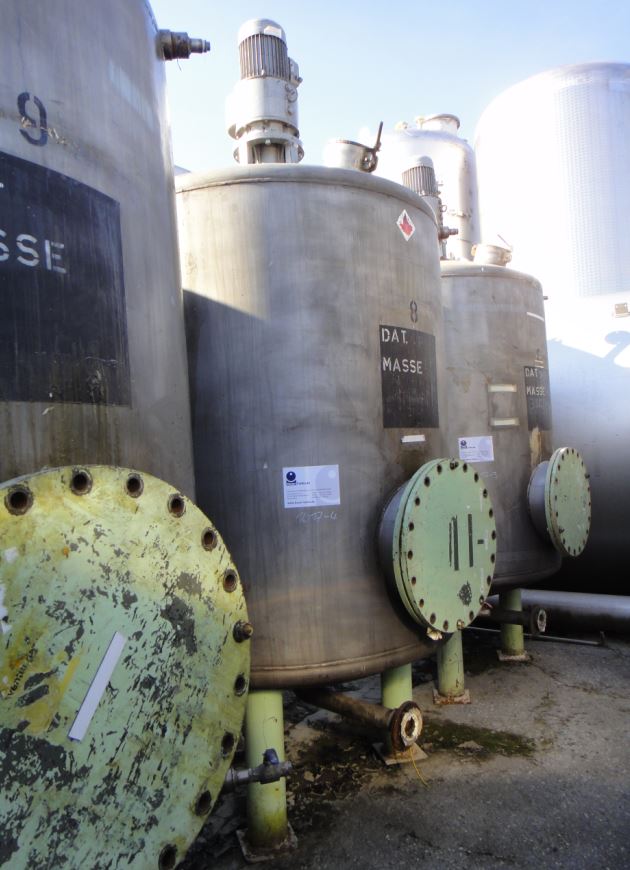

Container 3.800 liters made of V2A, used, single-walled, standing
EUR 3.500,00
add. 19 % VAT excl. shipping costs
Volume approx. 3,800.00 litres
Product description
Container 3.800 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,800.00 litres. Container 3.800 liters made of V2A, used, single-walled was last used in the following area: Chemistry. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing, Cleaning/CIP,General
Volume approx.
3.800,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
1.600 mm
Cyl. height
1.800 mm
Foot height
800 mm
Total height
3.500 mm
Design
Weight approx.
800,00 kg
Interior surface
Matt
Exterior surface
Matt
Floor type
Torispherical bottom
Head design
Torispherical bottom

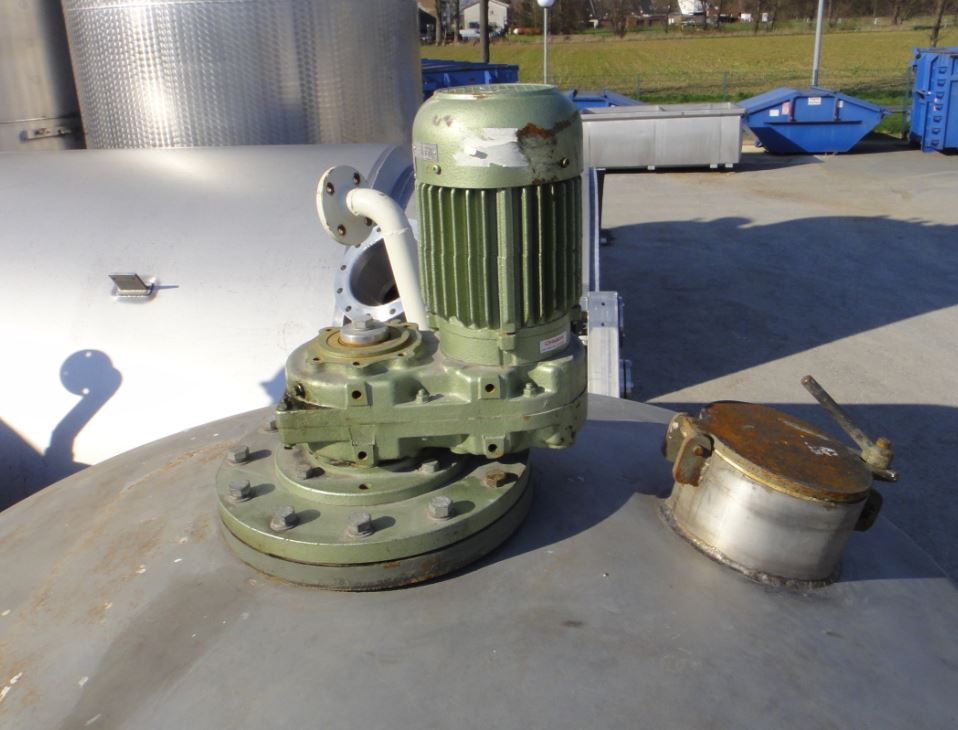

Agitator
Agitator quantity
1 (piece)
Agitator type
Paddle agitator
Agitator position
Head central
Agitator 1 - Output
2,1 kW
Agitator 1 - RPM
42 UpM
Agitator 1 - Voltage
380 V
Supports
Supports
Steel feet
Number of feet
3 (piece)
Fixtures and fittings
Manway 1 size
500 DN mm
Manway position
In shell
Handlochposition Handhole position
In head
Nozzle connector
Flange
Nozzles/connectors in head
1xDN 50 1x2" (piece)
Outlet nozzle
80
Fixtures and fittings
Sample taking
Technical documentation
Technical documentation
None
Other
Last usage
Chemistry
This product is suitable for use as:
Foodstuffs:
Agriculture: Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
