Product no. M-1905

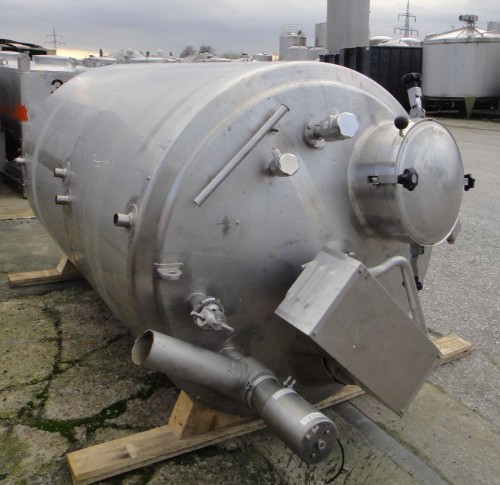

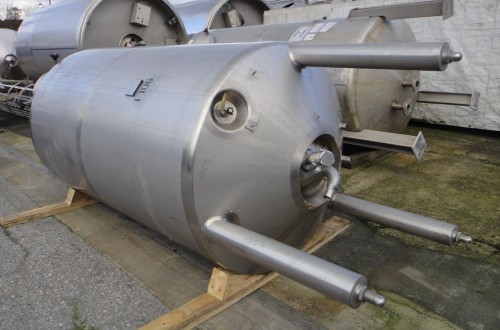

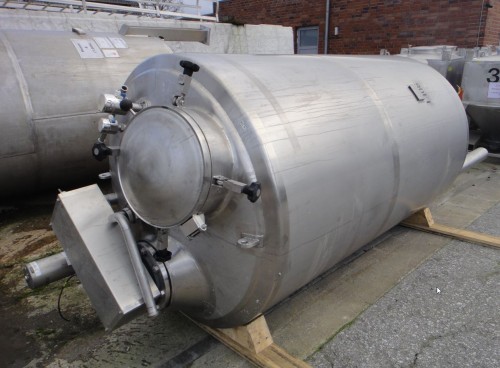

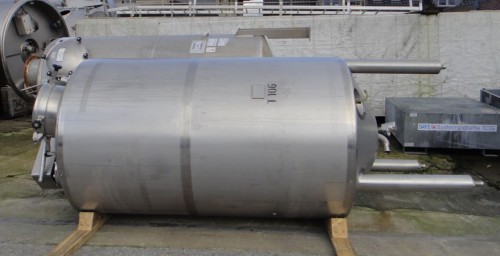

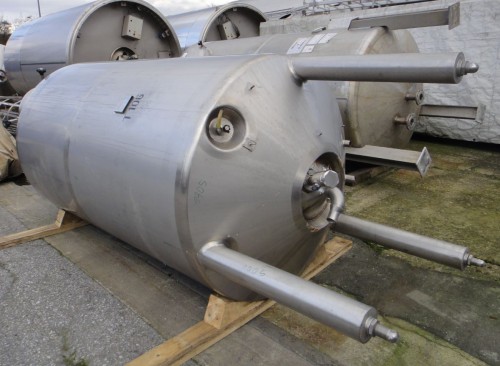

Container 3.200 liters made of V2A, isolated, used, standing

EUR 7.300,00

add. 19 % VAT excl. shipping costs

Volume approx. 3,200.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 3.200 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,200.00 litres. The diameter inside includes 1,300 mm.  Container 3.200 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 3.200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.300 mm

  • External diameter

  • 1.600 mm

  • Cyl. height

  • 2.300 mm

  • Foot height

  • 1.000 mm

  • Outlet height

  • 550 mm

  • Total height

  • 4.000 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating over-pressure

  • 0,5 bar

  • Product chamber operating under-pressure

  • -0,0075 bar

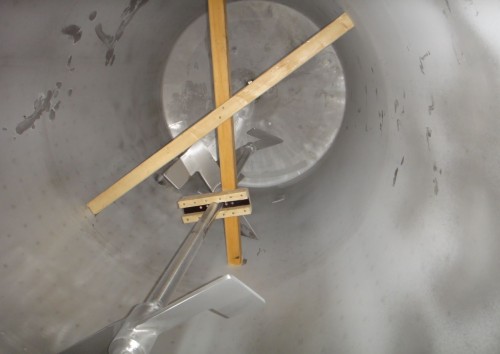

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway 1 size

  • 450 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 65/50

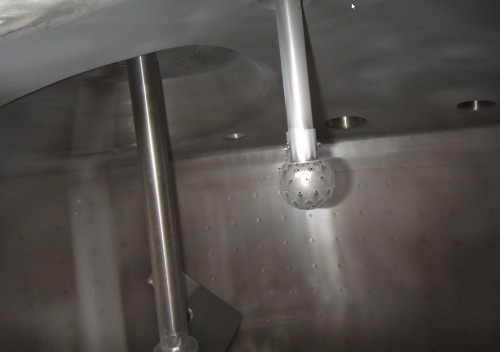

  • Cleaning/CIP nozzle

  • in floor

  • Additional fixtures and fittings

  • Air vent

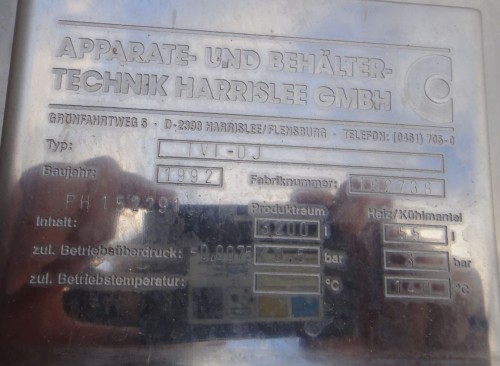

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Hot water tank,

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
