Product no. M-2527

Container 3.000 liters made of V2A single-walled, used, standing

EUR 3.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 3.000 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,000.00 litres. The diameter inside includes 1,400 mm.  Container 3.000 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 3.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.400 mm

  • Cyl. height

  • 1.900 mm

  • Foot height

  • 250 mm

  • Total height

  • 3.050 mm

Design

  • Weight approx.

  • 700,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

  • Agitator manufacturer

  • SEW

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1XDN100 1xDN80 1xDN50 1xDN40 (piece)

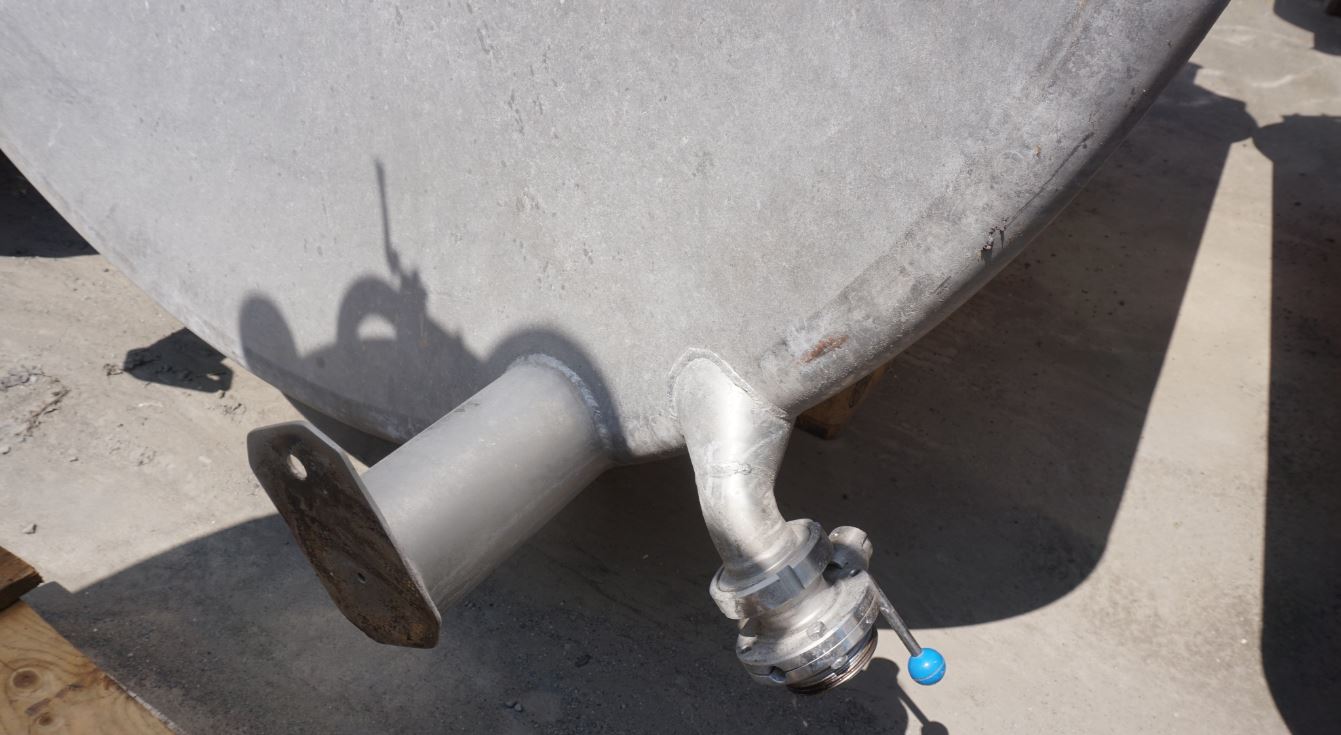

  • Outlet nozzle

  • 50

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • leichte Anhaftung

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,
