Product no. M-2418

Container 25.000 liters made of V2A temperature-controllable, isolated, standing

EUR 25.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

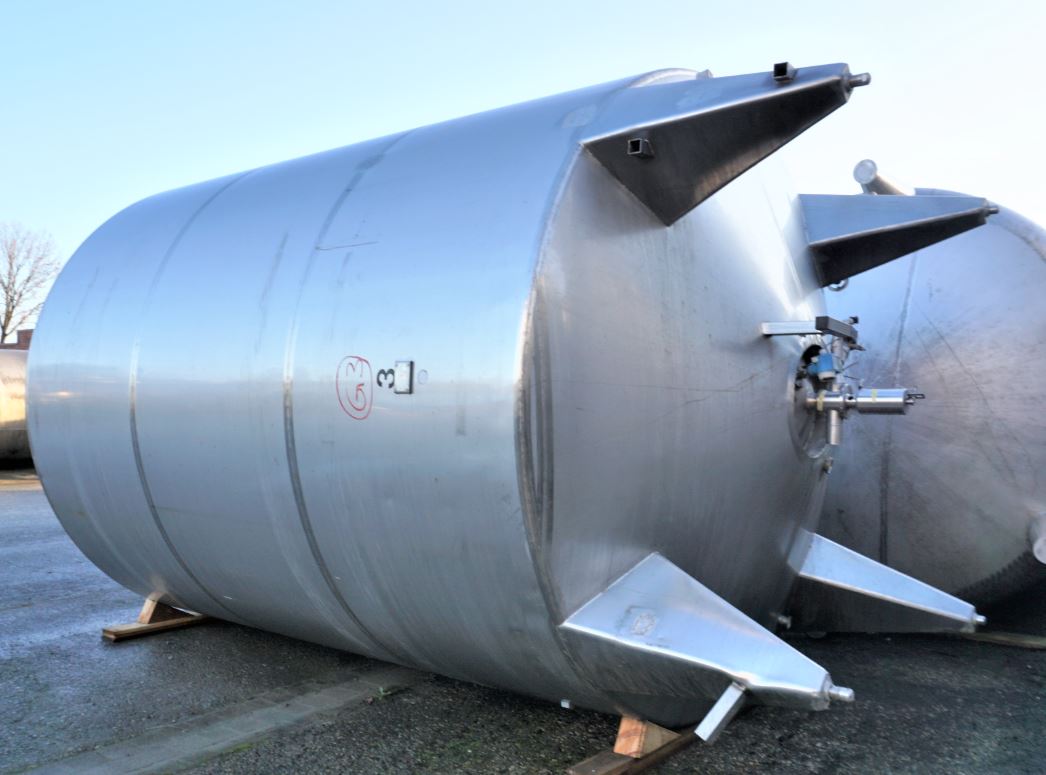

Container 25.000 liters made of V2A temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,800 mm.  Container 25.000 liters made of V2A temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Mixing,

General

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1983

  • Manufacturer

  • Ullmann

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.800 mm

  • External diameter

  • 3.000 mm

  • Total height

  • 6.300 mm

Design

  • Weight approx.

  • 5.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system operating pressure/pipe chamber

  • 3 bar

  • Temperature control system operating temperature/pipe chamber

  • 30 °C

  • Temperature control system/pipe chamber capacity

  • 510 litres

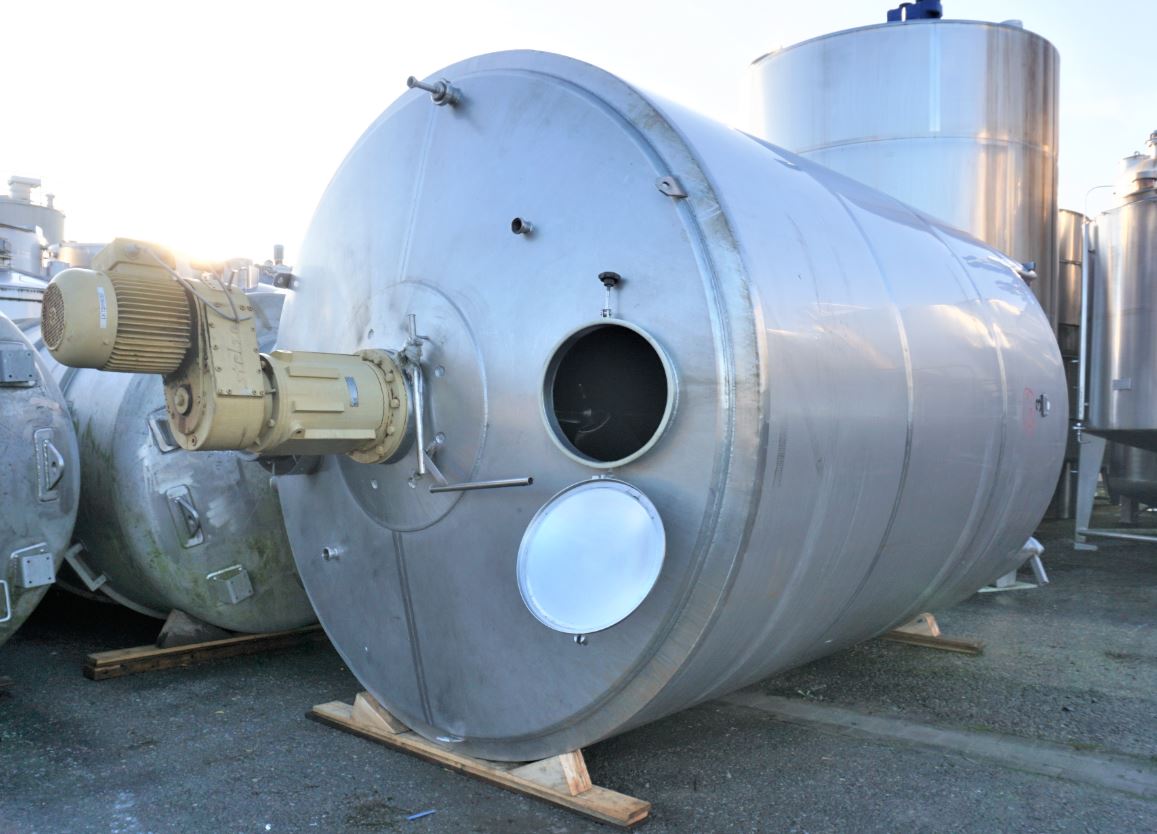

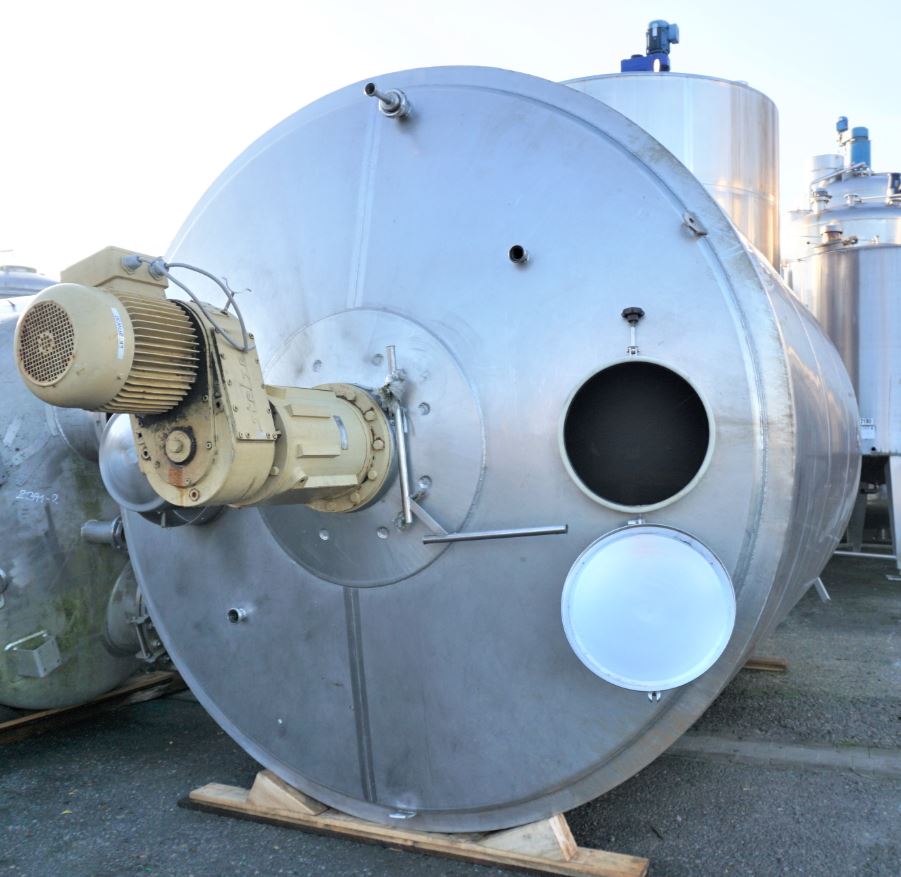

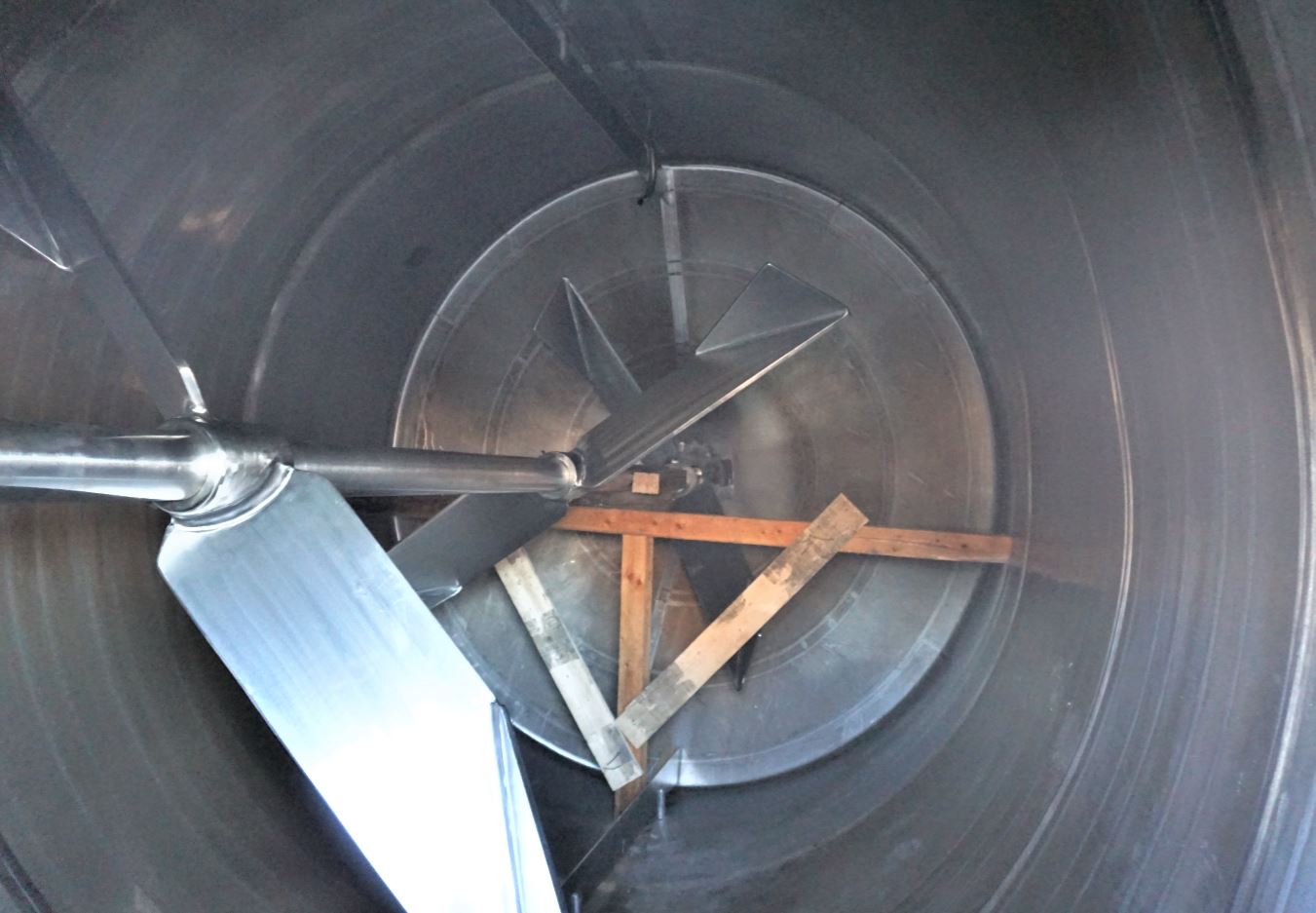

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Note on agitator

  • Getriebegehäuse gebrochen

  • Agitator position

  • Head central

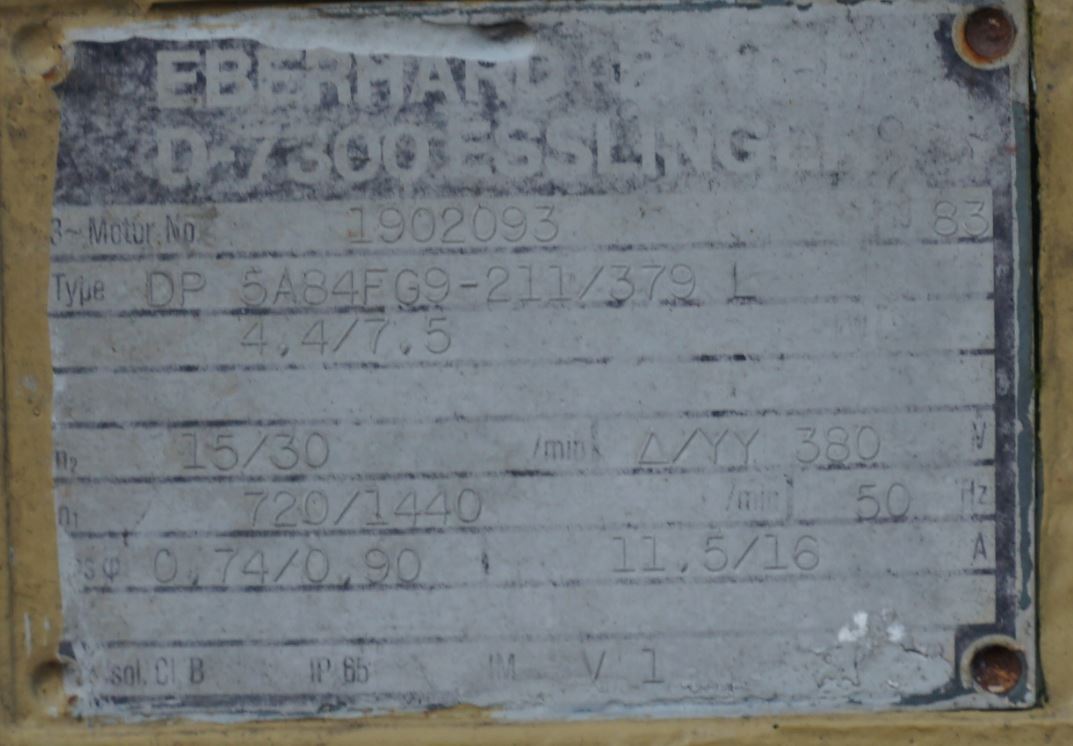

  • Agitator 1 - Output

  • 4,4 / 7,5 kW

  • Agitator 1 - RPM

  • 15/30 UpM

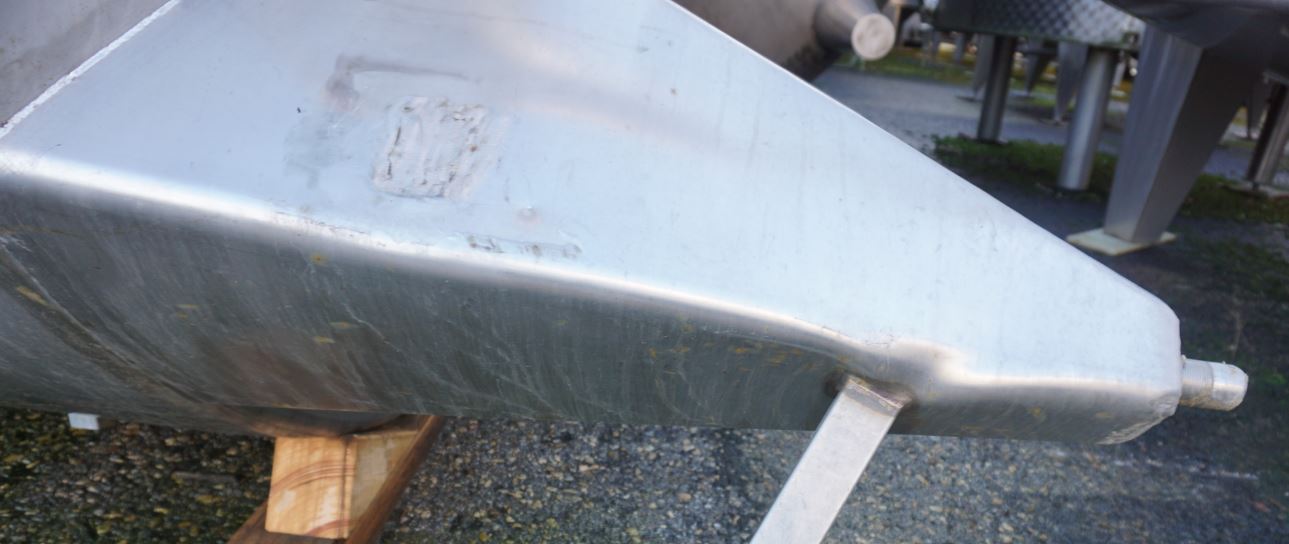

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

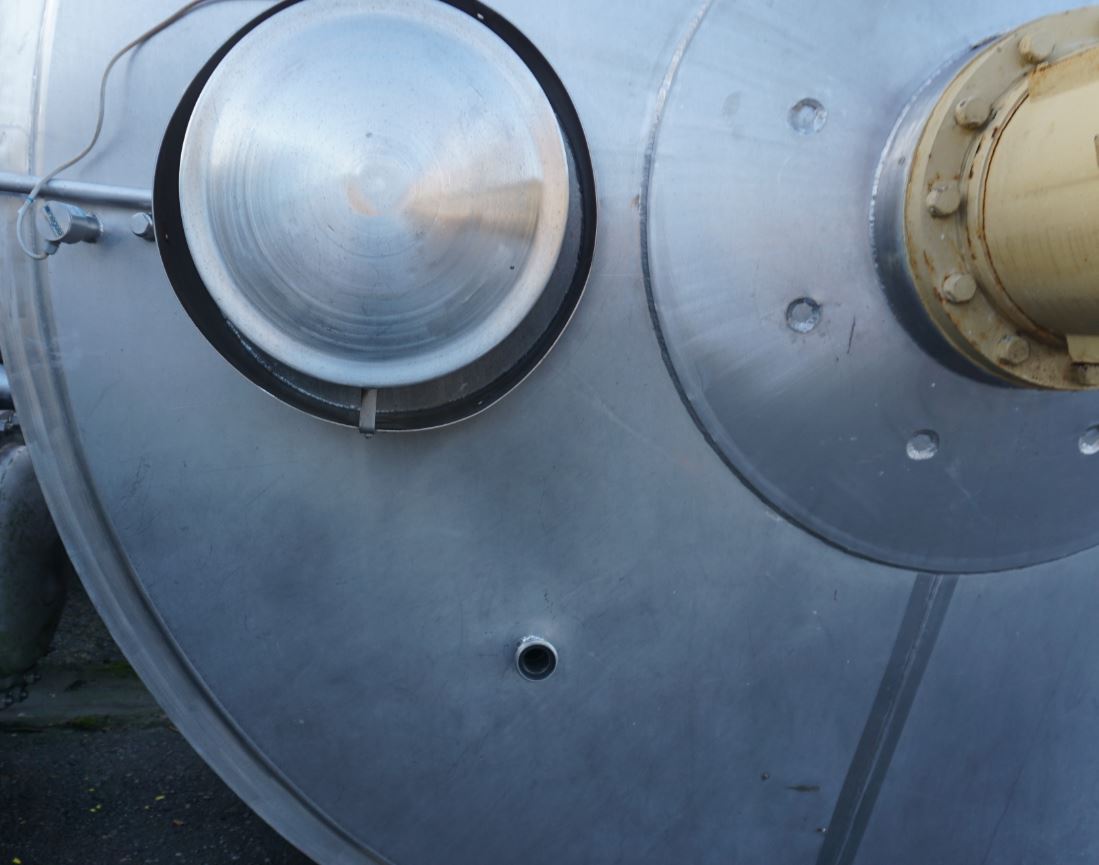

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

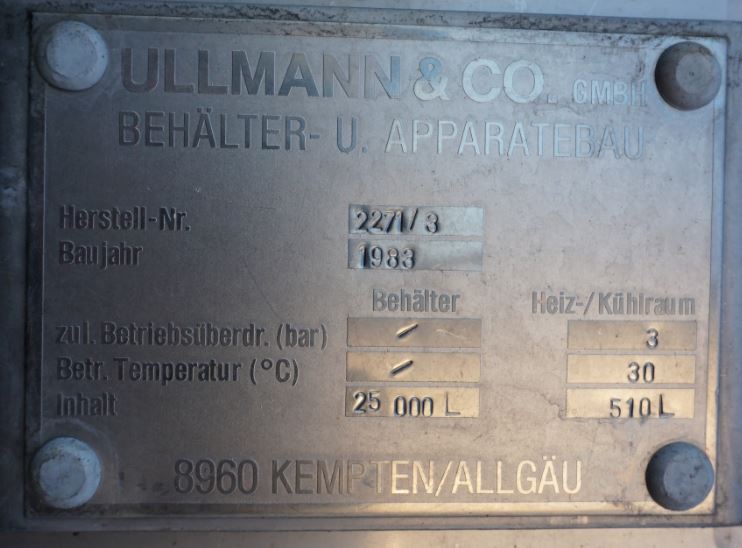

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,
