Product no. M-1894

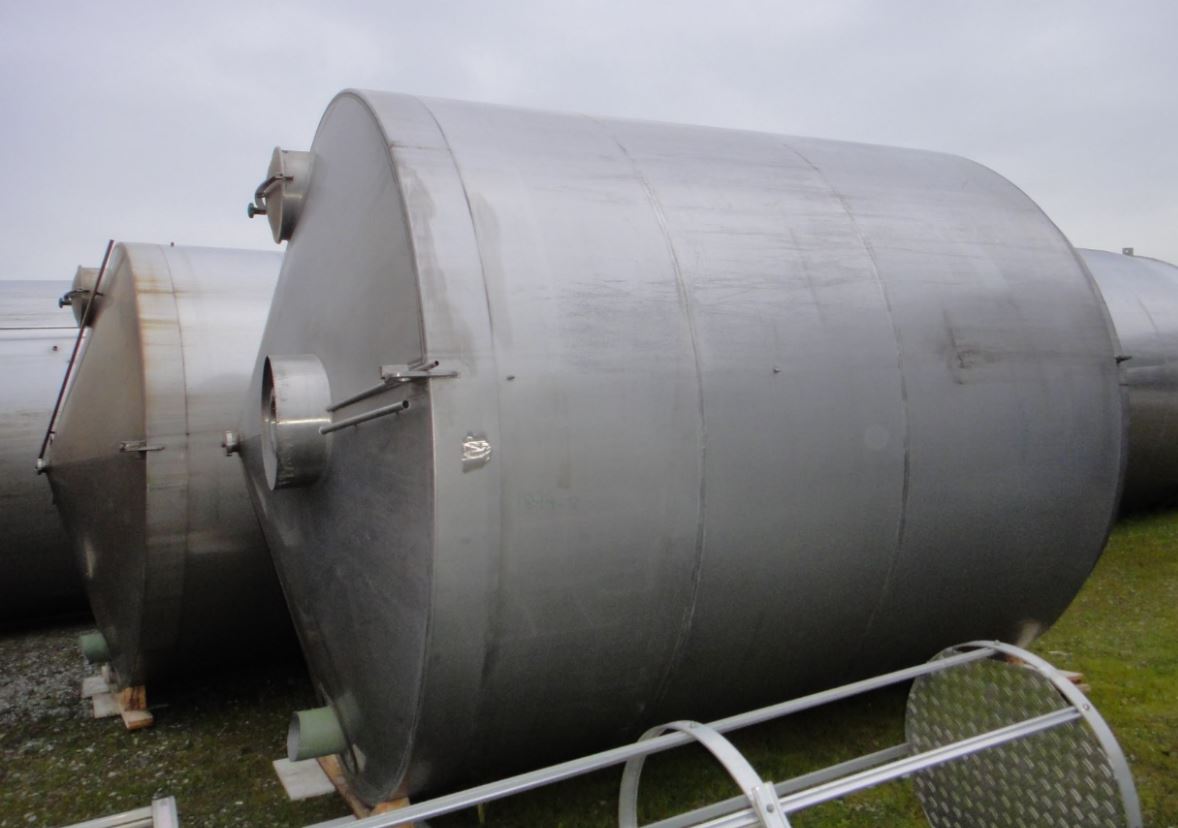

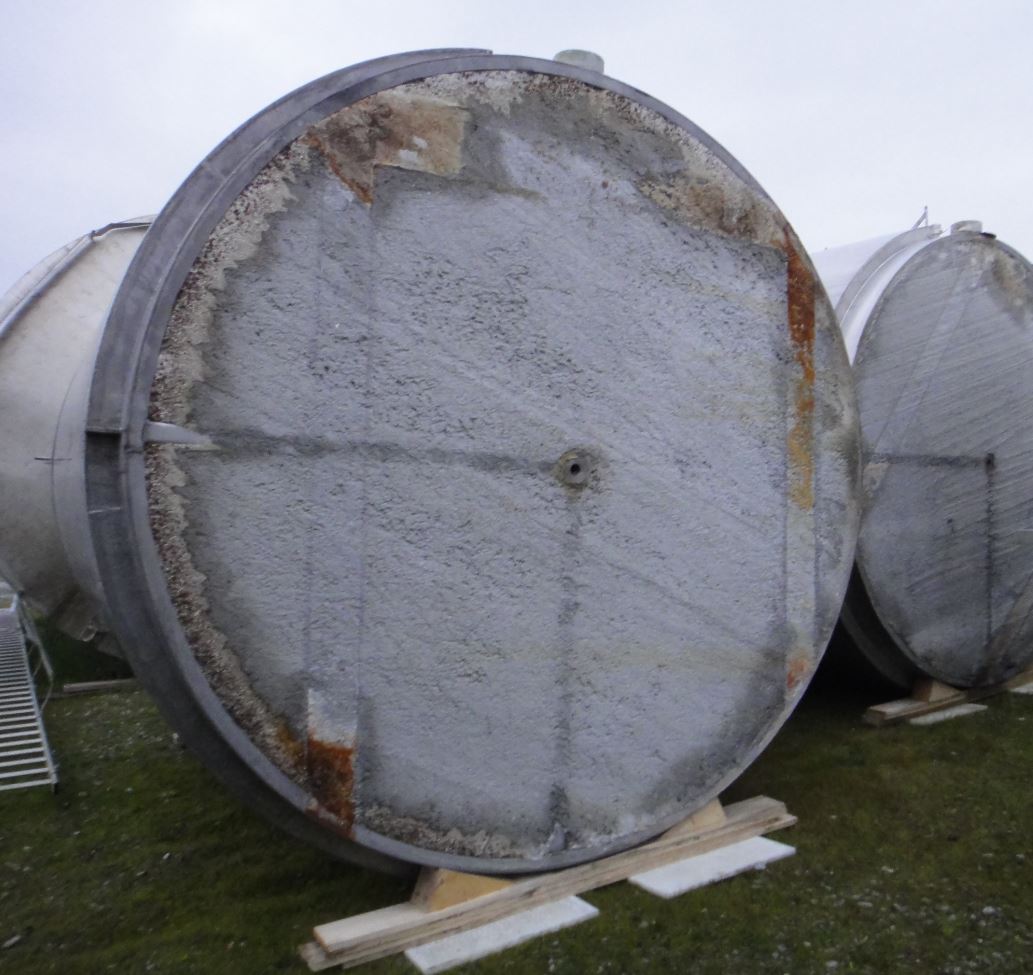

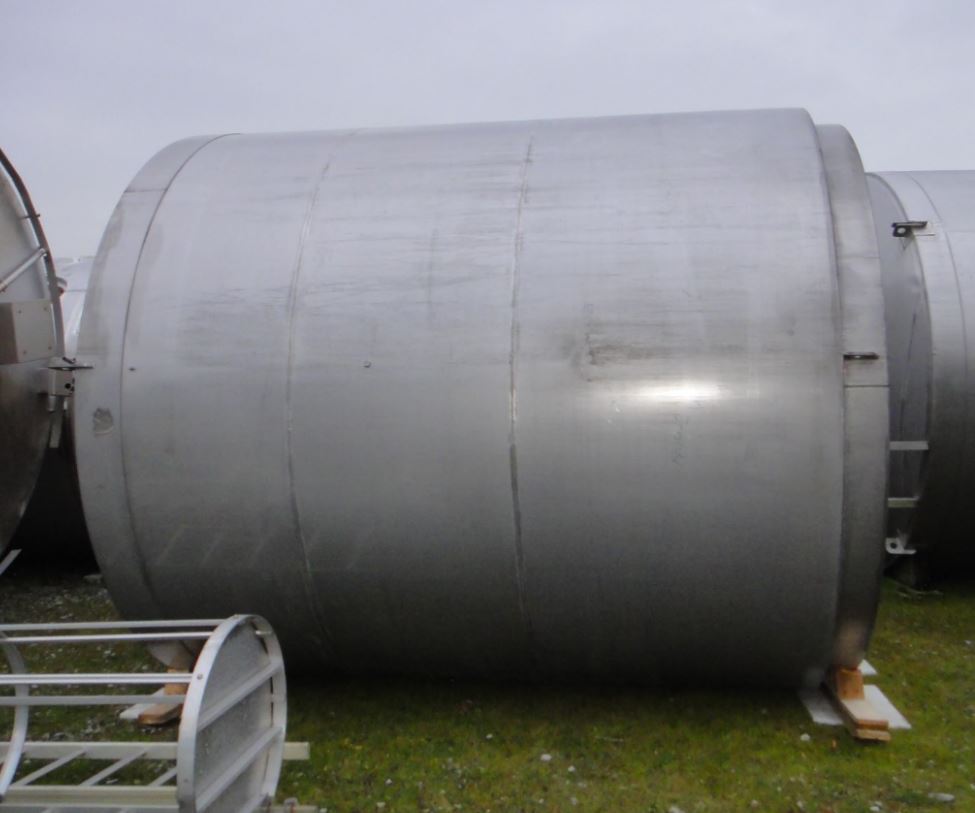

Container 25.000 liters made of V2A, used, isolated, standing

EUR 11.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 25.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres.  Container 25.000 liters made of V2A, used, isolated was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Cleaning/CIP,

General

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.200 mm

  • Total height

  • 4.000 mm

Design

  • Weight approx.

  • 4.000,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

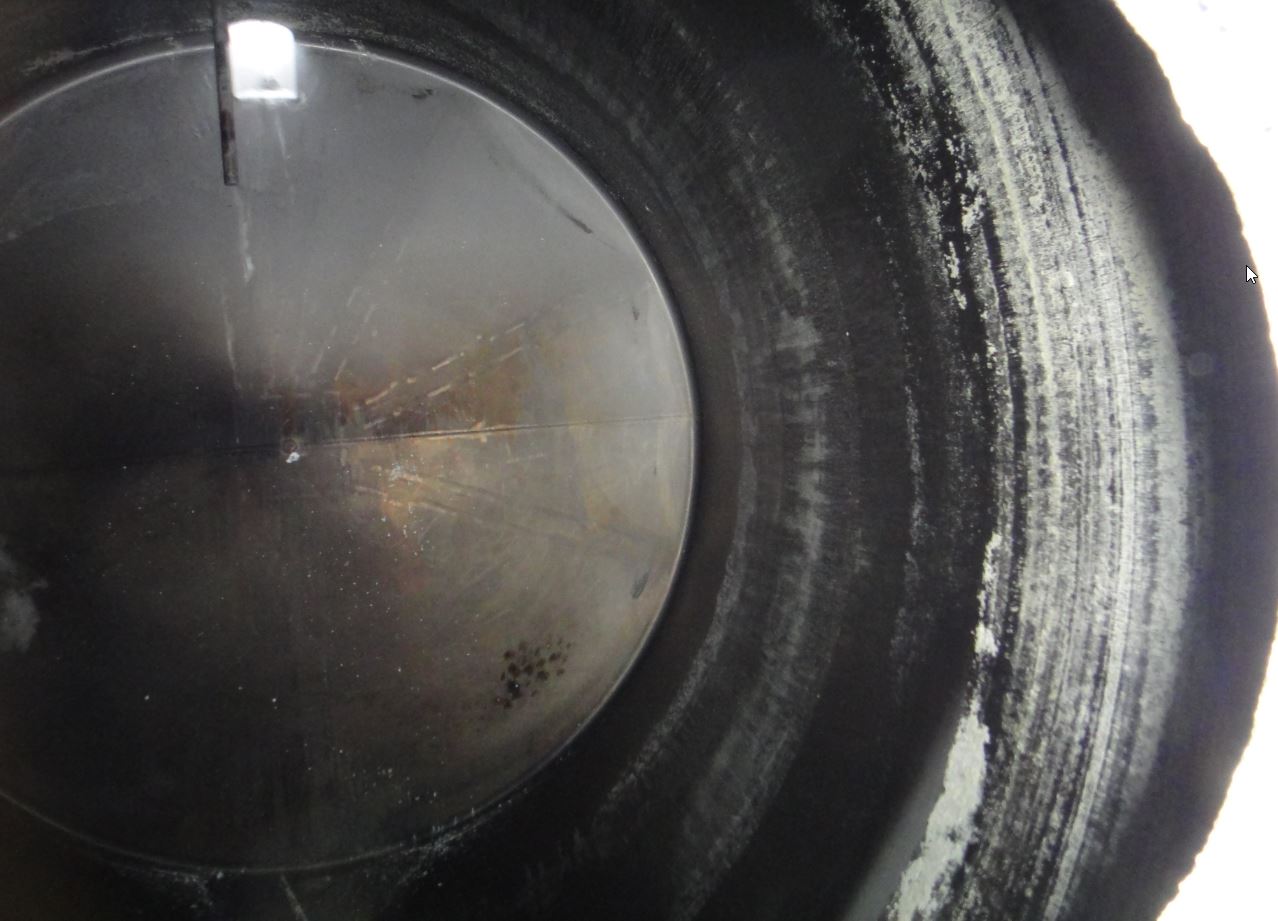

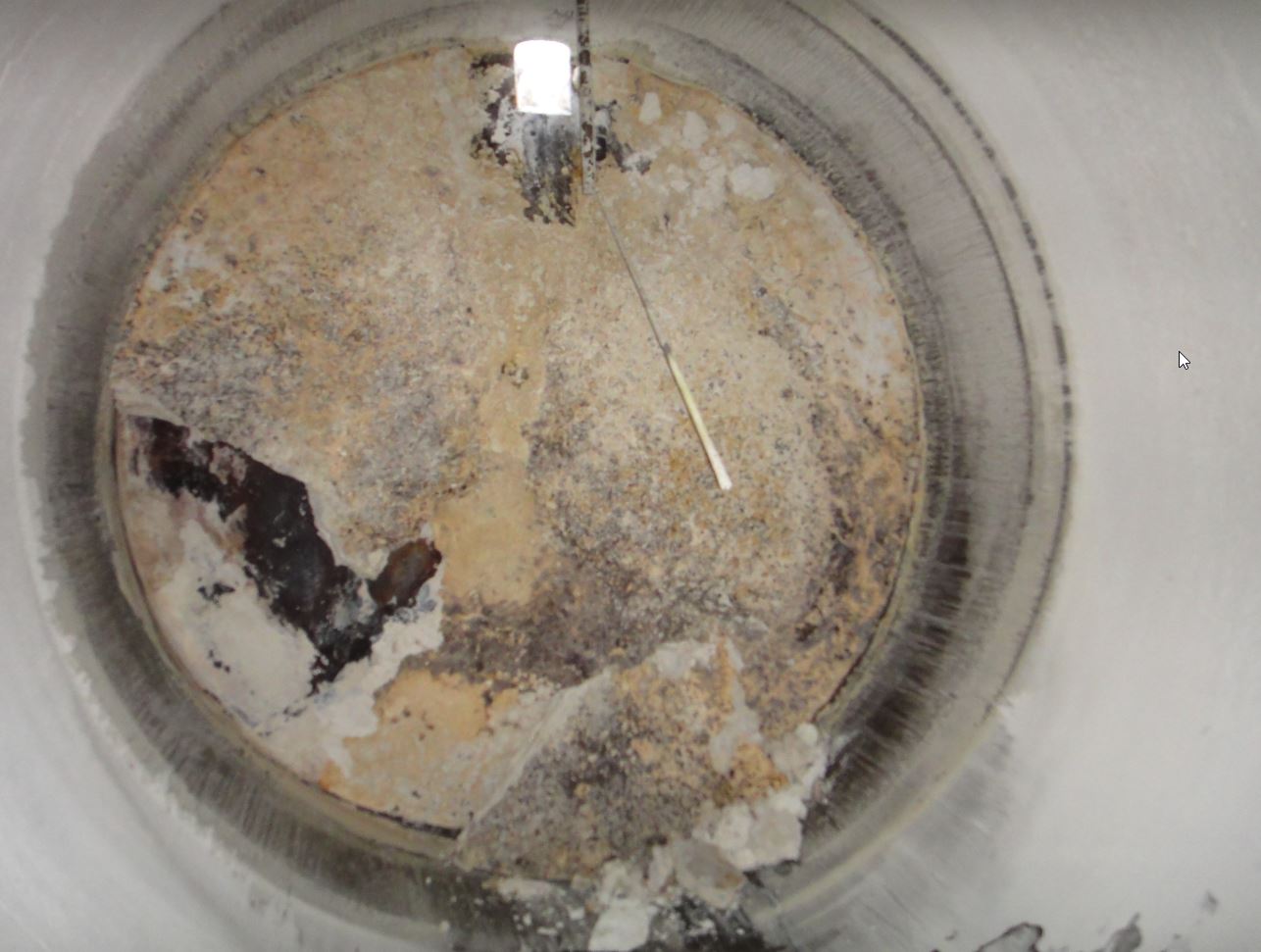

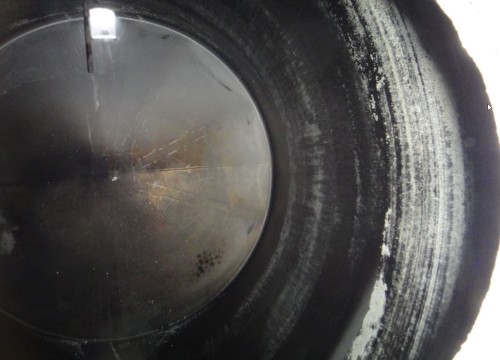

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Concrete support skirt

  • Number of feet

  • 1 (piece)

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN100 (piece)

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs: Water tank, CIP tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, CIP tank,
