Product no. M-2198

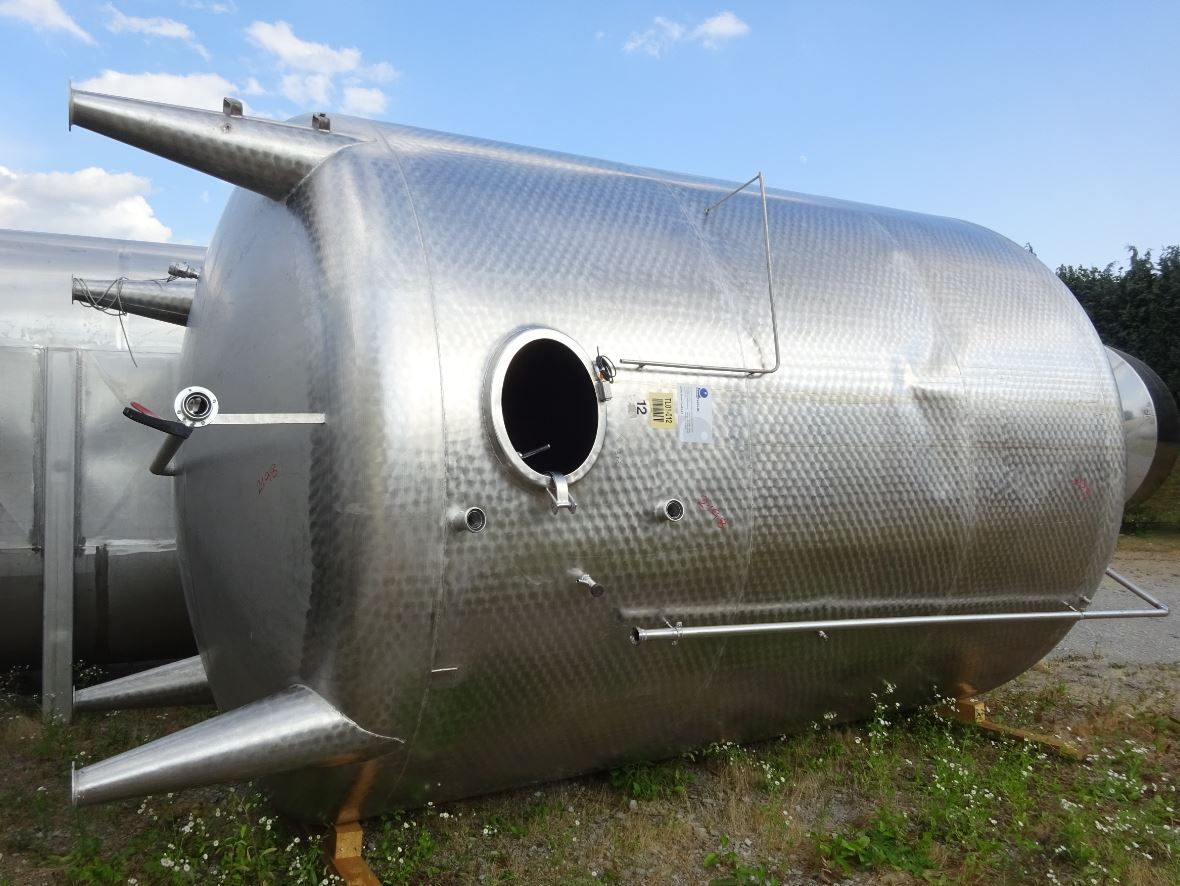

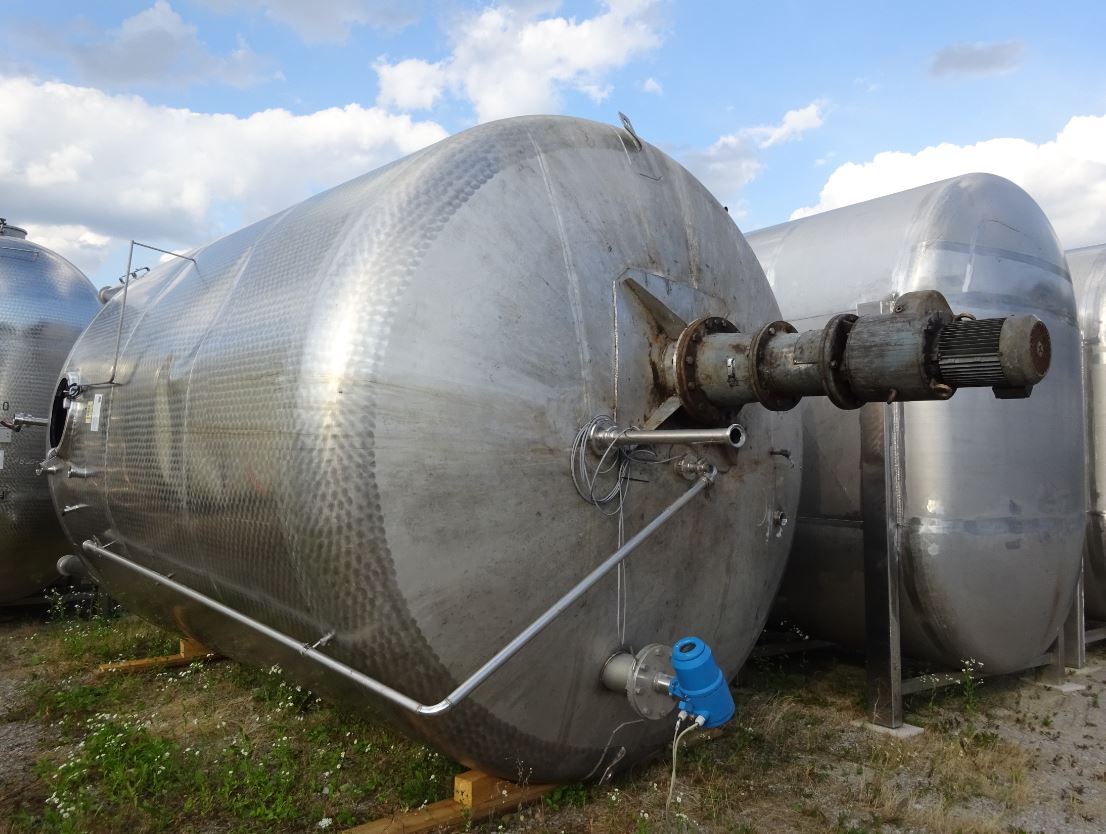

Container 25.000 liters made of V2A, used, single-walled, standing
EUR 12.000,00
add. 19 % VAT excl. shipping costs
Volume approx. 25,000.00 litres
Product description
Container 25.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. Container 25.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing, Cleaning/CIP,General
Volume approx.
25.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
3.000 mm
Cyl. height
3.400 mm
Foot height
1.000 mm
Total height
6.100 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Torispherical bottom
Head design
Torispherical bottom

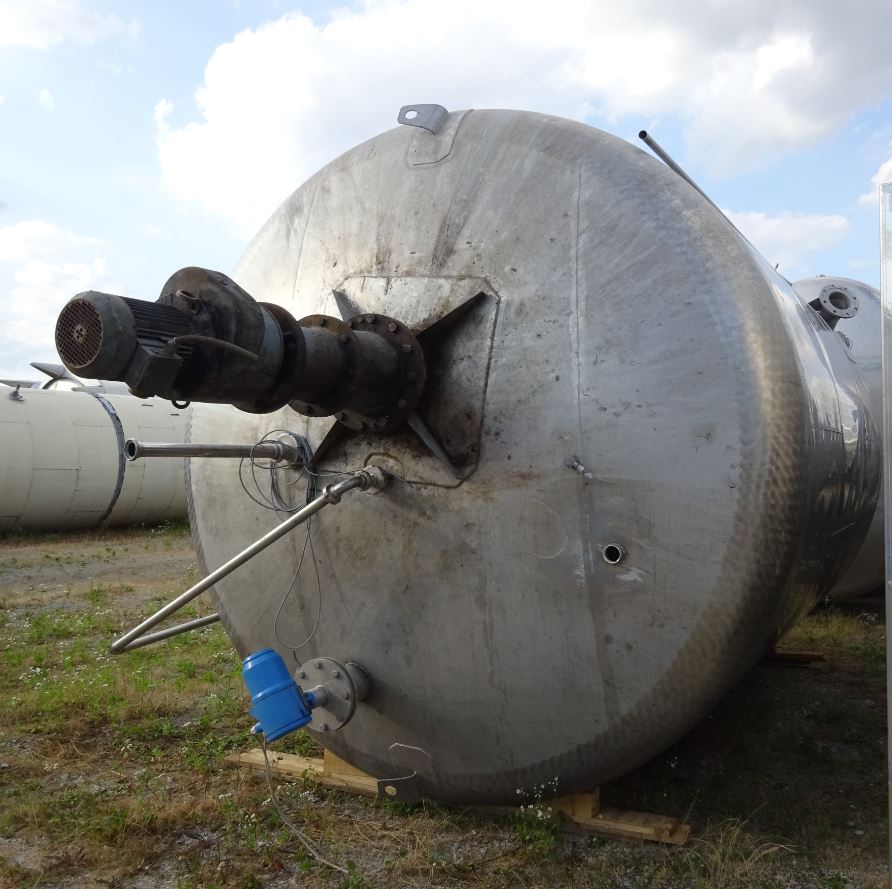

Agitator
Agitator quantity
2 (piece)
Agitator type

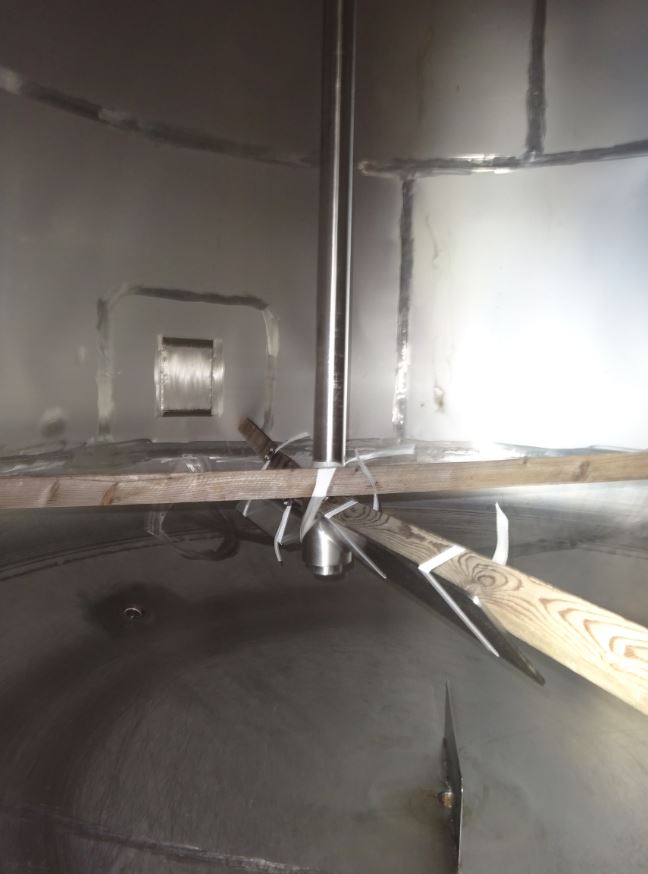

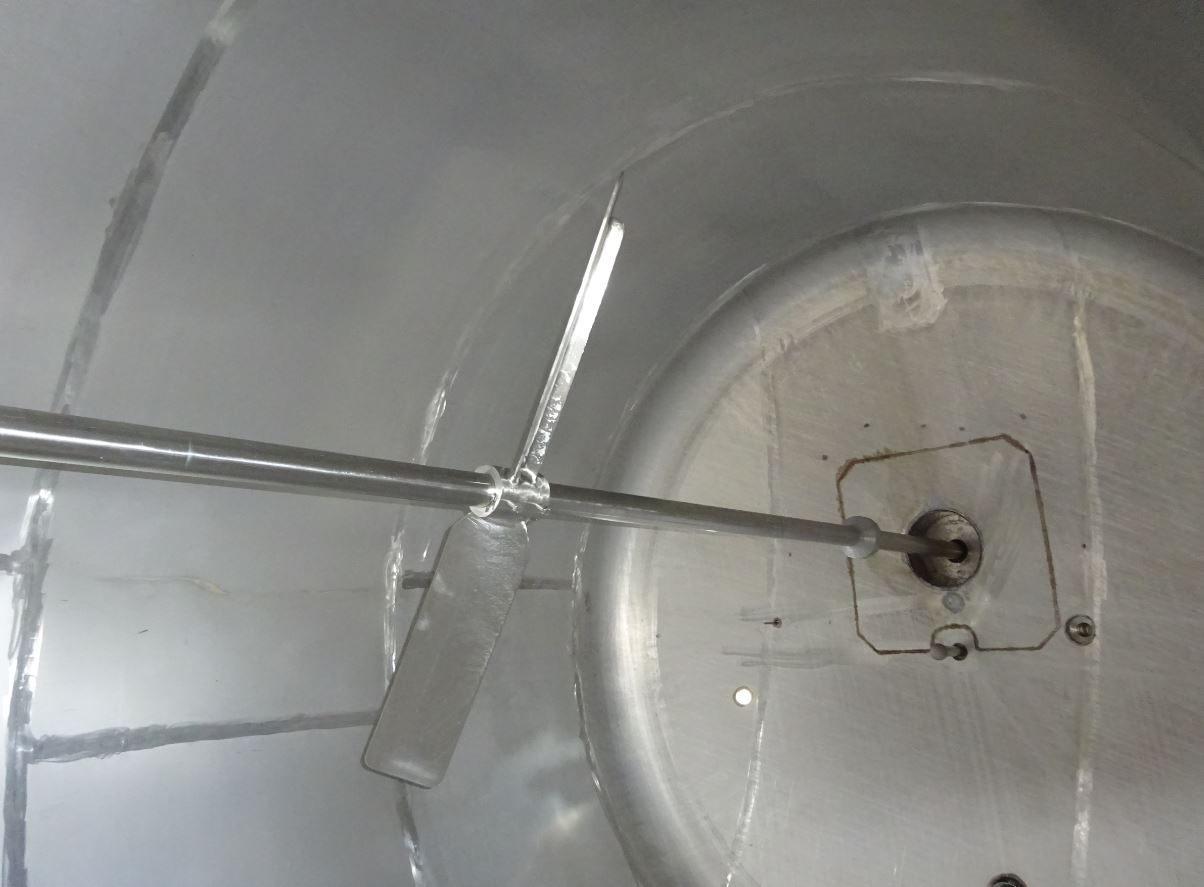

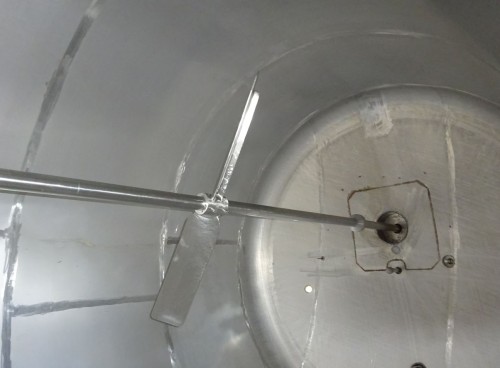

Paddle agitator
Agitator position
Head central
Agitator 1 - Output
4 kW
Agitator 1 - RPM
37 UpM
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings
Manway position
In shell
Nozzles/connectors in shell
2xDN50 (piece)
Nozzles/connectors in head
2xDN100 (piece)
Outlet nozzle
50
Cleaning/CIP nozzle
in head
Fixtures and fittings
Sample taking
Additional fixtures and fittings
Drain port
Technical documentation
Technical documentation
None
Other
Note
leichte Druckstellen im Mantelbereich
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cooling tank, Cold water tank,
Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Filter tank,
