Product no. M-2100

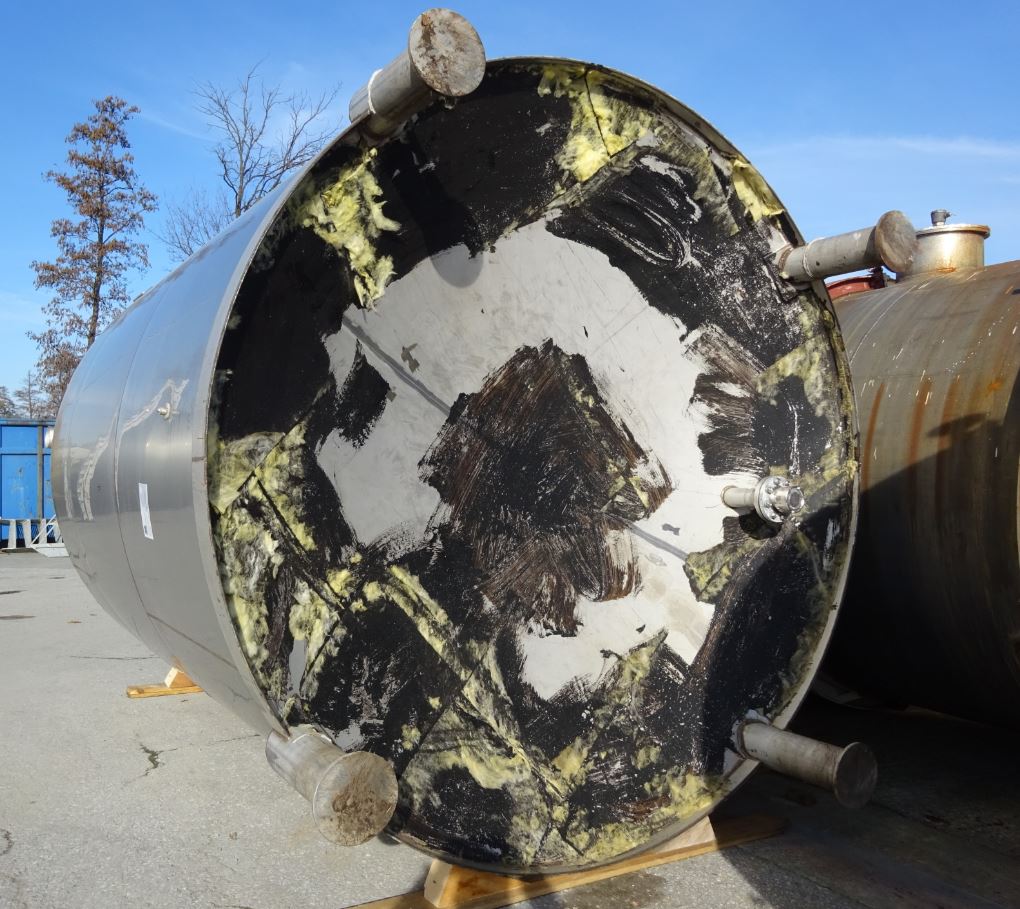

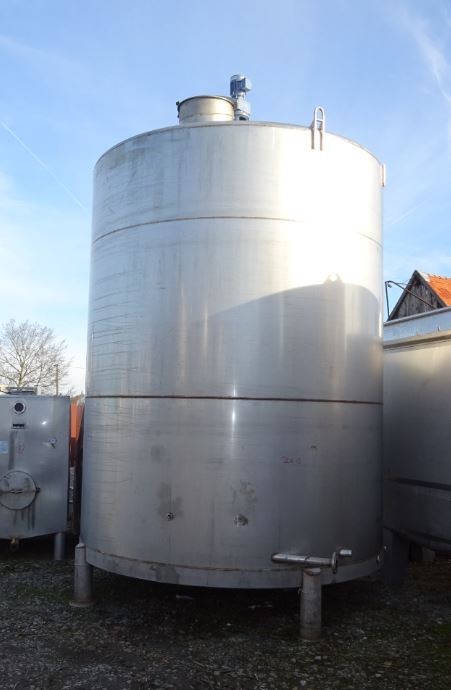

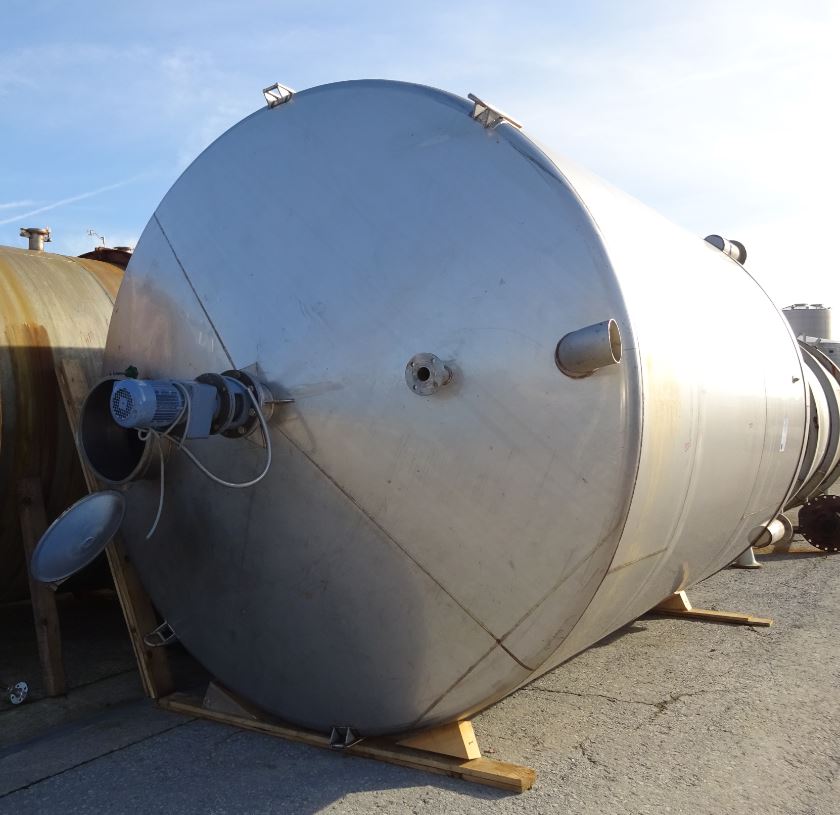

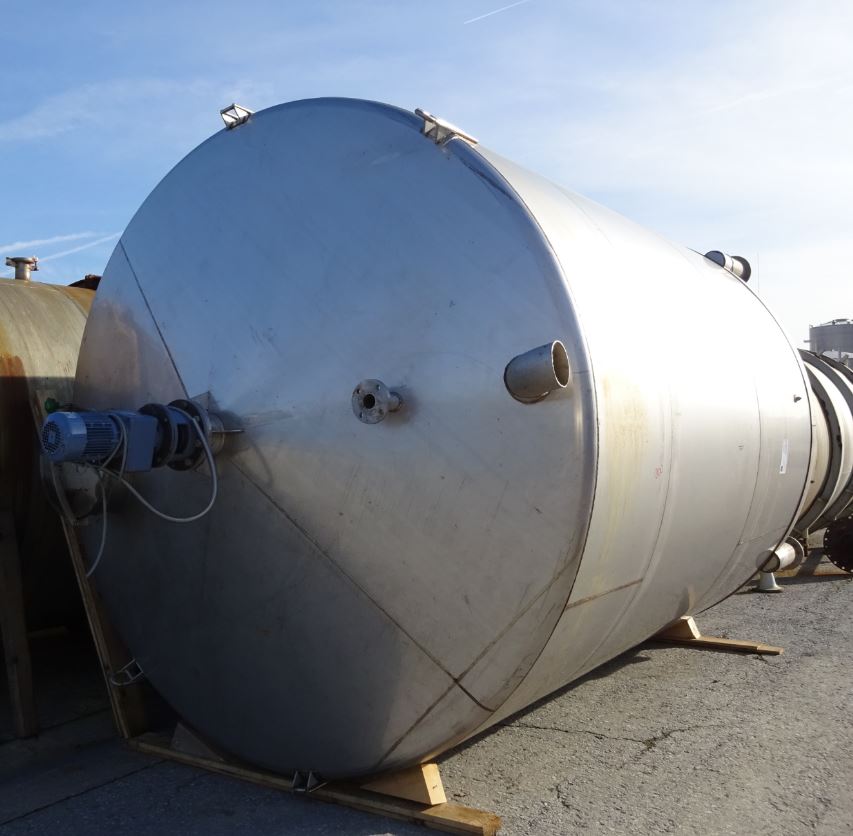

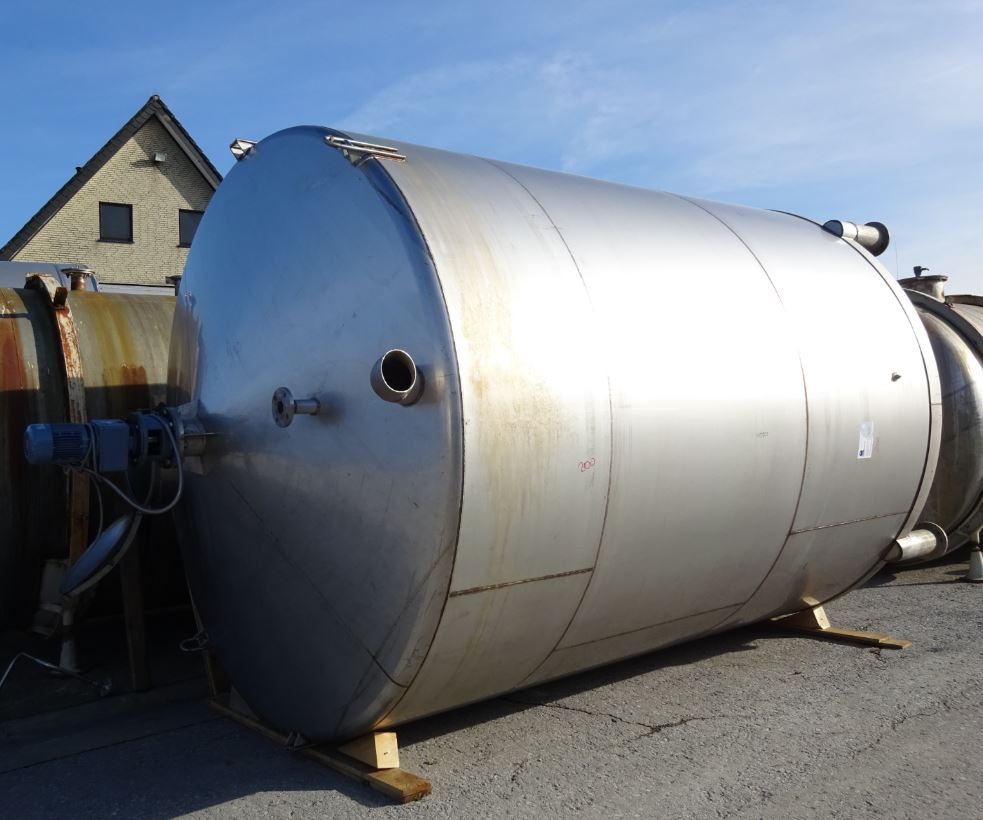

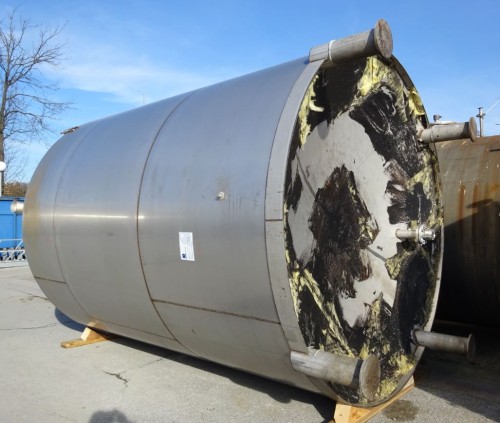

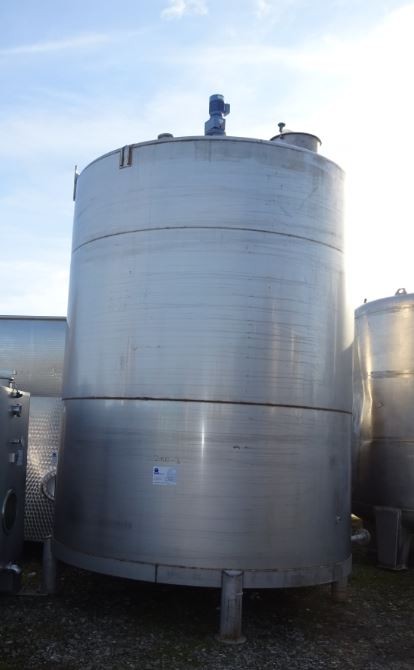

Container 25.000 liters made of V2A, used, single-walled, standing

EUR 12.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 25.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres.  Container 25.000 liters made of V2A, used, single-walled was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.000 mm

  • Cyl. height

  • 3.650 mm

  • Foot height

  • 540 mm

  • Total height

  • 5.400 mm

Design

  • Weight approx.

  • 3.000,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Matt

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

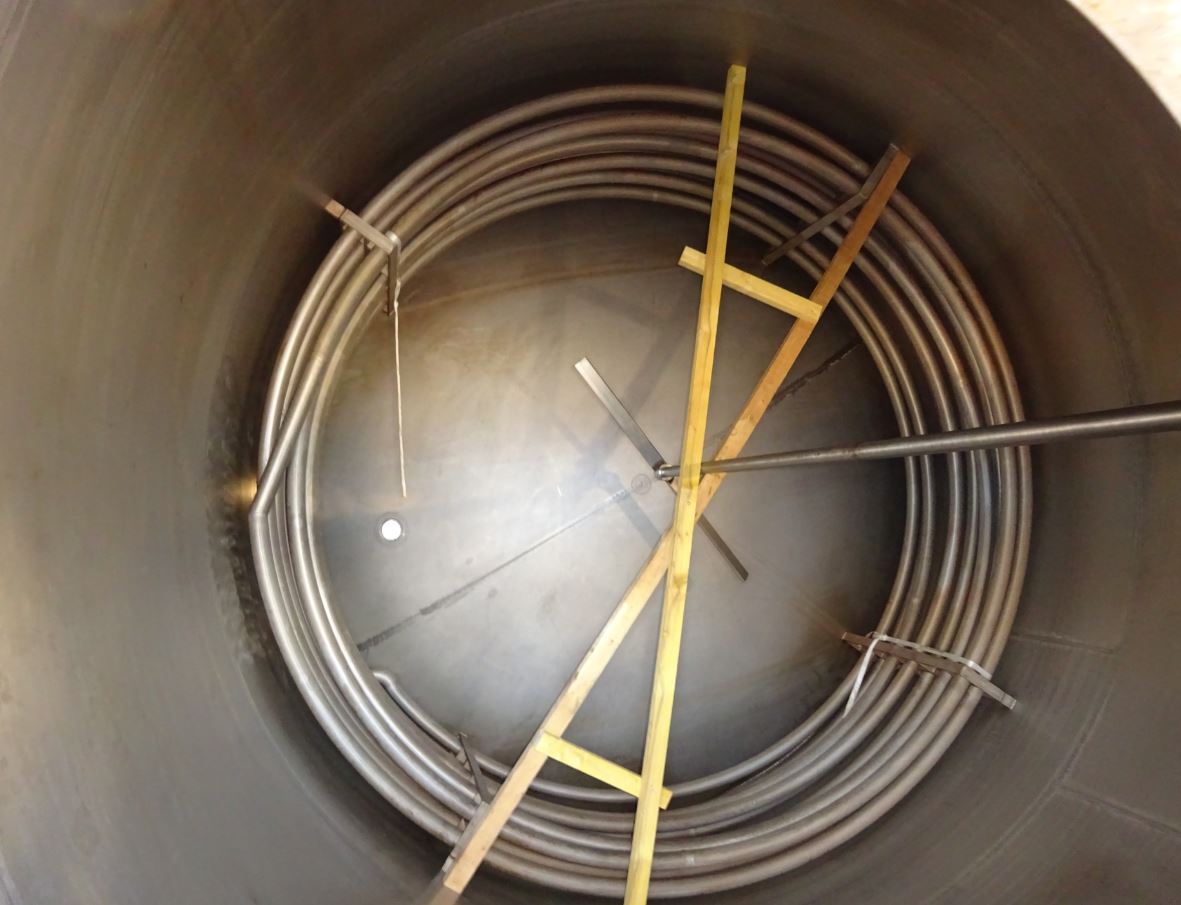

  • Temperature control system

  • Interior pipe coils

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head central

  • Agitator 1 - Output

  • 7,5 kW

  • Agitator 1 - RPM

  • 61 UpM

  • Agitator 2 - Output

  • 1,5 kW

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN100 1xDN50 (piece)

  • Nozzles/connectors in floor

  • 1xDN80 (piece)

  • Outlet nozzle

  • 50

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Cooling tank,
