Behälter 25.000 Liter aus V2A, doppelwandig

Product no. M-2464

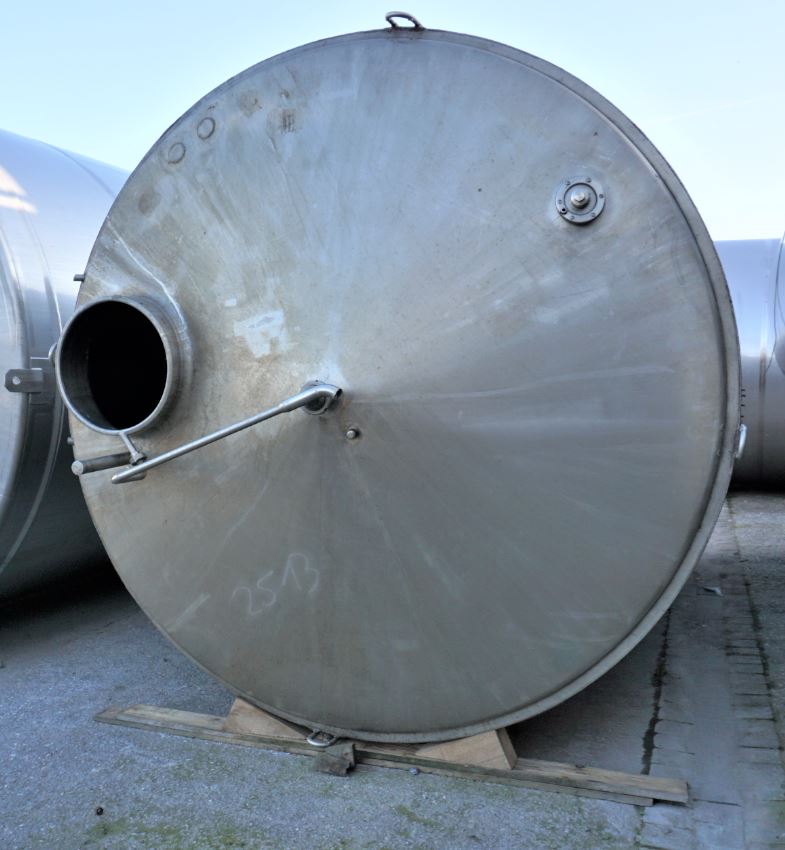

Container 25.000 liters made of V2A, double-walled, standing

Name: Behälter 25.000 Liter aus V2A, doppelwandig
SKU: M-2464
Price: 13800 EUR

EUR 13.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 25,000.00 litres

Behälter 25.000 Liter aus V2A, doppelwandig

more details

Product description

Container 25.000 liters made of V2A, double-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,500 mm. Container 25.000 liters made of V2A, double-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

Volume approx.

25.000,00 litres

Structure

Standing

Condition

Used

Dimensions approx.

Internal diameter

2.500 mm

External diameter

2.600 mm

Cyl. height

5.060 mm

Foot height

1.400 mm

Total height

6.900 mm

Design

Weight approx.

2.000,00 kg

Weight per unit volume approx.

1.000,00 kg/m³

Insulation

Insulated area

Shell and floor

Insulation cladding

Fully welded stainless steel

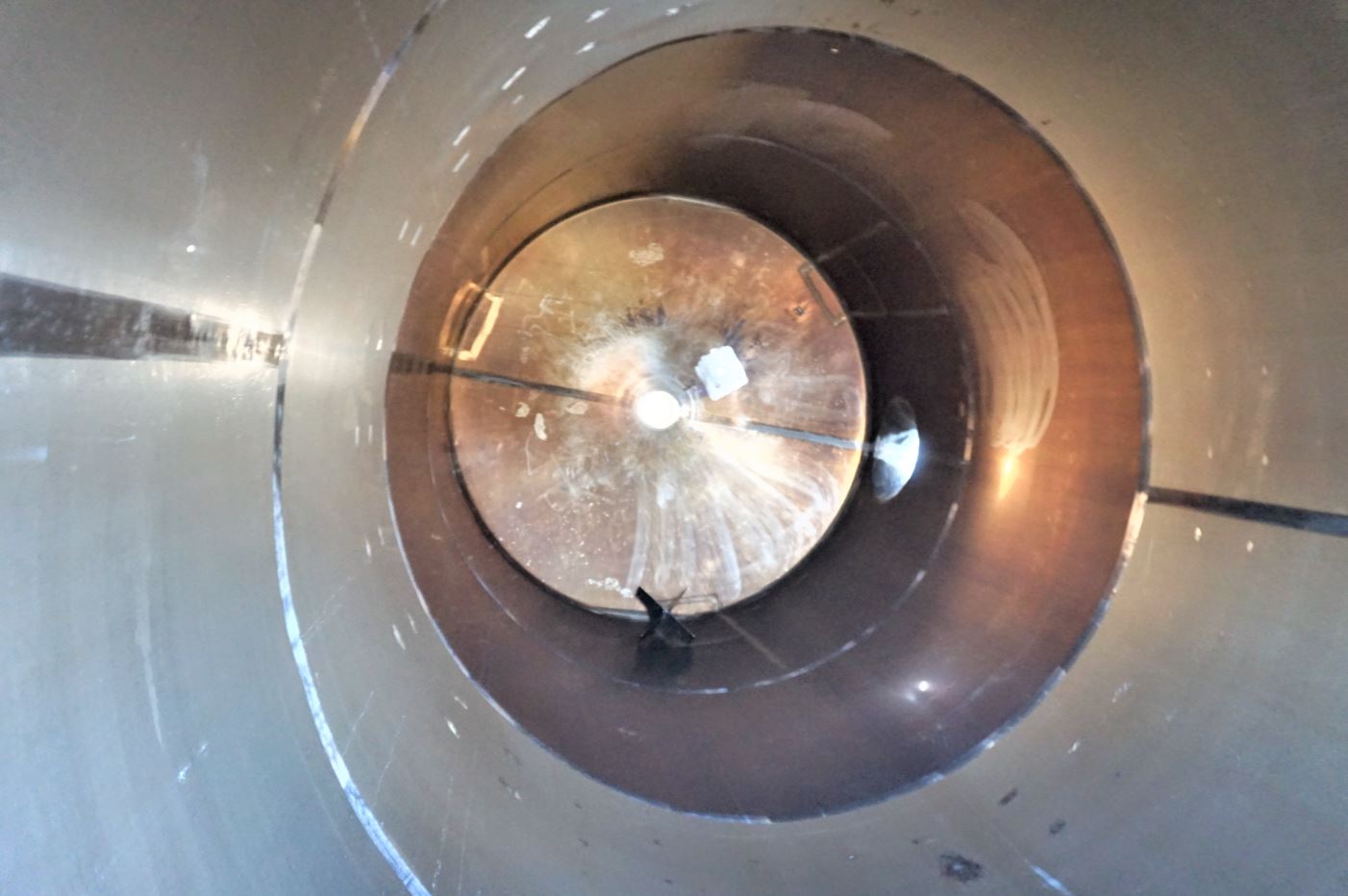

Interior surface

Smoothed

Exterior surface

Smoothed

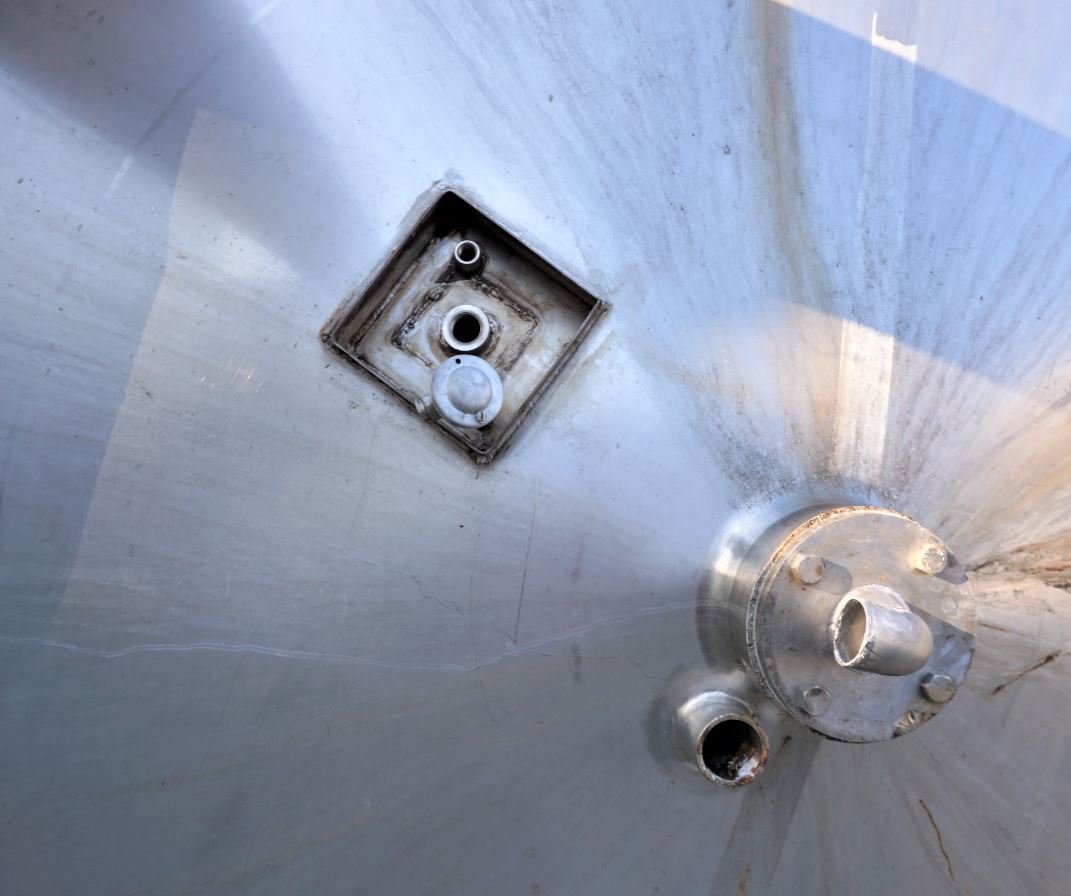

Floor type

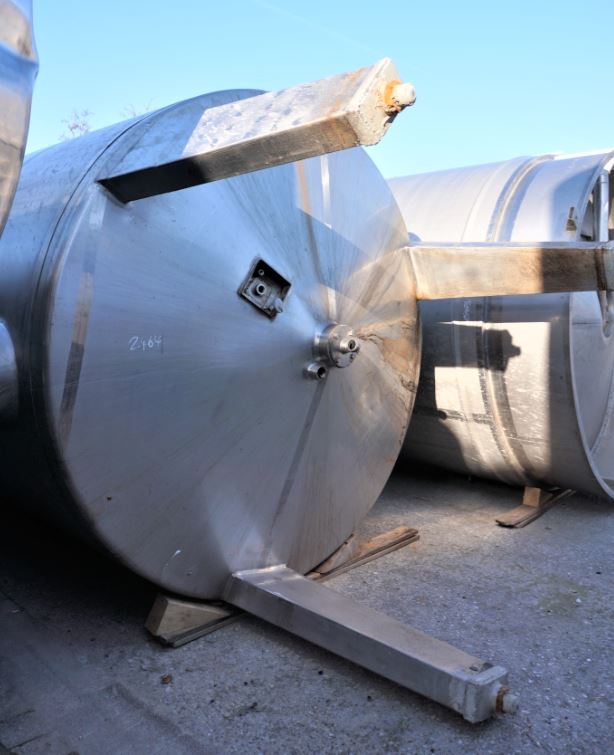

Conical bottom

Head design

Conical bottom

Product chamber operating pressure

Atmospheric/unpressurised bar

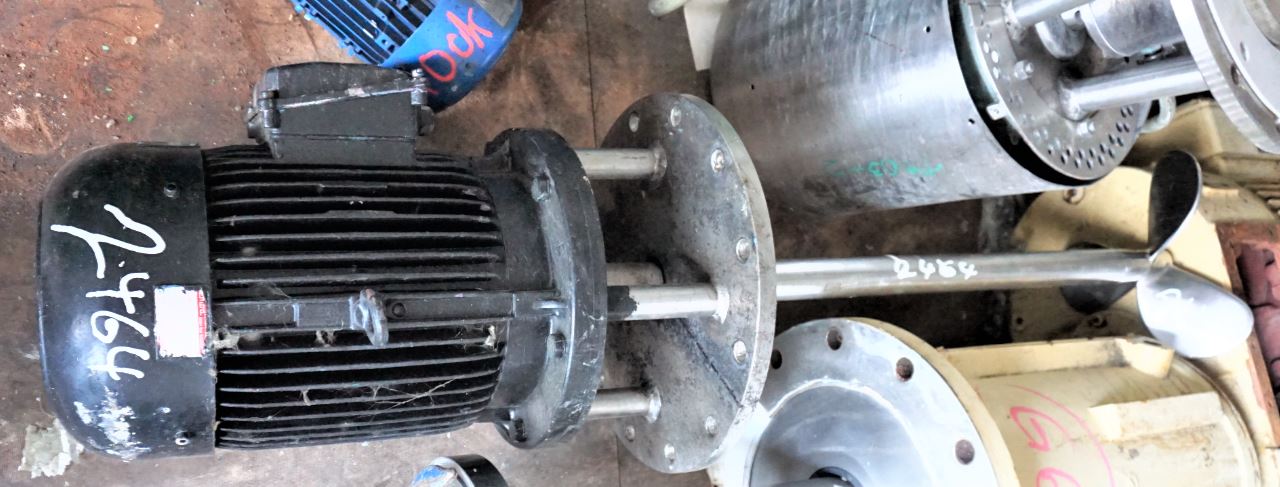

Agitator

Agitator quantity

1 (piece)

Agitator type

Propeller

Agitator position

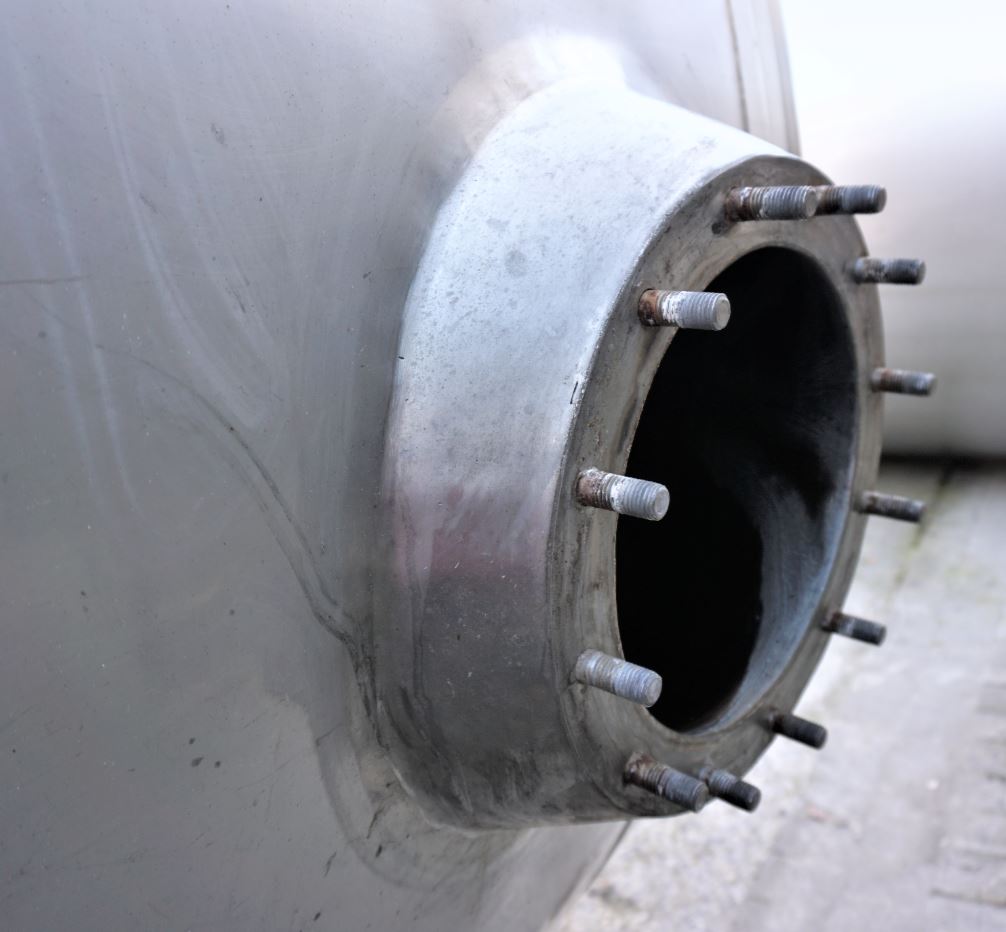

At bottom at the side in shell

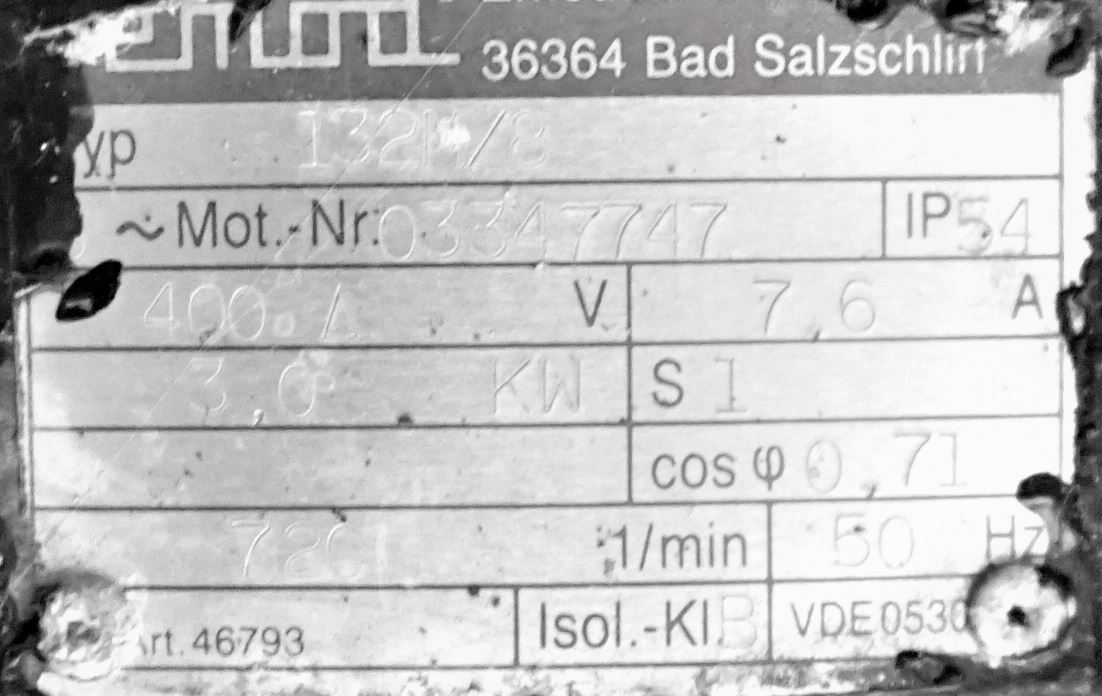

Agitator 1 - Output

3 kW

Agitator 1 - RPM

720 UpM

Agitator 1 - Voltage

400 V

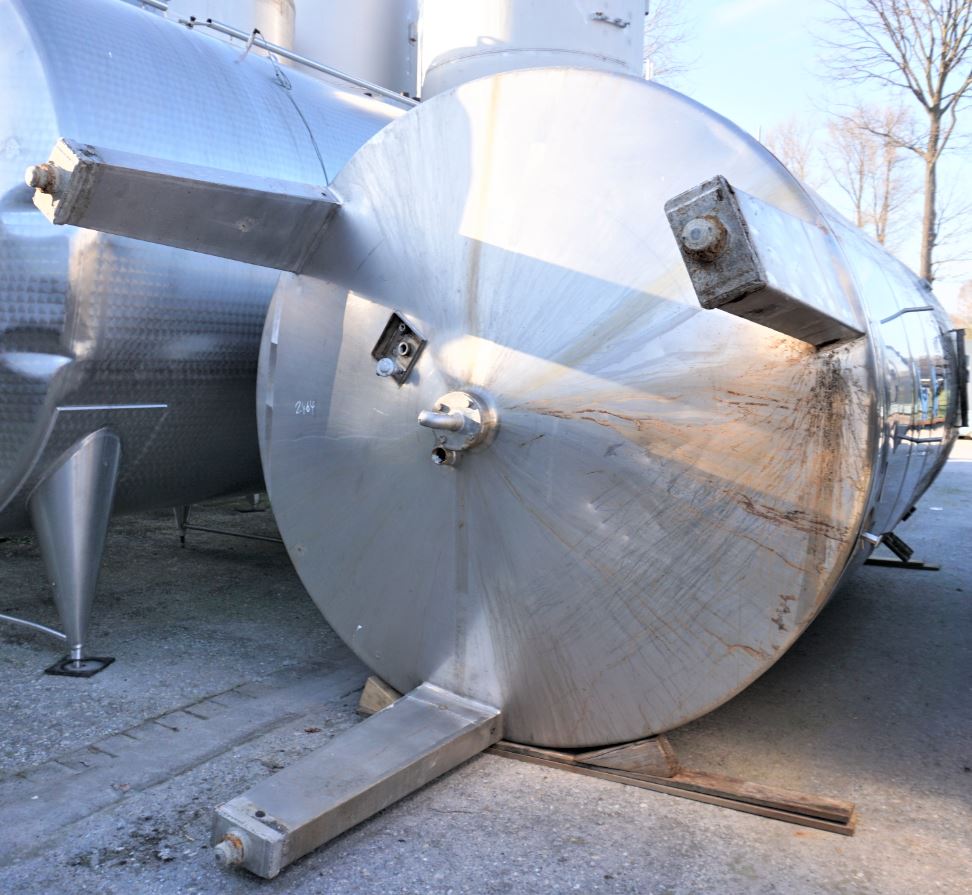

Supports

Supports

Stainless steel feet

Number of feet

3 (piece)

Note on supports

höhenverstellbar

Fixtures and fittings

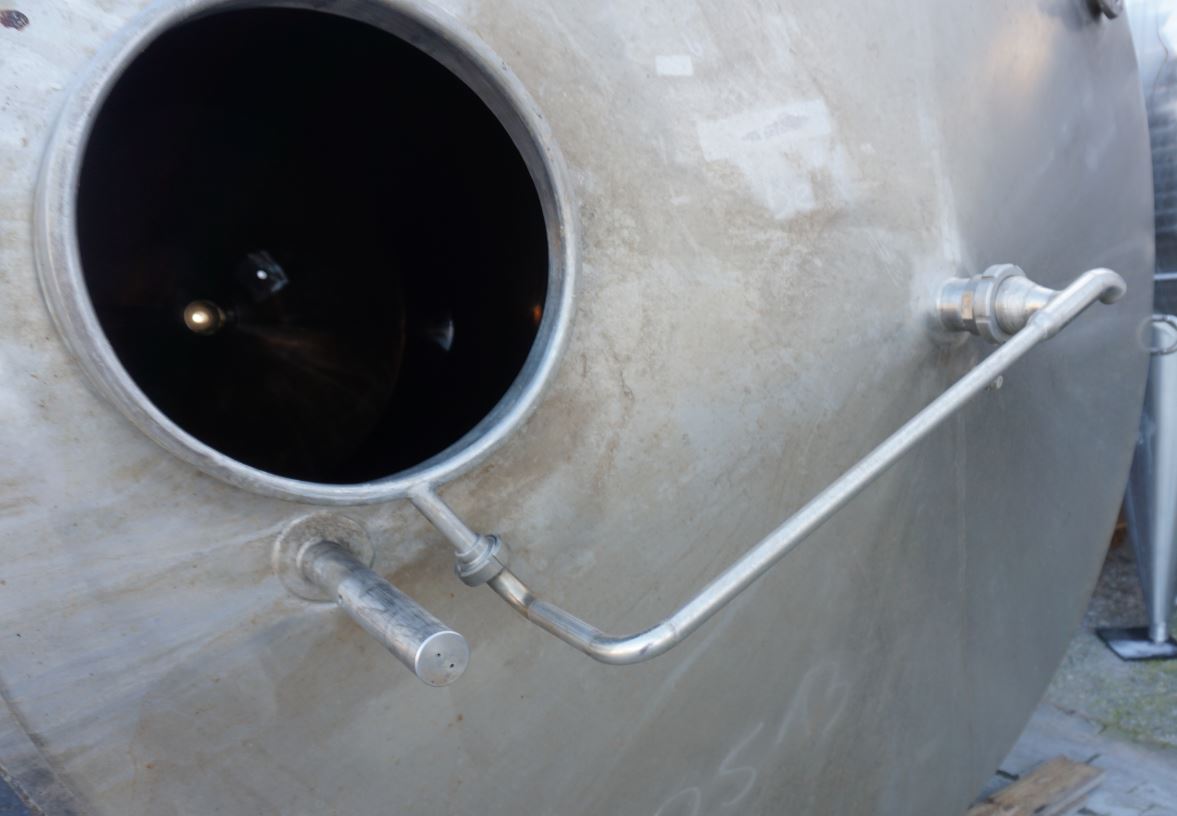

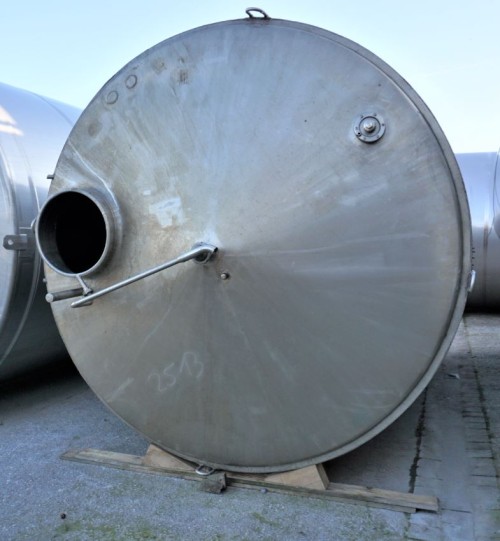

Manway position

In head

Nozzles/connectors in head

1xDN65 (piece)

Outlet nozzle

Fixtures and fittings

Lifting lugs
Sample taking

Technical documentation

Technical documentation

None

Other

Note

Mannlochdeckel fehlt, Behälter doppelwandig ohne Dämmung

Last usage

Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
