Product no. M-1790

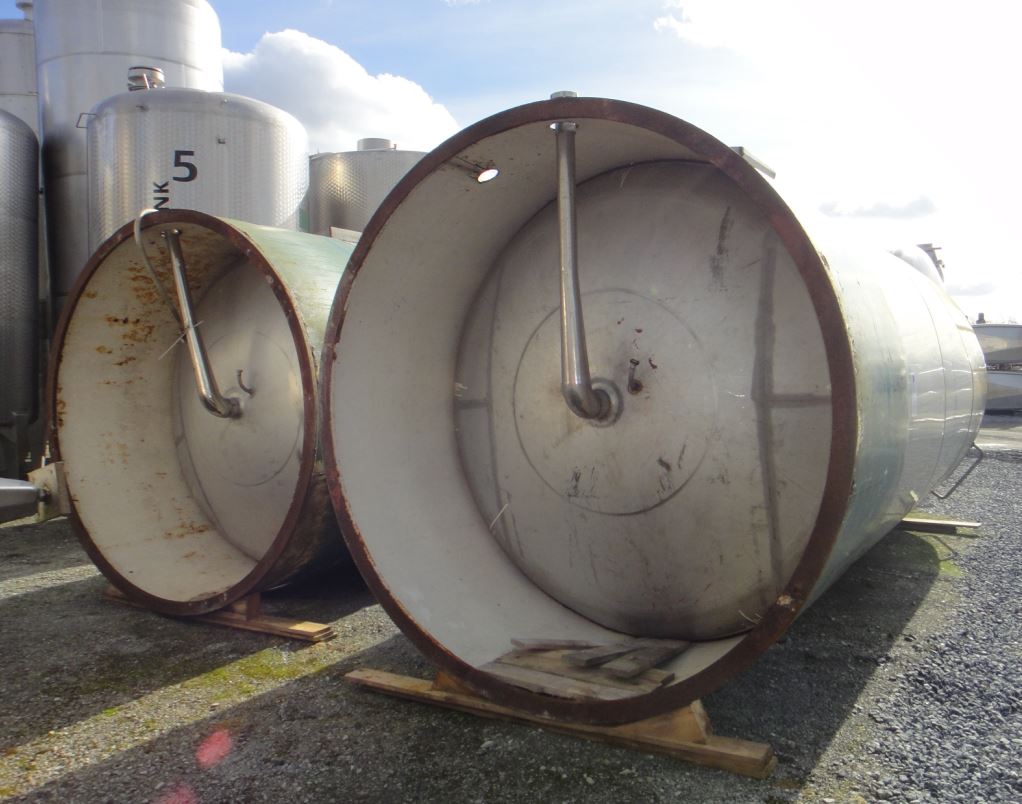

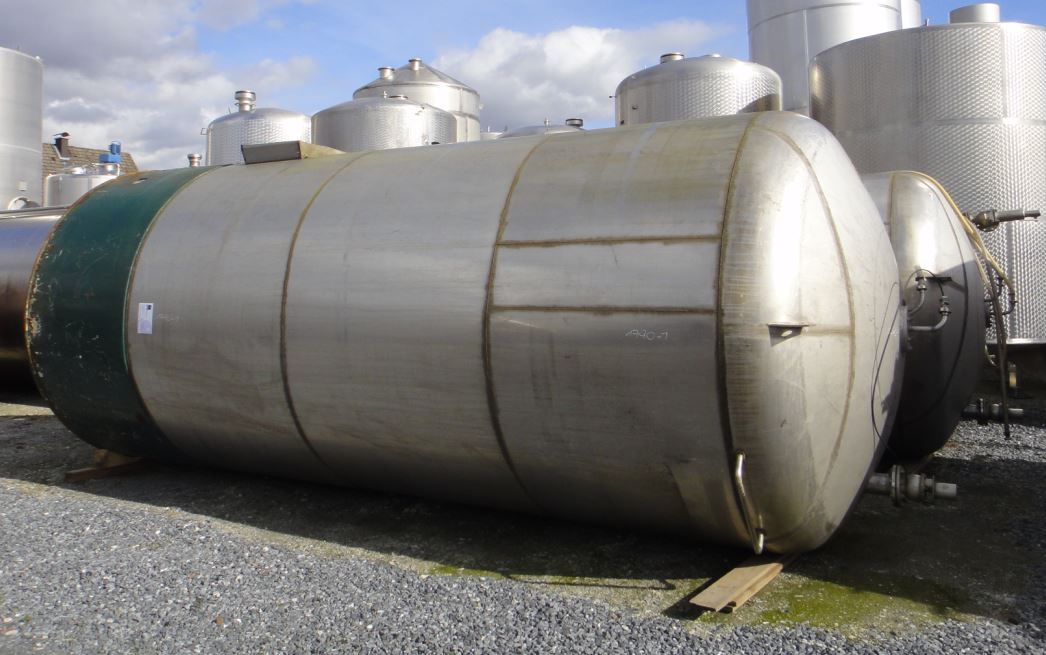

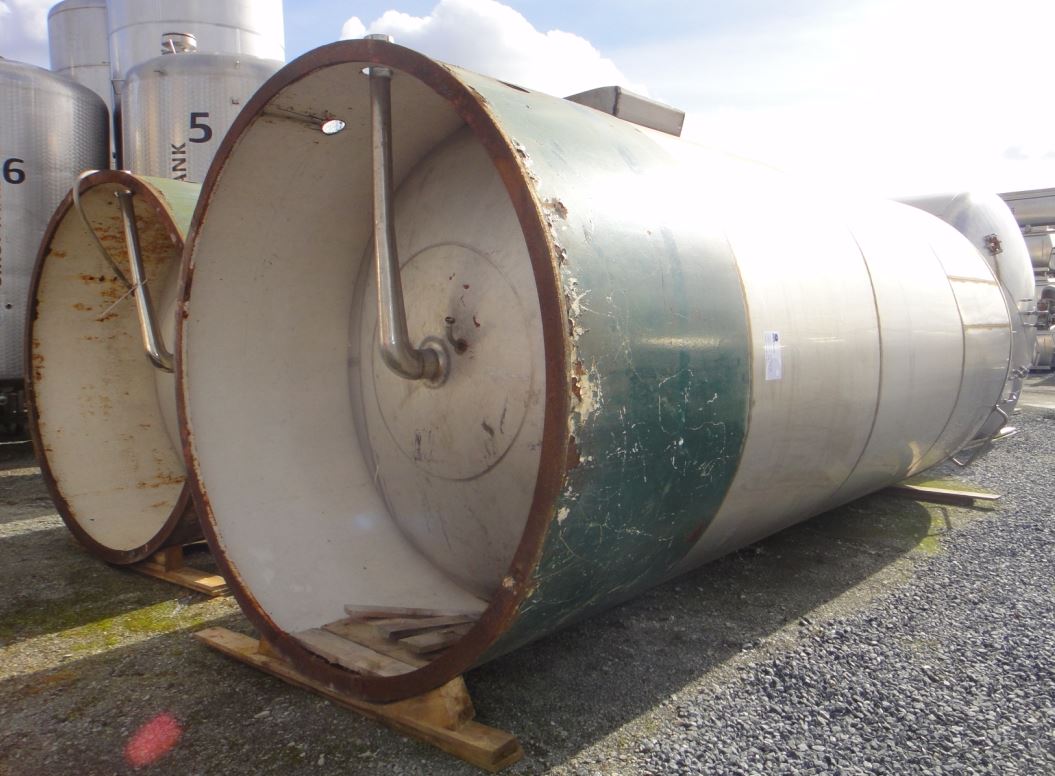

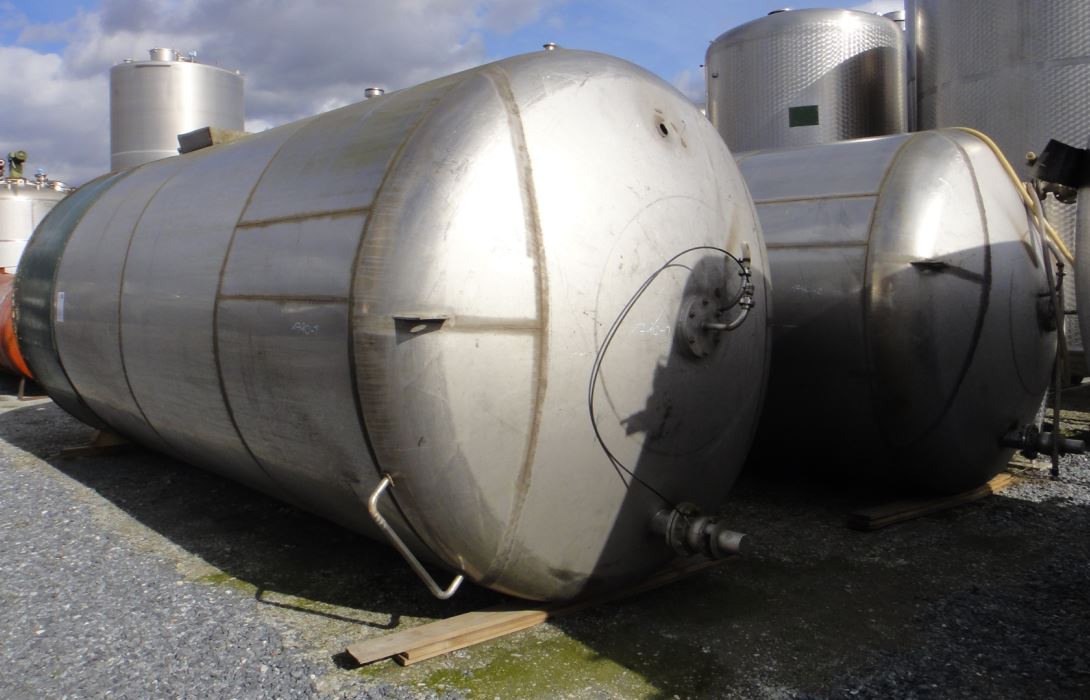

Container 22.000 liters made of V2A, used, single-walled, standing

EUR 10.300,00

add. 19 % VAT excl. shipping costs

Volume approx. 22,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 22.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 22,000.00 litres.  Container 22.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 22.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.500 mm

  • Cyl. height

  • 4.300 mm

  • Frame height

  • 1.200 mm

  • Total height

  • 6.400 mm

Design

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Steel support skirt

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 1xDN100 2xDN25 (piece)

  • Outlet nozzle

  • 100

  • Fixtures and fittings

  • Lifting lugs

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
