Product no. M-2414

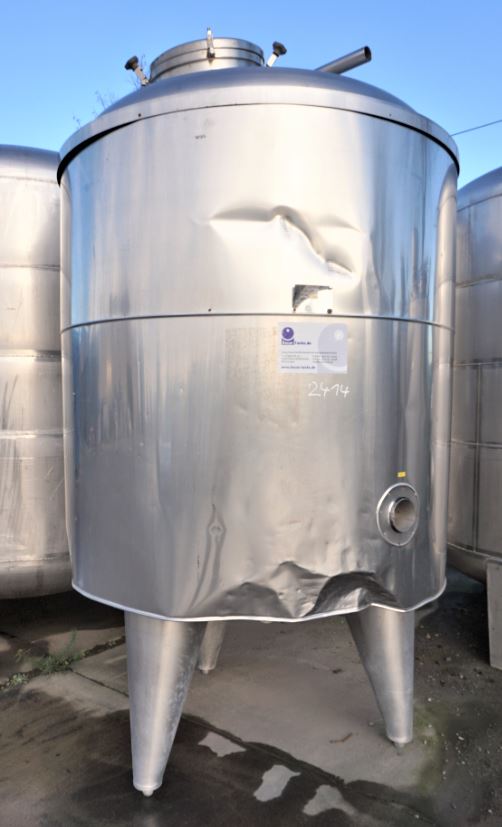

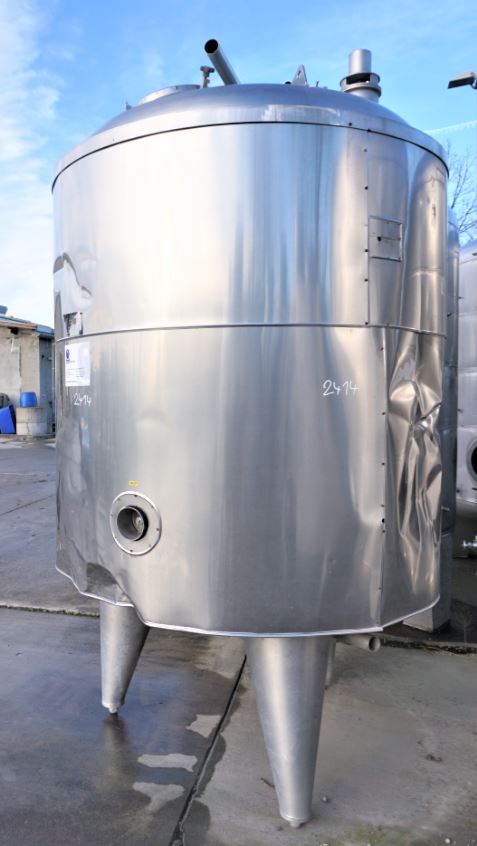

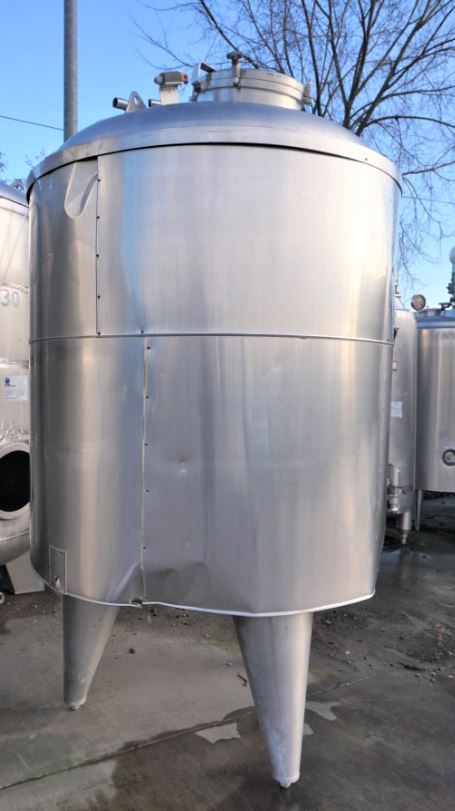

Container 2.500 liters aus V2a, isolated, standing

EUR 3.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 2.500 liters aus V2a, isolated consists of the material 1.4541(AISI321). The volume is approx. 2,500.00 litres. The diameter inside includes 1,450 mm.  Container 2.500 liters aus V2a, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 2.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1984

  • Manufacturer

  • Ritter

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.450 mm

  • External diameter

  • 1.650 mm

  • Cyl. height

  • 1.500 mm

  • Outlet height

  • 750 mm

  • Total height

  • 2.750 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

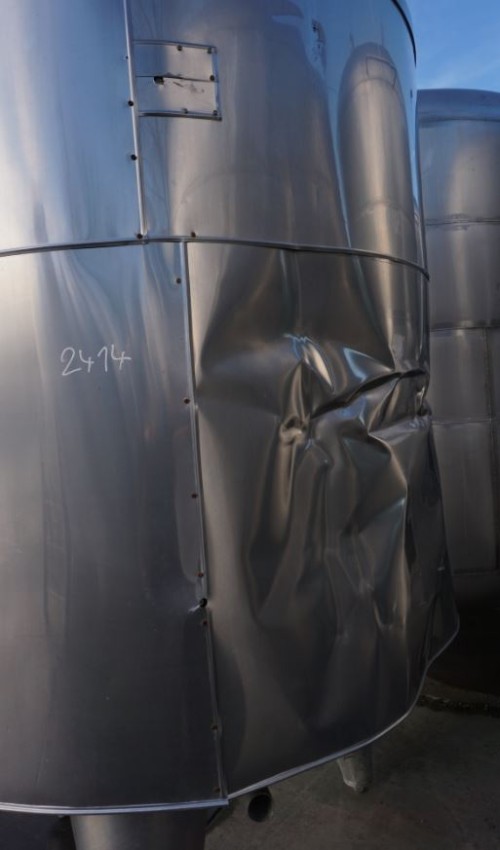

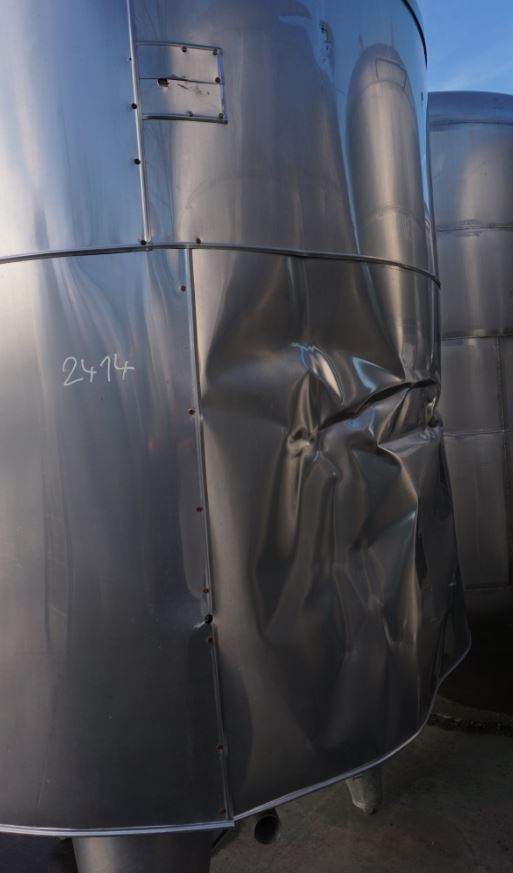

  • Insulation cladding

  • Bolted aluminium

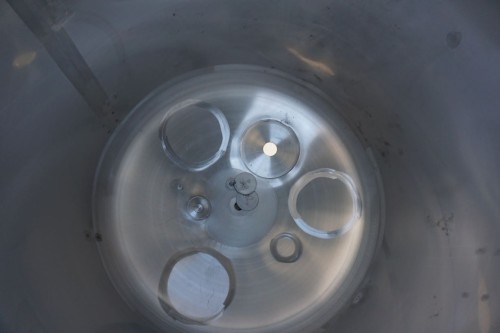

  • Interior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,95 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

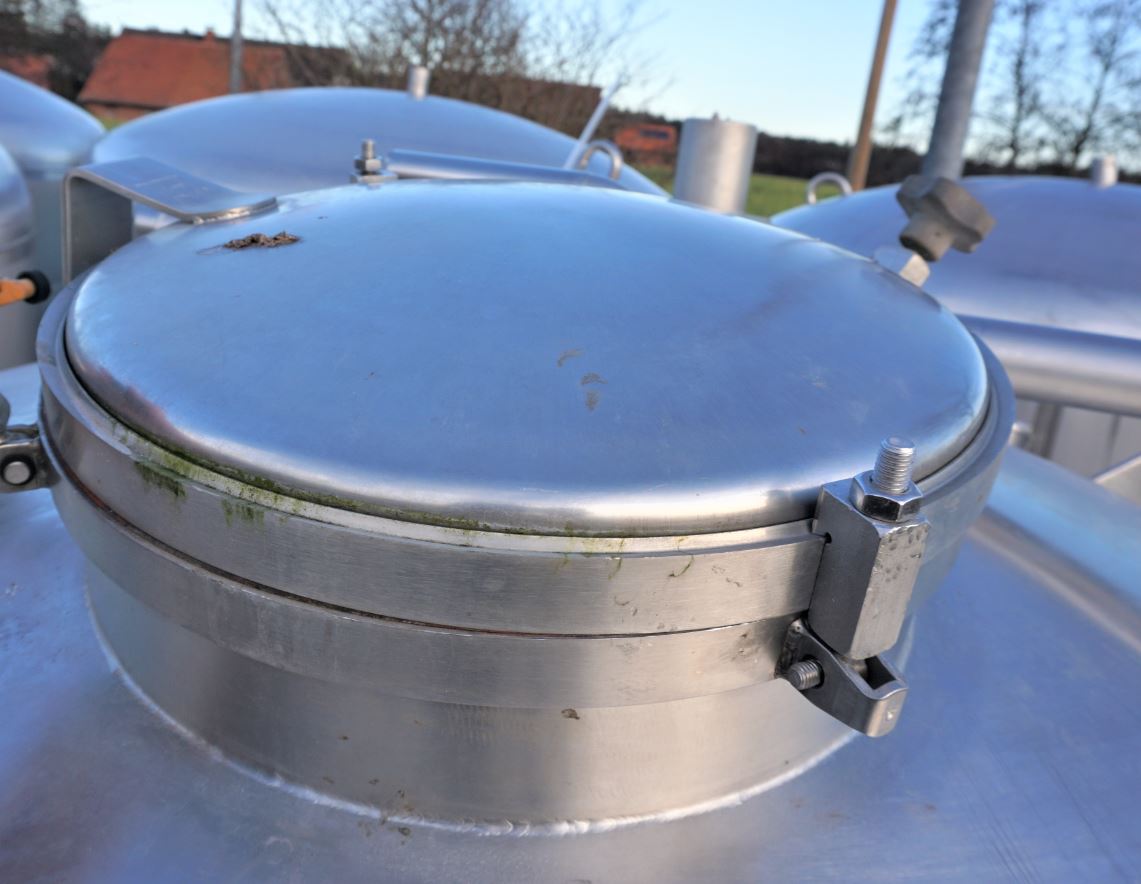

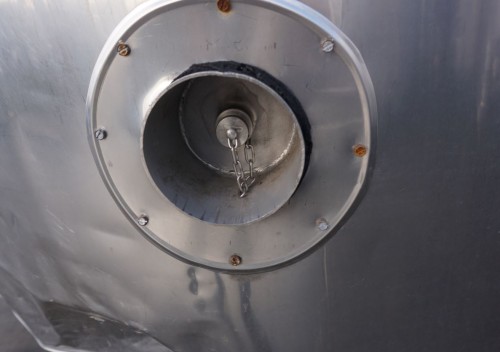

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

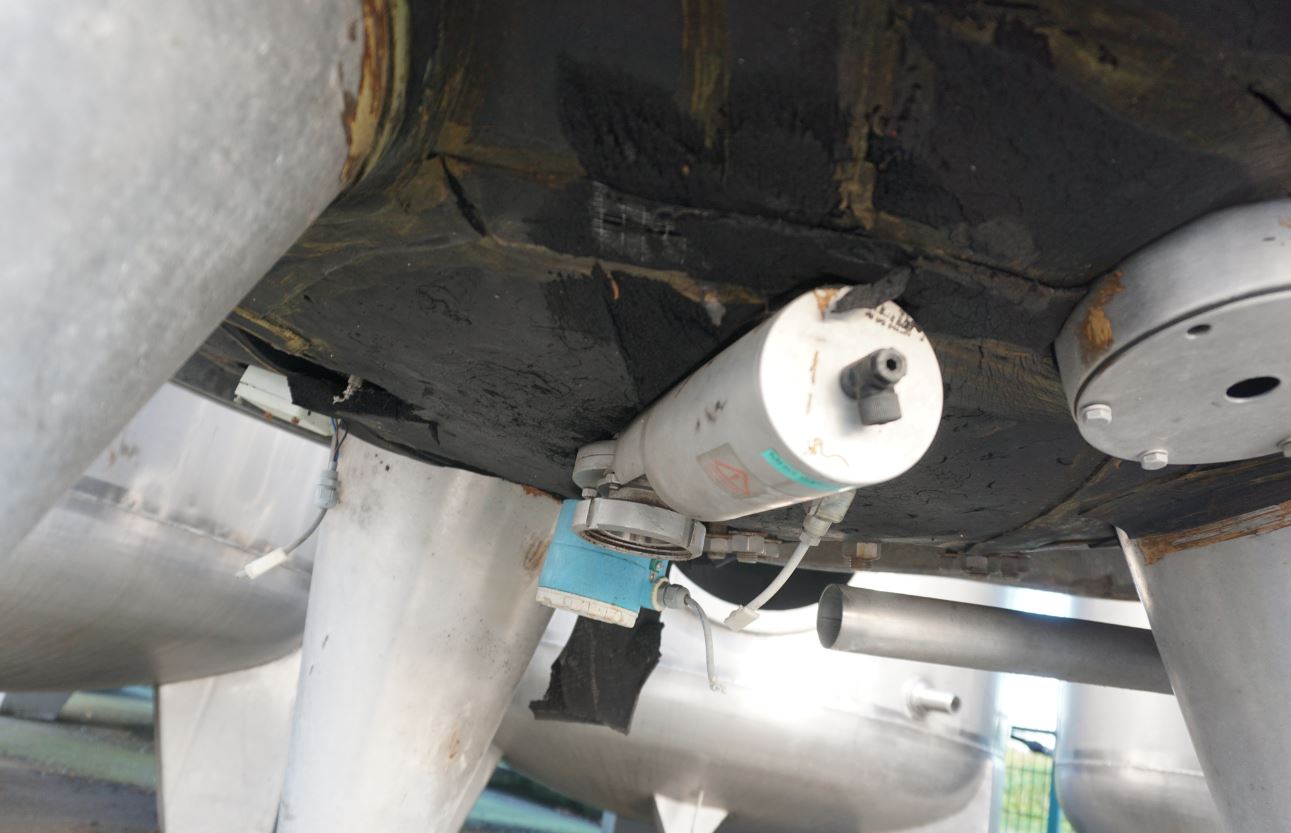

  • Outlet nozzle

  • 50

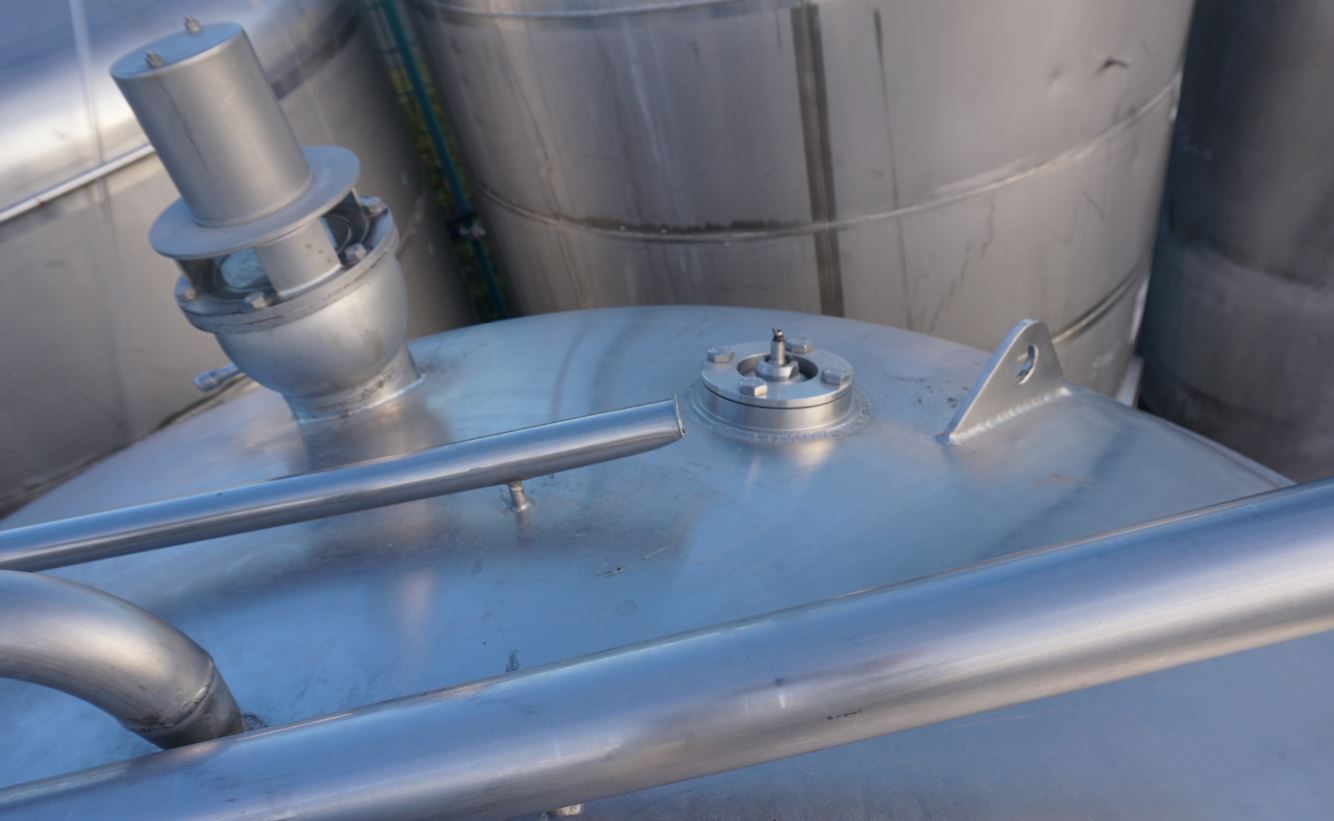

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

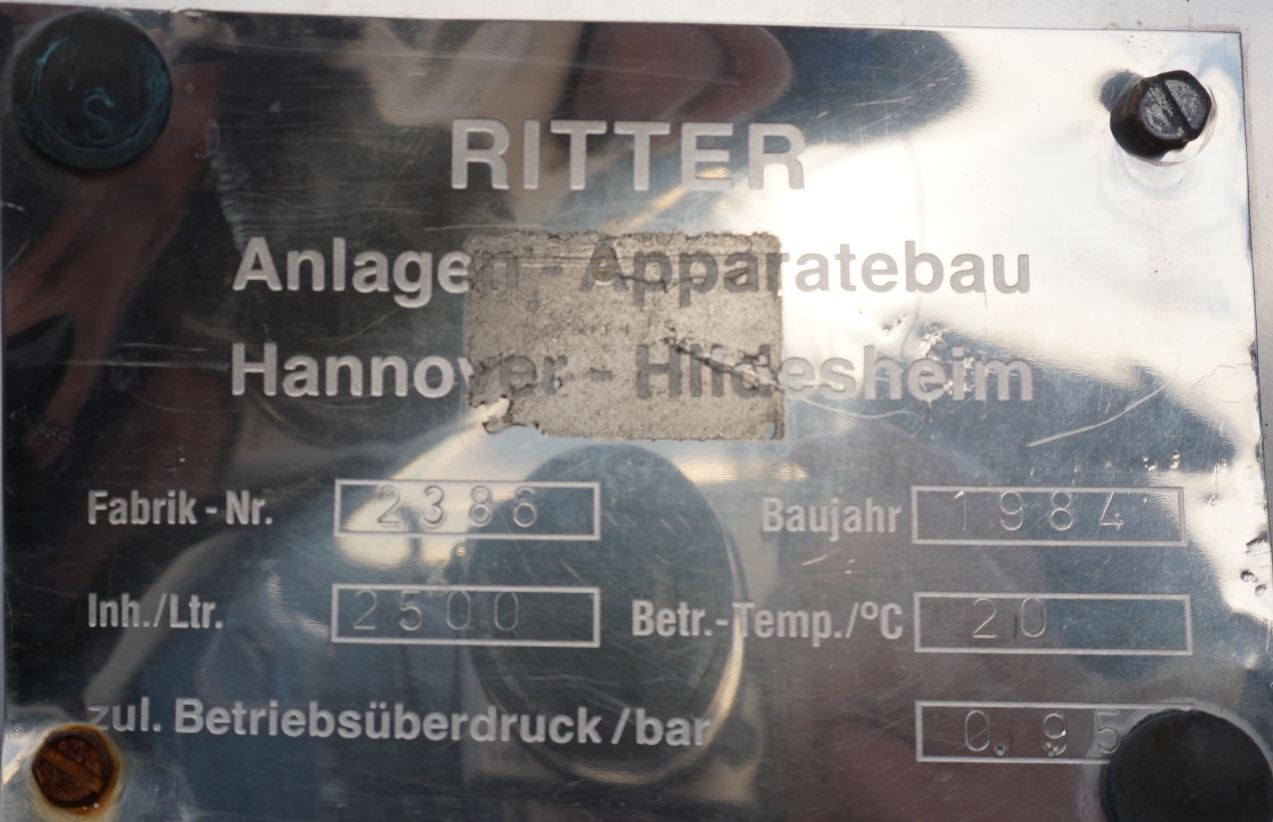

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank,
