Product no. M-1911

Container 2.500 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 11.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 2,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 2.500 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,500.00 litres. The diameter inside includes 1,150 mm.  Container 2.500 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 2.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1990

  • Manufacturer

  • Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.150 mm

  • External diameter

  • 1.400 mm

  • Cyl. height

  • 2.300 mm

  • Foot height

  • 1.000 mm

  • Outlet height

  • 550 mm

  • Total height

  • 4.000 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating over-pressure

  • 0,5 bar

  • Product chamber operating under-pressure

  • -0,0075 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating pressure

  • 3 bar

  • Operating temperature

  • 140 °C

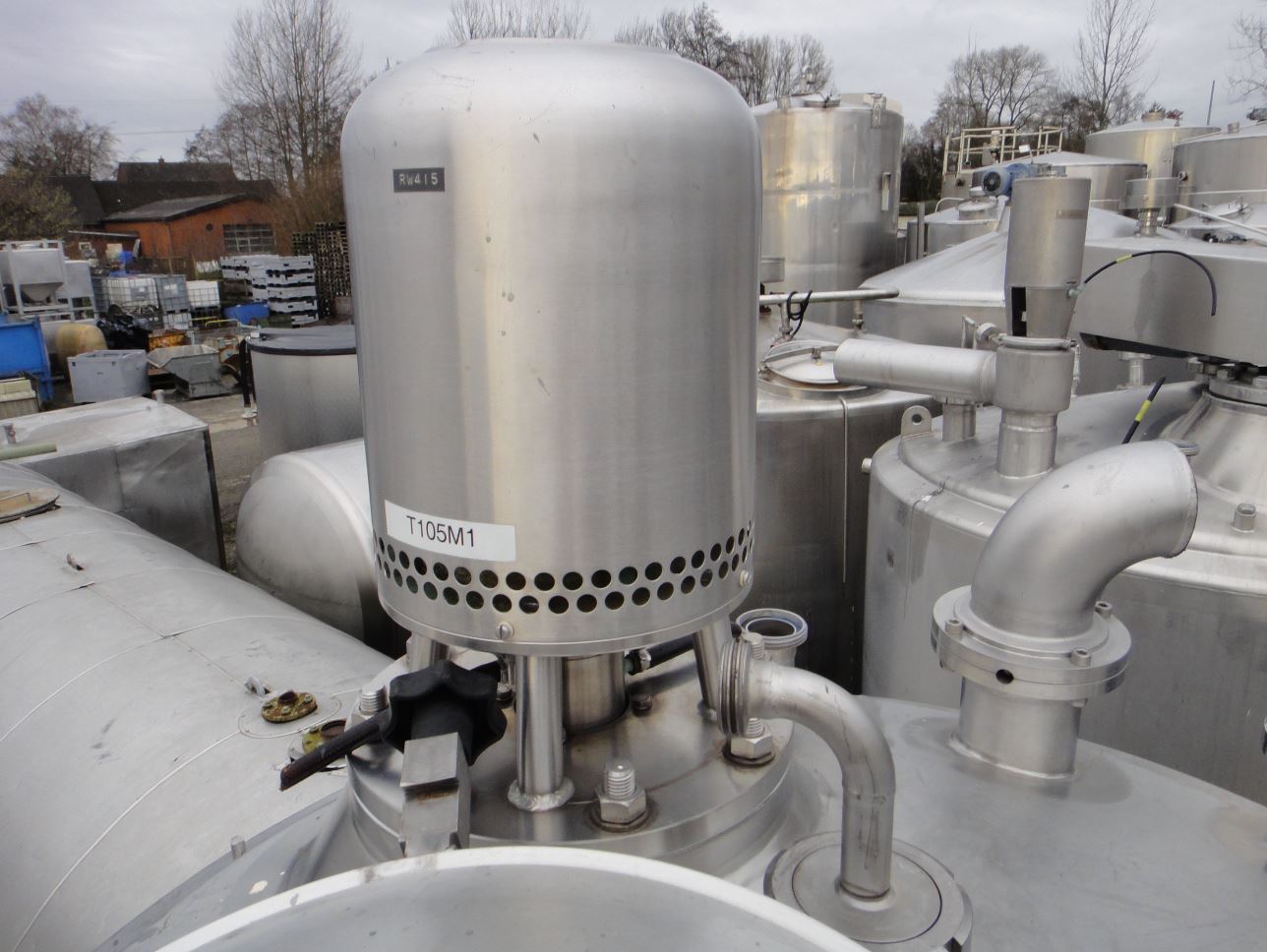

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Fixtures and fittings

  • Nozzles/connectors in head

  • 1xDN50 1xDN65 (piece)

  • Outlet nozzle

  • 65/50

  • Cleaning/CIP nozzle

  • in floor

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

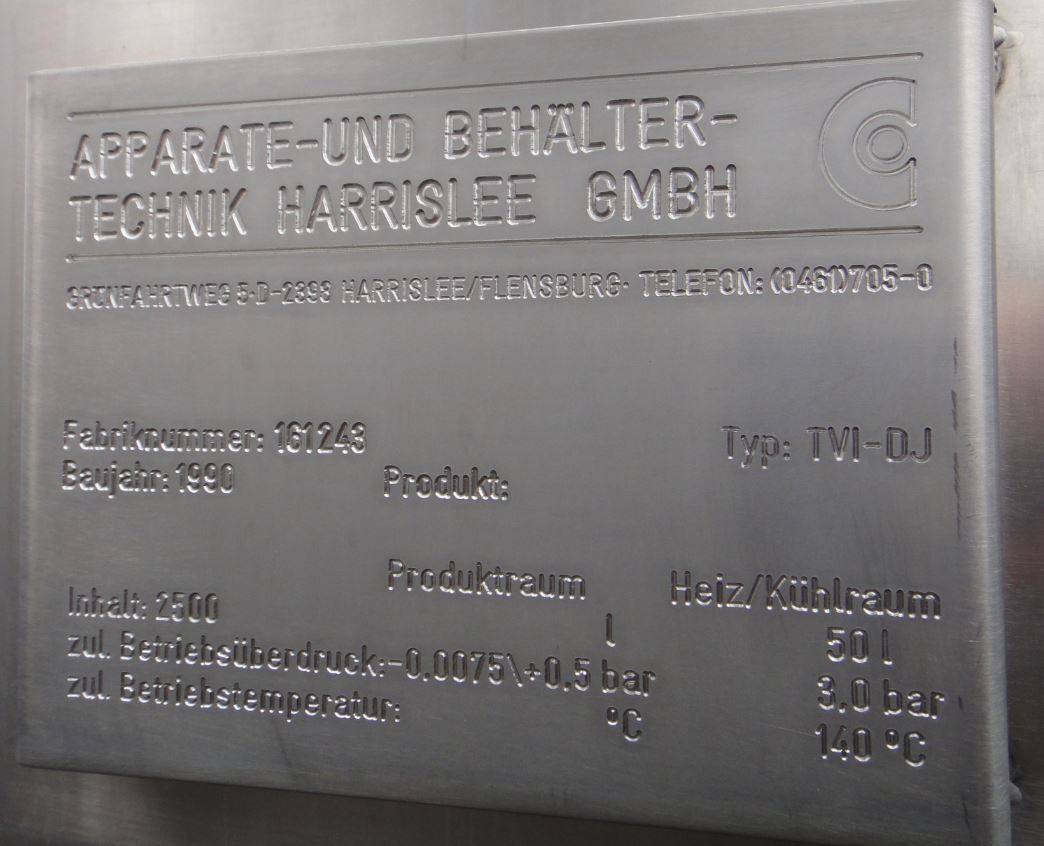

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, CIP tank, Boiling tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Cooling tank, Cold water tank,
