Product no. M-1034

Container 2.500 liters made of V2A, single-walled,

EUR 1.900,00

add. 19 % VAT excl. shipping costs

Volume approx. 2,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

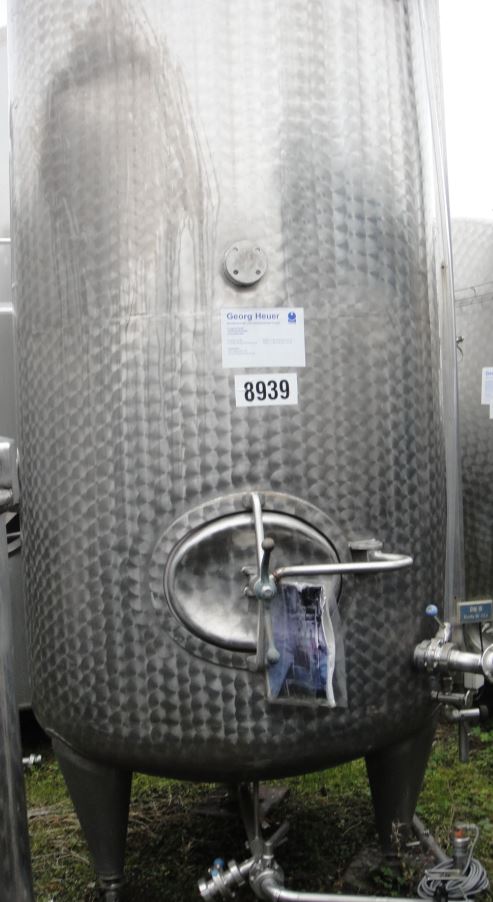

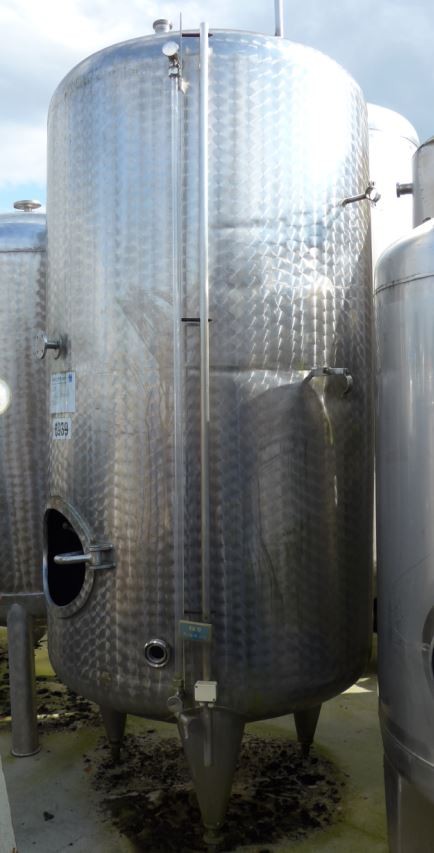

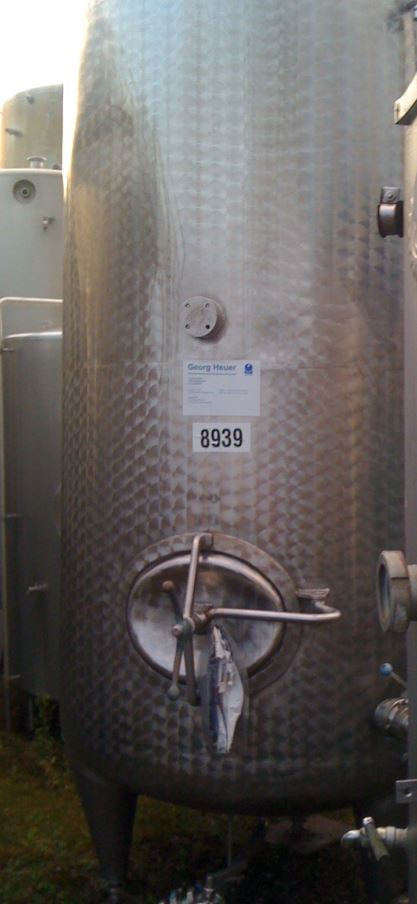

Container 2.500 liters made of V2A, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,500.00 litres. The diameter inside includes 1,200 mm.  Container 2.500 liters made of V2A, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Anaerobic digestion, Cleaning/CIP,

General

  • Volume approx.

  • 2.500,00 litres

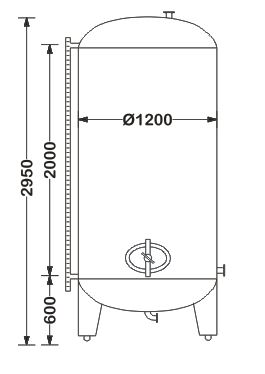

Dimensions approx.

  • Internal diameter

  • 1.200 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 600 mm

  • Total height

  • 3.000 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1 (piece)

  • Nozzles/connectors in head

  • 1 (piece)

  • Outlet nozzle

  • 40

  • Fixtures and fittings

  • Fill level pipes

  • Additional fixtures and fittings

  • Drain port

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • leichte Druckstellen im Mantelbereich

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,
