Product no. M-2422

Container 2.400 liters made of V2A isolated, standing

EUR 5.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,400.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

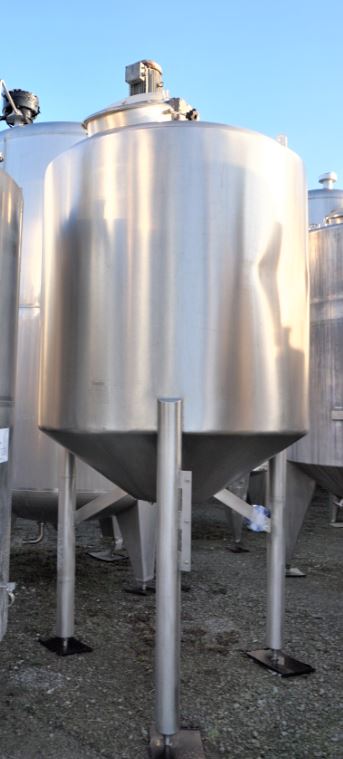

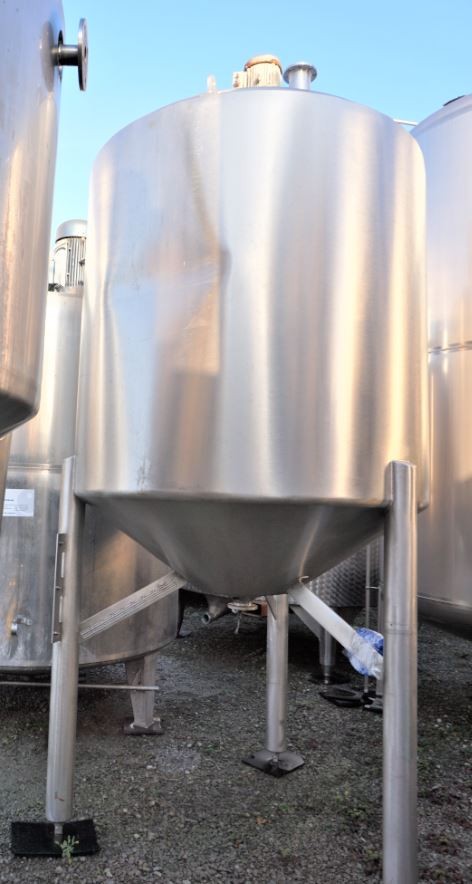

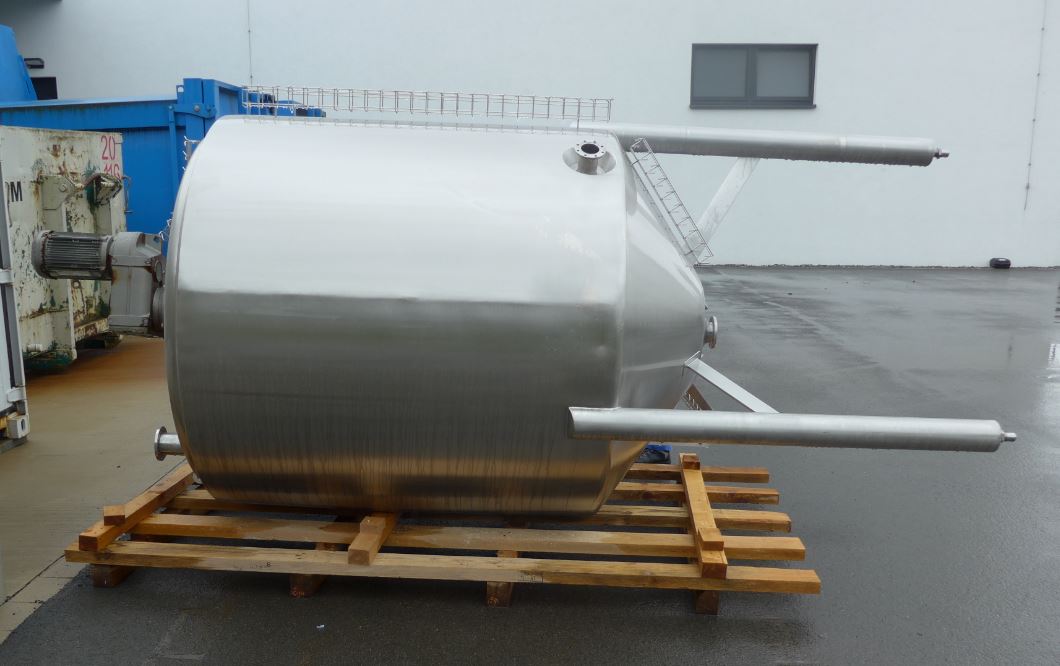

Container 2.400 liters made of V2A isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,400.00 litres. The diameter inside includes 1,400 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 2.400,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2017

  • Manufacturer

  • Kliewe

  • Condition

  • Unused

Dimensions approx.

  • Internal diameter

  • 1.400 mm

  • External diameter

  • 1.520 mm

  • Cyl. height

  • 1.480 mm

  • Foot height

  • 1.400 mm

  • Outlet height

  • 960 mm

  • Total height

  • 3.700 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

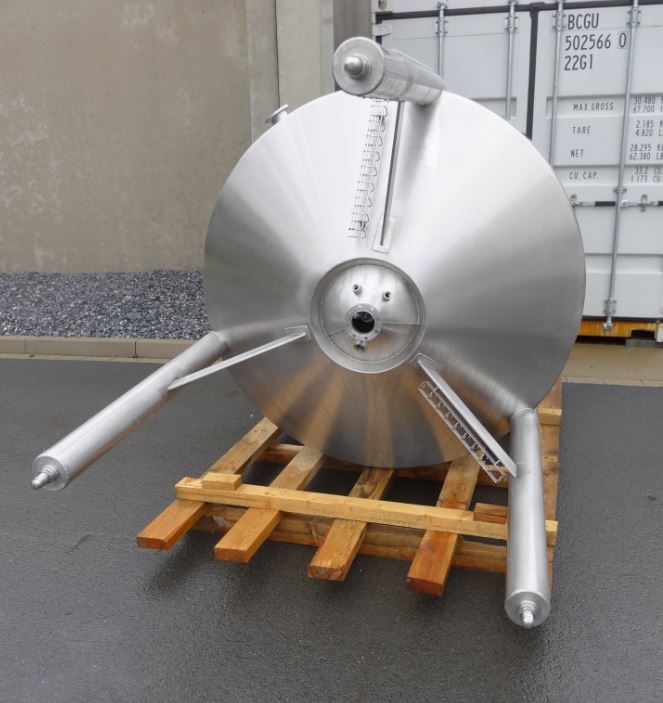

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

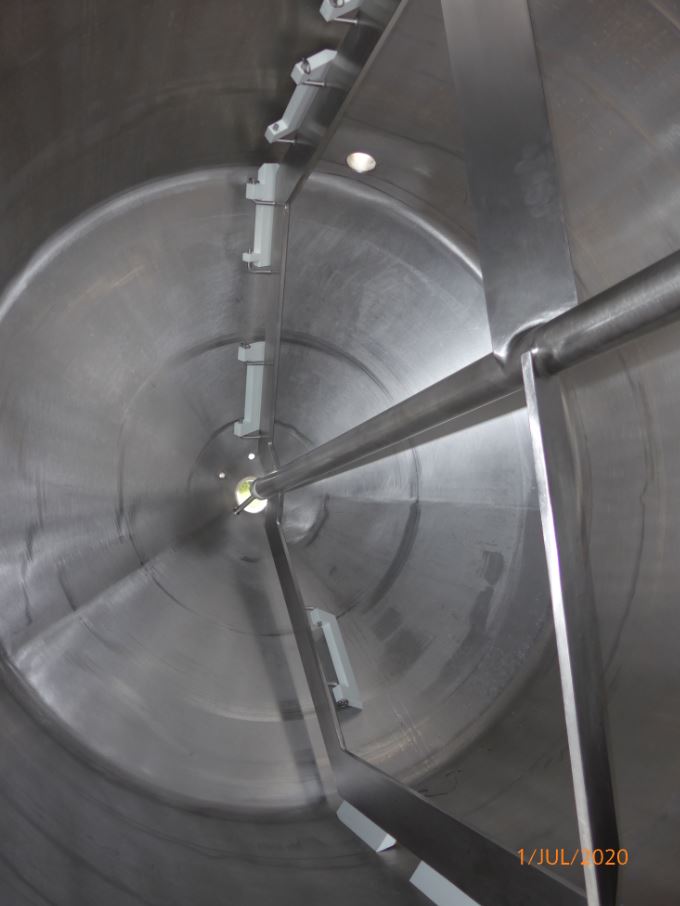

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

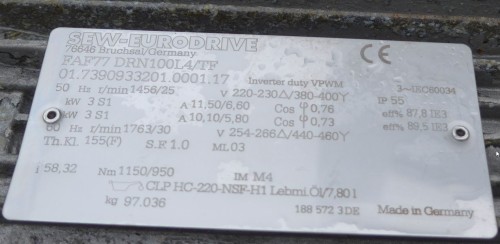

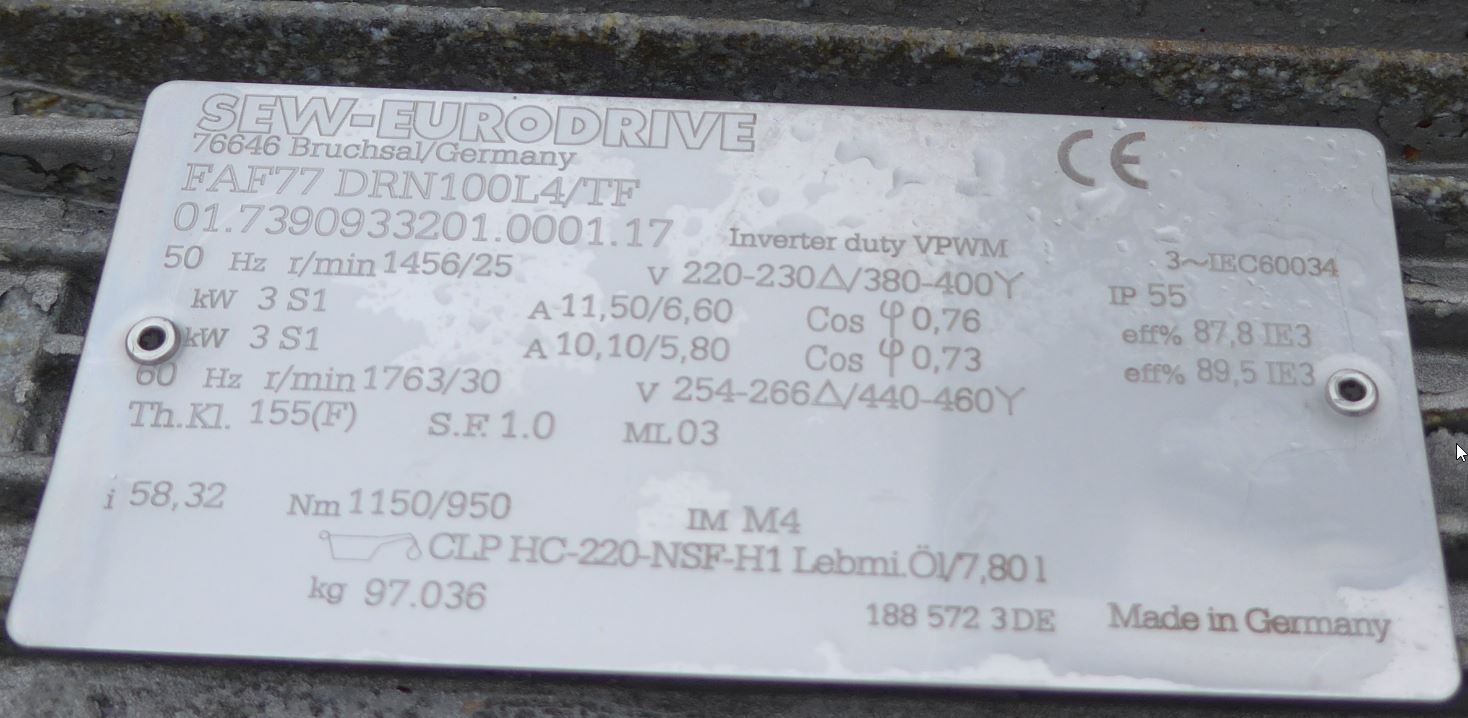

  • Agitator 1 - Output

  • 3 kW

  • Agitator 1 - RPM

  • 25 UpM

  • Agitator 1 - Voltage

  • 230 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1 (piece)

  • Nozzles/connectors in head

  • 3 (piece)

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

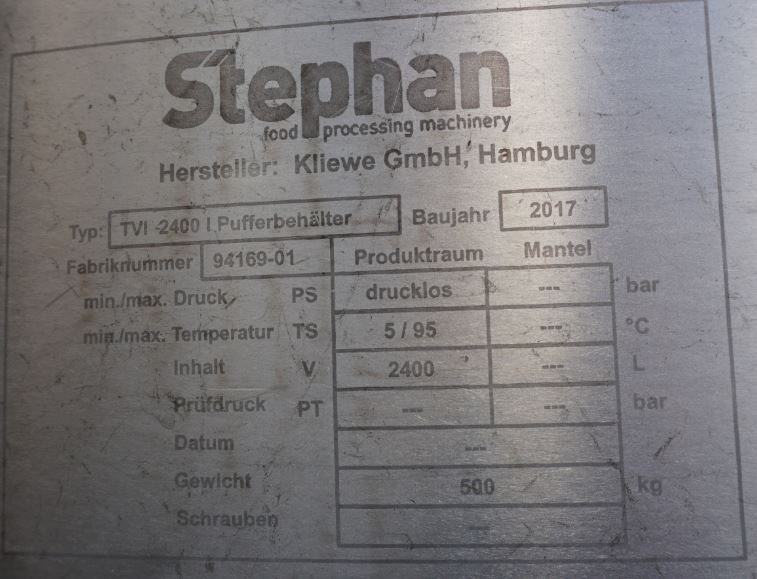

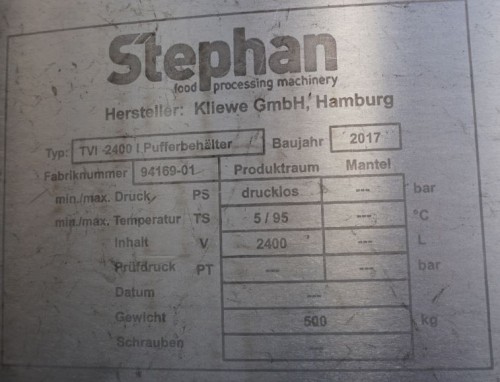

  • Nameplate

Technical documentation

  • Technical documentation

  • None

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,
