Product no. M-1853

Container 2.000 liters made of V2A, used, single-walled, standing

EUR 2.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

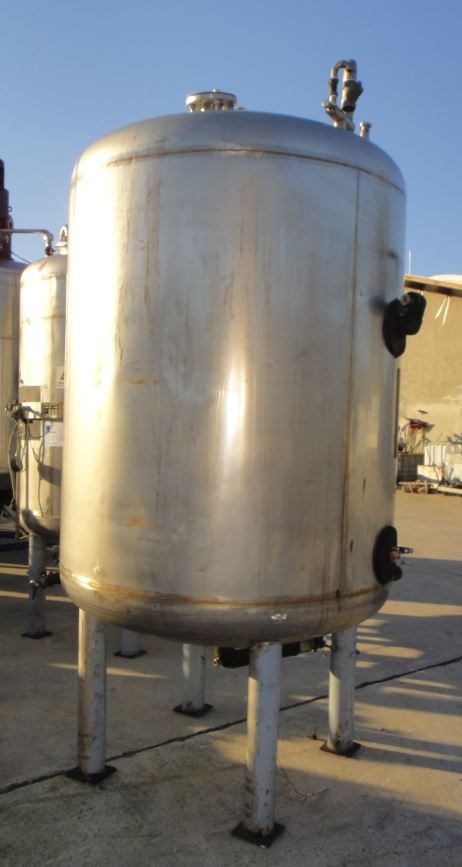

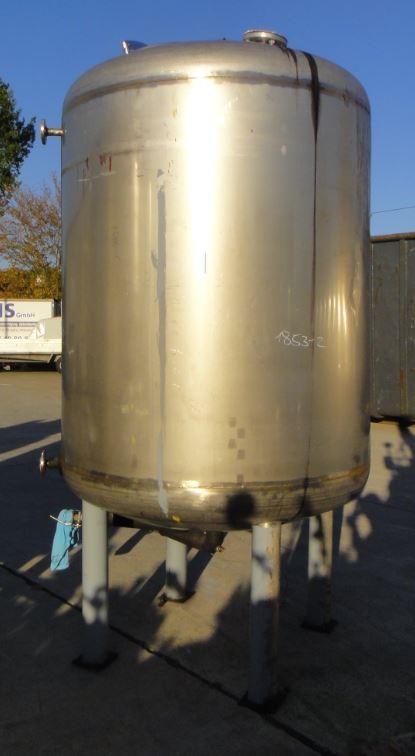

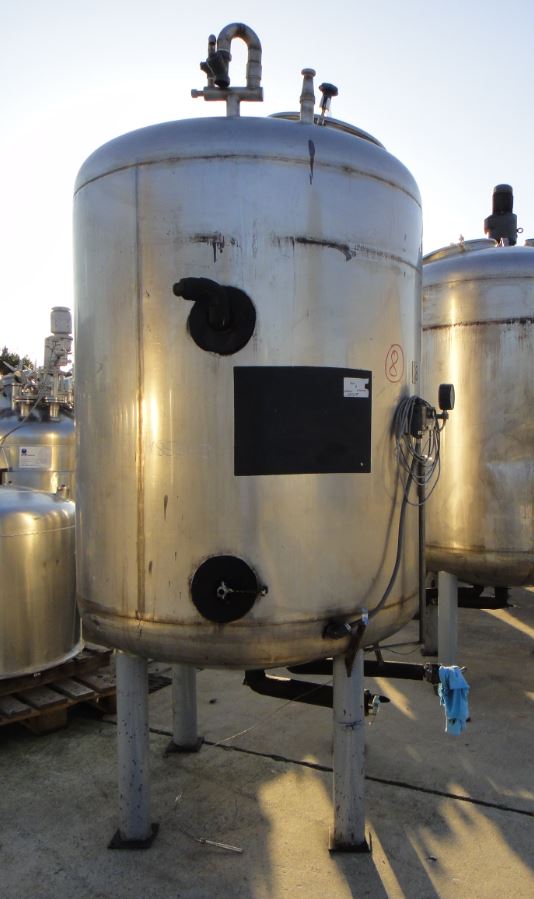

Container 2.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,000.00 litres.  Container 2.000 liters made of V2A, used, single-walled was last used in the following area: Fine chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 2.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1986

  • Manufacturer

  • Pantolsky

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.350 mm

  • Cyl. height

  • 1.500 mm

  • Foot height

  • 900 mm

  • Total height

  • 2.800 mm

Design

  • Weight approx.

  • 600,00 kg

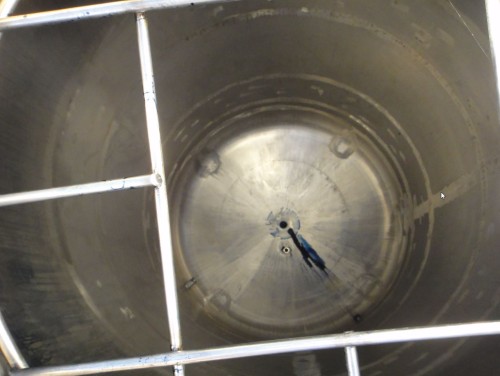

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 100 °C

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

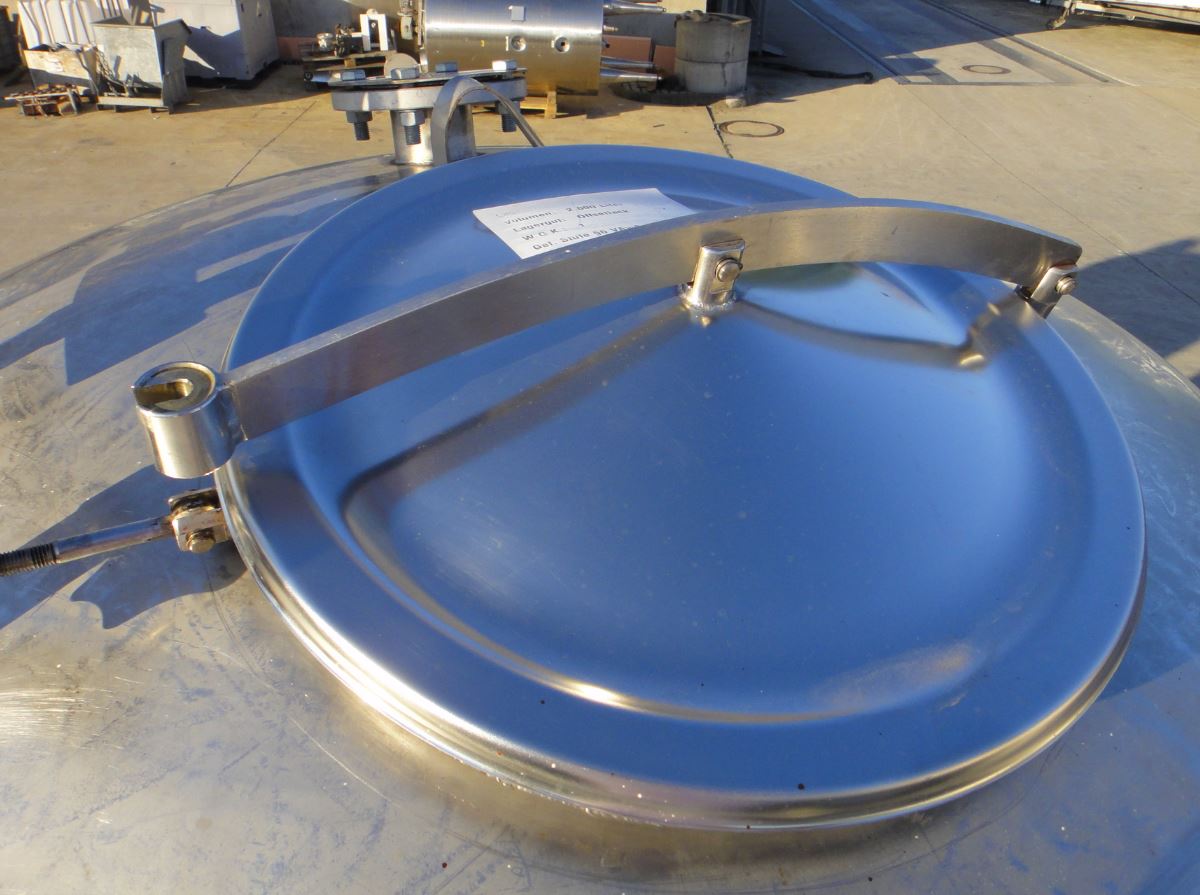

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 2xDN25 (piece)

  • Nozzles/connectors in head

  • 1xDN50 1xDN65 1x2" (piece)

  • Outlet nozzle

  • 32

  • Additional fixtures and fittings

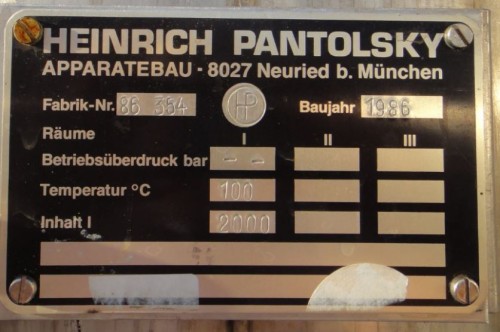

  • Nameplate

Other

  • Last usage

  • Fine chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Substrate tank, Rainwater tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Cooling tank, Tempering tank, Cold water tank, Filter tank, Filtrate tank,
