Product no. M-2109

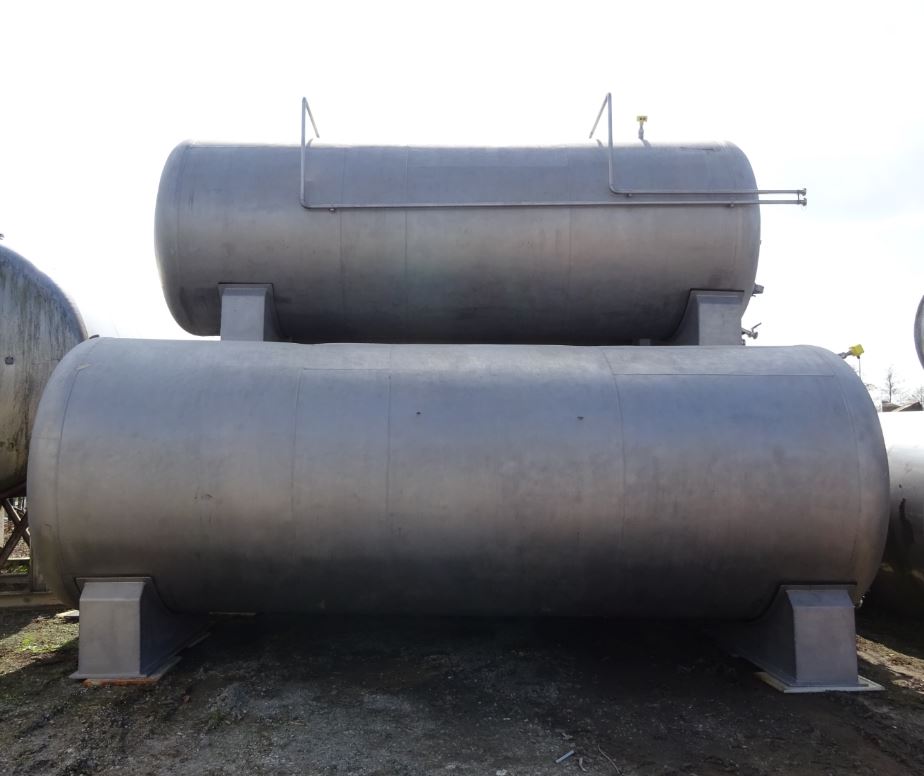

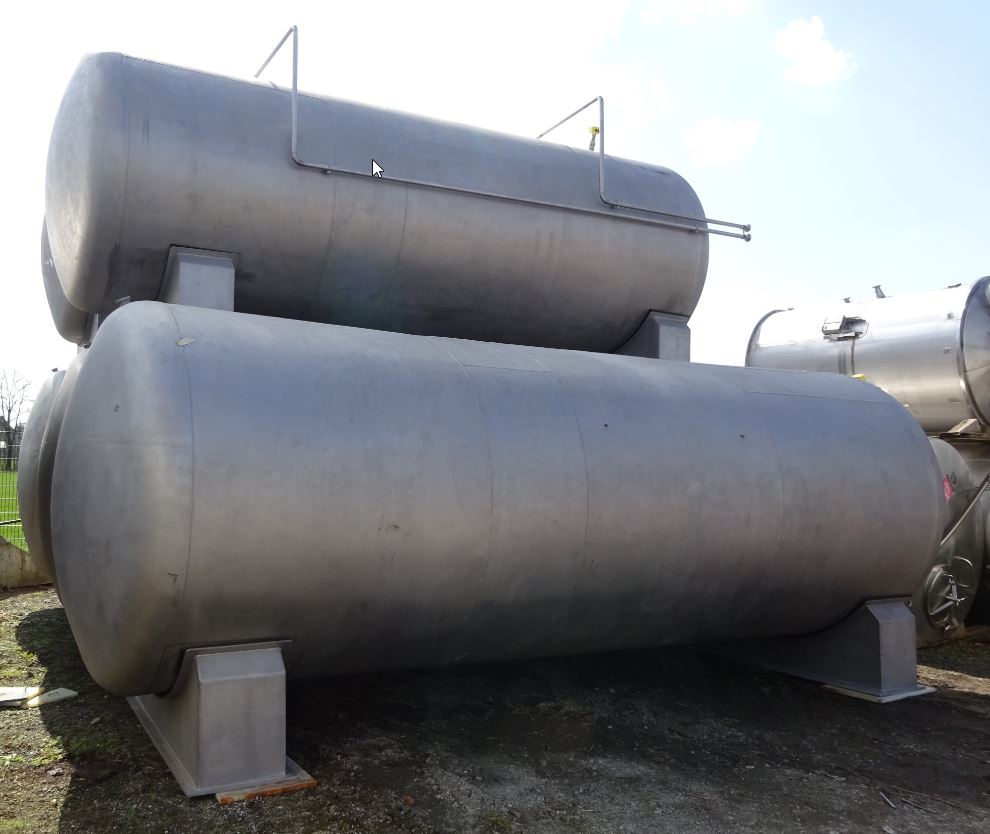

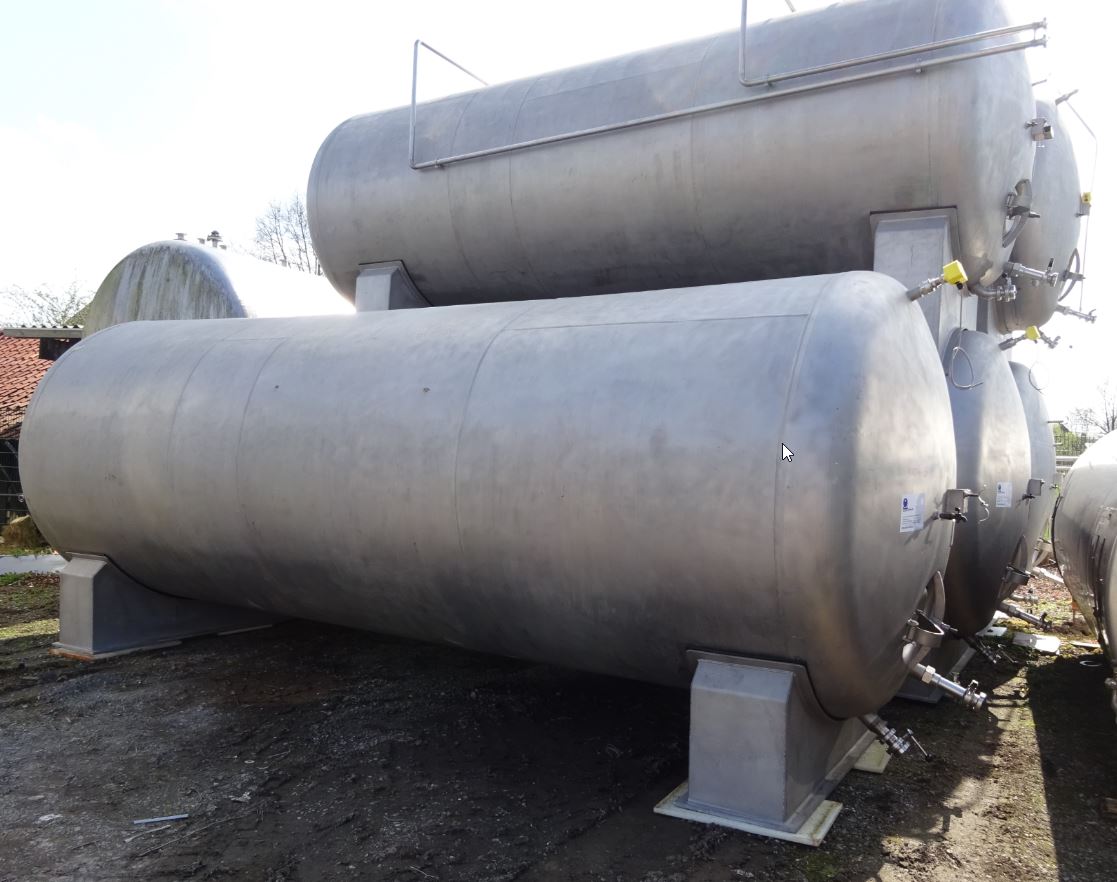

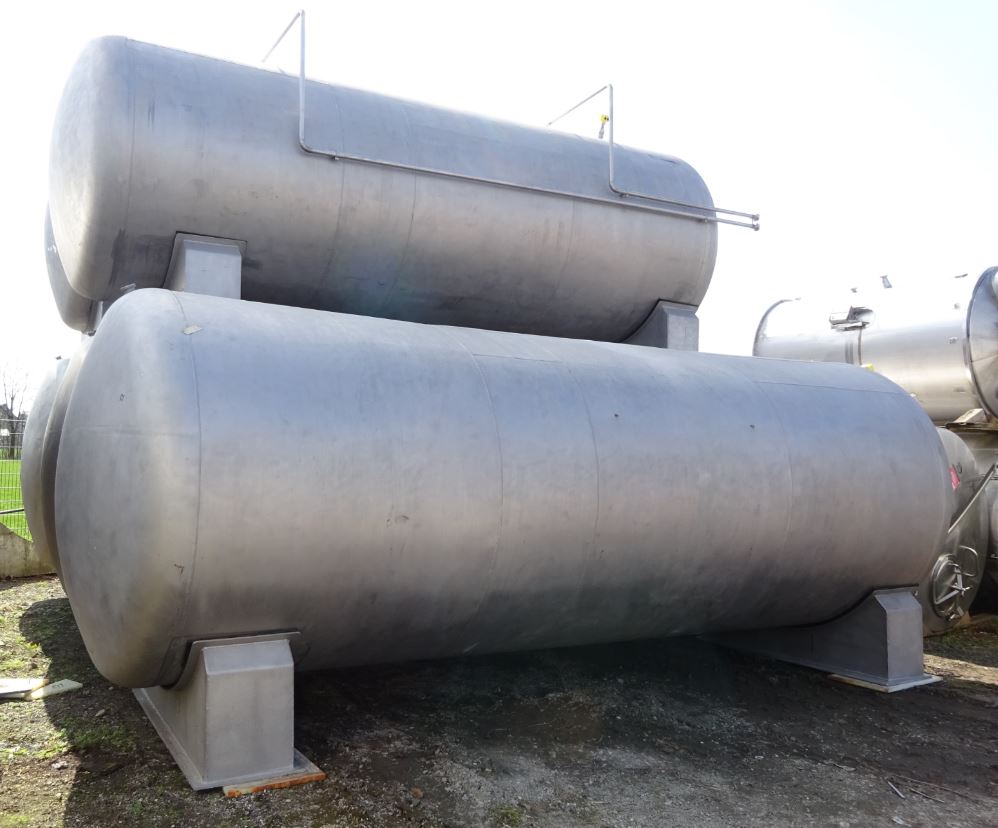

Container 18.000 liters made of V2A, used, single-walled, horizontal

EUR 9.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 18,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 18.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 18,000.00 litres.  Container 18.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 18.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Cyl. length

  • 5.100 mm

  • Total length

  • 6.000 mm

  • Wall thickness of product chamber shell

  • 6 mm

  • Wall thickness of product chamber floor

  • 10 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel storage consoles

  • Number of feet

  • 2 (piece)

Fixtures and fittings

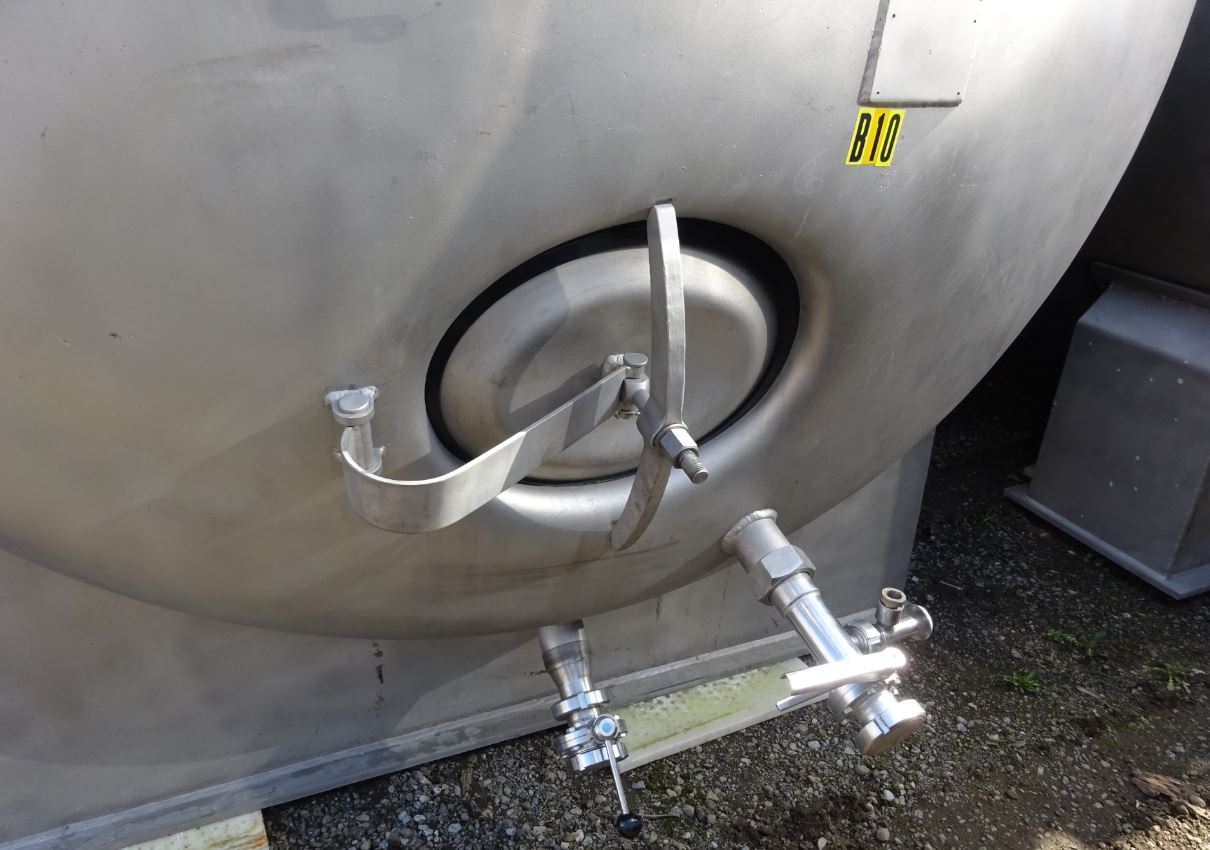

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Drain port

Technical documentation

  • Technical documentation

  • Designation

  • Static analysis

  • Comment on technical documentation

  • Eichscheine vorhanden

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,

Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,
