Product no. M-2482

Container 18.000 liters made of V2A single-walled, used, standing

EUR 9.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 18,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

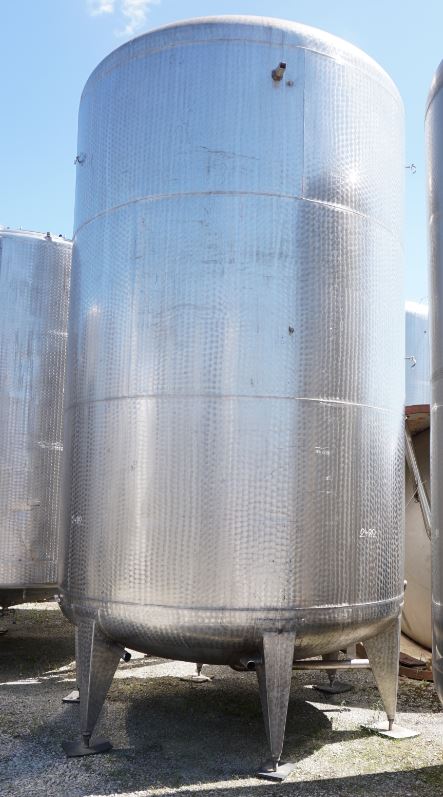

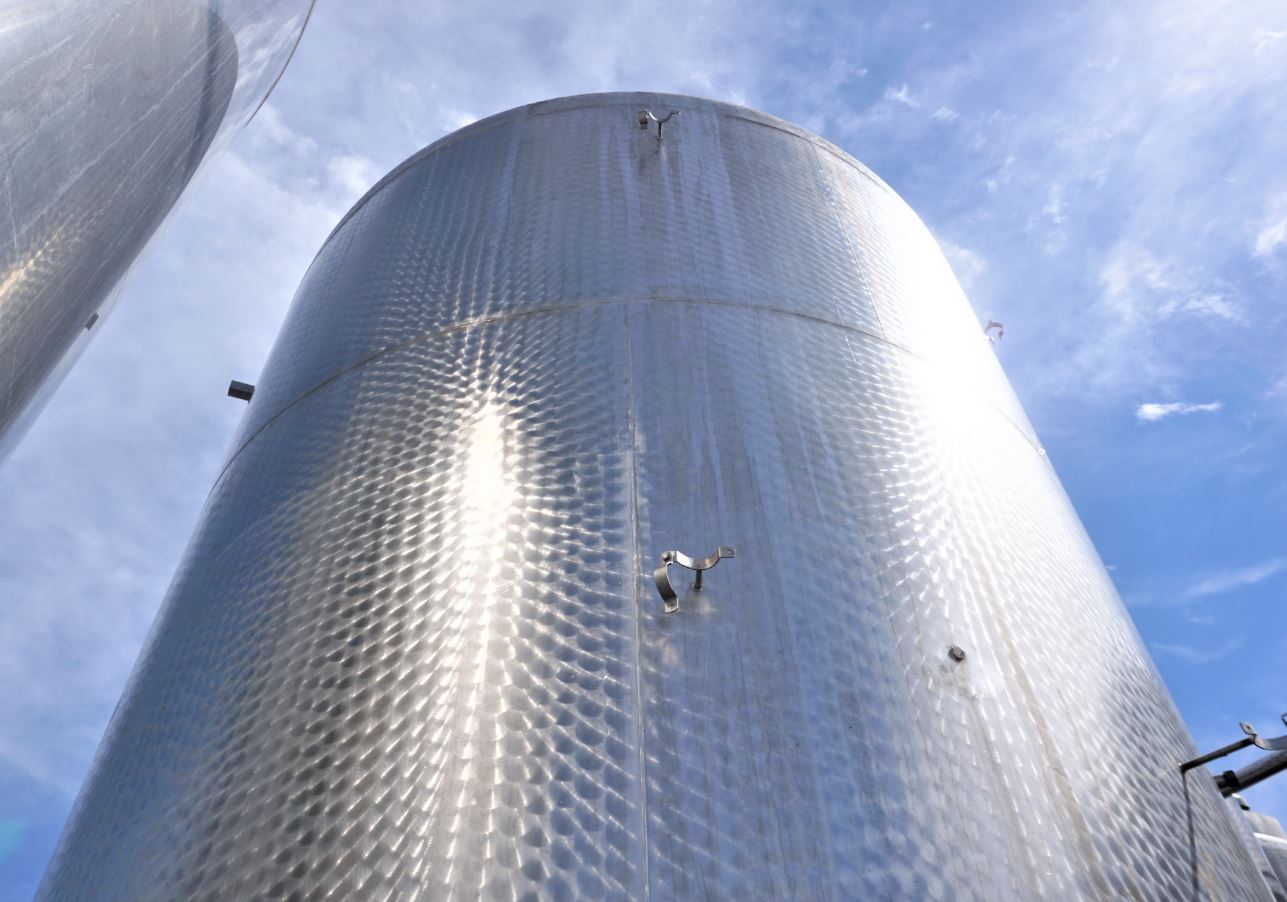

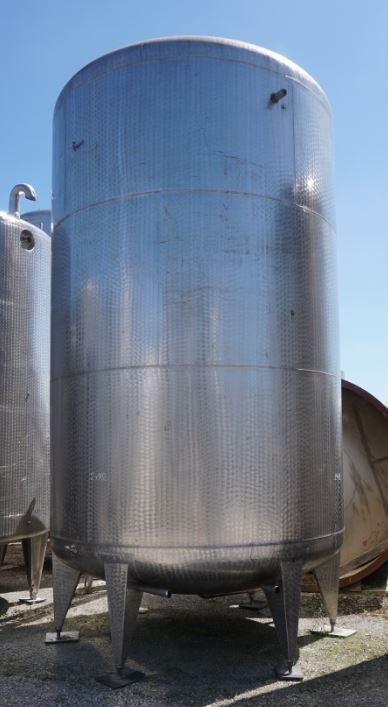

Container 18.000 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 18,000.00 litres.  Container 18.000 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 18.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.540 mm

  • Cyl. height

  • 3.500 mm

  • Foot height

  • 940 mm

  • Total height

  • 5.000 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

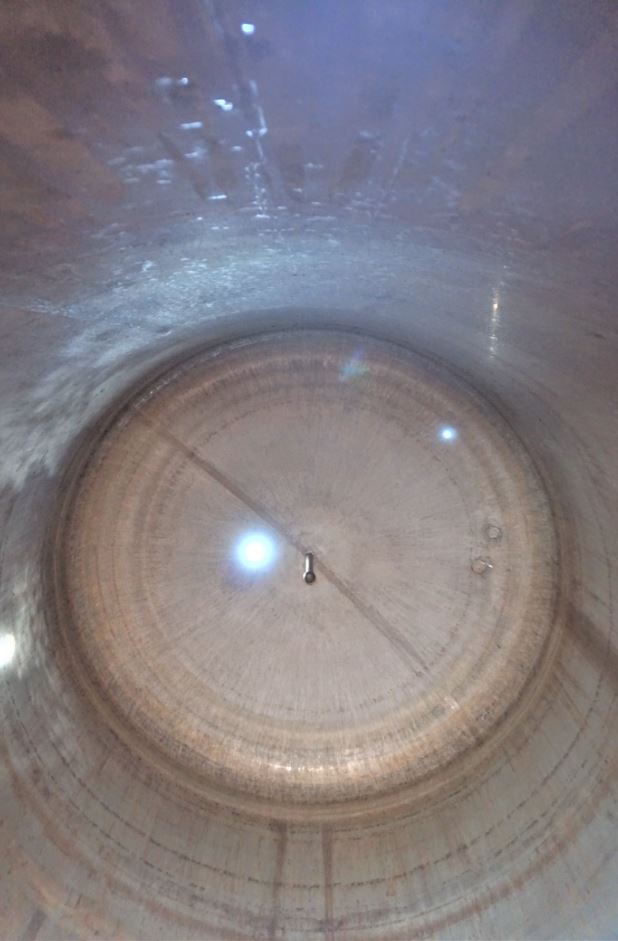

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

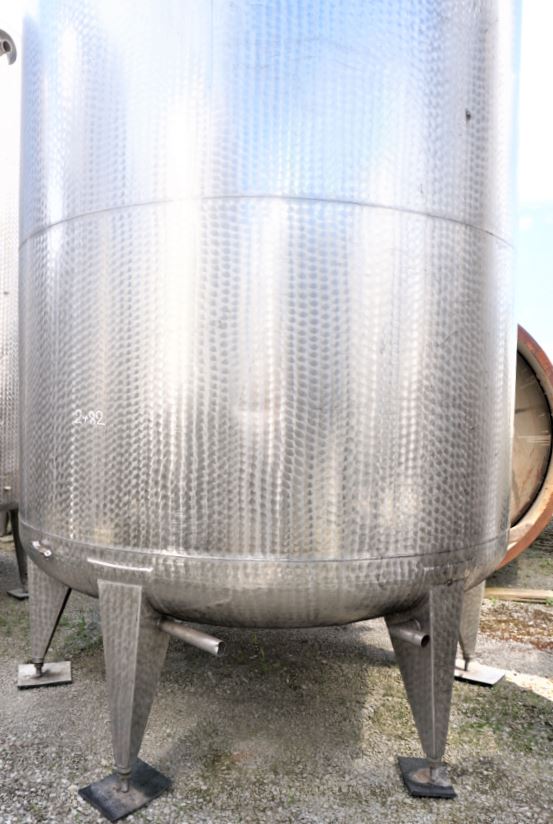

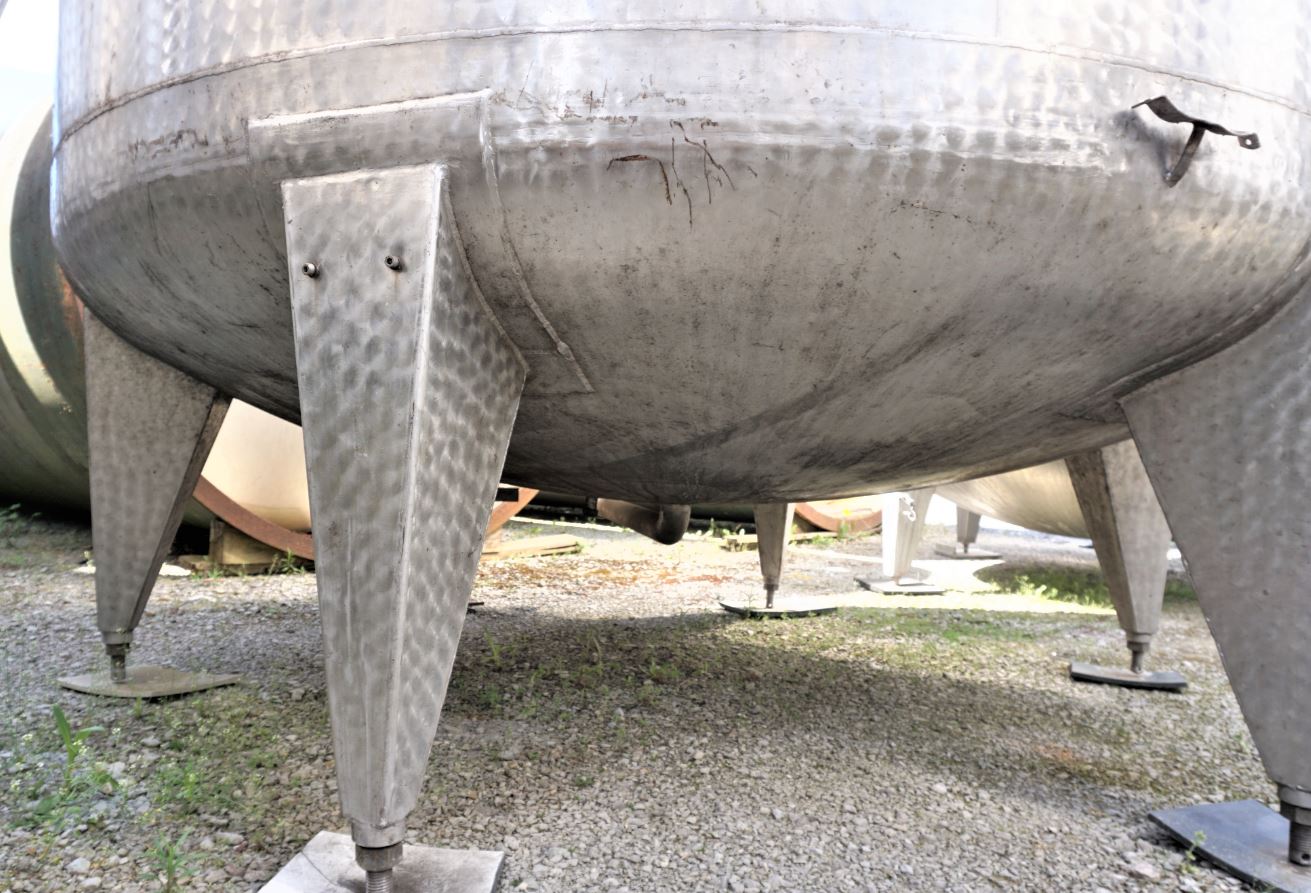

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

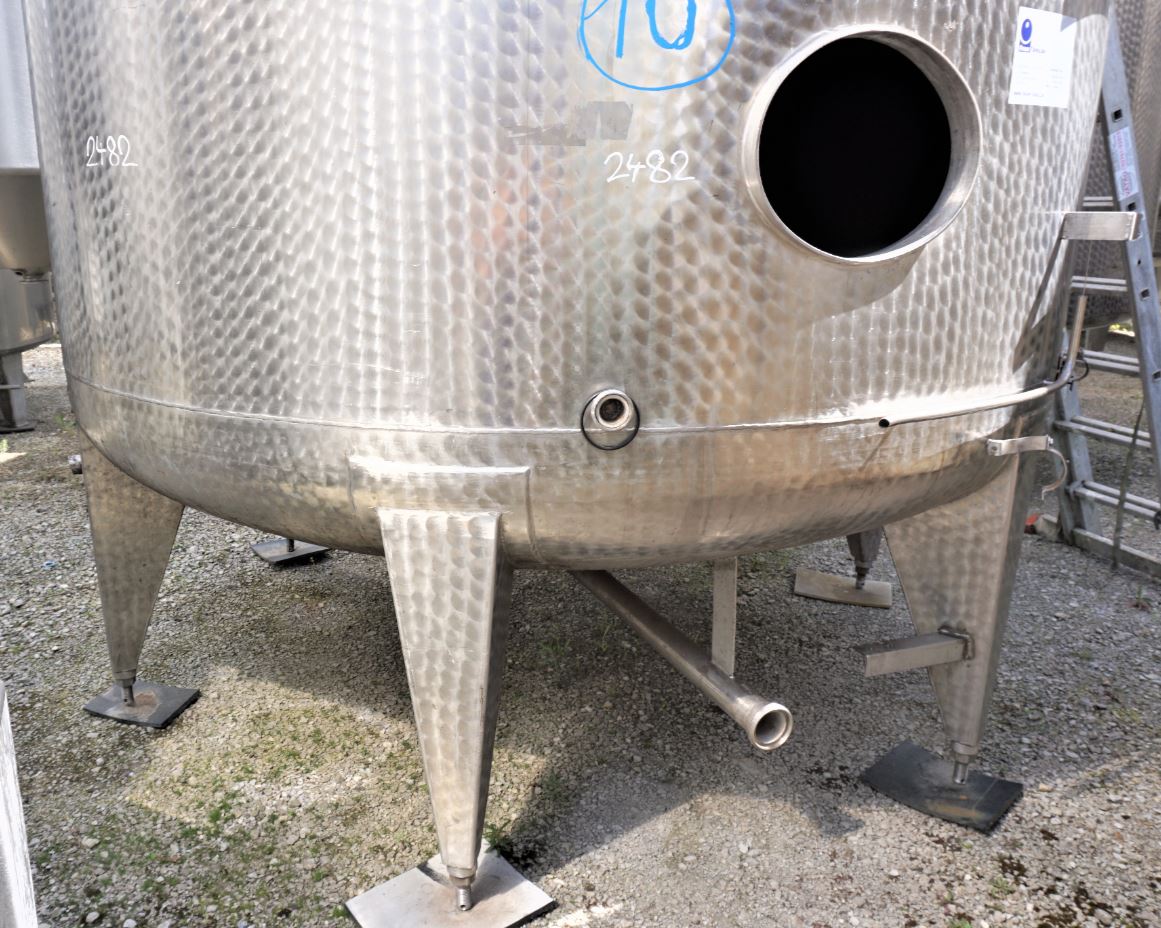

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN 40 (piece)

  • Nozzles/connectors in head

  • 1xDN80 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Drain port

Other

  • Note

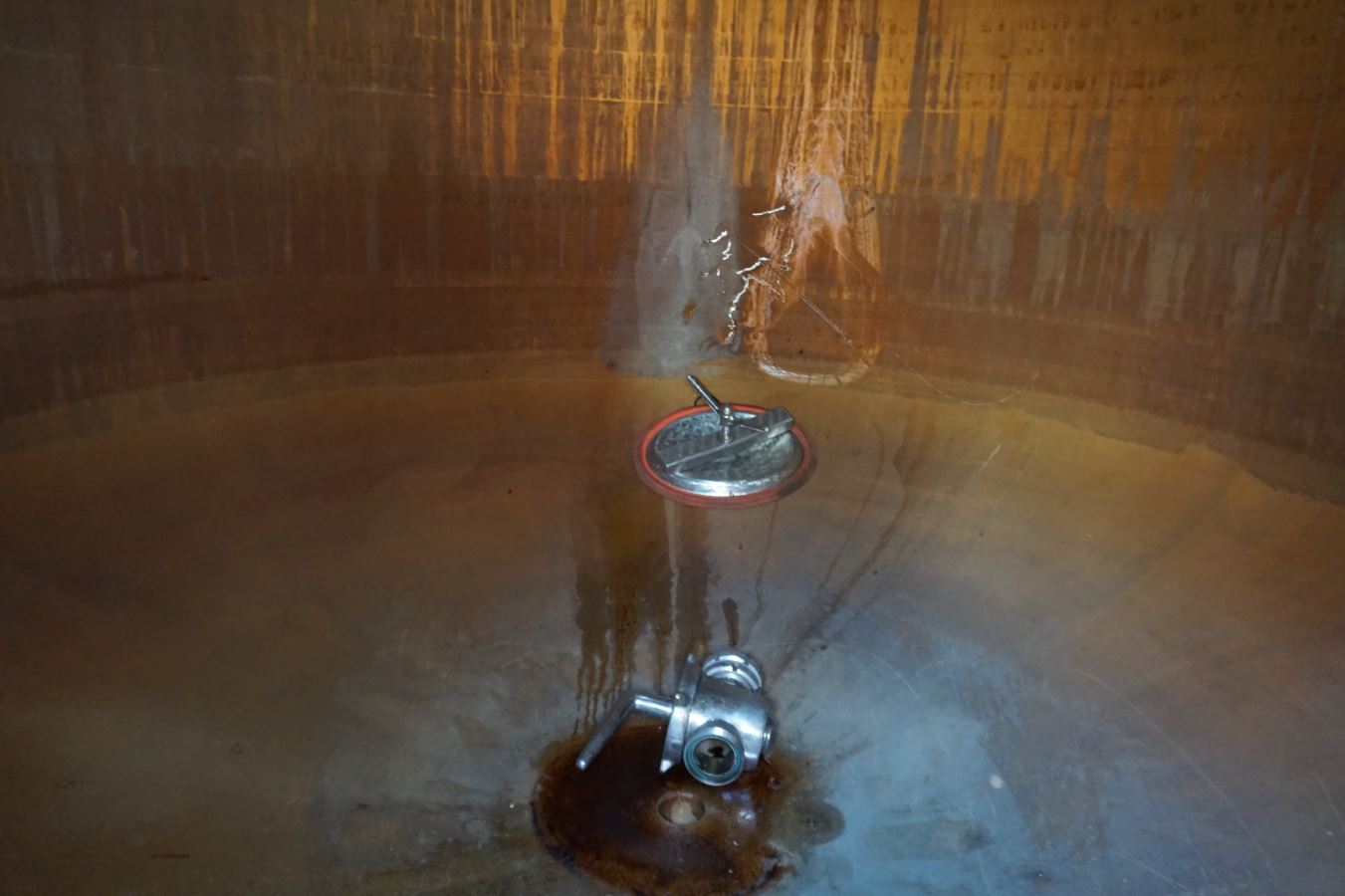

  • leichte Verfärbung im Produktraum

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank,
