Product no. M-3015

Container 16.000 liters made of V2A temperature-controllable, used, standing

EUR 12.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 16,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

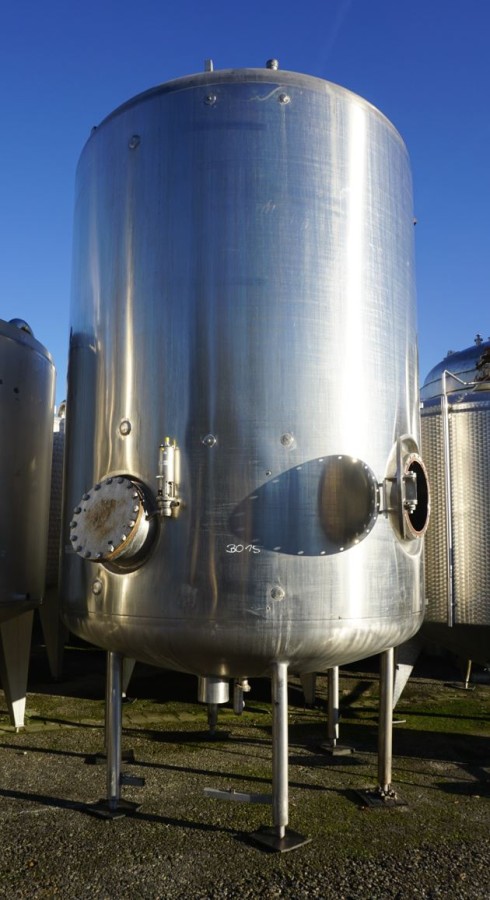

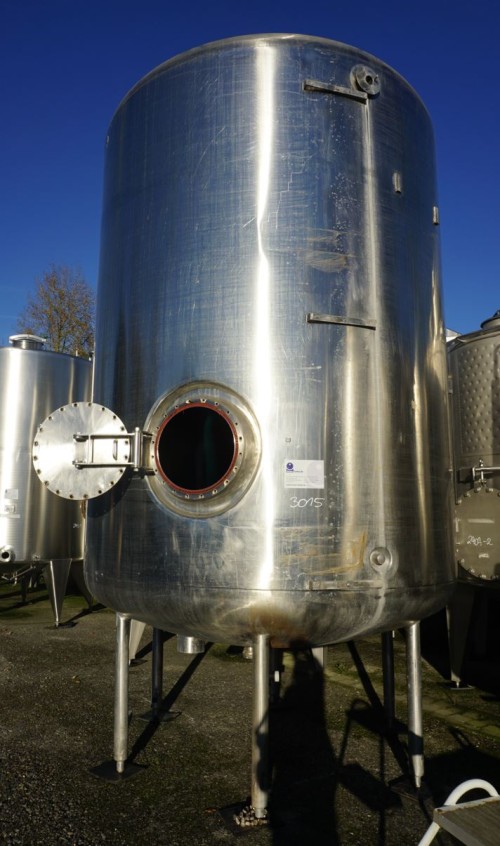

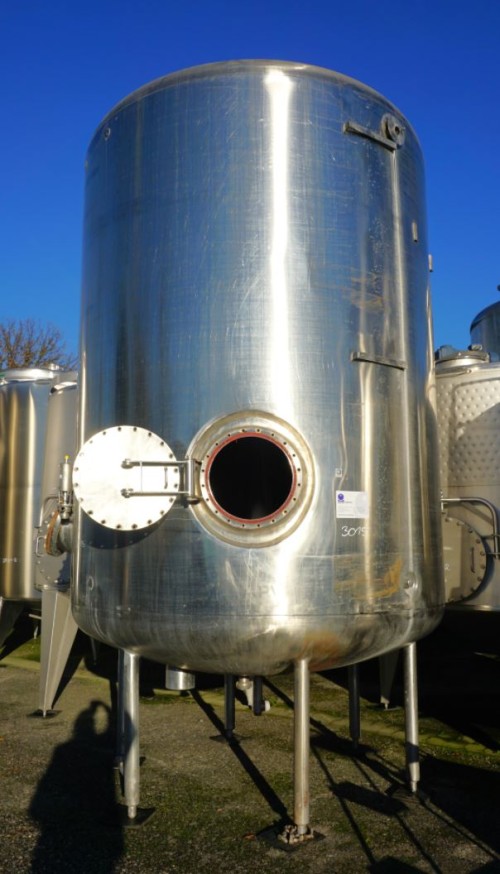

Container 16.000 liters made of V2A temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 16,000.00 litres. The diameter inside includes 2,500 mm.  Container 16.000 liters made of V2A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 16.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.500 mm

  • External diameter

  • 2.620 mm

  • Cyl. height

  • 3.150 mm

  • Foot height

  • 1.230 mm

  • Total height

  • 5.400 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Spray cooling

  • Temperature control system operating pressure/pipe chamber

  • 0,0 bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Note on agitator

  • ohne Rührwerk, Anschluss mit Blinddeckel

  • Agitator position

  • At bottom at the side in shell

Supports

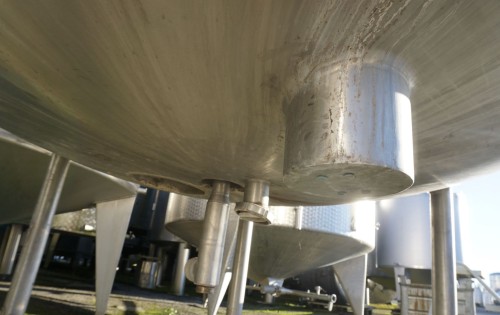

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway position

  • In shell

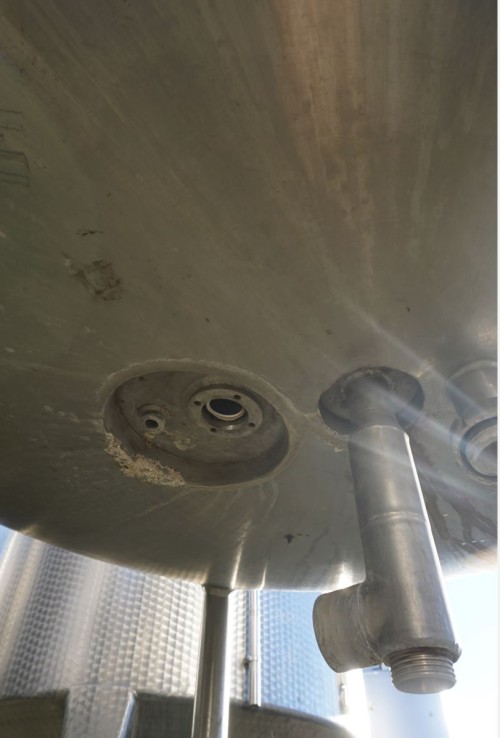

  • Outlet nozzle

  • 50/65

  • Cleaning/CIP nozzle

  • in head

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank,
