Product no. M-1437

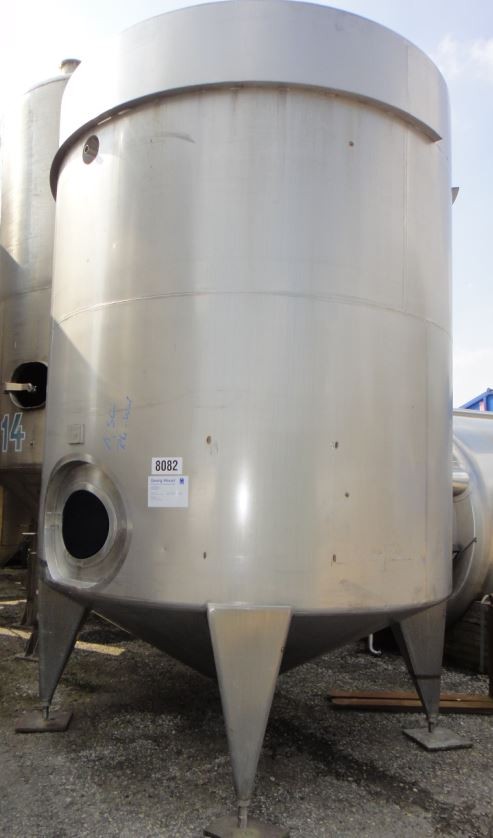

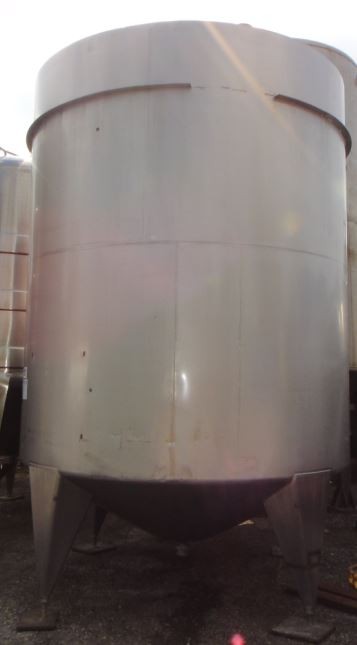

Container 16.000 liters made of V2A, used, isolated, standing

EUR 10.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 16,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 16.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 16,000.00 litres. The diameter inside includes 2,500 mm.  Container 16.000 liters made of V2A, used, isolated was last used in the following area: CIP/water tank. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Cleaning/CIP,

General

  • Volume approx.

  • 16.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1989

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.500 mm

  • External diameter

  • 3.000 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 1.000 mm

  • Total height

  • 4.500 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

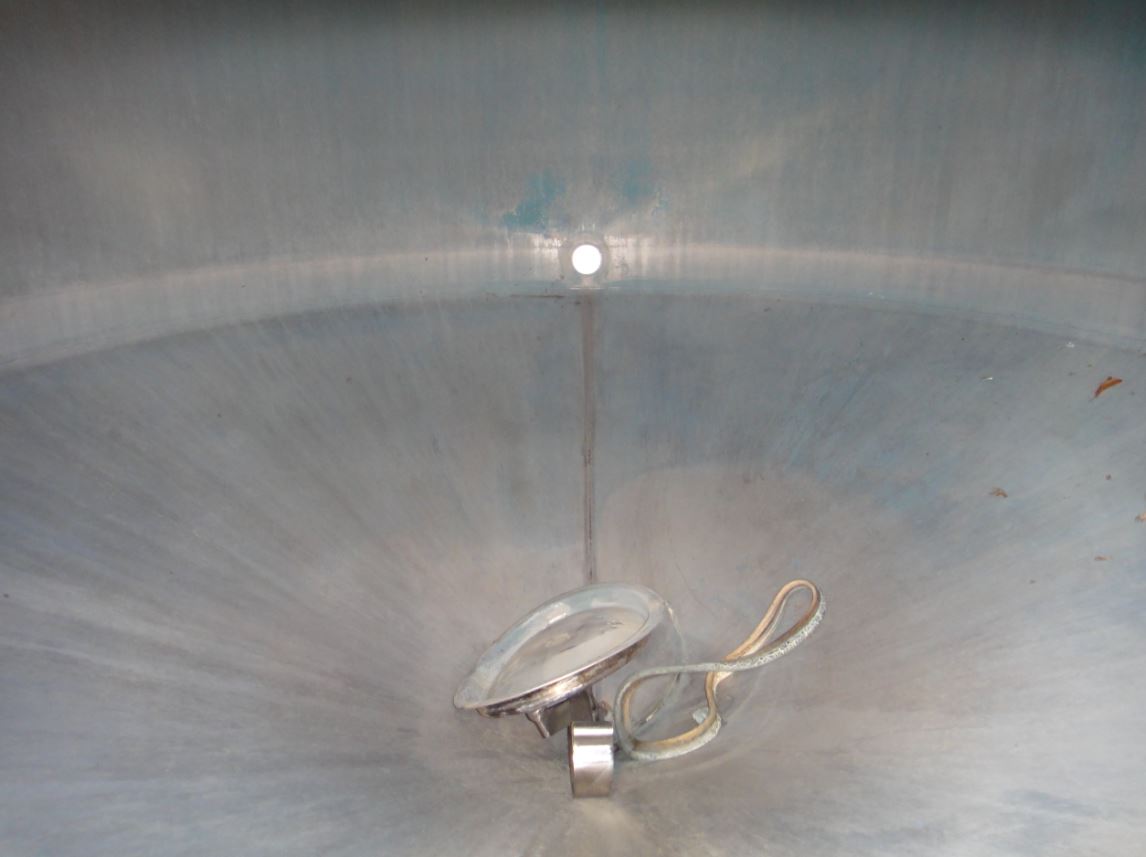

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN 65 1xDN 80 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • CIP/water tank

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Process tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
