Product no. M-1998

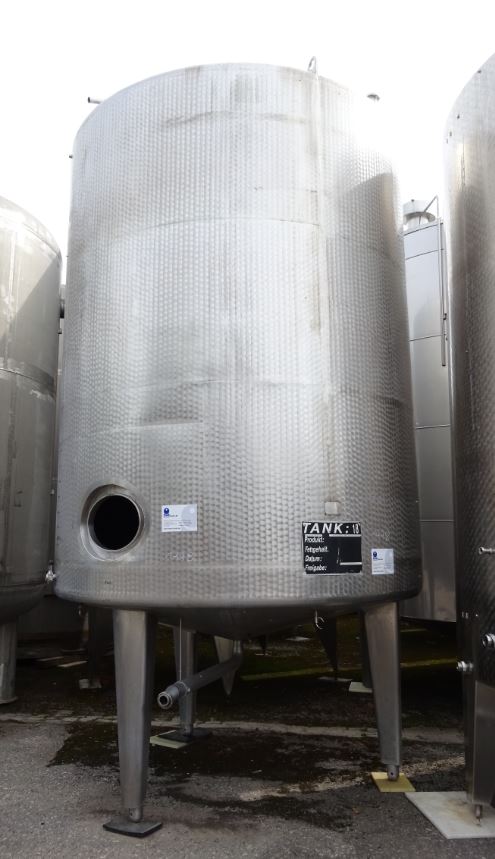

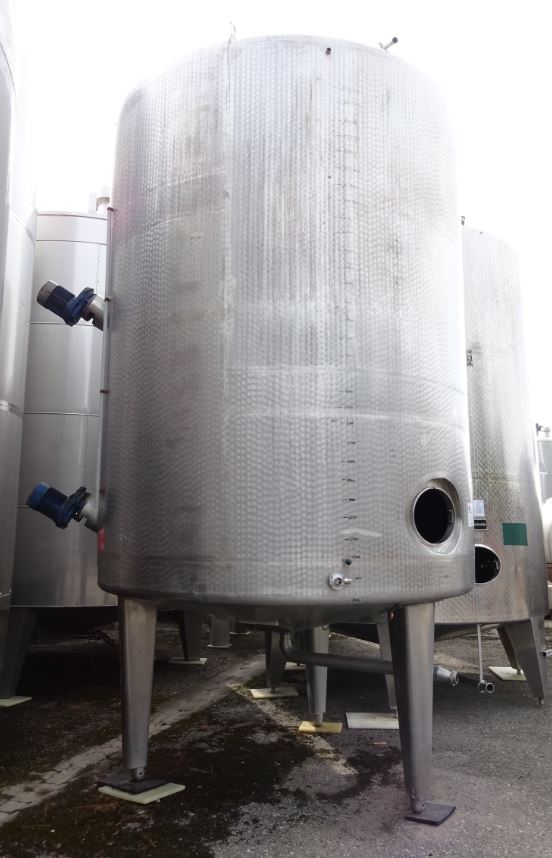

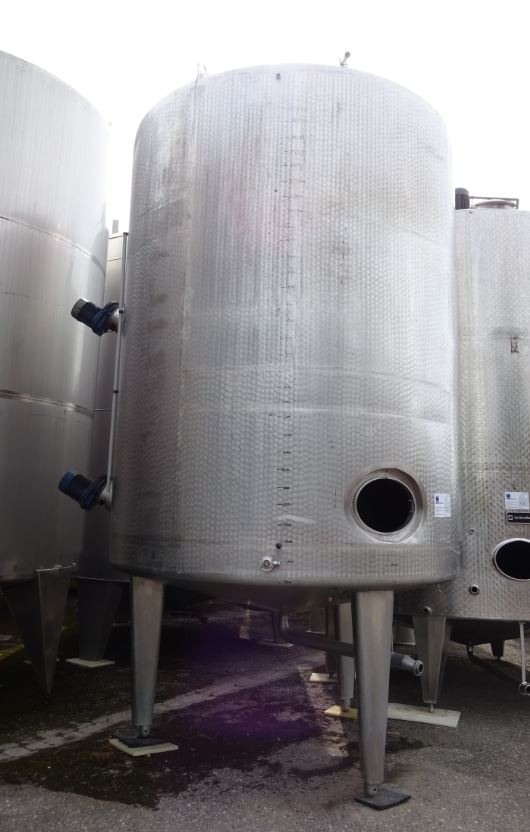

Container 16.000 liters made of V2A, used, isolated, standing

EUR 9.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 16,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 16.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 16,000.00 litres. The diameter inside includes 2,500 mm.  Container 16.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 16.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1998

  • Manufacturer

  • TUS

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.500 mm

  • External diameter

  • 2.600 mm

  • Cyl. height

  • 3.300 mm

  • Foot height

  • 1.250 mm

  • Total height

  • 5.000 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

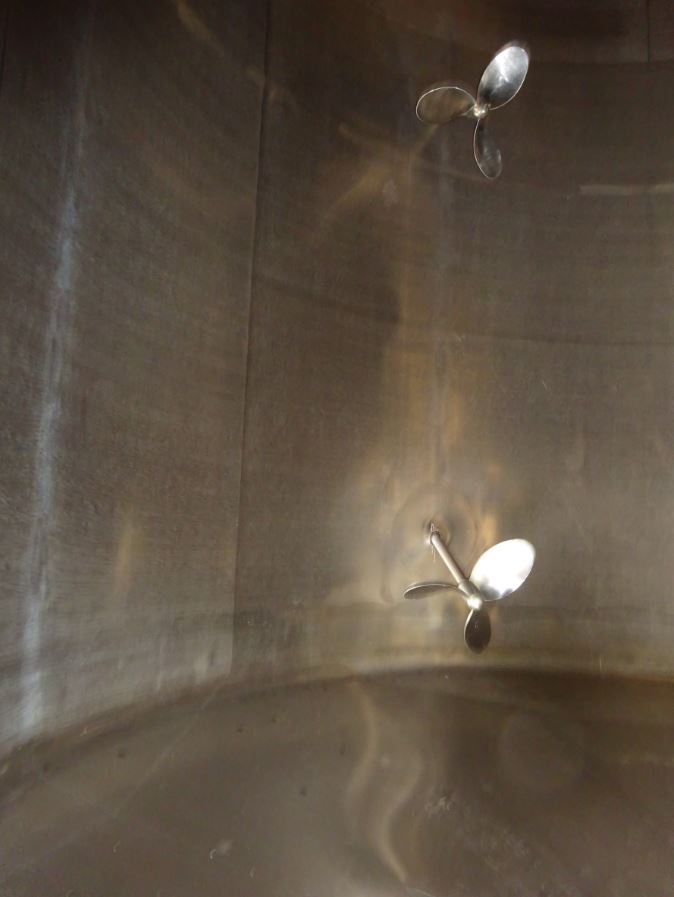

Agitator

  • Agitator quantity

  • 2 (piece)

  • Agitator type

  • Propeller

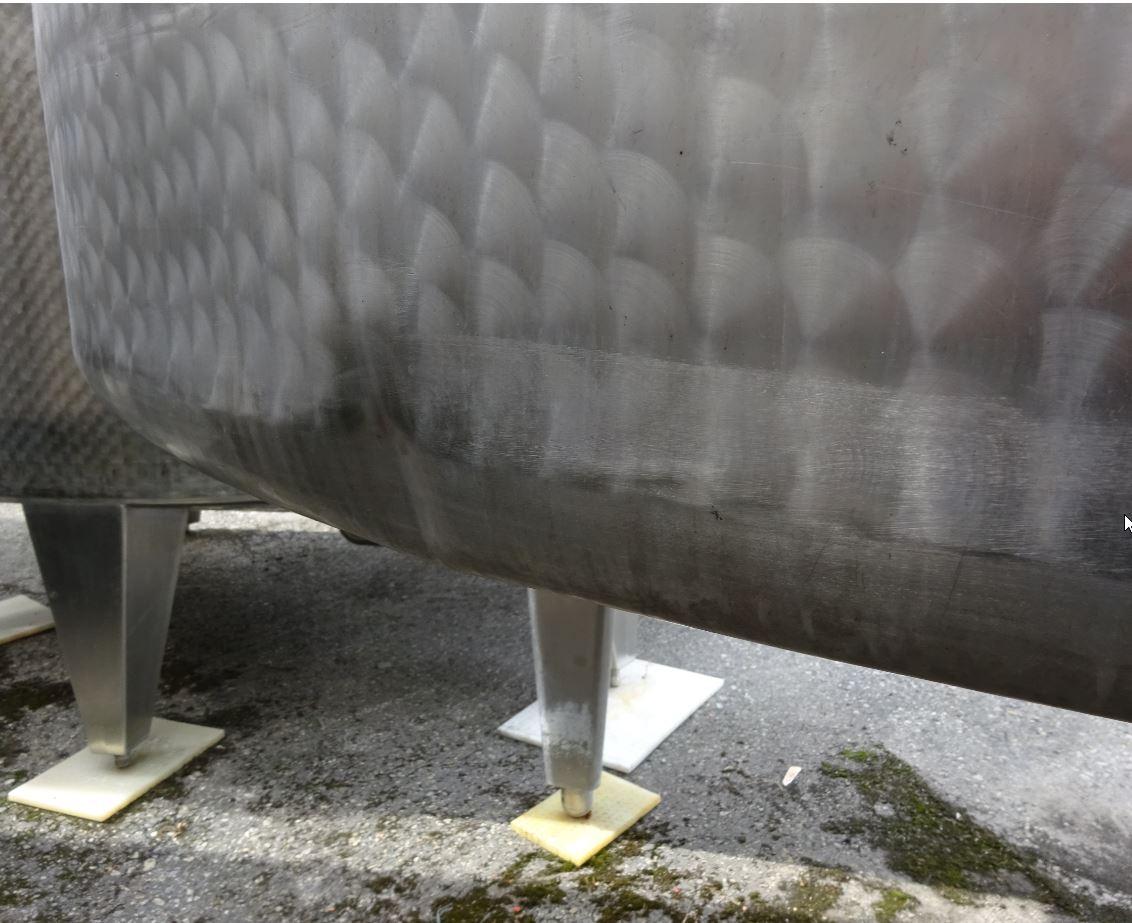

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

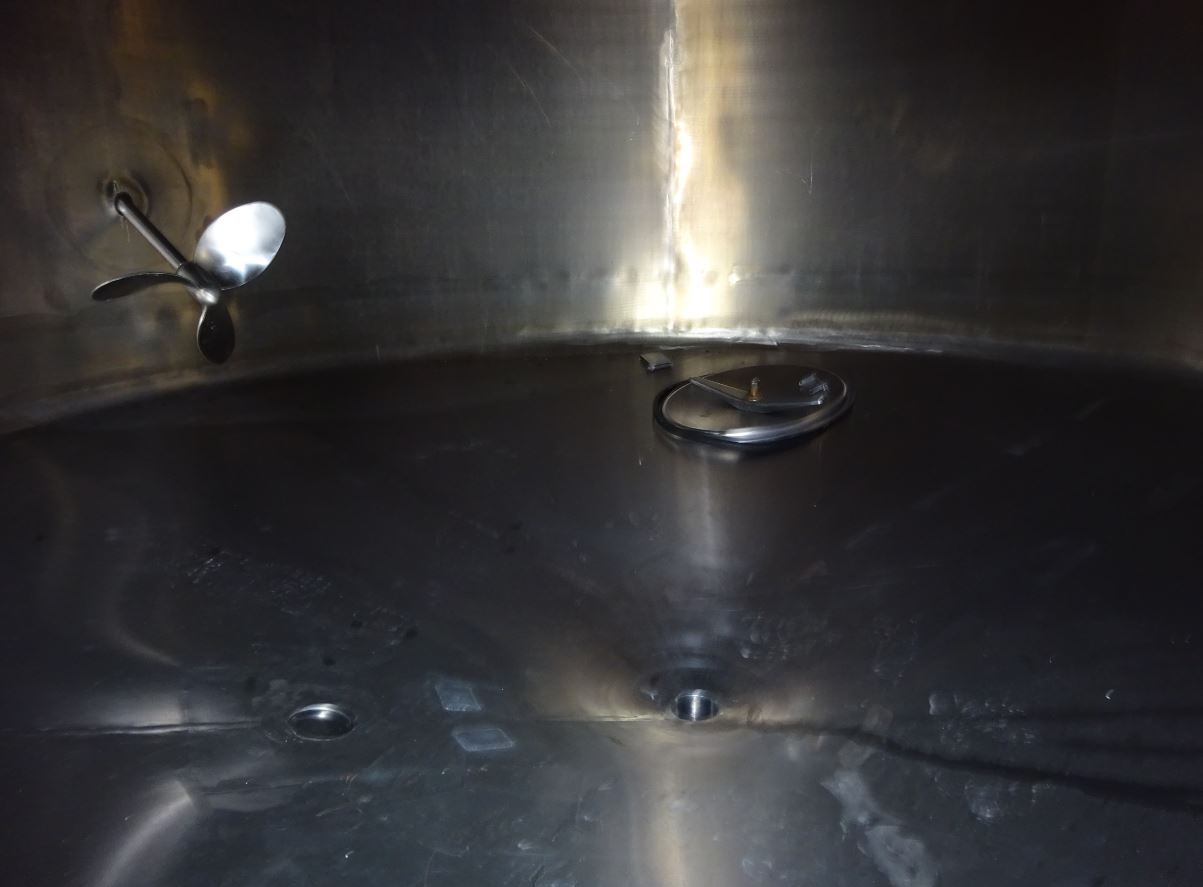

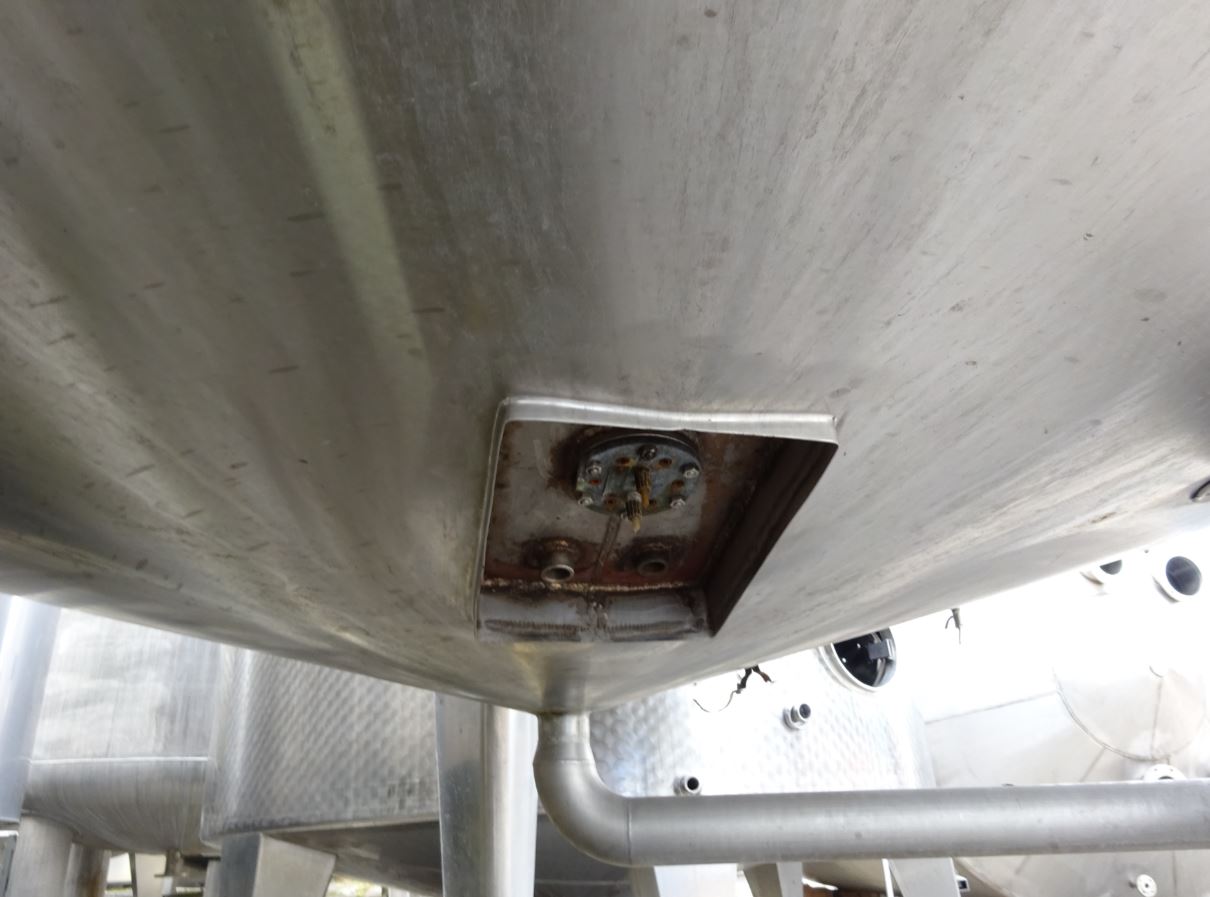

  • Manway position

  • In floor

  • Outlet nozzle

  • 65/50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

Other

  • Note

  • Reparaturstellen im Produktraum

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
