Product no. M-1404

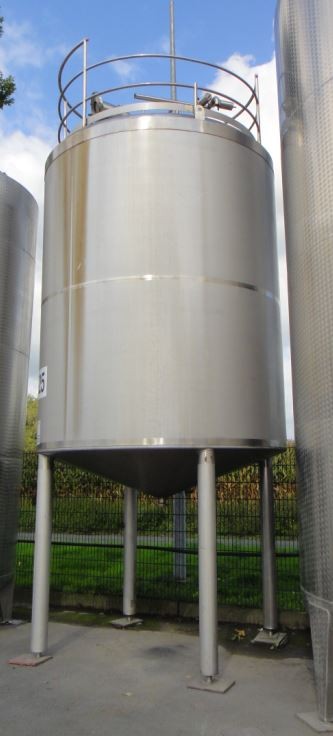

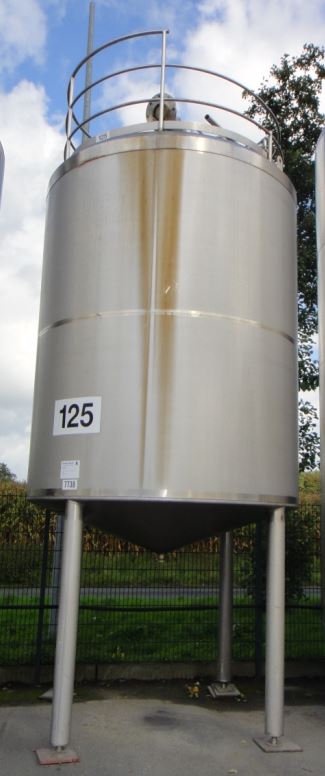

Container 15.000 liters made of V2A, used, isolated, standing
EUR 9.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 15,000.00 litres
Product description
Container 15.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 15,000.00 litres. The diameter inside includes 2,600 mm. Container 15.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Hot water, Cleaning/CIP,General
Volume approx.
15.000,00 litres
Structure
Standing
Year of manufacture
1993
Manufacturer
Holvrieka
Condition
Used
Dimensions approx.
Internal diameter
2.600 mm
External diameter
2.720 mm
Cyl. height
3.000 mm
Foot height
1.900 mm
Outlet height
1.390 mm
Total height
5.400 mm
Design
Weight approx.
2.000,00 kg
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings
Manway position
In head
Nozzles/connectors in head
1xDN 100 (piece)
Nozzles/connectors in floor
1xDN 80 (piece)
Cleaning/CIP nozzle
in head
Additional fixtures and fittings
Flow rectifier
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
Agriculture: Substrate tank, Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
