Product no. M-1220

Container 15.000 liters made of V2A, used, isolated, standing

EUR 11.750,00

add. 19 % VAT excl. shipping costs


Volume approx. 15,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

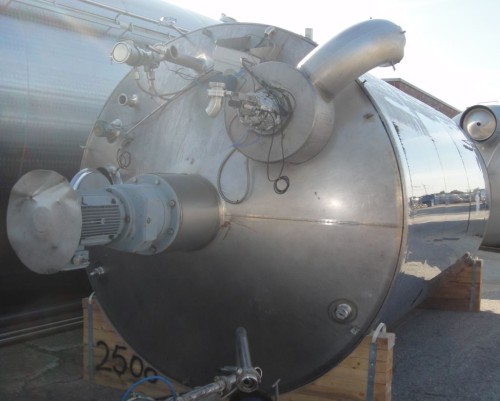

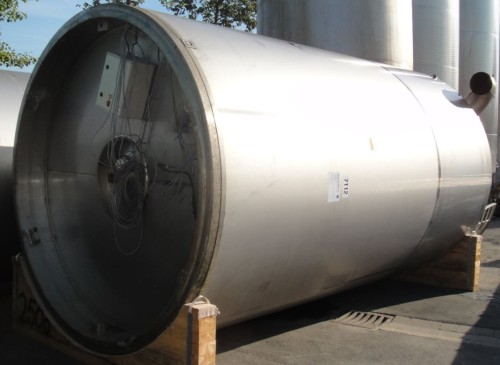

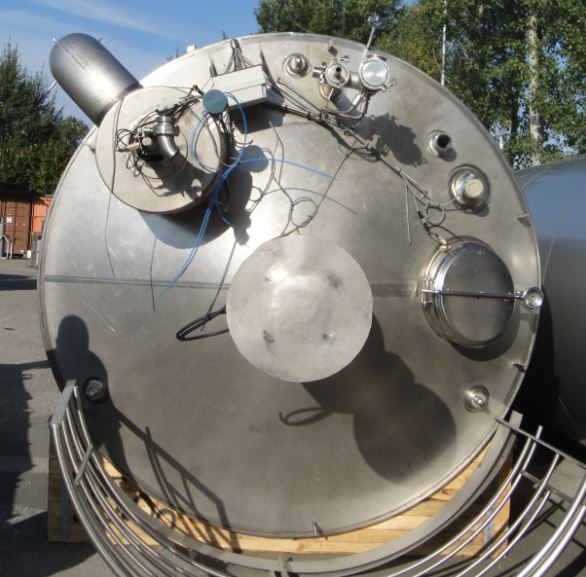

Container 15.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 15,000.00 litres. The diameter inside includes 2,300 mm.  Container 15.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 15.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2000

  • Manufacturer

  • Goavec

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.300 mm

  • External diameter

  • 2.400 mm

  • Cyl. height

  • 3.670 mm

  • Total height

  • 6.000 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

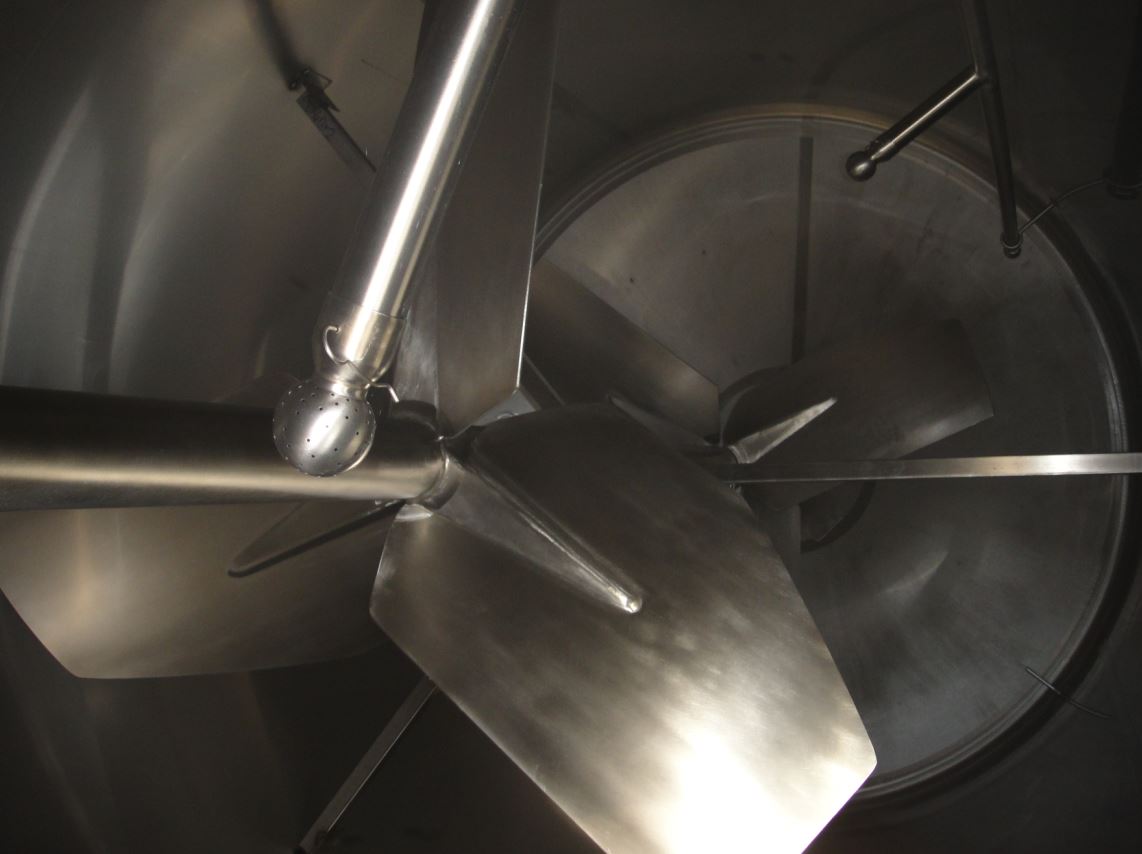

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head central

  • Agitator 1 - Output

  • 2,7 kW

  • Agitator 1 - RPM

  • 18 UpM

  • Agitator 2 - Output

  • 5,5 kW

  • Agitator 2 - RPM

  • 35 UpM

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 2 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
