Product no. M-1566

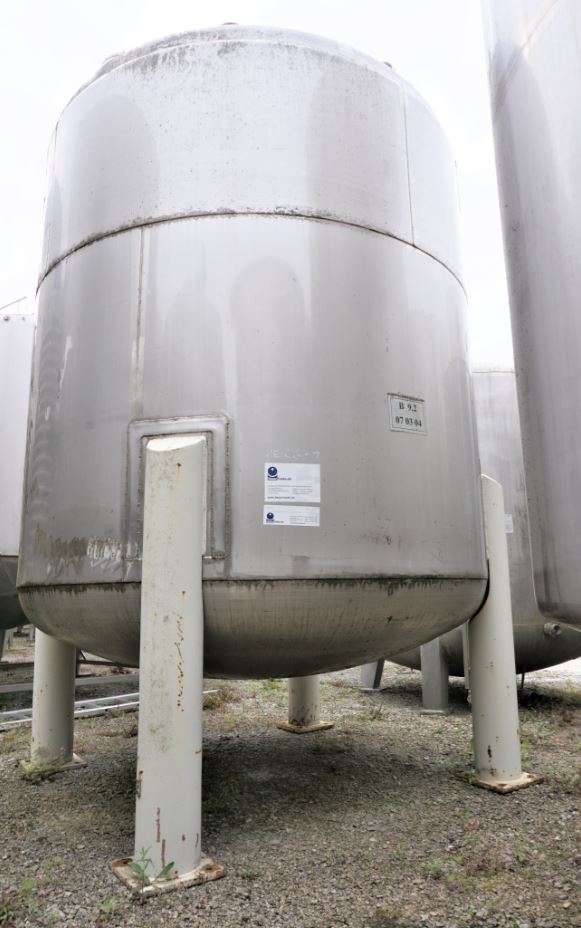

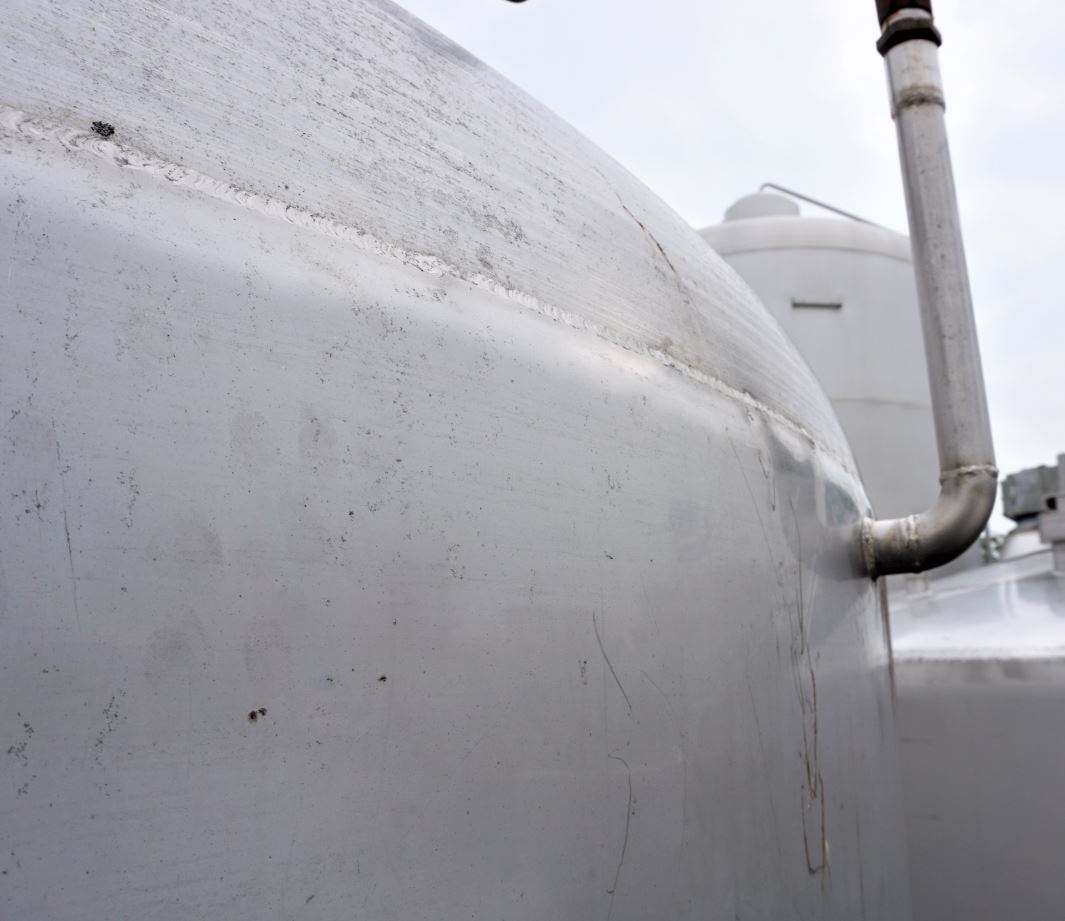

Container 13.050 liters made of V2A, used, double-walled mit protection shell, standing

EUR 10.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 13,050.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 13.050 liters made of V2A, used, double-walled mit protection shell consists of the material 1.4541(AISI321). The volume is approx. 13,050.00 litres. The diameter inside includes 2,400 mm.  Container 13.050 liters made of V2A, used, double-walled mit protection shell was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 13.050,00 litres

  • Structure

  • Standing

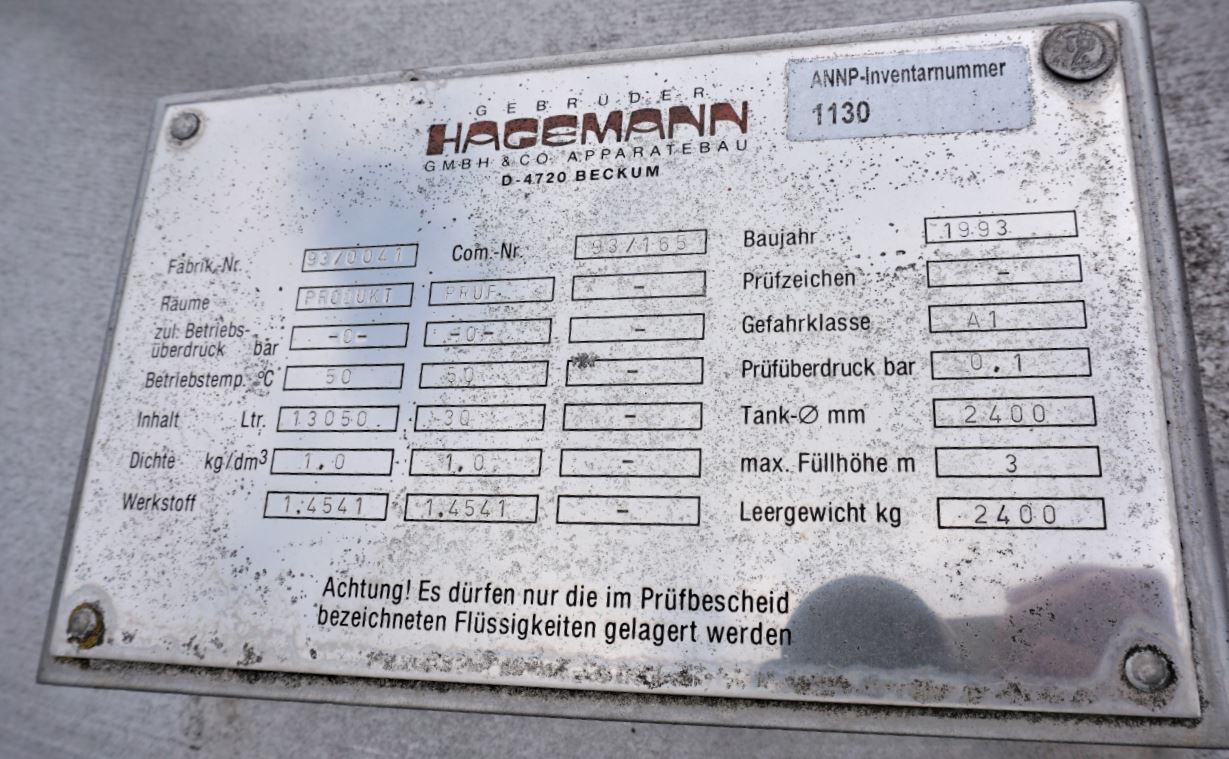

  • Year of manufacture

  • 1993

  • Manufacturer

  • Hagemann Beckum

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.400 mm

  • External diameter

  • 2.460 mm

  • Cyl. height

  • 2.300 mm

  • Total height

  • 4.900 mm

Design

  • Weight approx.

  • 2.800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 50 °C

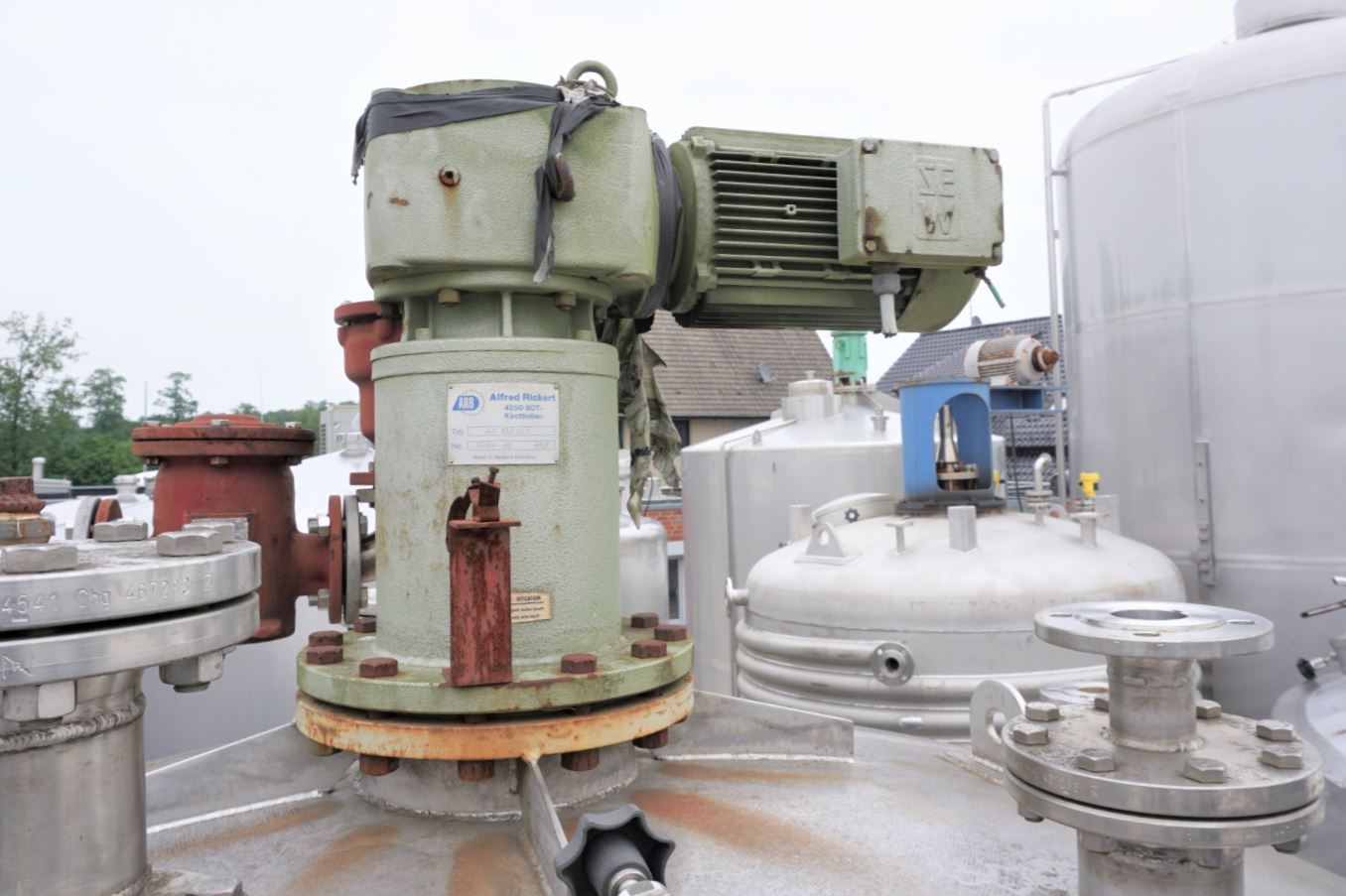

Agitator

  • Agitator quantity

  • 1 (piece)

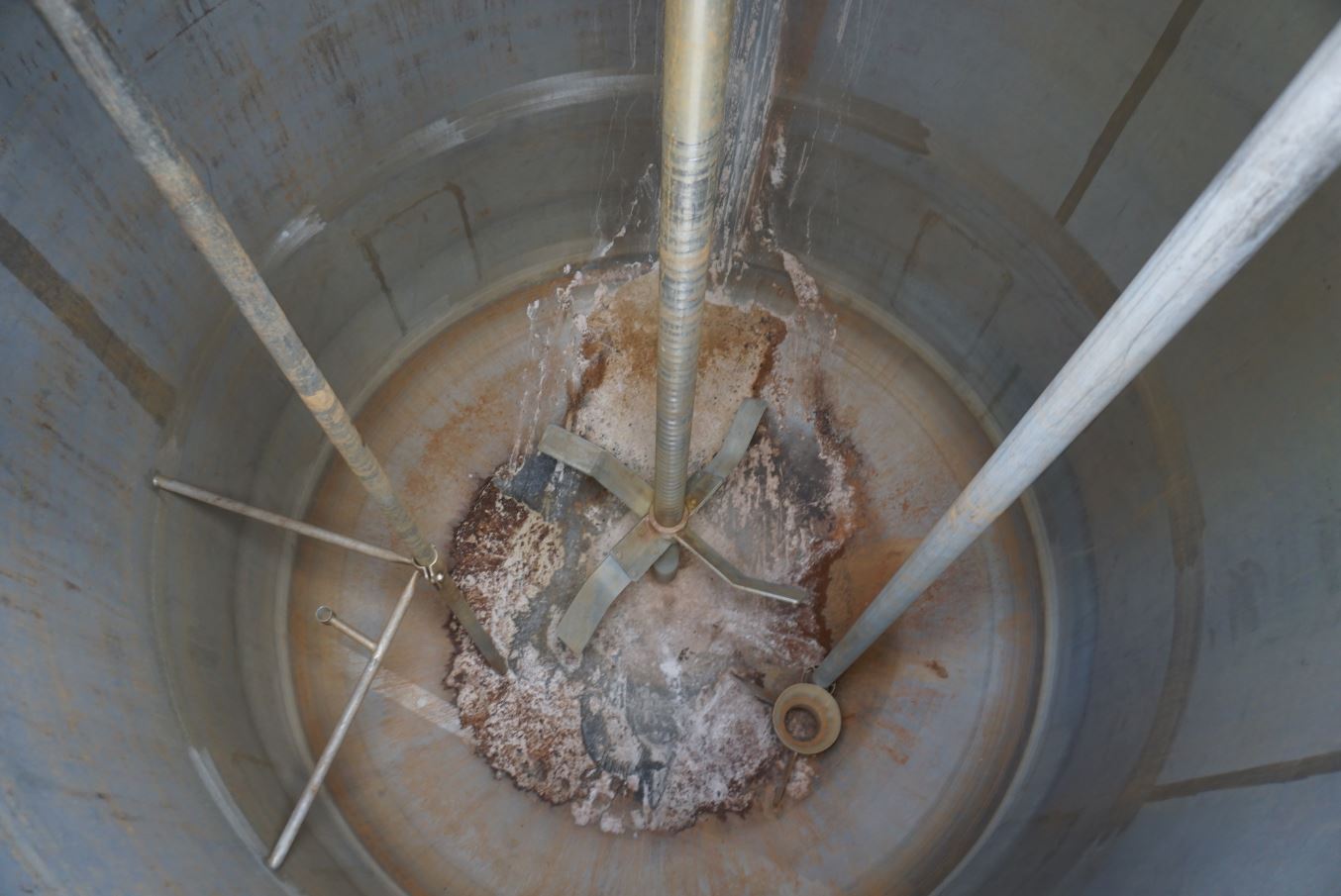

  • Agitator type

  • Propeller

  • Agitator position

  • Head central

  • Agitator manufacturer

  • SWE

  • Agitator 1 - Output

  • 5 kW

  • Agitator 1 - RPM

  • 121 UpM

  • Agitator 1 - Voltage

  • 380/660 V

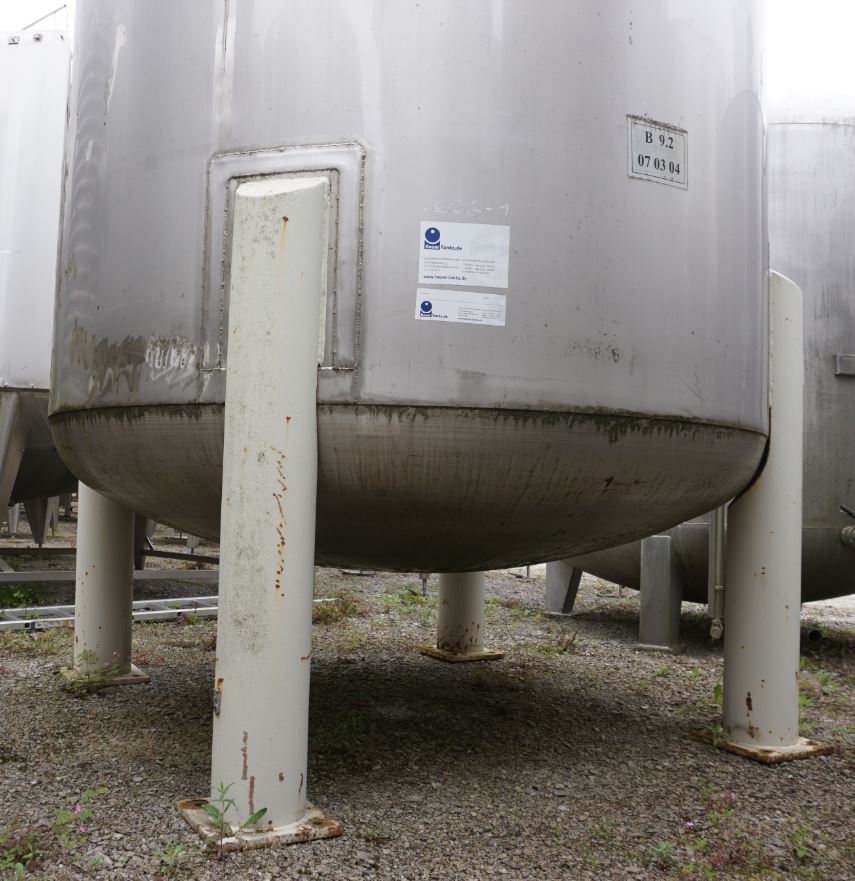

Supports

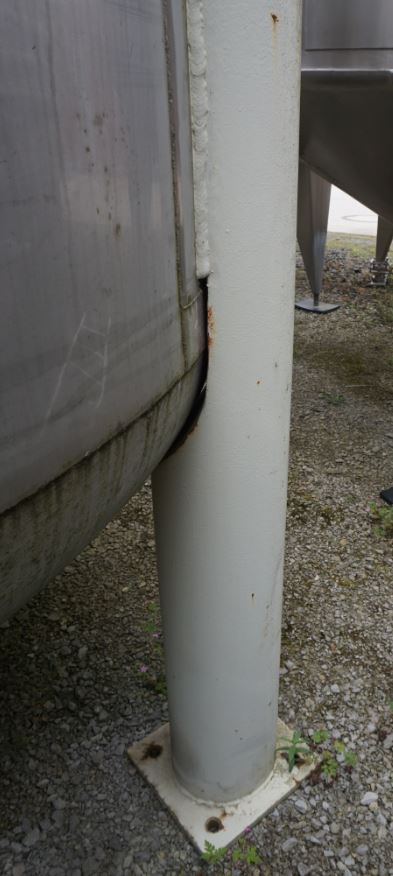

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

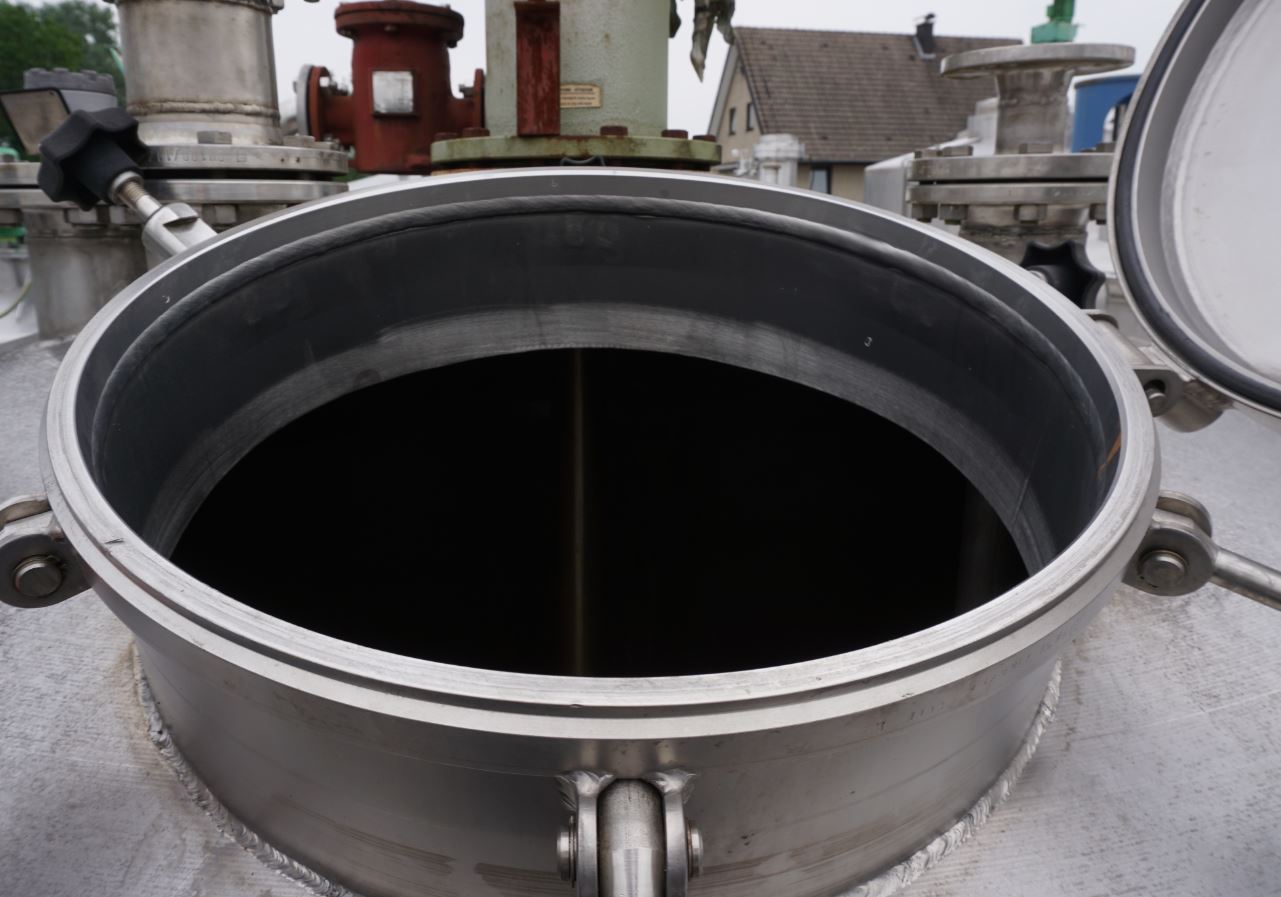

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

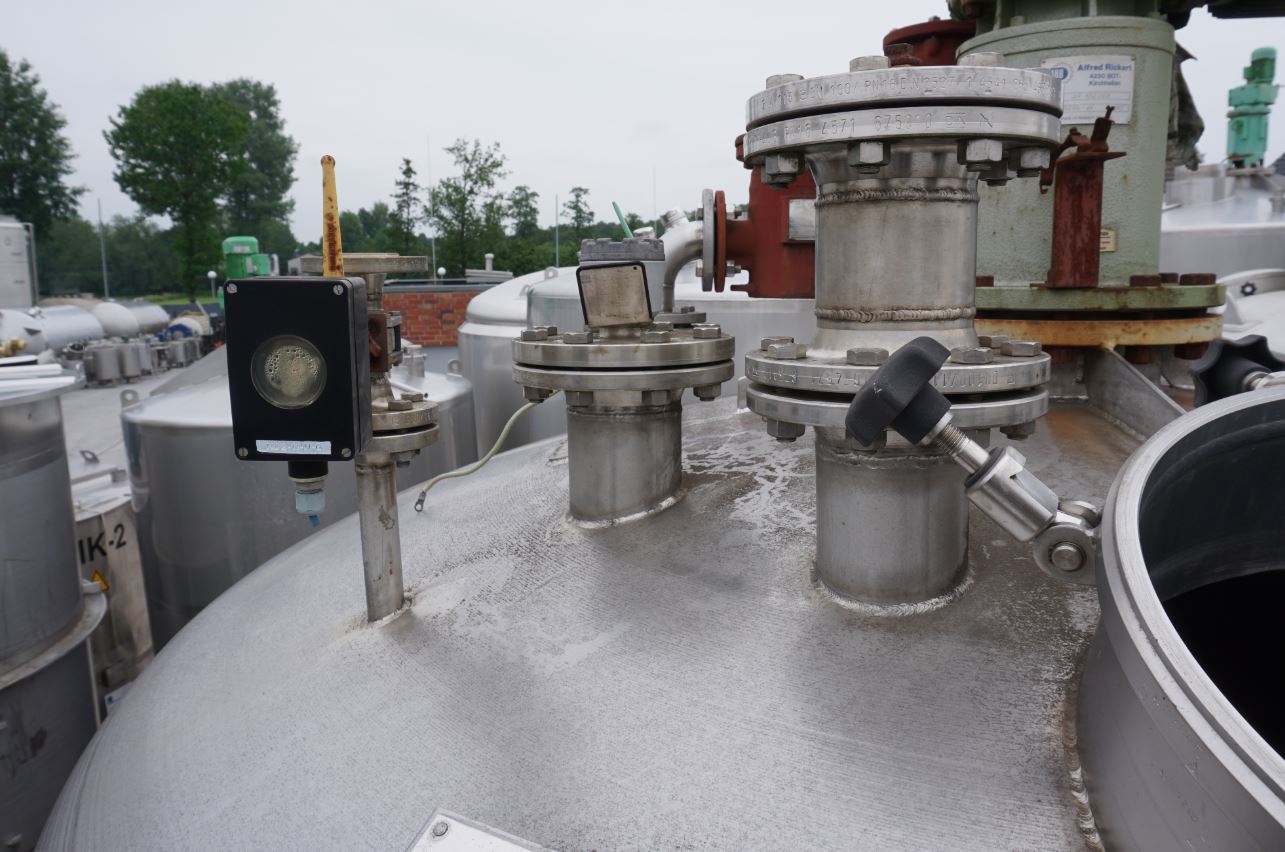

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 2xDN 80 2xDN 501xDN 100 1xDN 65 (piece)

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Diesel tank, UAN tank, Substrate tank, Fuel oil tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Chemical tank, Oil tank, Fresh oil tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
