Product no. M-2579

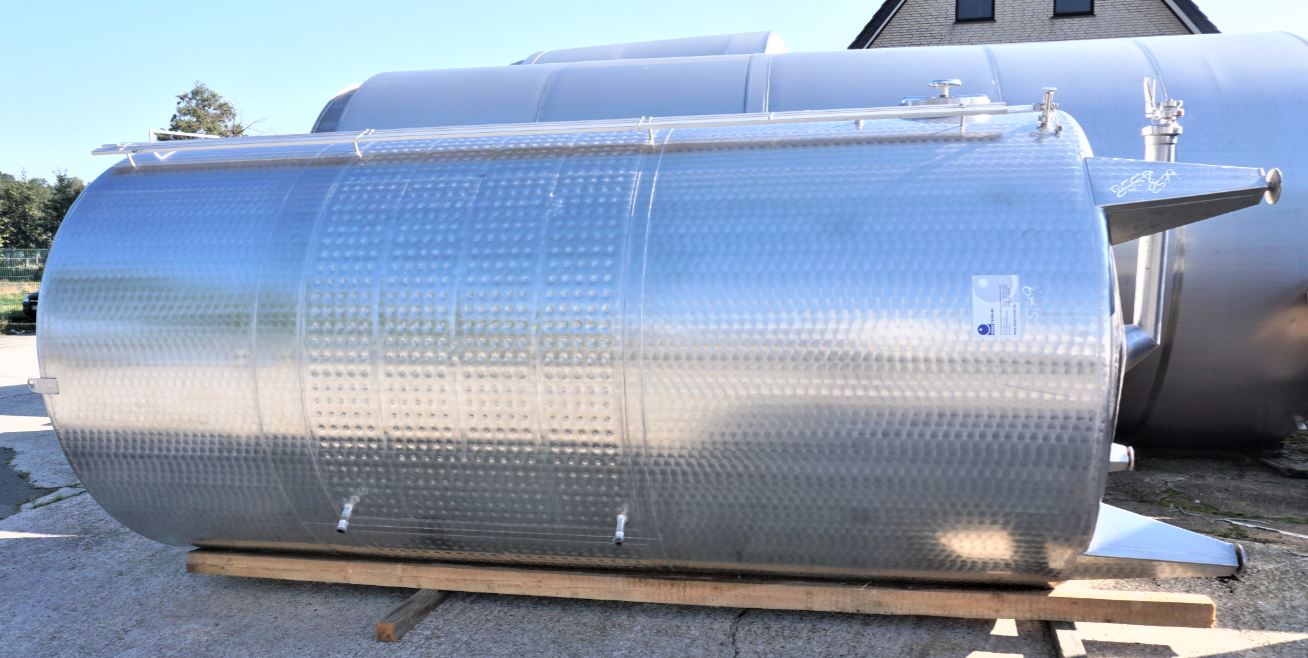

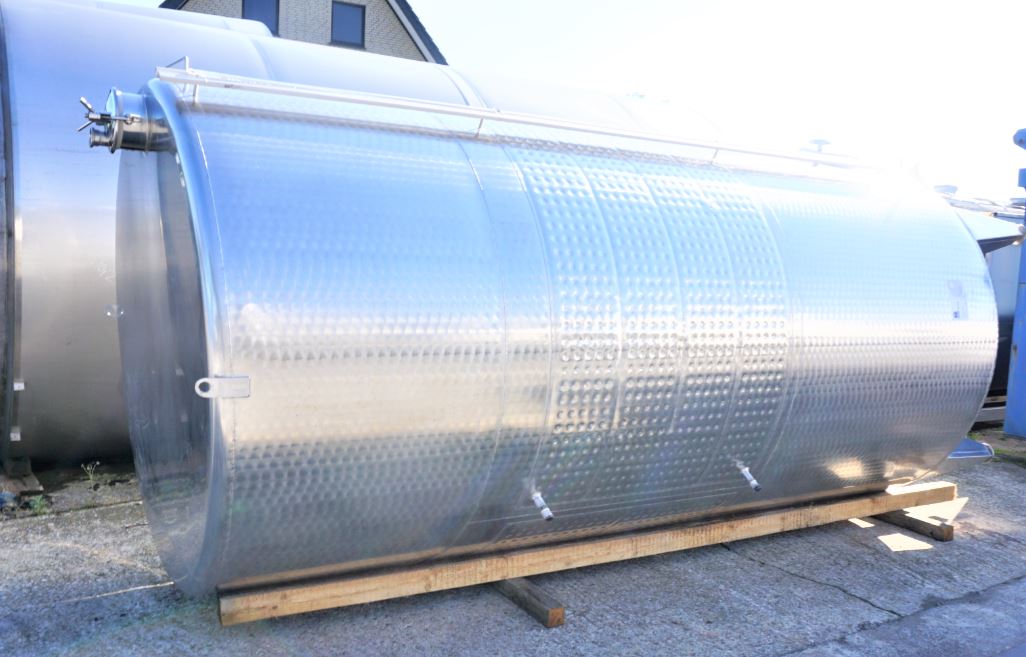

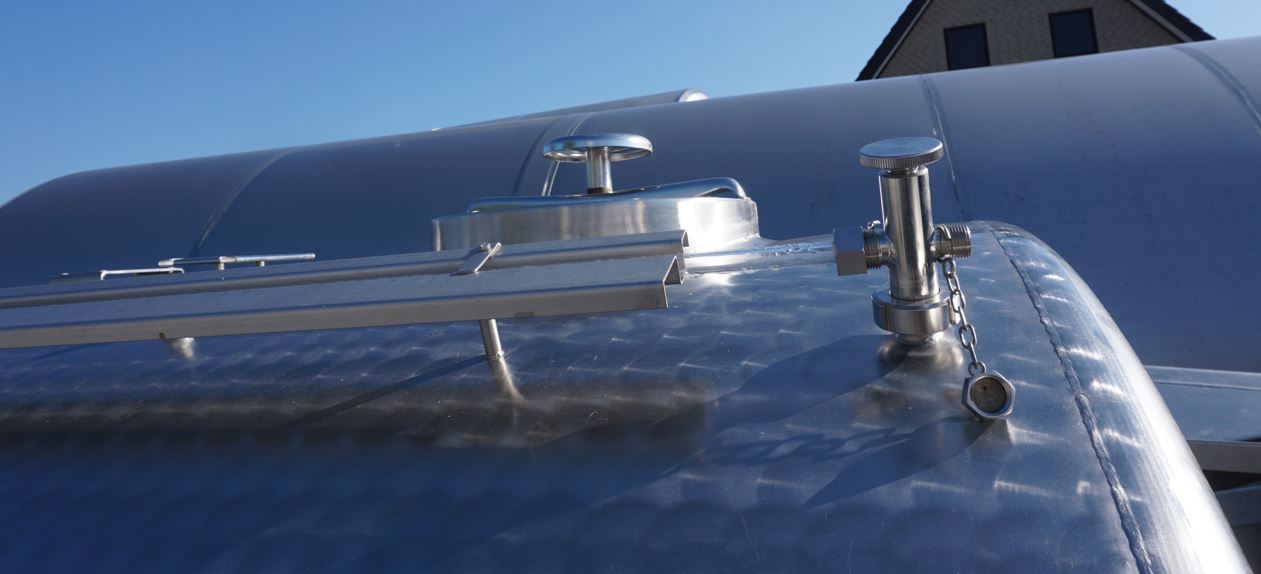

Container 12.500 liters made of V2A temperature-controllable, used, standing

EUR 12.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 12,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 12.500 liters made of V2A temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 12,500.00 litres. The diameter inside includes 1,950 mm.  Container 12.500 liters made of V2A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering,

General

  • Volume approx.

  • 12.500,00 litres

  • Structure

  • Standing

  • Manufacturer

  • Rieger

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.950 mm

  • Cyl. height

  • 3.950 mm

  • Foot height

  • 600 mm

  • Total height

  • 5.000 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

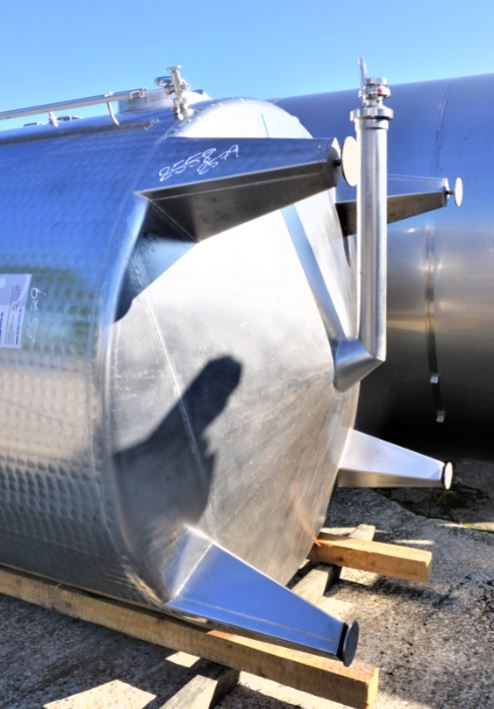

  • Floor type

  • Conical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

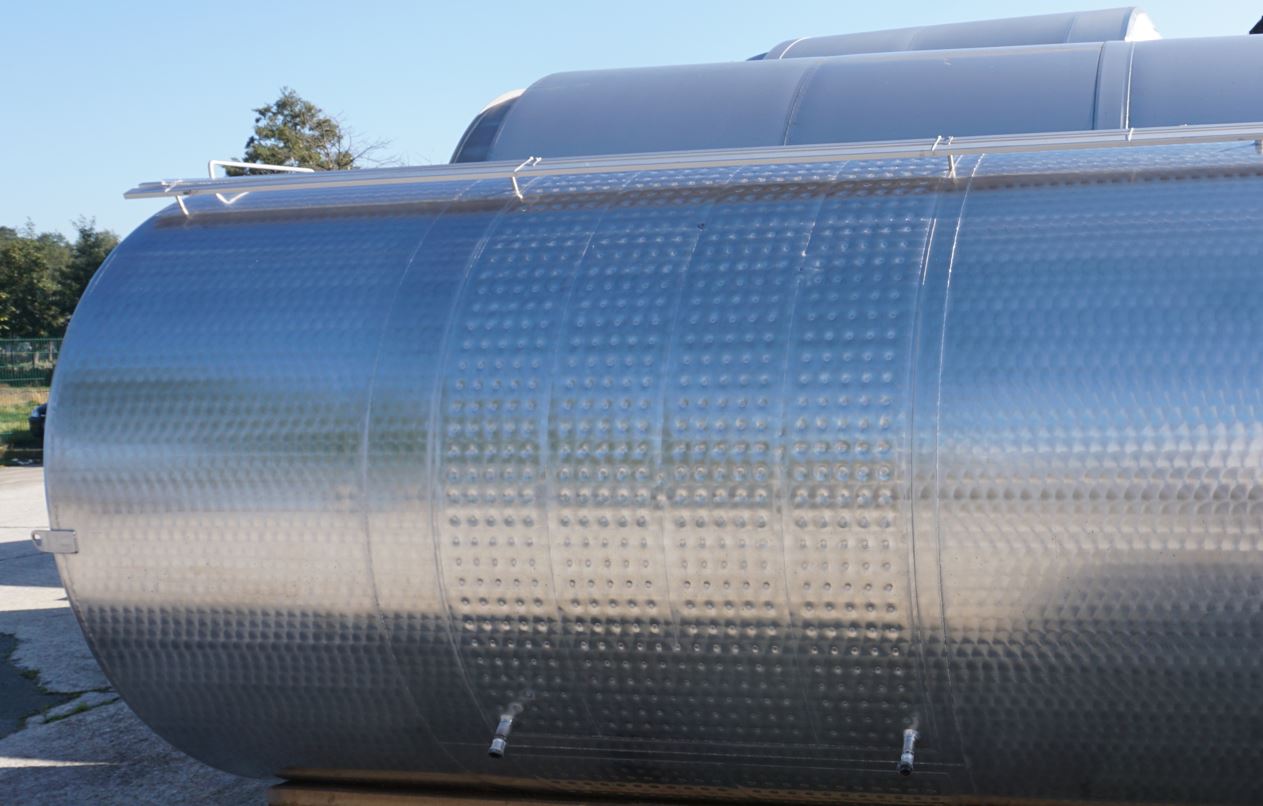

  • Temperature control system

  • Cooling plates

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

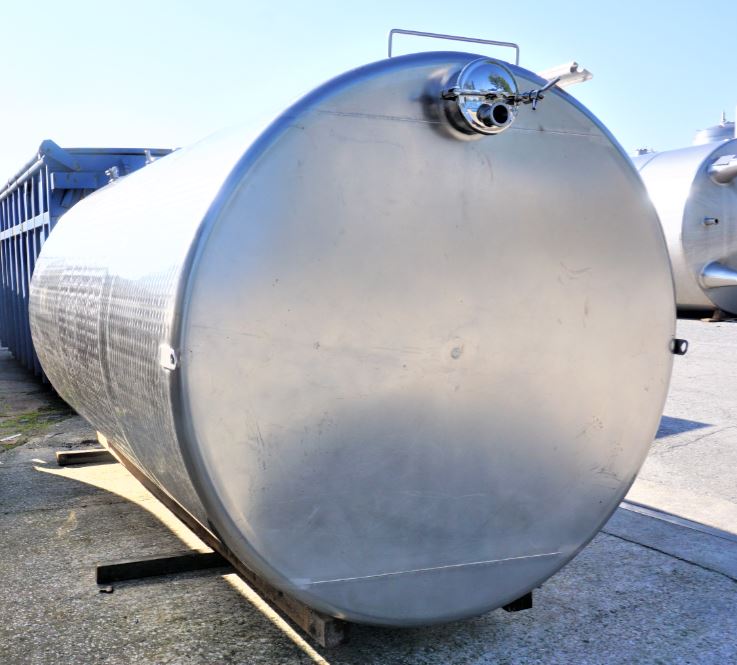

  • Manway 1 size

  • 325x425 DN mm

  • Manway position

  • In shell

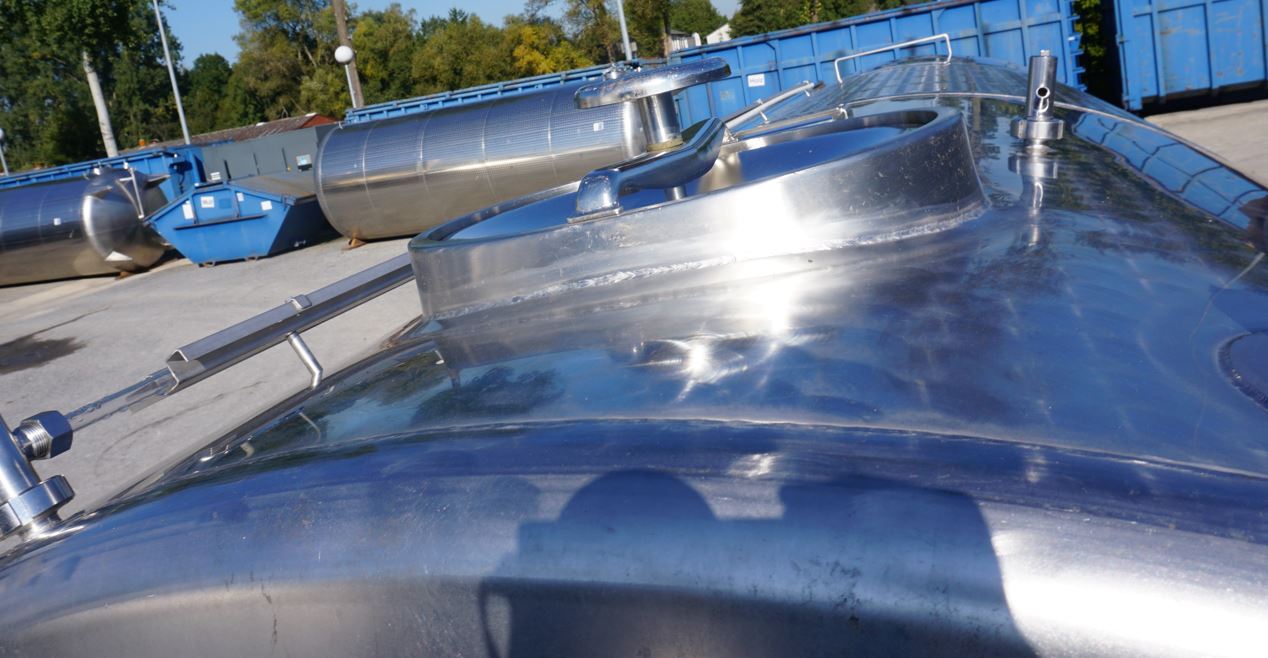

  • Handhole 1 size

  • 200 DN mm

  • Handlochposition Handhole position

  • In head

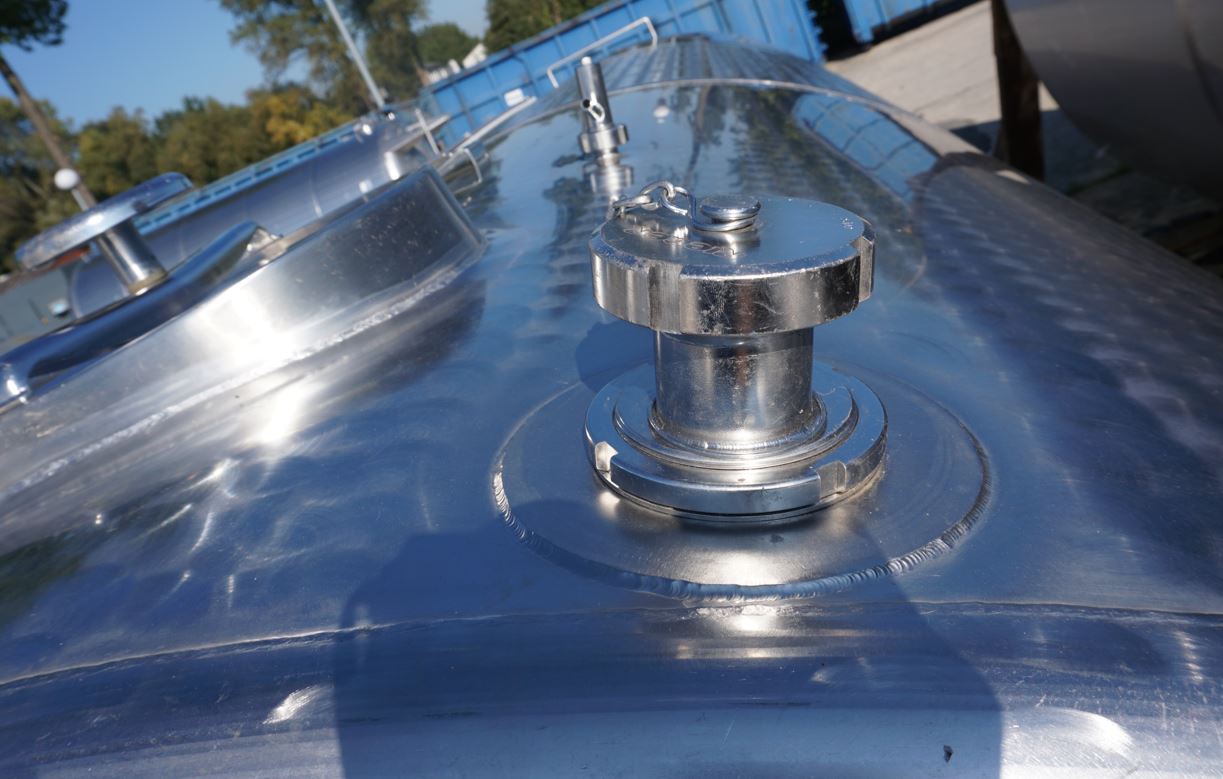

  • Nozzle connector

  • Screw thread

  • Outlet nozzle

  • 100/50

  • Fixtures and fittings

  • Lifting lugs

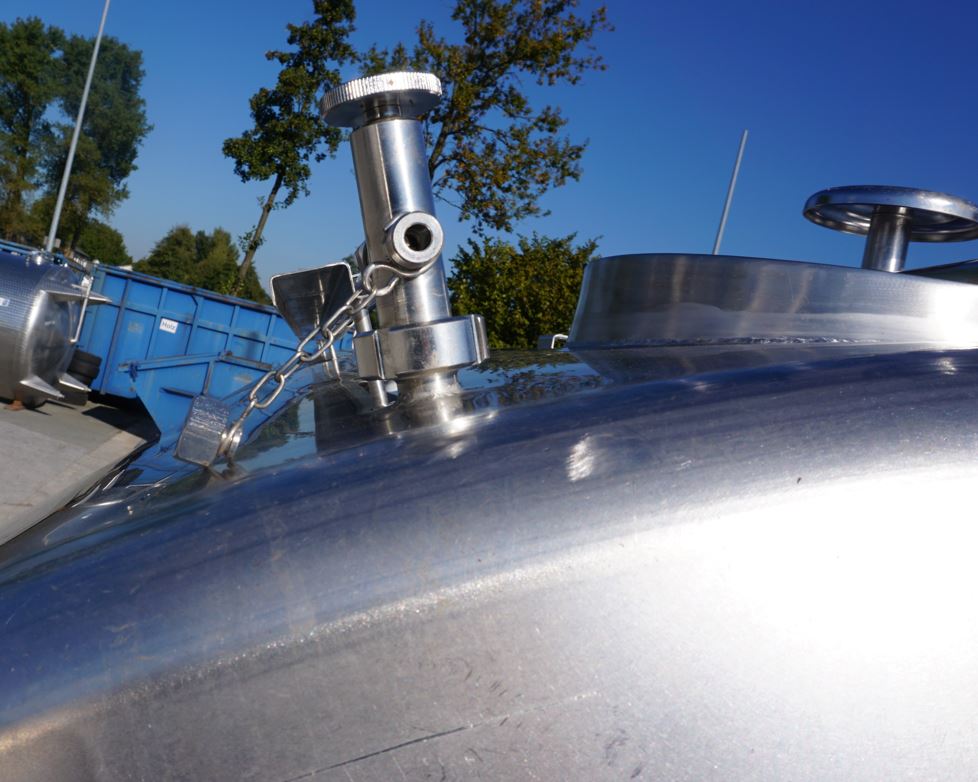

  • Sample taking

  • Additional fixtures and fittings

  • Ladder stay

  • Drain port

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Baugleicher Tank kann ggf. aus externem Lagerbestand angeboten werden.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Process tank,
