Product no. M-2435

Container 12.500 liters made of V2A single-walled, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 12,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 12.500 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 12,500.00 litres.  Container 12.500 liters made of V2A single-walled was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 12.500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.300 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 780 mm

  • Total height

  • 4.300 mm

Design

  • Weight approx.

  • 1.300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

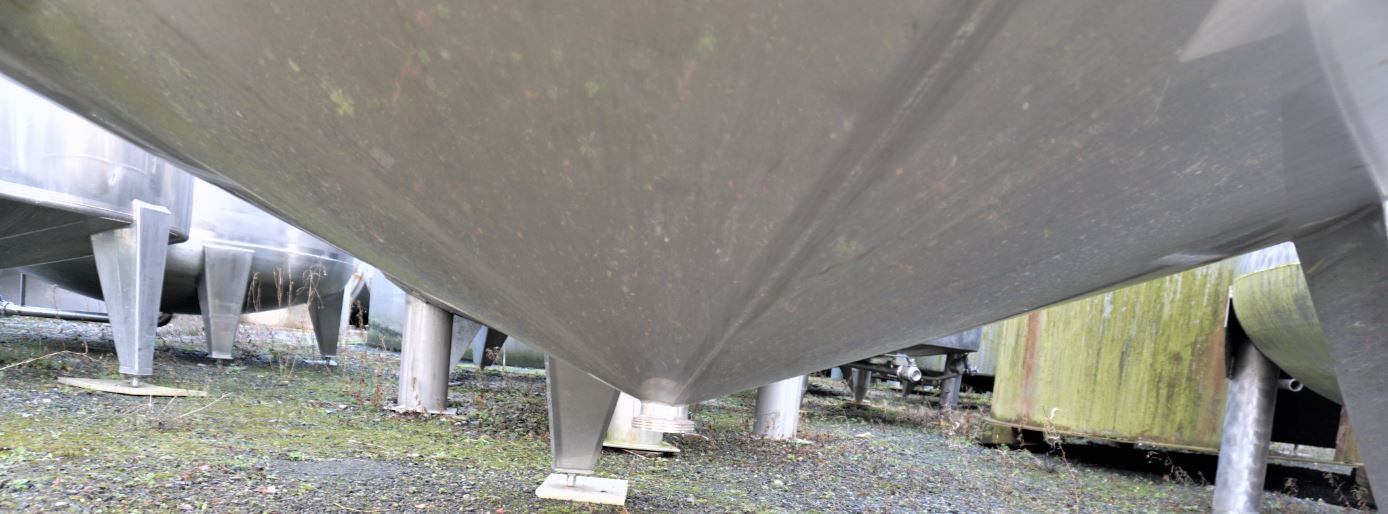

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

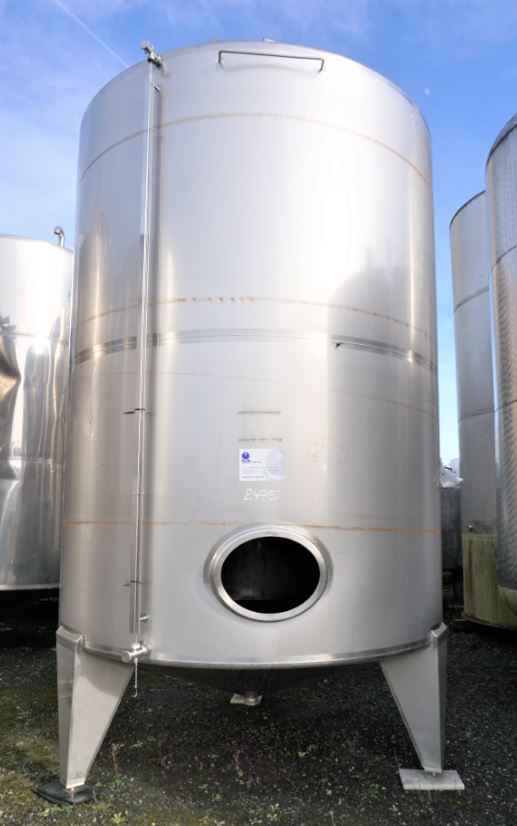

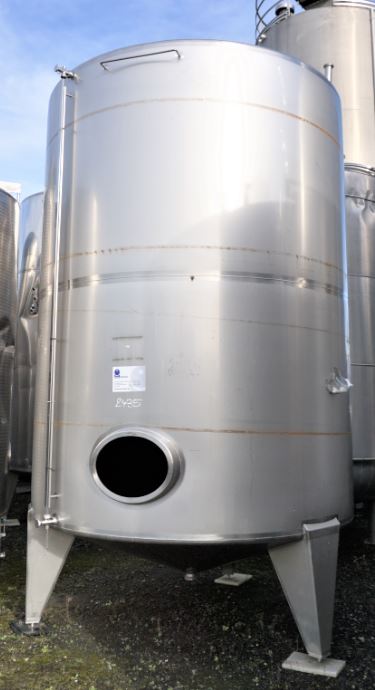

  • Manway position

  • In shell

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in head

  • 1xDN40 1xDN65 (piece)

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Fill level pipes

  • Additional fixtures and fittings

  • Ladder stay

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs: Storage tank, Buffer tank, Pre-buffer tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
