Product no. M-2416

Container 12.000 liters made of V4A, single-walled, standing

EUR 6.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 12,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

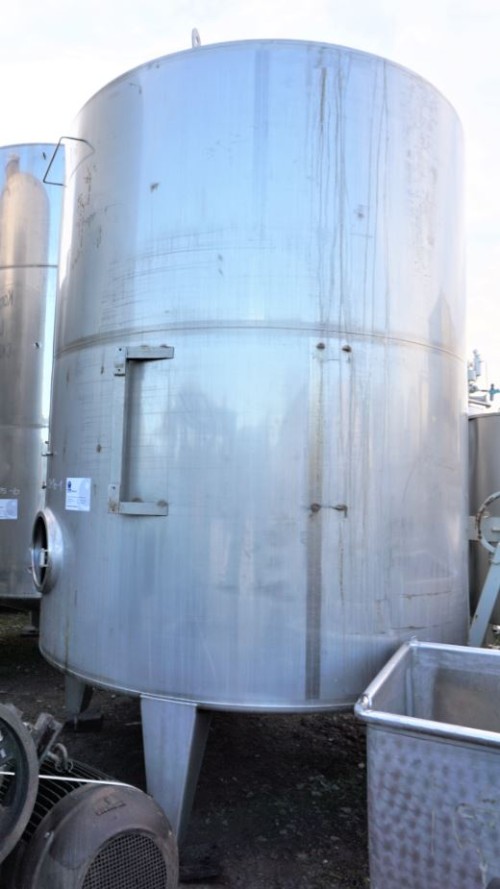

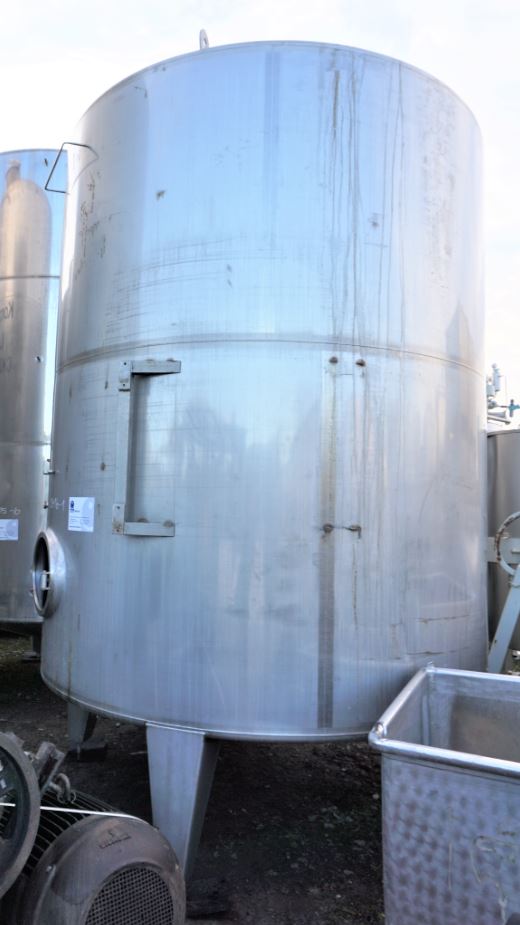

Container 12.000 liters made of V4A, single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 12,000.00 litres.  Container 12.000 liters made of V4A, single-walled was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 12.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2008

  • Manufacturer

  • Schärf & Schall

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.350 mm

  • Cyl. height

  • 2.750 mm

  • Foot height

  • 645 mm

  • Outlet height

  • 320 mm

  • Total height

  • 3.750 mm

  • Wall thickness of product chamber head

  • 2,50 mm

  • Wall thickness of product chamber shell

  • 2,50 mm

  • Wall thickness of product chamber floor

  • 3,00 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

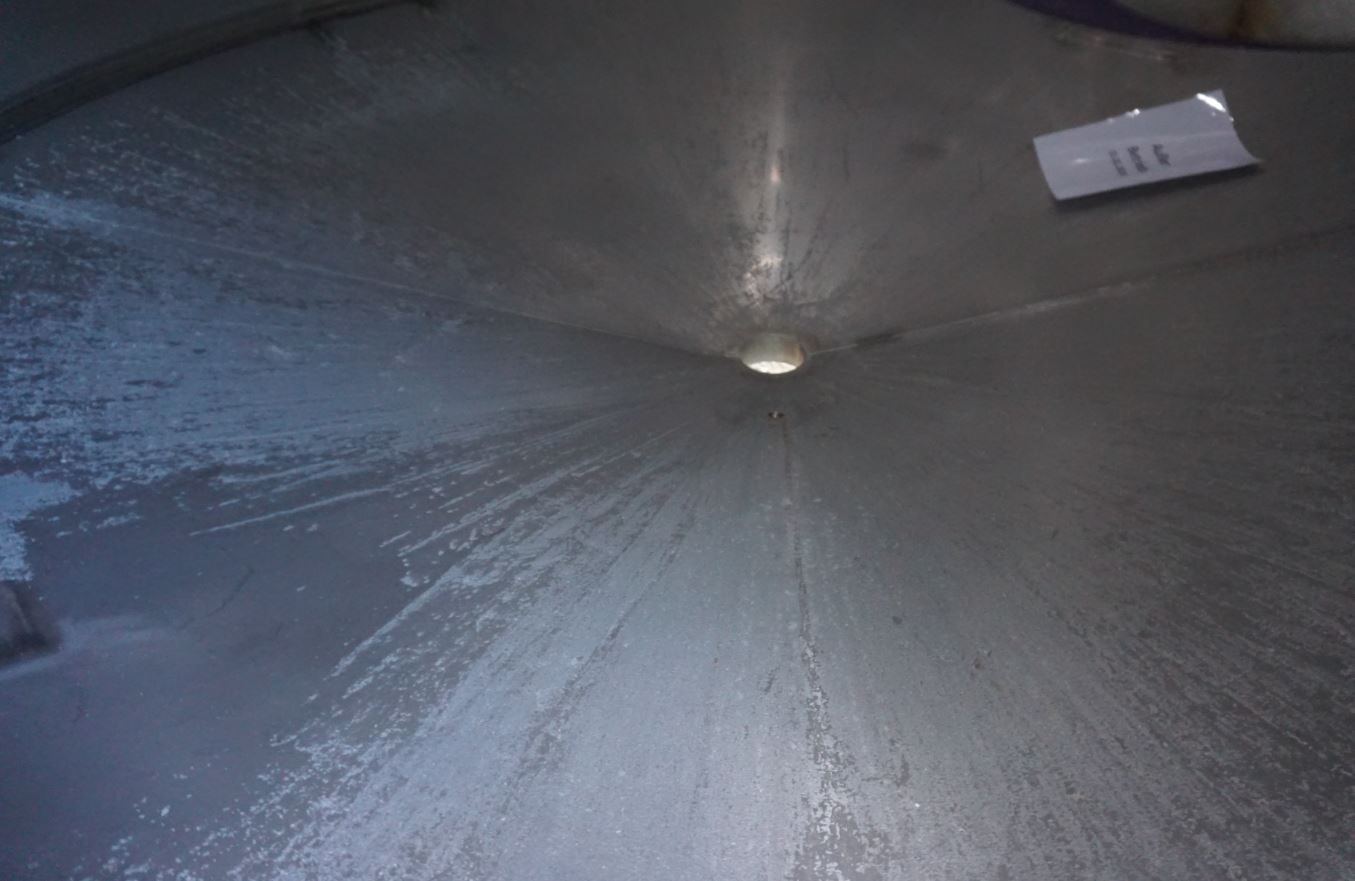

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

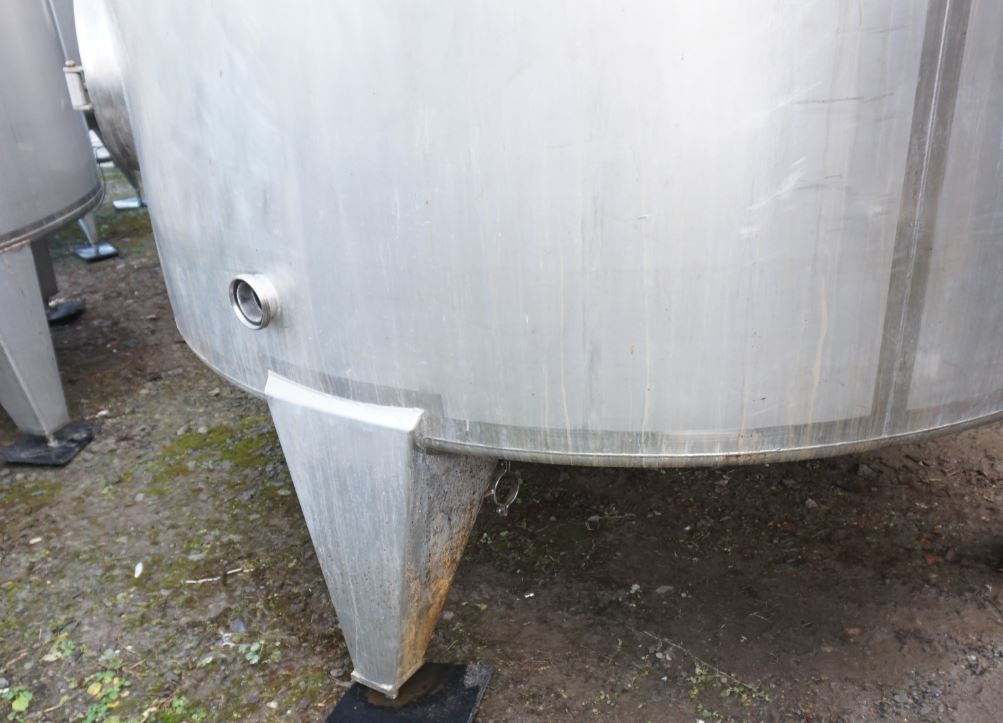

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

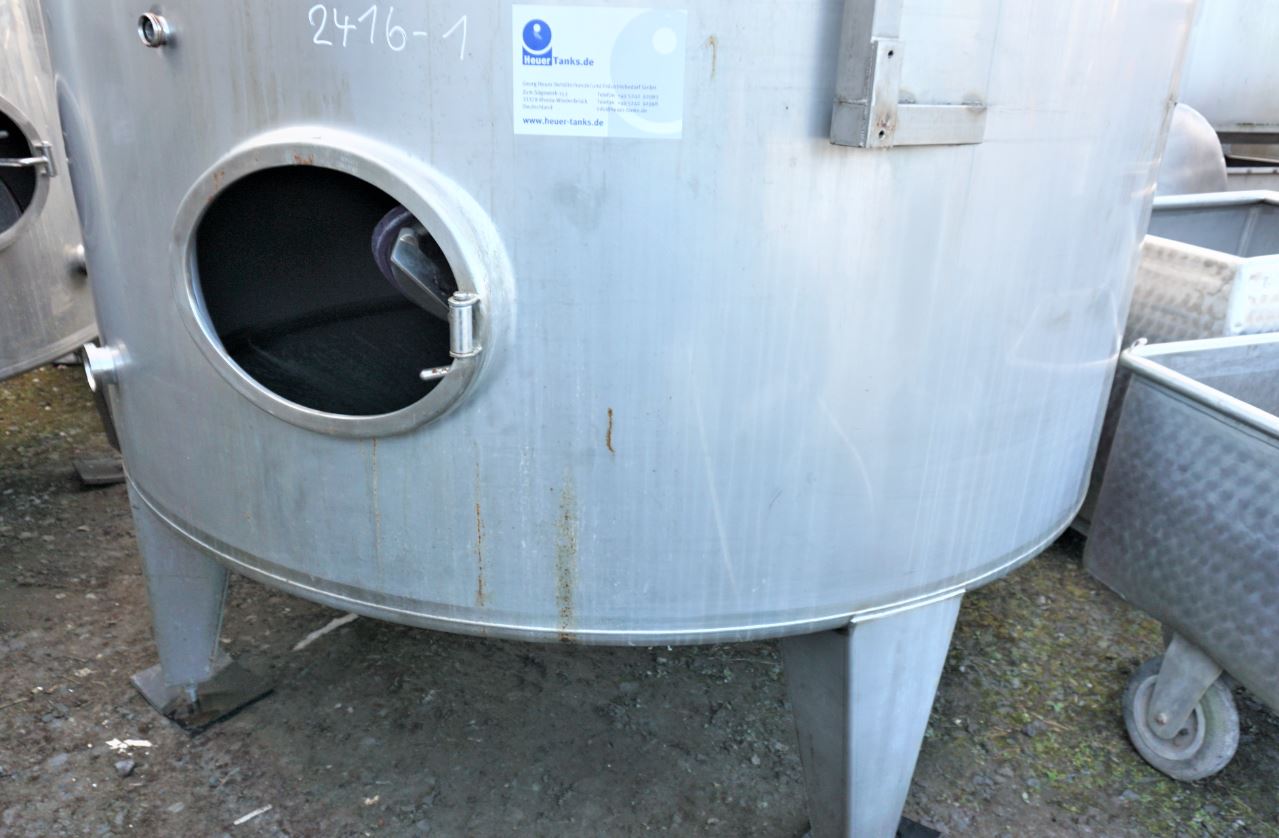

  • Manway 1 size

  • 340x440 DN mm

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 2xDN50 1xDN65 1x1" (piece)

  • Outlet nozzle

  • 100

  • Fixtures and fittings

  • Sample taking

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Downloads

filefile size
  2416-5.pdf0.17 MB
