Product no. M-1931

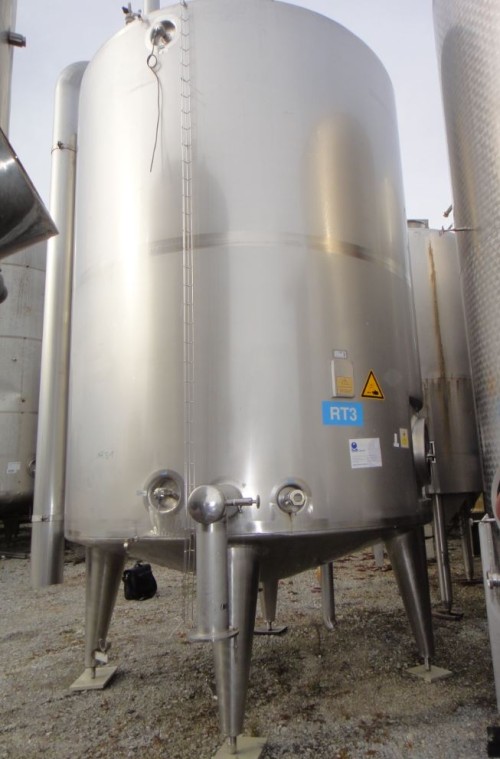

Container 12.000 liters made of V2A, used, isolated, standing

EUR 7.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 12,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

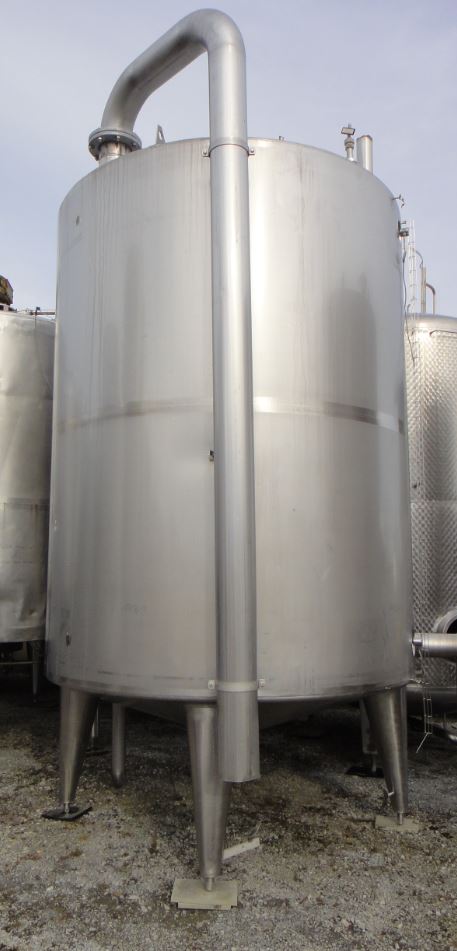

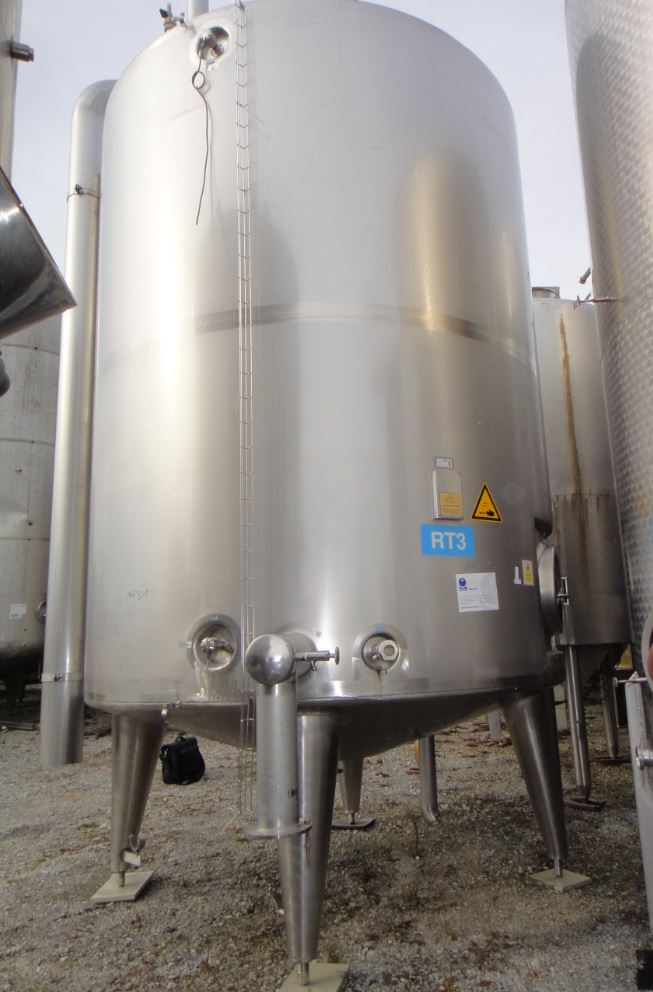

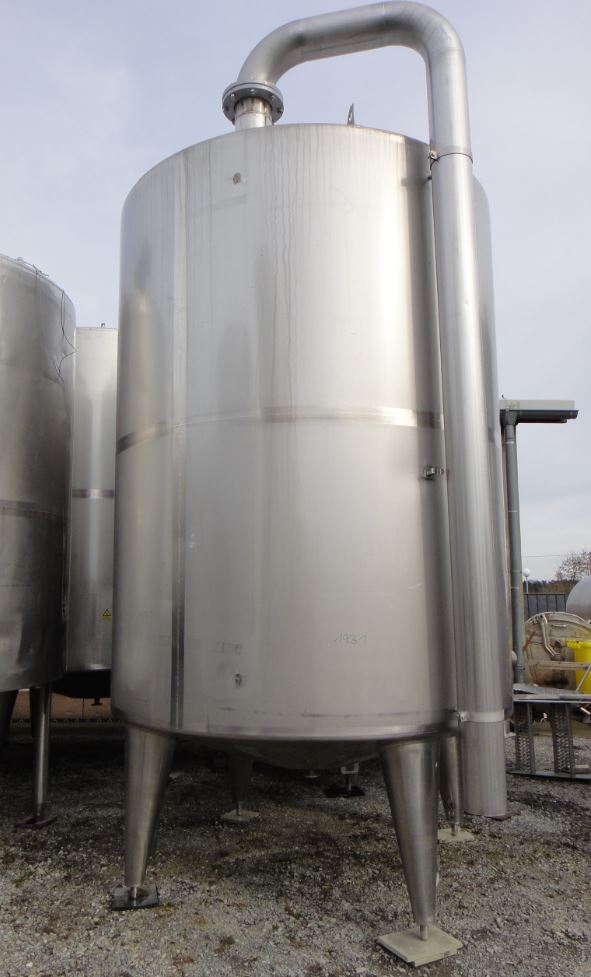

Container 12.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 12,000.00 litres. The diameter inside includes 2,300 mm.  Container 12.000 liters made of V2A, used, isolated was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Cleaning/CIP,

General

  • Volume approx.

  • 12.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Alfa-Laval

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.300 mm

  • External diameter

  • 2.400 mm

  • Cyl. height

  • 3.060 mm

  • Foot height

  • 960 mm

  • Total height

  • 4.820 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

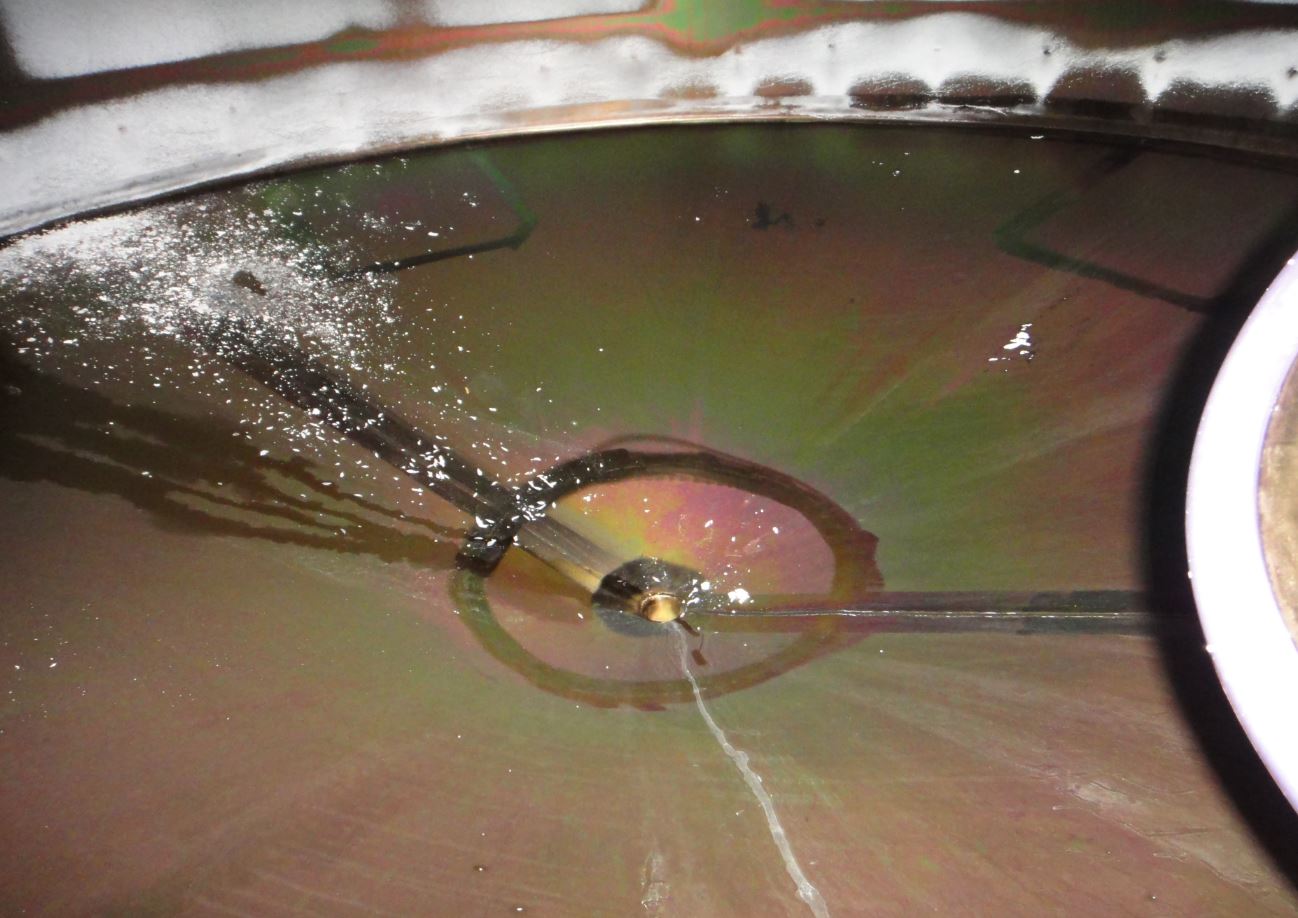

  • Floor type

  • Conical bottom

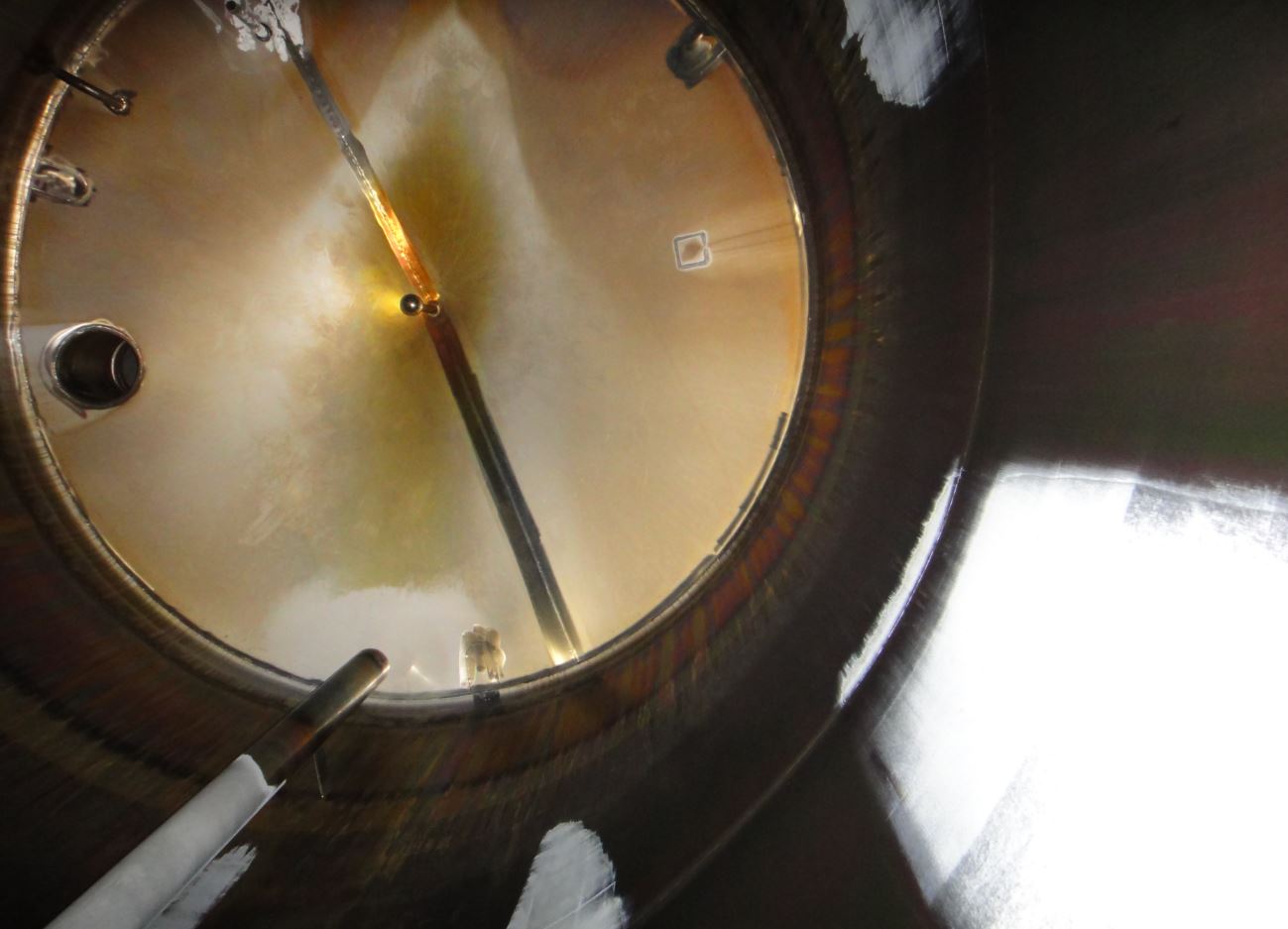

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

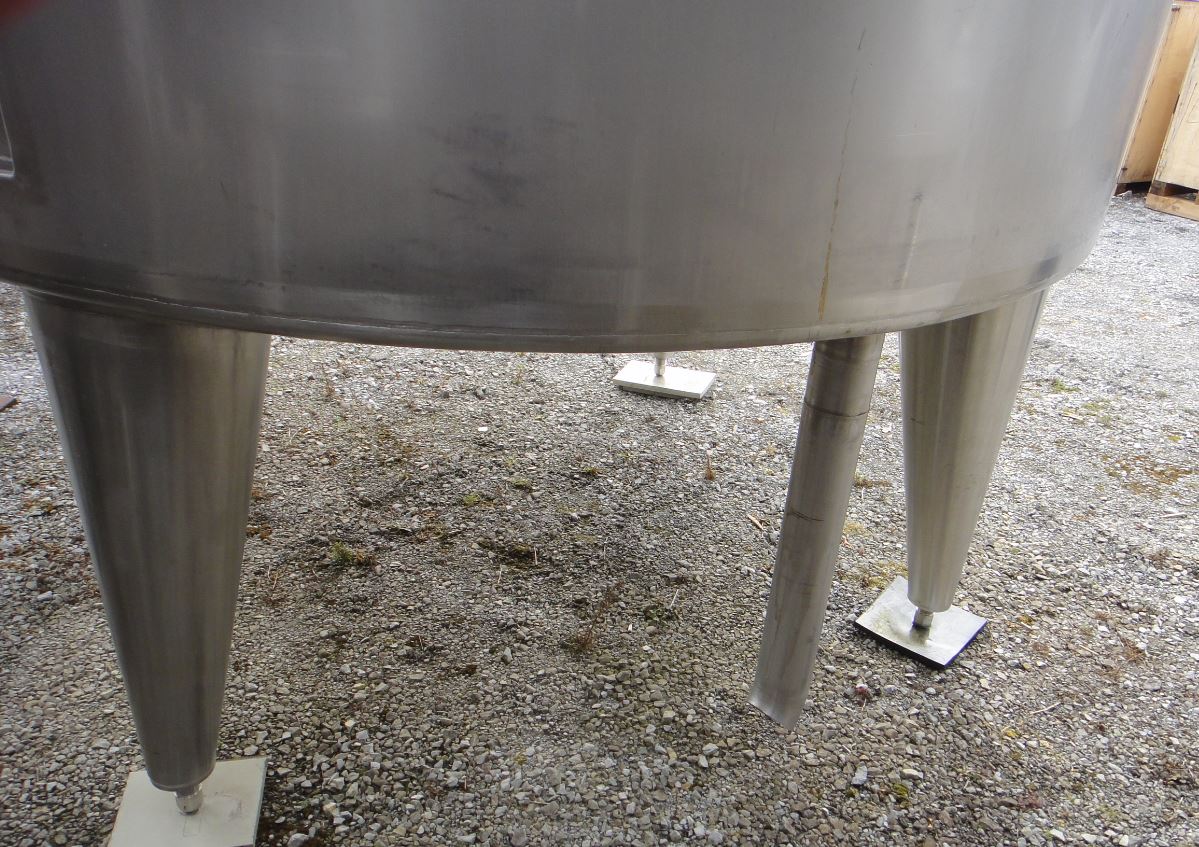

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

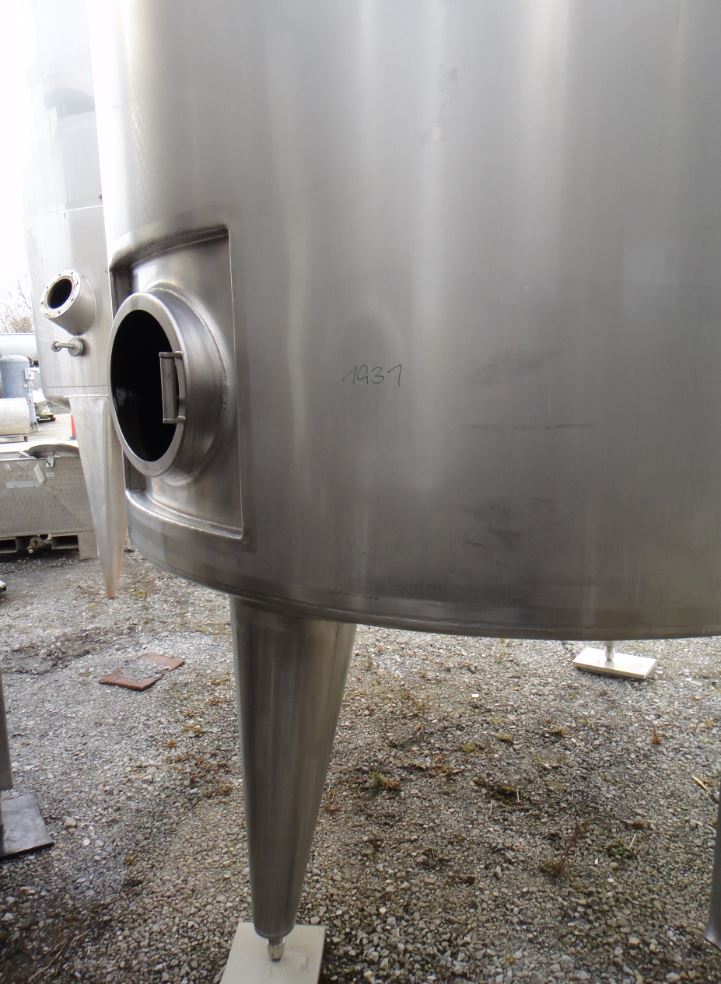

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN100 (piece)

  • Nozzles/connectors in head

  • 1xDN200 (piece)

  • Nozzles/connectors in floor

  • 1xDN80 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

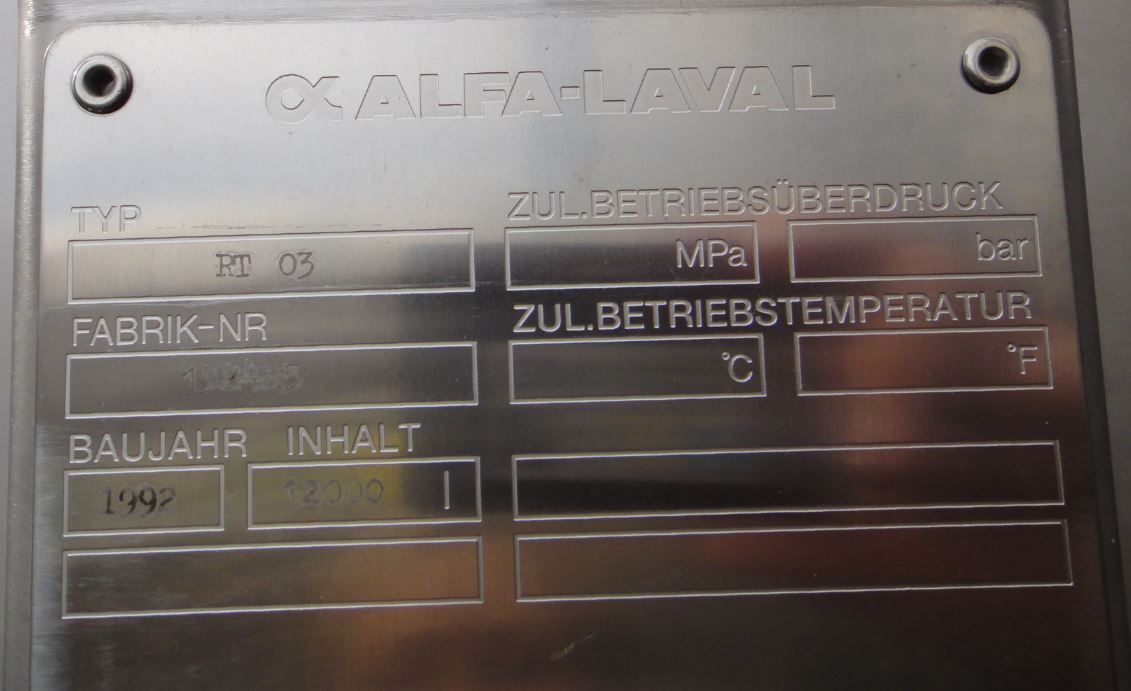

  • Nameplate

Other

  • Note

  • Bodenbereich

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs: Water tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,
