Product no. M-1276

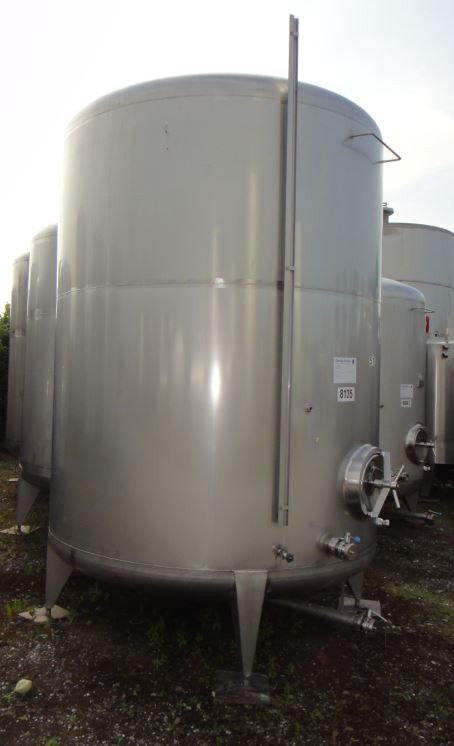

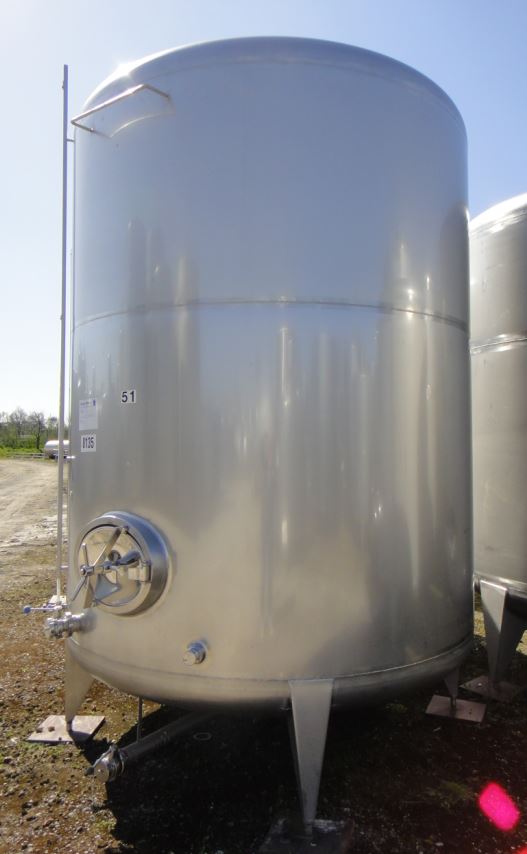

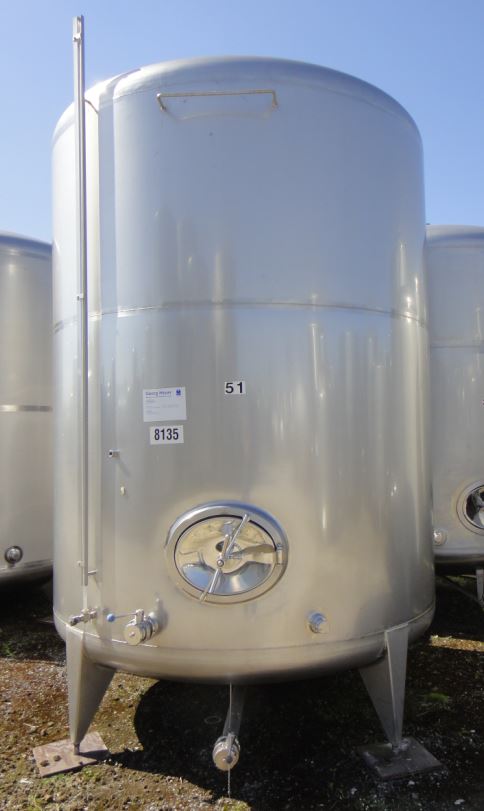

Container 11.400 liters made of V2A, used, single-walled, standing

EUR 6.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 11,400.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 11.400 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 11,400.00 litres.  Container 11.400 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 11.400,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.200 mm

  • Cyl. height

  • 2.500 mm

  • Foot height

  • 550 mm

  • Total height

  • 3.450 mm

  • Wall thickness of product chamber head

  • 2,3 mm

  • Wall thickness of product chamber shell

  • 2,3 mm

  • Wall thickness of product chamber floor

  • 2,6 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

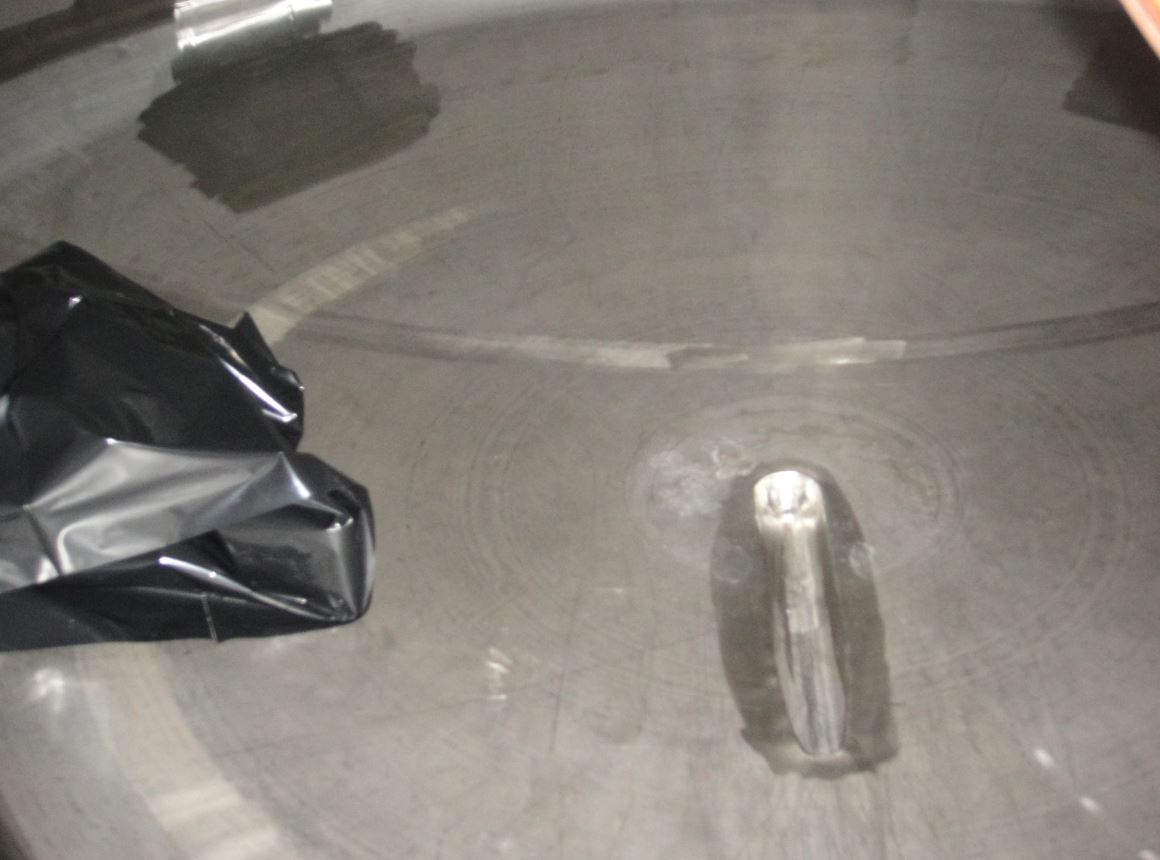

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

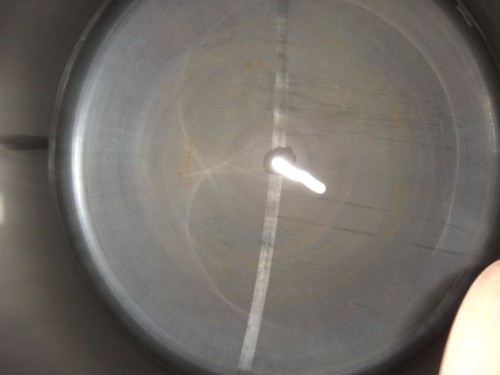

  • Manway position

  • In shell

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in shell

  • 1 (piece)

  • Nozzles/connectors in head

  • 1 (piece)

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Fill level pipes

  • Additional fixtures and fittings

  • Ladder stay

  • Drain port

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
