Product no. M-2489

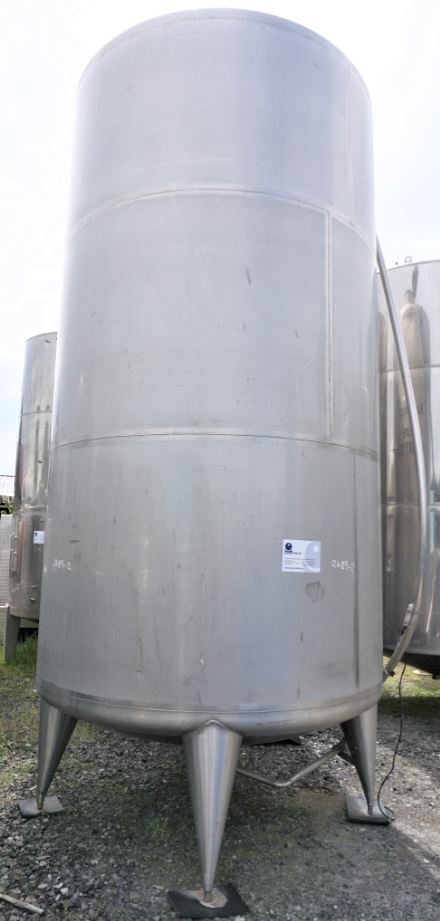

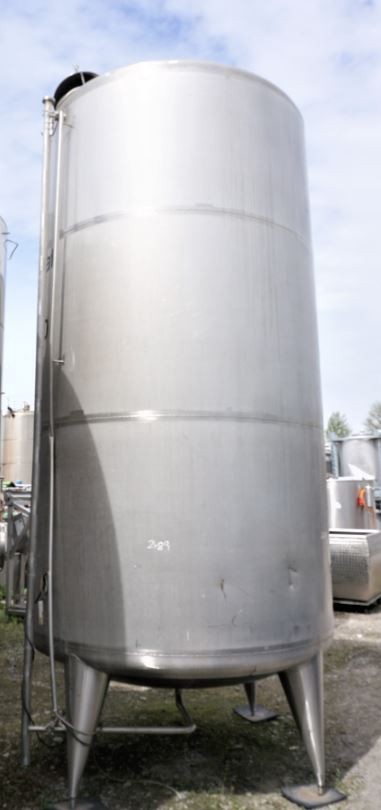

Container 11.000 liters made of V4A single-walled, used, standing

EUR 5.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 11,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 11.000 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 11,000.00 litres.  Container 11.000 liters made of V4A single-walled, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 11.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Cyl. height

  • 3.500 mm

  • Foot height

  • 810 mm

  • Total height

  • 4.810 mm

  • Wall thickness of product chamber head

  • 2,50 mm

  • Wall thickness of product chamber shell

  • 2,30 mm

  • Wall thickness of product chamber floor

  • 2,50 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

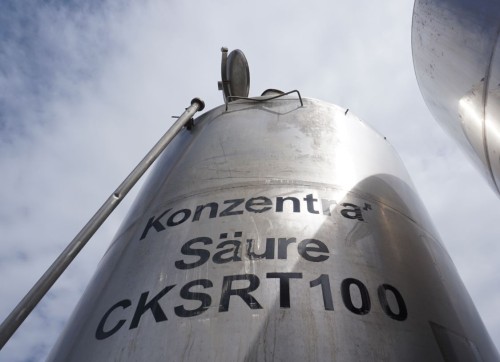

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

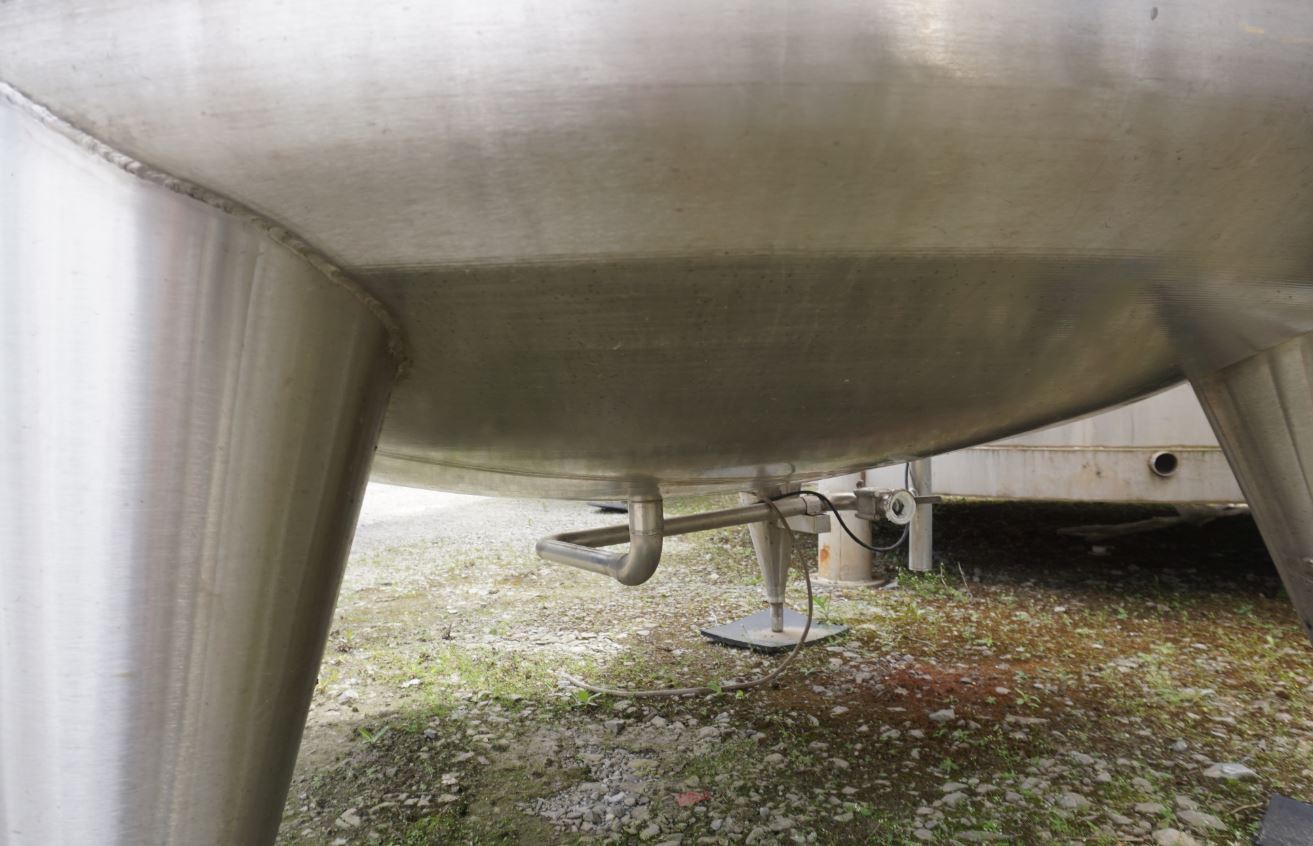

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Ladder stay

Technical documentation

  • Technical documentation

  • None

Other

  • Note

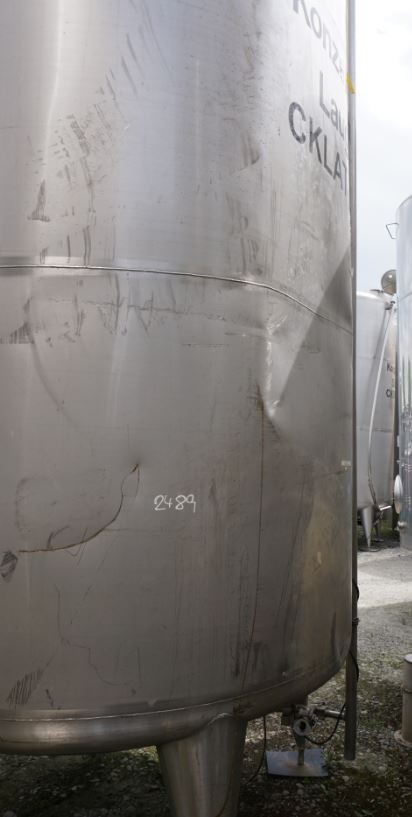

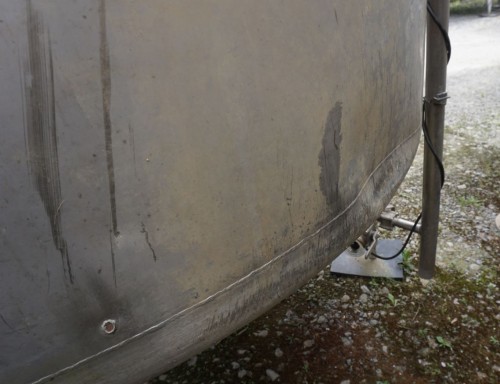

  • Anhaftung im Produktraum, kleine Druckstellen im Mantel

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, CIP tank,
